SHINING 3D | SKU:

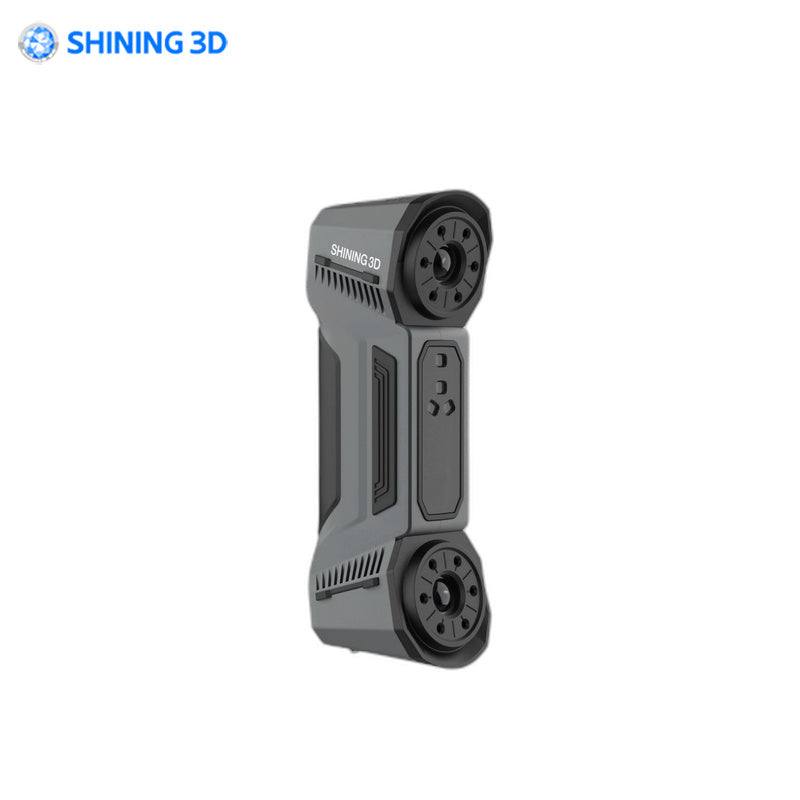

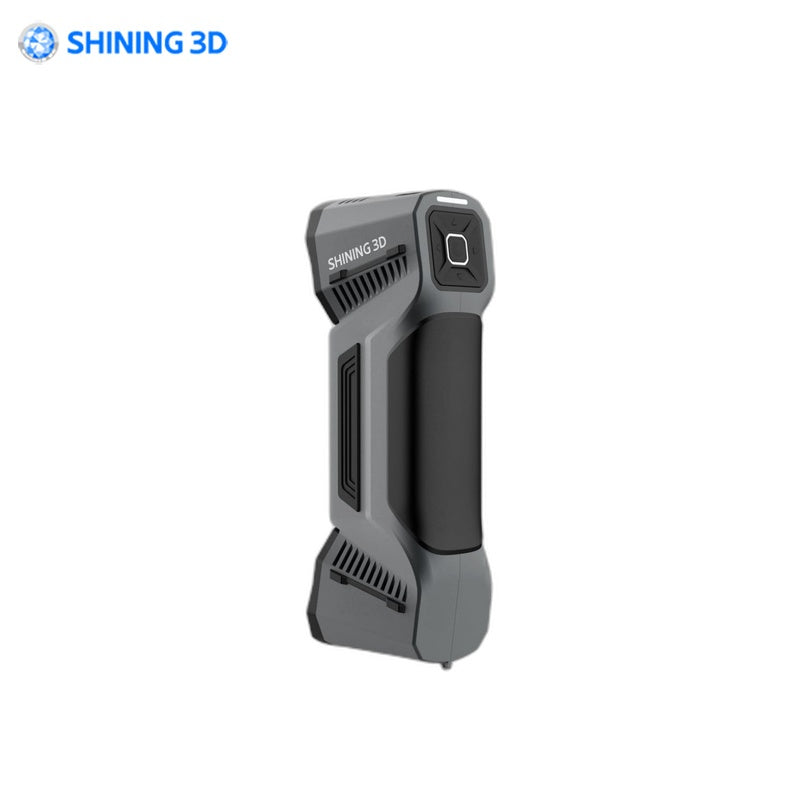

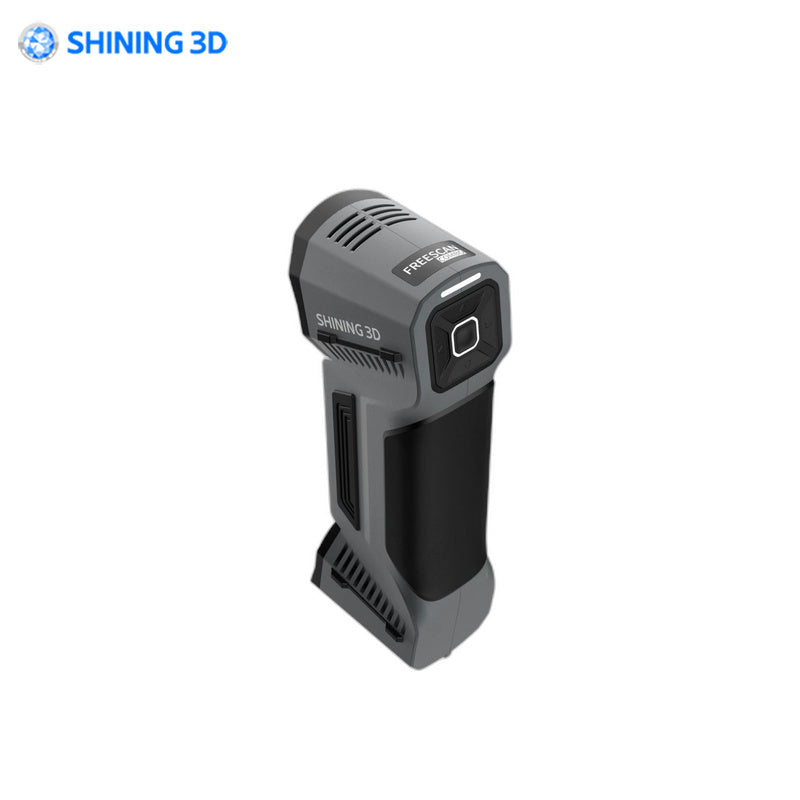

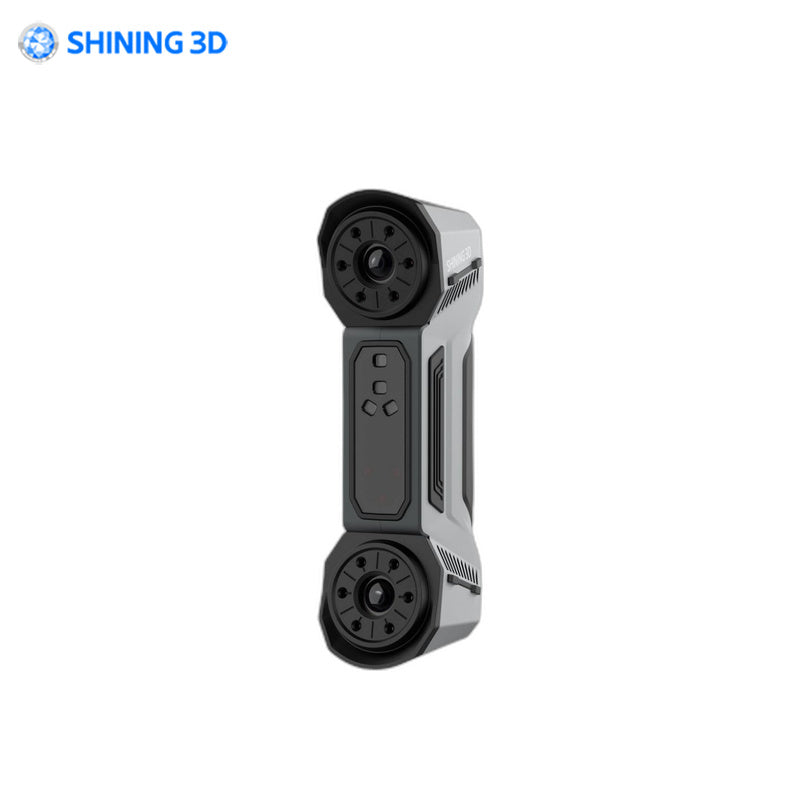

SHINING 3D FreeScan Combo Scanner
Regular price
$39,500.00
Unit price
SHINING 3D FreeScan Combo Scanner - FreeScan Combo is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
SHINING 3D FreeScan Combo Scanner
Regular price
$39,500.00
Unit price
SHINING 3D FreeScan Combo Scanner - FreeScan Combo is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | FreeScan Combo Basic |
| Scan Modes | High‑speed (26‑line cross blue laser), Deep‑hole (1‑line blue laser), Fine (7‑line parallel blue laser), Marker‑less* (optional, VCSEL infrared) |
| Accuracy | 0.02 mm |
| Volumetric Accuracy | 0.02 mm + 0.033 mm/m |
| Point Distance | 0.01 – 10 mm (adjustable) |
| Max Scanning Speed | 3,500,000 points/s |
| Max Scanning Area | 1000 × 800 mm |
| Reference Working Distance | 300 mm (Fine: 200 mm) |
| Depth of Field | 360 mm |
| Light Source Class | Blue laser Class II (eye‑safe) |
| Transmission | USB 3.0 |
| Dimensions (L × W × H) | 193 × 63 × 53 mm |
| Weight | 620 g |
| Input Voltage / Current | 12 V, 5.0 A |
| Operating Temperature | -20 °C ~ +40 °C |
| Operating Humidity | 10% RH ~ 90% RH |
| Certifications | CE, FCC, ROHS, WEEE, FDA, UKCA, IP50 |
| Recommended PC Configuration | Windows 10+ (64‑bit); NVIDIA RTX 4090 (16 GB VRAM); Intel i7‑10700+; RAM ≥64 GB |
