SHINING 3D

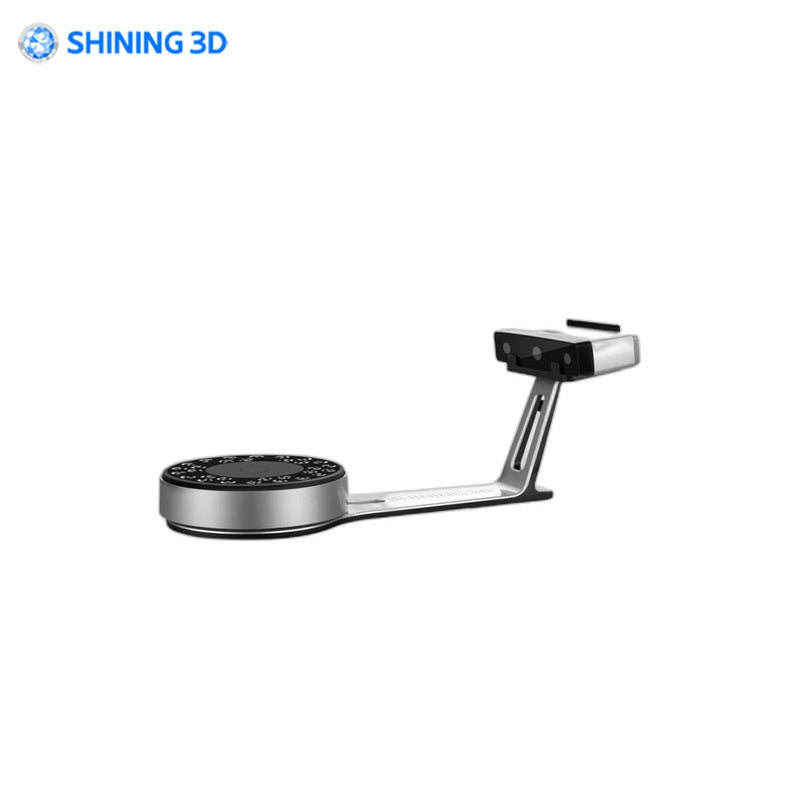

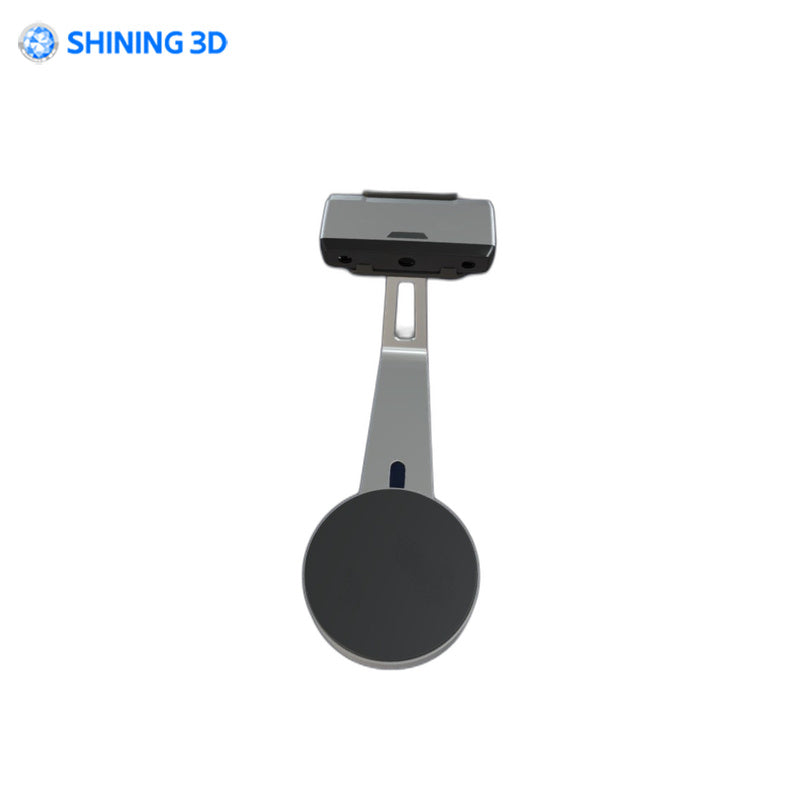

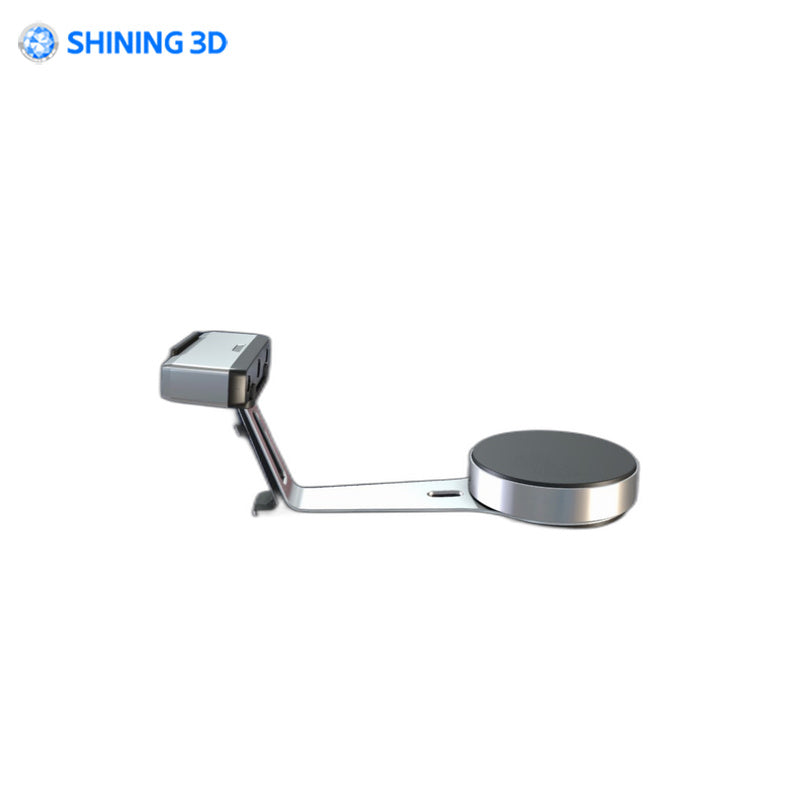

SHINING 3D EinScan SP V2 Scanner

$7,080.00

Version

EinScan SP V2

Delivery and Shipping

We automatically select the most cost-effective carrier from China for each destination country
Shipping rates are dynamically calculated based on real-time quotes
Final rates may vary due to promotional offers or carrier adjustments

Humanoid Robots

Robotic Arms

Exoskeletons

Quadruped Robots

AGV Vehicles

ARU Robots

Parameter	Value
Stand‑off Distance	290 ~ 480 mm
Dimensions	570 × 210 × 210 mm
Scanner Body Weight	2.5 kg
Turntable Load Capacity	5 kg
Power Supply	40 W
Input Voltage	AC 12 V, 3.33 A
Light Source	White LED, safe for eyes
Scanning Modes	Fixed Scan with turntable, Fixed Scan without turntable
Alignment Mode	With turntable: Turntable, Feature, Markers, Manual, Turntable coded targets; Without turntable: Feature, Markers, Manual
Single Shot Accuracy	≤ 0.05 mm
Minimum Scan Volume	30 × 30 × 30 mm
Maximum Scan Volume	With turntable: 200 × 200 × 200 mm; Without turntable: 1200 × 1200 × 1200 mm
Single Capture Range	200 × 150 mm
Scan Speed	Single shot < 1 s; Turntable < 45 s
Point Distance	0.17 ~ 0.2 mm
Texture Capture	Yes
File Formats	OBJ, STL, ASC, PLY, 3MF
Camera Resolution	1.3 MP
Calibration Board	HD
Turntable	Turntable with coded targets
Software Included	EXScan S
System Requirements (Minimum)	USB 2.0/3.0; OS Win7/8/10 (64‑bit); NVIDIA graphics (≥1 GB); Dual‑core i5 or higher; RAM ≥8 GB
System Requirements (Recommended)	NVIDIA GTX660 or higher (≥2 GB); Dual‑core i5 or higher; RAM ≥16 GB
