SHINING 3D | SKU:

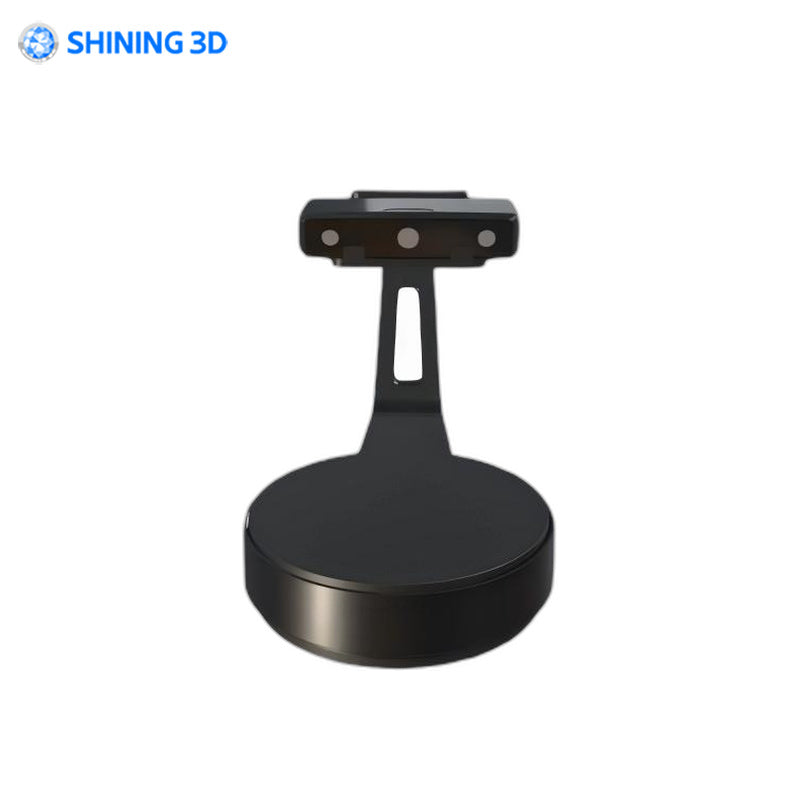

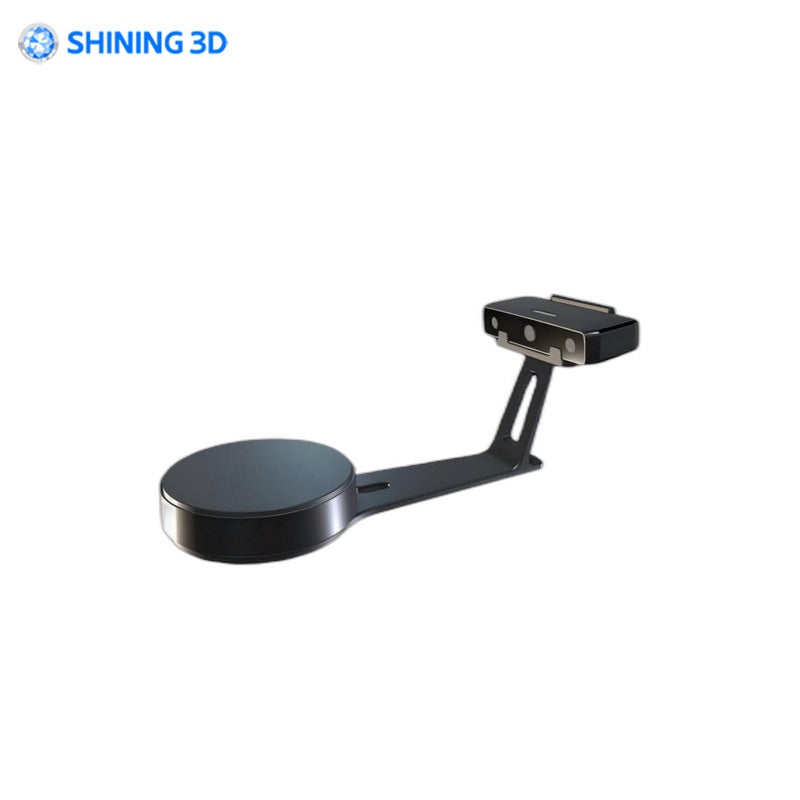

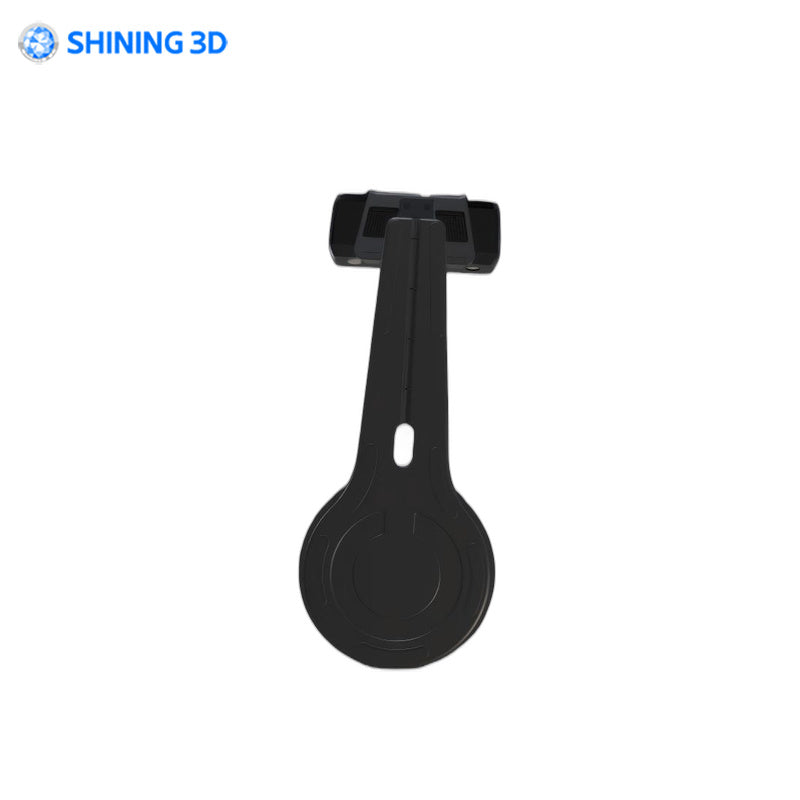

SHINING 3D EinScan SE V2 Scanner
Regular price
$2,600.00
Unit price
SHINING 3D EinScan SE V2 Scanner - EinScan SE V2 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
SHINING 3D EinScan SE V2 Scanner
Regular price
$2,600.00
Unit price
SHINING 3D EinScan SE V2 Scanner - EinScan SE V2 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Working Distance | 290 ~ 480 mm |
| Scanner Body Weight | 2.5 kg |
| Dimension | 570 × 210 × 210 mm |
| Turntable Load Capacity | 5 kg |
| Power Supply | 40 W |
| Input Voltage | DC 12 V, 3.33 A |
| Light Source | White LED, safe for eyes |
| Scan Modes | Fixed with turntable, Fixed without turntable |
| Mode of Alignment | With turntable: Feature, Manual, Turntable; Without turntable: Feature, Manual |
| Single Shot Accuracy | ≤ 0.1 mm |
| Minimum Scan Volume | 30 × 30 × 30 mm |
| Maximum Scan Volume | With turntable: 200 × 200 × 200 mm; Without turntable: 700 × 700 × 700 mm |
| Single Scan Range | 200 × 150 mm |
| Scan Speed | Single shot < 1 s; Turntable < 45 s |
| Point Distance | 0.17 ~ 0.2 mm |
| Texture Capture | Yes |
| File Formats | OBJ, STL, ASC, PLY, 3MF |
| Camera Resolution | 1.3 MP |
| Calibration Board | Standard (included) |
| Turntable | Standard (included) |
| System Requirements (Minimum) | USB 2.0/3.0; OS Win7/8/10 (64‑bit); NVIDIA graphics (≥1 GB); Dual‑core i5 or higher; RAM ≥8 GB |
| System Requirements (Recommended) | NVIDIA GTX660 or higher (≥2 GB); Dual‑core i5 or higher; RAM ≥16 GB |
