SHINING 3D

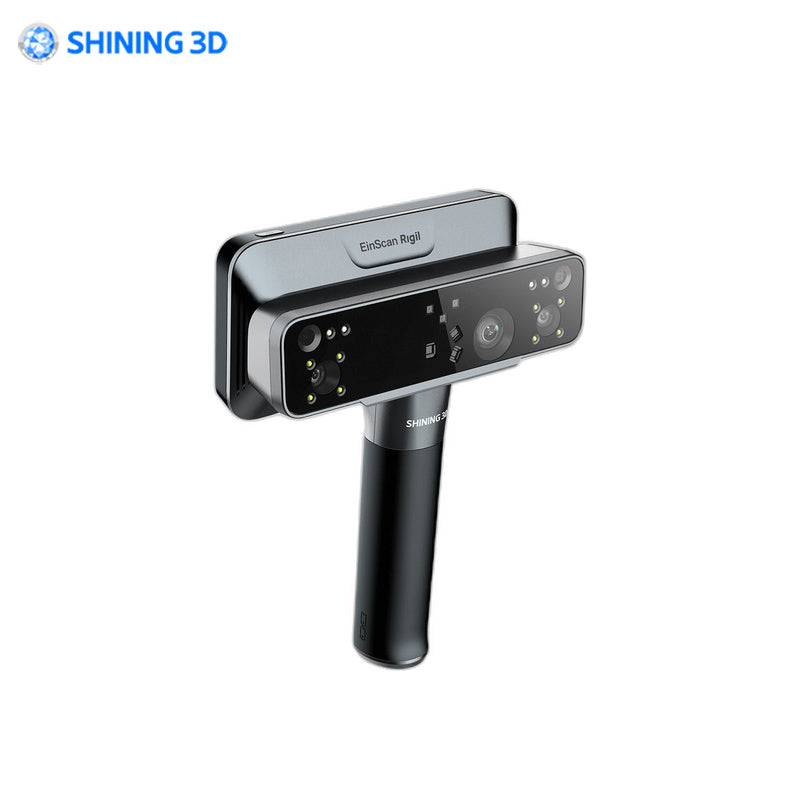

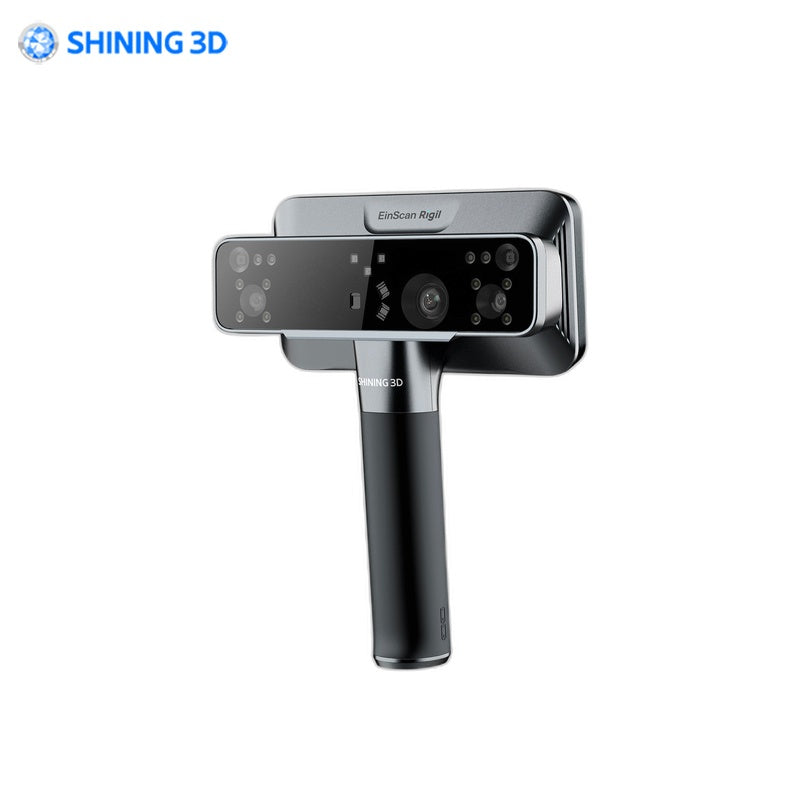

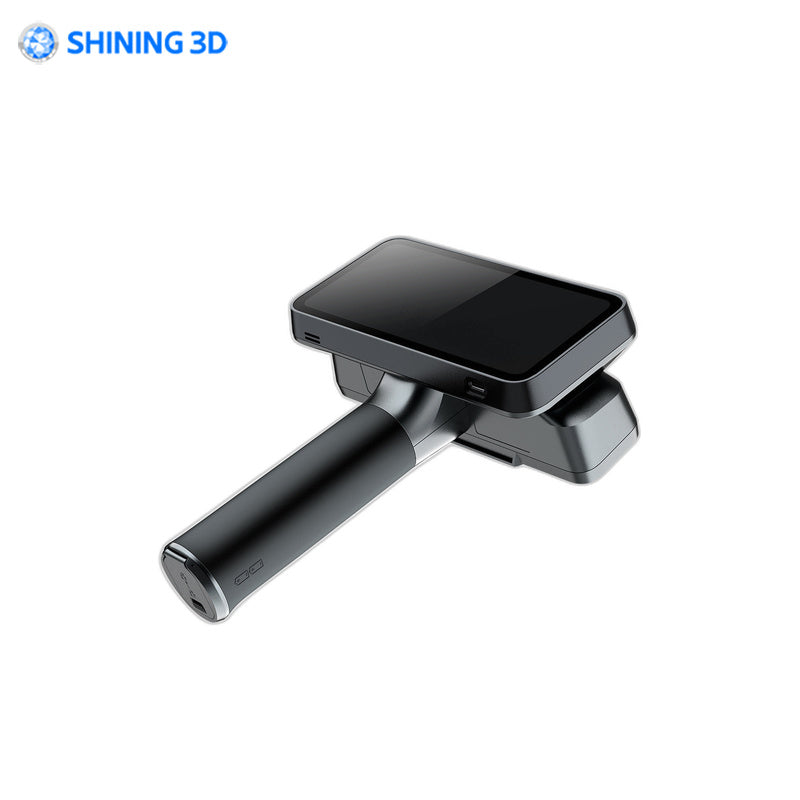

SHINING 3D EinScan Rigil Scanner

$12,250.00

Version

EinScan Rigil

Delivery and Shipping

We automatically select the most cost-effective carrier from China for each destination country
Shipping rates are dynamically calculated based on real-time quotes
Final rates may vary due to promotional offers or carrier adjustments

Humanoid Robots

Robotic Arms

Exoskeletons

Quadruped Robots

AGV Vehicles

ARU Robots

Parameter	Value
Product Model	EinScan Rigil
Operating Mode	Wireless all‑in‑one; supports wireless/wired connection to PC for extra computing power
Scanning Modes	Laser scanning mode, Infrared scanning mode
Light Source Type	Laser: 38‑line cross blue laser / 7‑line parallel blue laser; Infrared: Infrared VCSEL
Point Distance	Laser: 0.05‑10 mm; Infrared: 0.2‑10 mm
Scanning Speed	Laser (cross): 4,400,000 pts/s; Laser (parallel): 940,000 pts/s; Infrared: 1,600,000 pts/s
Working Distance	Laser: 170‑550 mm; Infrared: 160‑1500 mm
Alignment Mode	Laser: Frame/Marker/Feature/Hybrid; Infrared: Frame/Marker/Feature/Texture/Hybrid
Basic Accuracy	0.04 mm
Volumetric Accuracy	0.04 mm + 0.06 mm/m
Texture Camera Resolution	5 MP
Data Formats	.PLY, .STL, .OBJ, .ASC, .LAS, .3MF
Laser Safety Class	Class II (laser) / Class I (infrared)
Built‑in Hardware	CPU: 8‑core 2.4 GHz; 1 TB SSD; 32 GB DDR5 RAM; 6.4‑inch 2K AMOLED touchscreen
Operating Temperature	-10 °C ~ +40 °C
Certifications	CE, FCC, ROHS, WEEE, FDA, SRRC, IP50
Recommended PC Configuration	Windows 10/11 (64‑bit); NVIDIA GTX 3060 (8 GB VRAM); Intel i7‑13700H; RAM ≥64 GB
Power Supply	4 × 5500 mAh batteries (2 spares); USB‑Type C charging; supports 60W PD3.0 fast charging
Dimensions (L × W × H)	233 × 180 × 72.8 mm
Weight	870 g (including battery and integrated screen)
