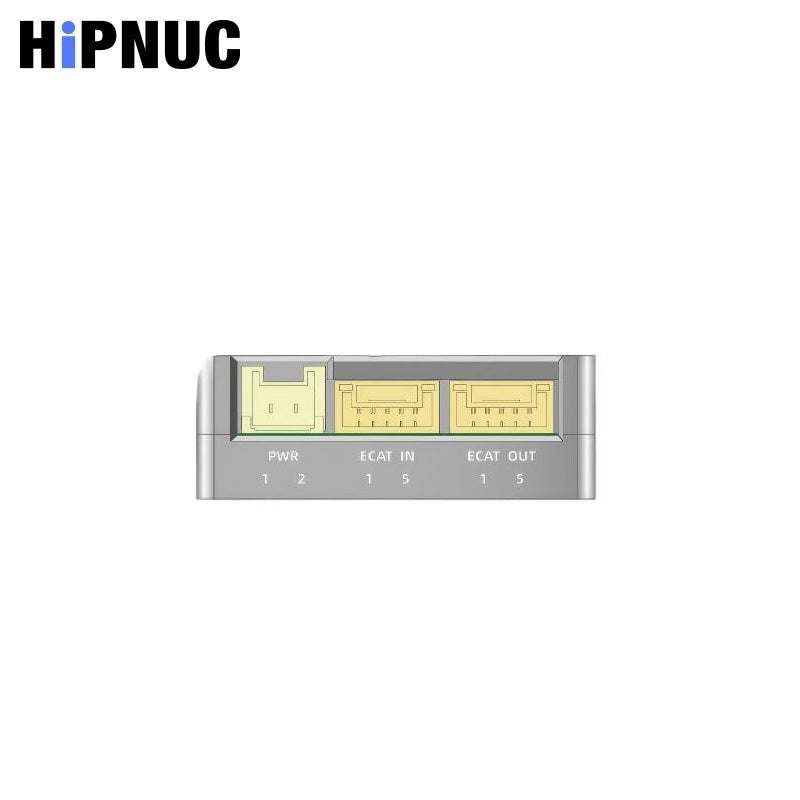

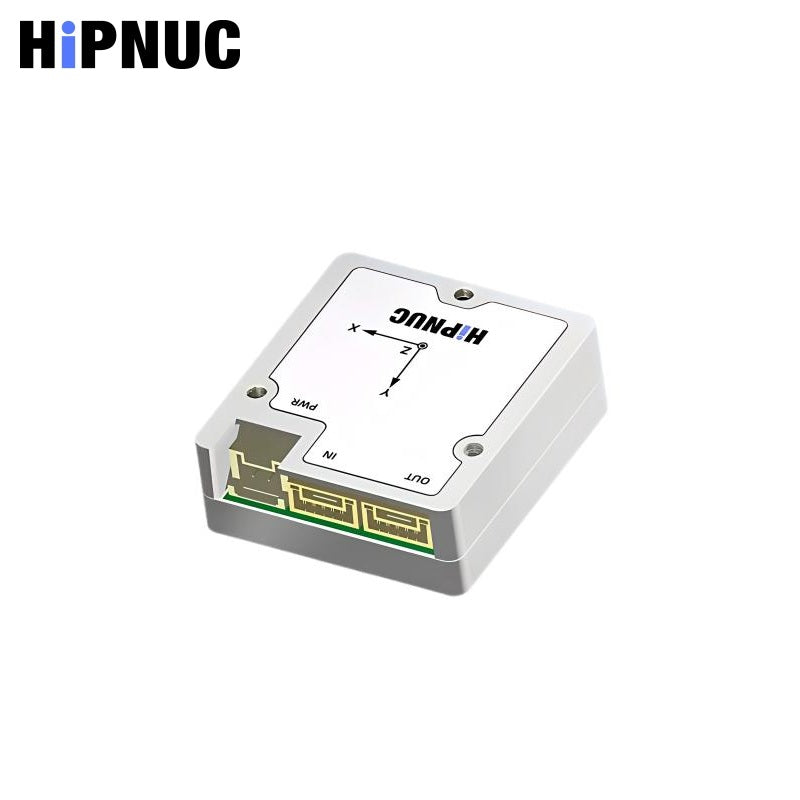

HiPNUC HI15 Sensor

$410.00
Version

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information


Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
Gyroscope:
Measurement Range ±250, ±500, ±1000, ±2000 °/s (Default: ±2000 °/s)
Resolution 16 bit (Typical: RMS)
Scale Factor Error (Condition: 100 °/s rotation) <600 / 850 ppm
Nonlinearity ±0.05 %FS
Noise Density (Condition: 47 Hz bandwidth) 0.008 °/s/√Hz
   3dB Bandwidth 80 ~ 200 Hz
   Initial Bias 0.1 / ±0.45 °/s
Sampling Rate 1000 Hz
Bias Instability (Allan Variance, X-axis) 1.5 / 2.5 °/h (Typical: 1σ, Max: 3σ)
Bias Instability (Allan Variance, Y-axis) 1.9 / 3.2 °/h (Typical: 1σ, Max: 3σ)
Bias Instability (Allan Variance, Z-axis) 1.7 / 3.2 °/h (Typical: 1σ, Max: 3σ)
   Bias Stability (10s averaged, X-axis) 5.5 / 7 °/h (Typical: 1σ, Max: 3σ)
Bias Stability (10s averaged, Y-axis) 7.5 / 9 °/h (Typical: 1σ, Max: 3σ)
Bias Stability (10s averaged, Z-axis) 5.5 / 7 °/h (Typical: 1σ, Max: 3σ)
Bias Repeatability (X-axis) 11.5 / 21 °/h
Bias Repeatability (Y-axis) 15 / 30 °/h
Bias Repeatability (Z-axis) 9.5 / 15 °/h
Angle Random Walk (ARW, Allan Variance, X-axis) 0.3 / 0.6 °/√h (Typical: 1σ, Max: 3σ)
Angle Random Walk (ARW, Allan Variance, Y-axis) 0.4 / 0.7 °/√h (Typical: 1σ, Max: 3σ)
Angle Random Walk (ARW, Allan Variance, Z-axis) 0.2 / 0.4 °/√h (Typical: 1σ, Max: 3σ)
Bias Variation Over Temperature (Condition: -40℃ ~ 85℃) 0.09 / 0.2 °/s
Accelerometer Sensitivity (XYZ axes) 0.05 °/s/g
Accelerometer Parameters:
Measurement Range ±3, ±6, ±12, ±24 g (Default: ±12 g)
Resolution 16 bit
Initial Bias 1 / 2 mg (Typical: RMS)
Nonlinearity ±0.01 %FS
Noise Density 0.09 / 0.12 mg/√Hz
3dB Bandwidth 90 ~ 200 Hz
Sampling Rate 1000 Hz
Bias Instability (Allan Variance, X-axis) 0.015 / 0.02 mg (Typical: 1σ, Max: 3σ)
Bias Instability (Allan Variance, Y-axis) 0.02 / 0.045 mg (Typical: 1σ, Max: 3σ)
Bias Instability (Allan Variance, Z-axis) 0.015 / 0.02 mg (Typical: 1σ, Max: 3σ)
Bias Stability (10s averaged, X-axis) 0.06 / 0.1 mg (Typical: 1σ, Max: 3σ)
Bias Stability (10s averaged, Y-axis) 0.055 / 0.15 mg (Typical: 1σ, Max: 3σ)
Bias Stability (10s averaged, Z-axis) 0.05 / 0.06 mg (Typical: 1σ, Max: 3σ)
Bias Repeatability (X-axis) 0.127 / 0.25 mg
Bias Repeatability (Y-axis) 0.09 / 0.15 mg
Bias Repeatability (Z-axis) 0.07 / 0.15 mg
Velocity Random Walk (VRW, Allan Variance, X-axis) 0.09 / 0.11 m/s/√h (Typical: 1σ, Max: 3σ)
Velocity Random Walk (VRW, Allan Variance, Y-axis) 0.055 / 0.065 m/s/√h (Typical: 1σ, Max: 3σ)
Velocity Random Walk (VRW, Allan Variance, Z-axis) 0.019 / 0.03 m/s/√h (Typical: 1σ, Max: 3σ)
Bias Variation Over Temperature (Condition: -40℃ ~ 85℃) 2.5 / 5 mg
Temperature Sensor Parameters:
Measurement Range -40 ~ 85 ℃
Offset Error ±5 ℃
Fusion Accuracy - Attitude Angle Accuracy:
Pitch/Roll (Static) 0.1 / 0.15 °
Pitch/Roll (Dynamic) 0.2 / 0.3 °
Heading Static Drift (6-DoF, Condition: static 2h cumulative drift) 0.15 / 0.2 °
Heading Rotation Error (6-DoF, Condition: 100 °/s rotation) <0.2 / 0.3 °
