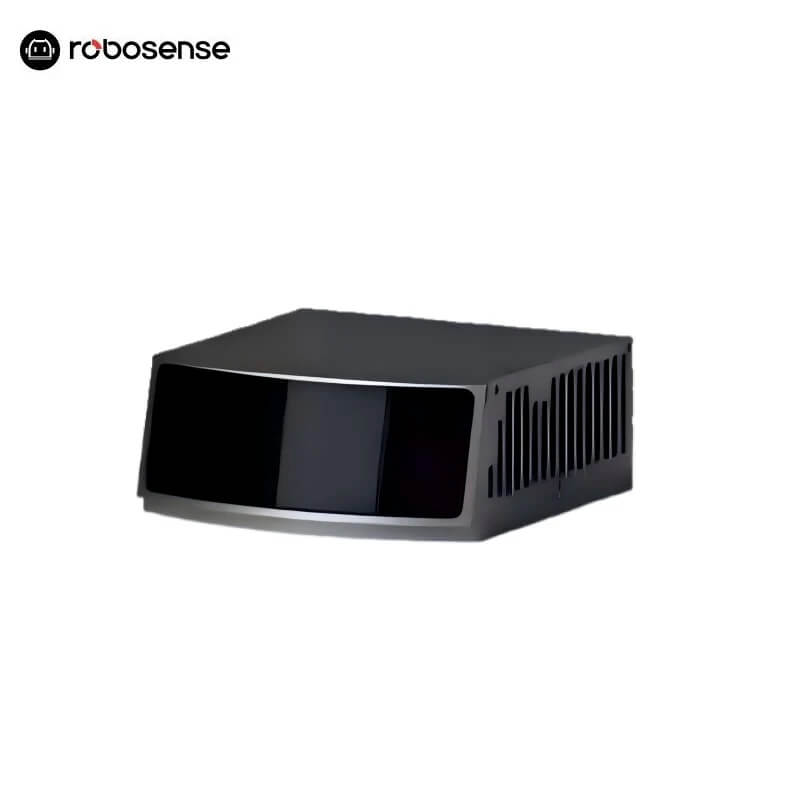

RoboSense M2 LiDAR
Regular price
$3,300.00
Unit price
RoboSense M2 LiDAR - M2 (Automaker Edition) / Device Only is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
RoboSense M2 LiDAR
Regular priceFrom
$3,300.00
Unit price
RoboSense M2 LiDAR - M2 (Automaker Edition) / Device Only is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Ranging Distance | 0.5m ~ 250m (200m@10% NIST) |
| Ranging Precision | ±5cm@1 sigma |
| FOV (Vertical) | 25° (-12.5°~+12.5°) |
| Angular Resolution (Vertical) | Average 0.1° |
| FOV (Horizontal) | 120° (-60.0°~+60.0°) |
| Angular Resolution (Horizontal) | Average 0.1° |
| Frame Rate | 10 Hz |
| Laser Wavelength | 905nm |
| Laser Safety Level | Class 1 Eye Safe |
| Ethernet Transmission Rate | 1000Base-T1 Gigabit Ethernet |
| Points per Second | 157,500 points/sec (Single Return Mode) |
| 315,000 points/sec (Dual Return Mode) | |
| Lidar Data Packet Contents | UDP Packet |
| Power Consumption | 15W |
| Working Voltage | 9~16VDC |
| Weight | Approx. 0.75kg (excluding data cable) |
| Dimensions | Length 110mm × Width 111mm × Height 45mm |
| Protection Level | IP67, IP6K9K |
| Operating Temperature Range | -40°C ~ 85°C (Forced convection required for prolonged operation) |
| Storage Temperature | -40°C ~ 105°C |
