DSpower

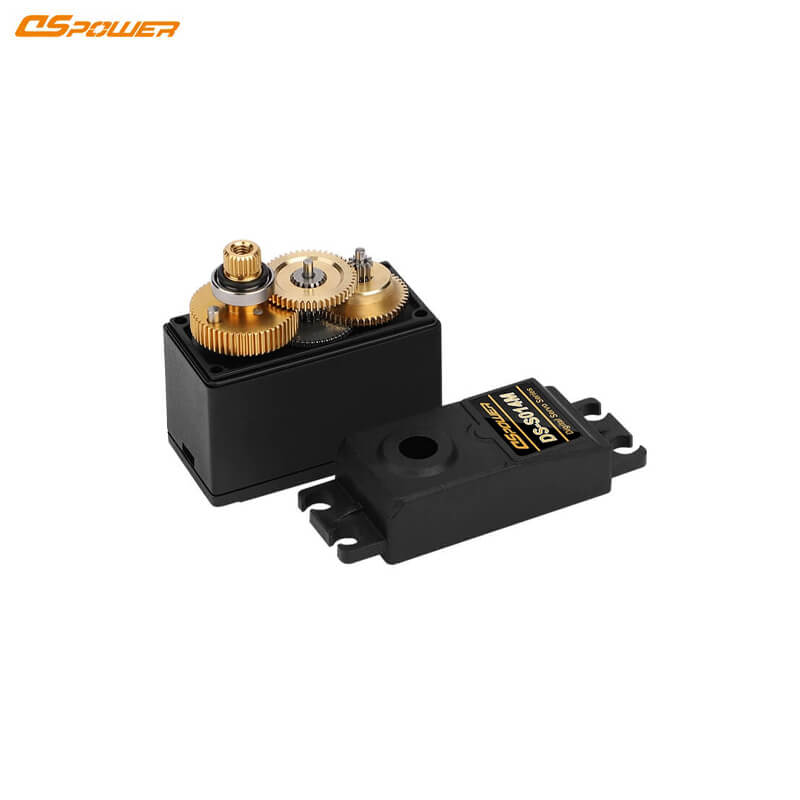

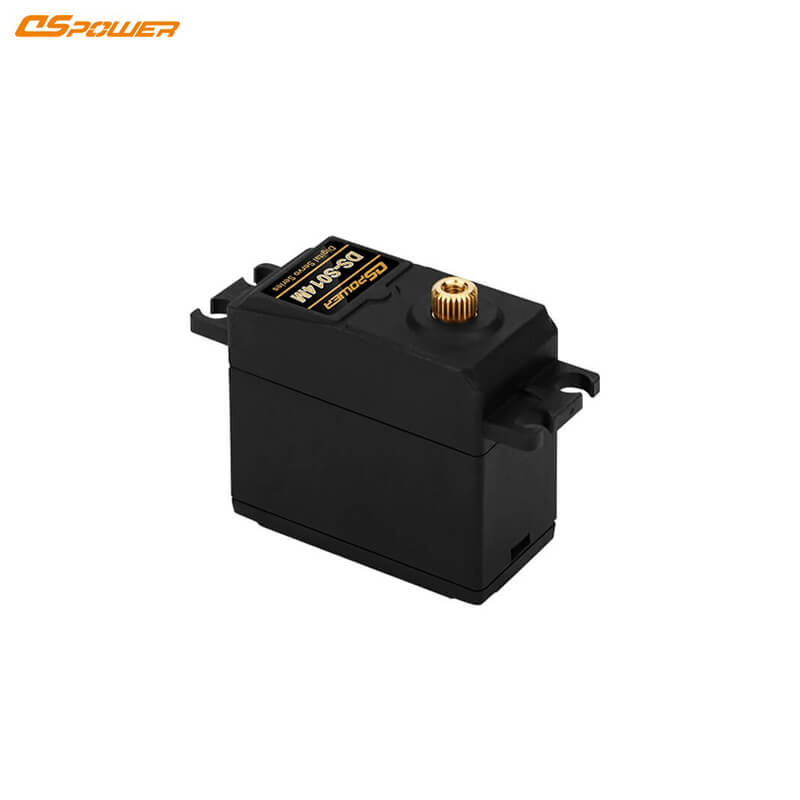

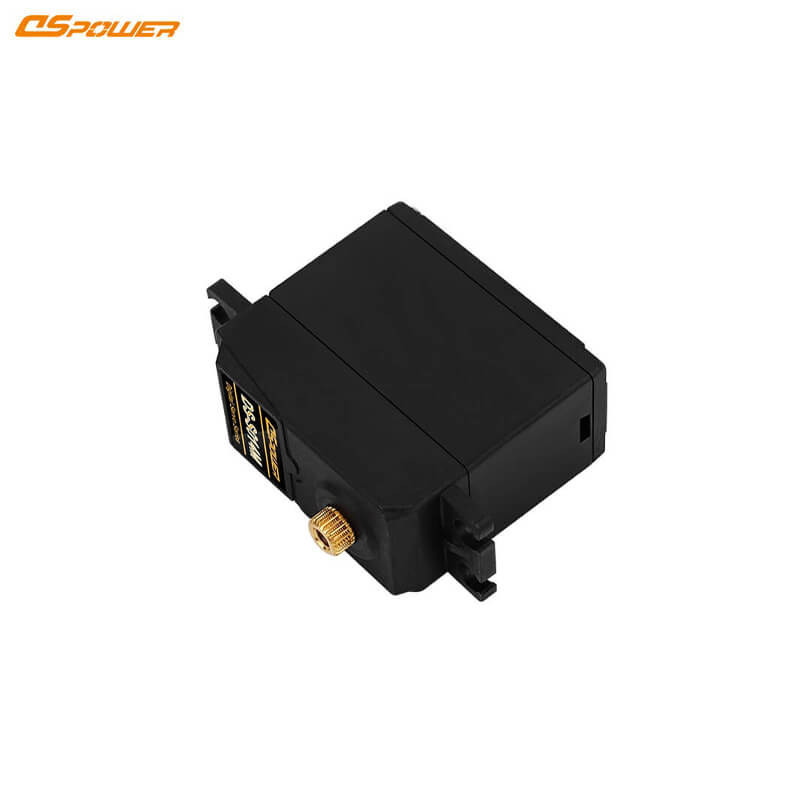

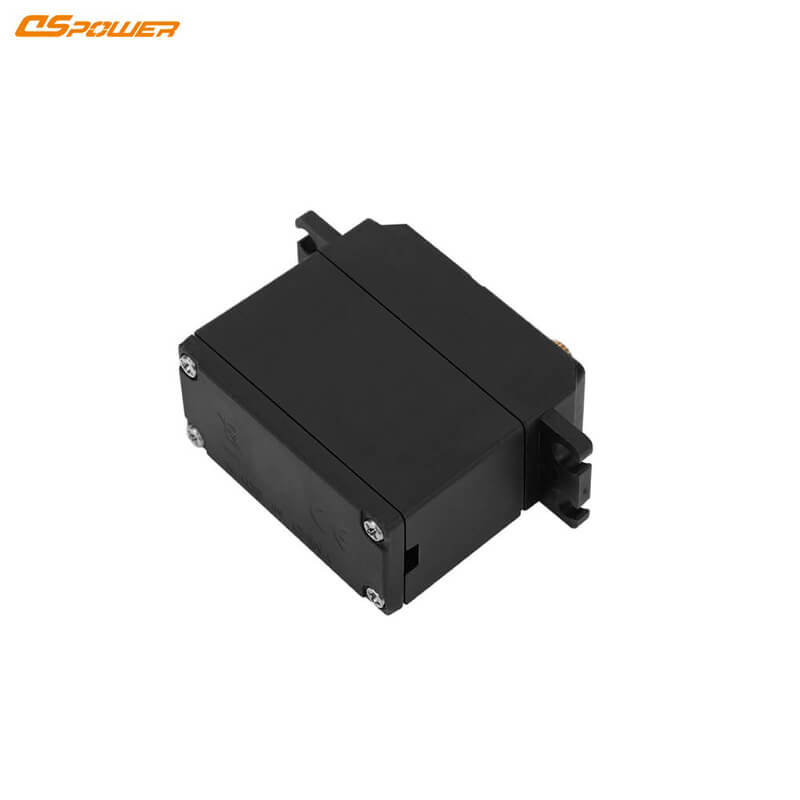

DSpower DS-S014M Servo Motor

$25.00

Version

DS-S014M

Delivery and Shipping

We automatically select the most cost-effective carrier from China for each destination country
Shipping rates are dynamically calculated based on real-time quotes
Final rates may vary due to promotional offers or carrier adjustments

Application Scenarios

Humanoid Robots

Robotic Arms

Exoskeletons

Quadruped Robots

AGV Vehicles

ARU Robots

Technical Specifications

Parameter	Value
Operating Voltage	4.8~6.0V DC
No Load Speed	≤0.29sec./60° at 4.8 V
	≤0.26sec./60° at 6.0 V
Rated Torque	1.8kgf·cm at 4.8 V
	2.0kgf·cmg at 6.0 V
Stall Current	≤1.8A at 4.8 V
	≤2.1A at 6.0 V
Stall Torque	≥9 kgf·cm at 4.8 V
	≥11kgf·cm at 6.0 V
Pulse Width Range	500~2500μs
Operating Travel Angle	90°±10°
Mechanical Limit Angle	210°
Weight	52±1g
Case Material	PA
Gear Set Material	Metal Gears
Motor Type	Iron Core

DSpower DS-S014M Servo Motor-DRAW.pdf
