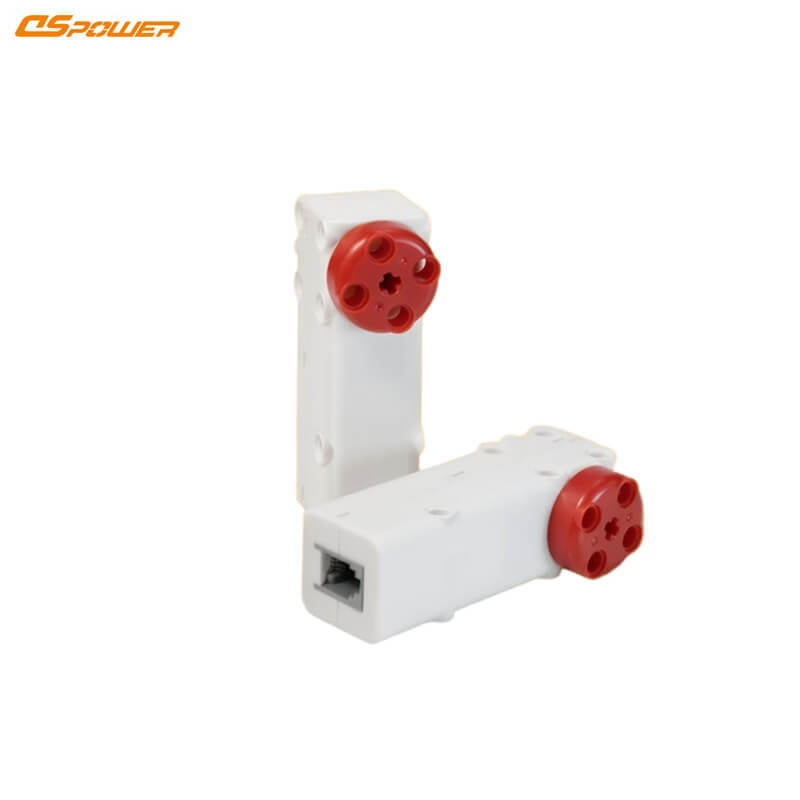

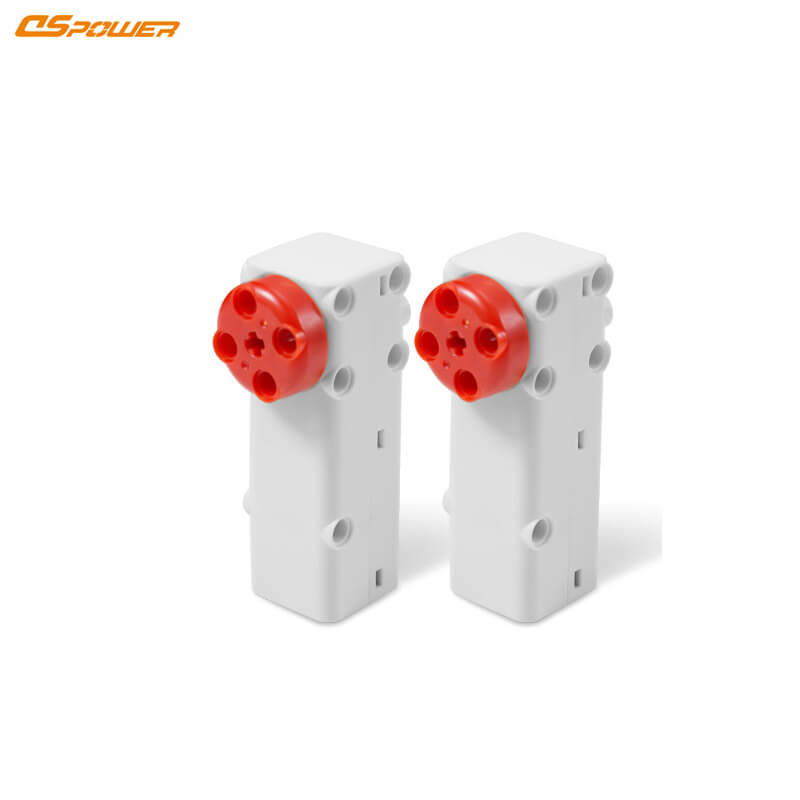

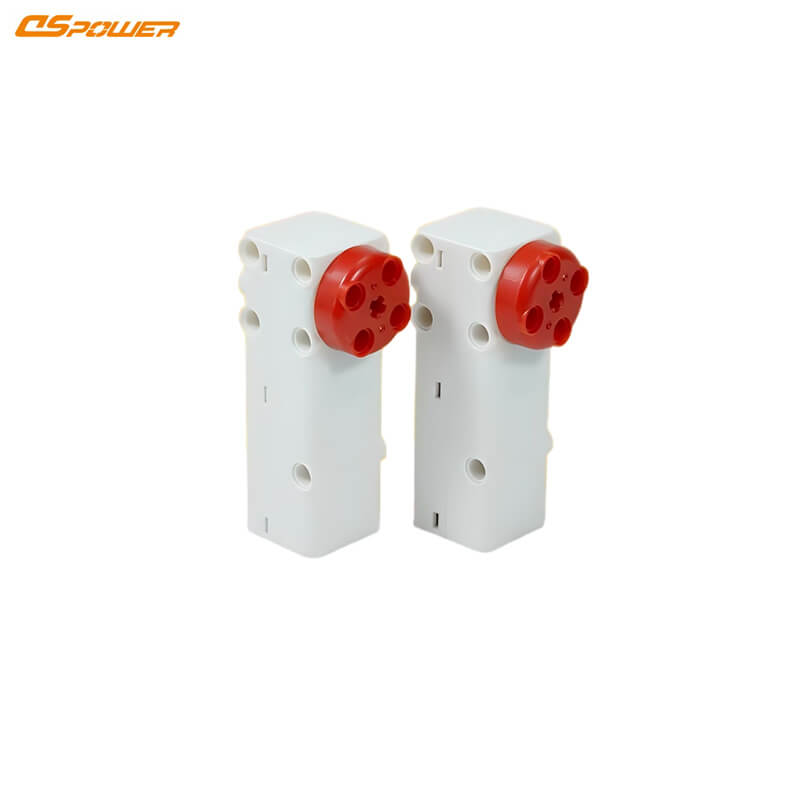

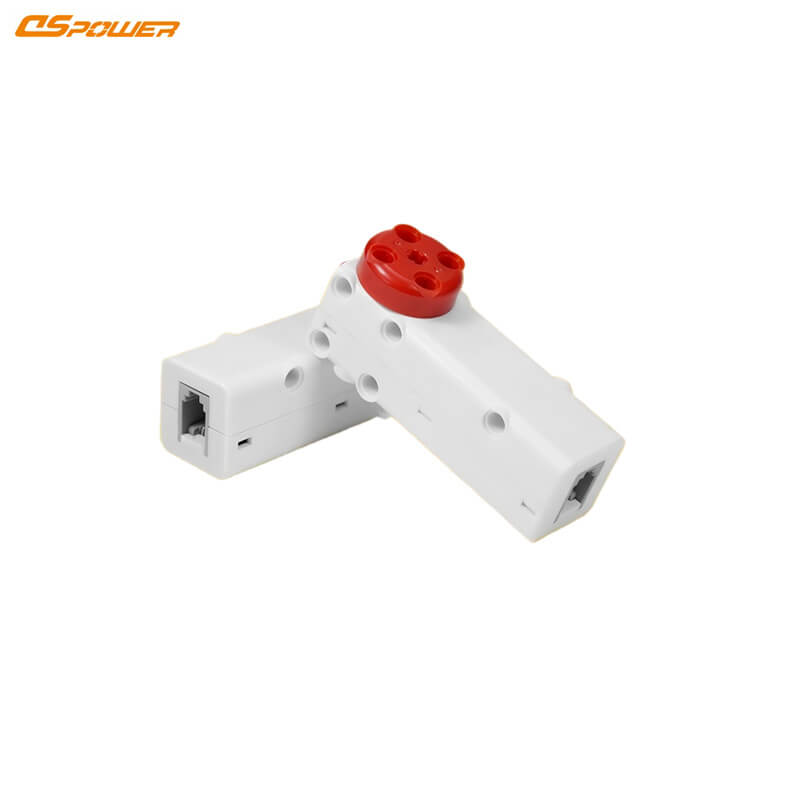

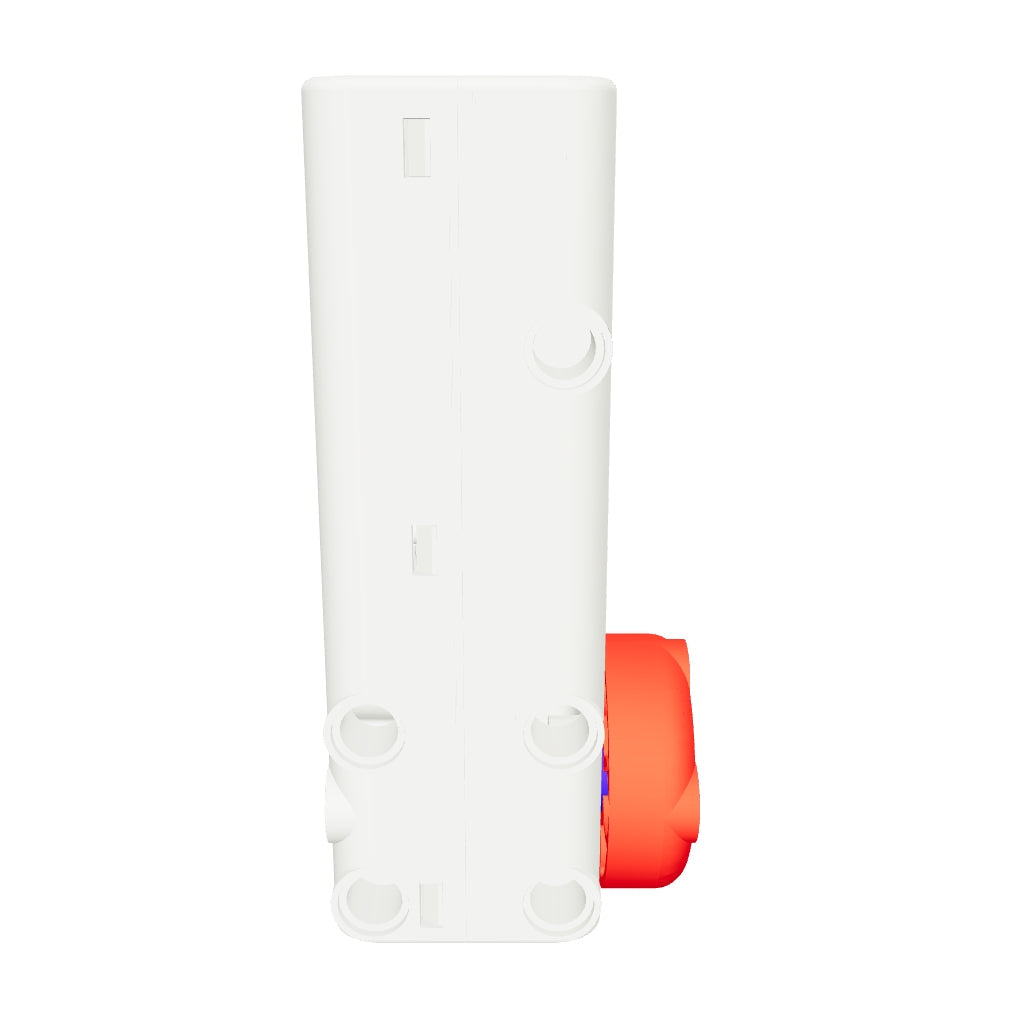

DSpower DS-E025A Servo Motor

$25.00
Version

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information


Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
Operating Voltage 3.0~7.0V DC
Rated Voltage 6V DC
No Load Current ≤300mA
No Load Speed 145±10 rpm
Stall Current ≤3.6A
Stall Torque ≥4.0 kgf·cm
Clutch Test 3KG TBD
Control Accuracy ≤3°
Operating Temperature Range -10°C ~ +50°C, ≤90%RH
Storage Temperature Range -20°C ~ +60°C, ≤90%RH
Case Material ABS
Gear Set Material POM
Motor Type Core Motor (Carbon Brush)
Noise Level ≤65 dBA

DSpower DS-E025A Servo Motor-DRAW.pdf
