DSpower | SKU:

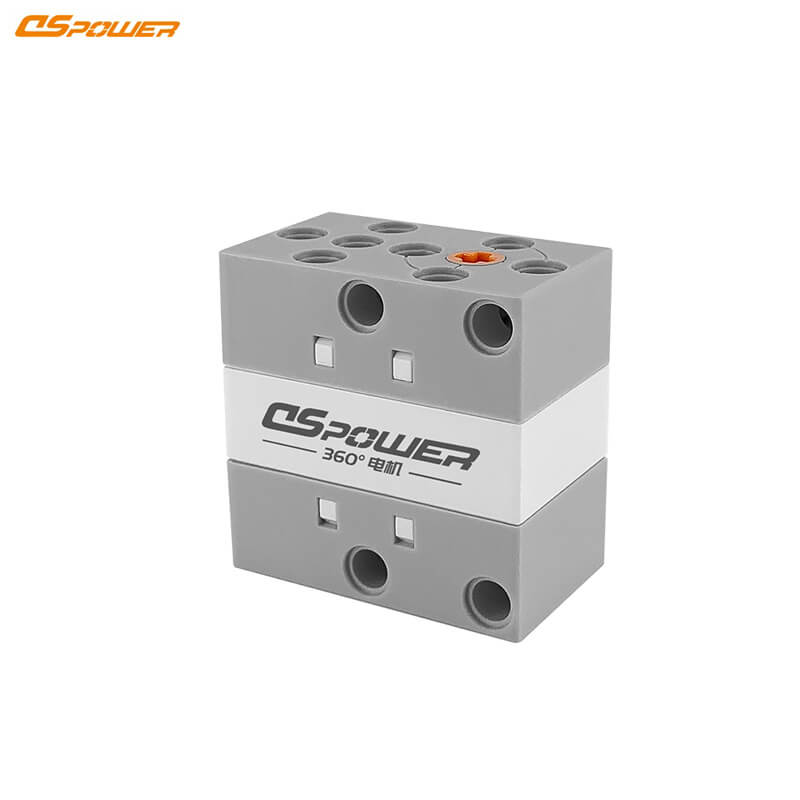

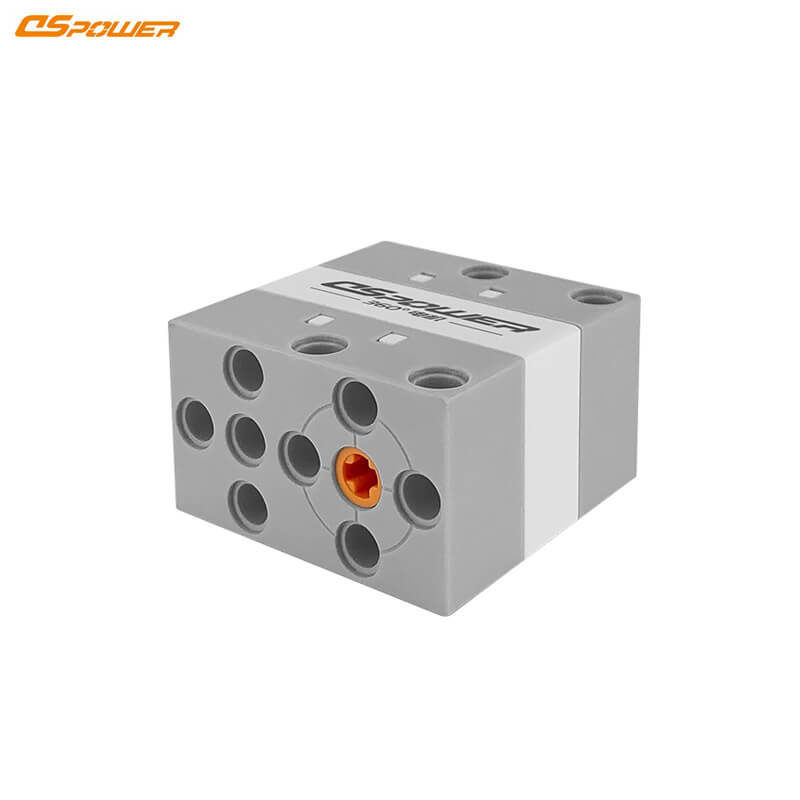

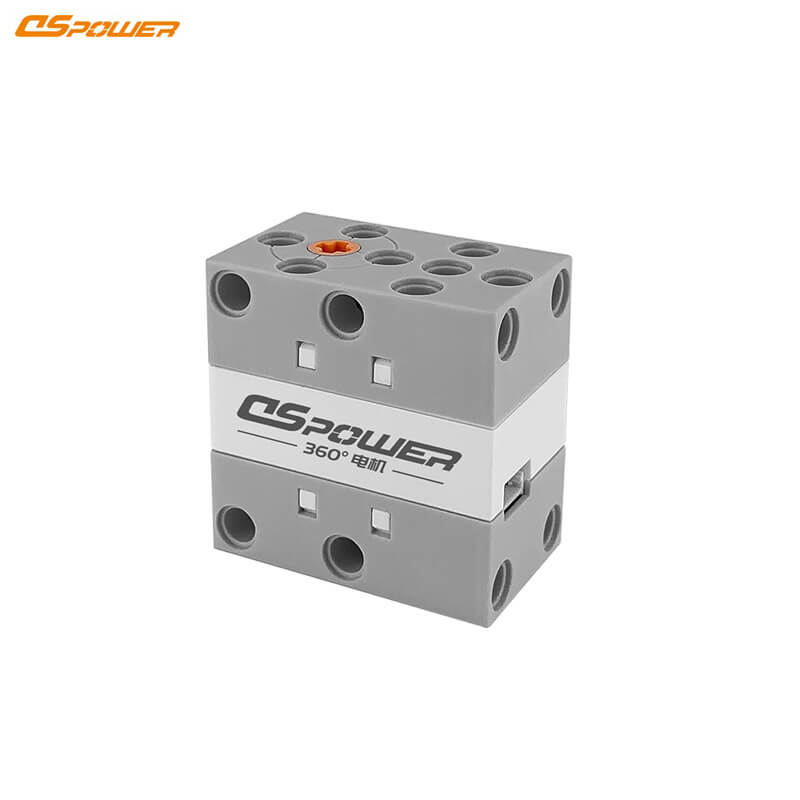

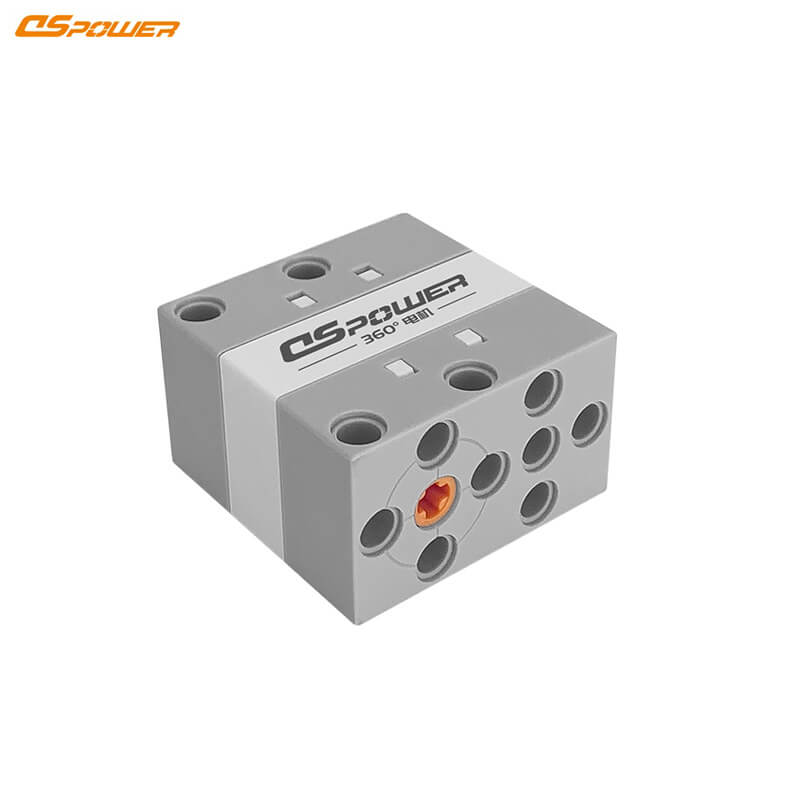

DSpower DS-E001F Servo Motor
Regular price
$25.00
Unit price
DSpower DS-E001F Servo Motor - DS-E001F is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
DSpower DS-E001F Servo Motor
Regular price
$25.00
Unit price
DSpower DS-E001F Servo Motor - DS-E001F is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Operating Voltage | 6.0~9.0V DC |
| No Load Speed | 110±10 rpm at 7.4V |
| No Load Current | ≤150 mA at 7.4V |
| Stall Current | at 7.4V: ≤1.0 A |
| Stall Torque | at 7.4V: ≥1.5 kgf·cm |
| Pulse Width Range | 500 / 1500 / 2500 μs |
| Operating Travel Angle | 360° |
| Mechanical Limit Angle | 360° |
| Weight | 29.5 ± 0.5g |
| Case Material | ABS |
| Gear Set Material | POM |
| Motor Type | Core Motor |
