RichBeam

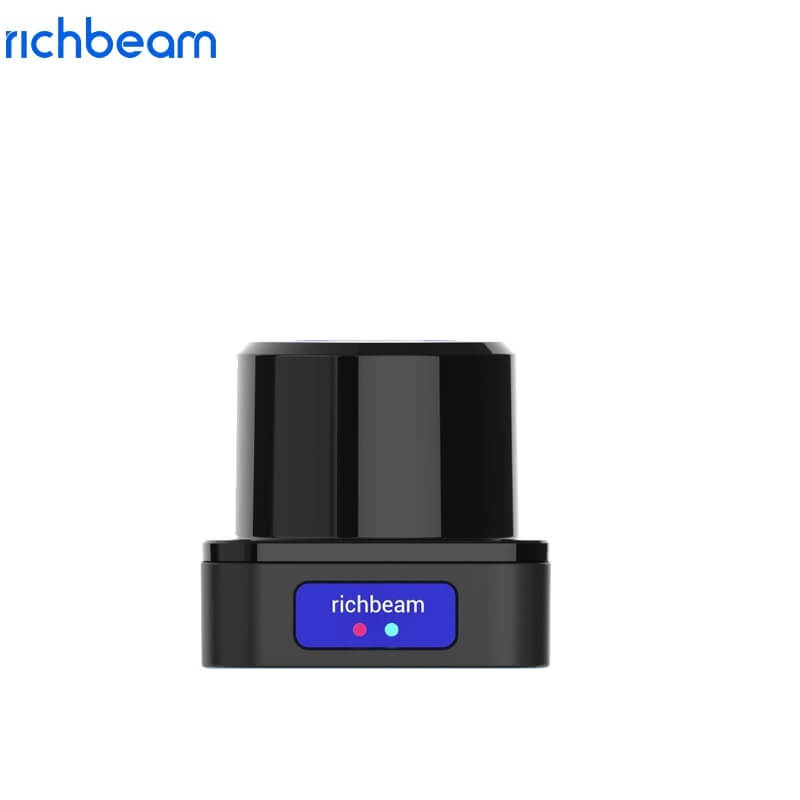

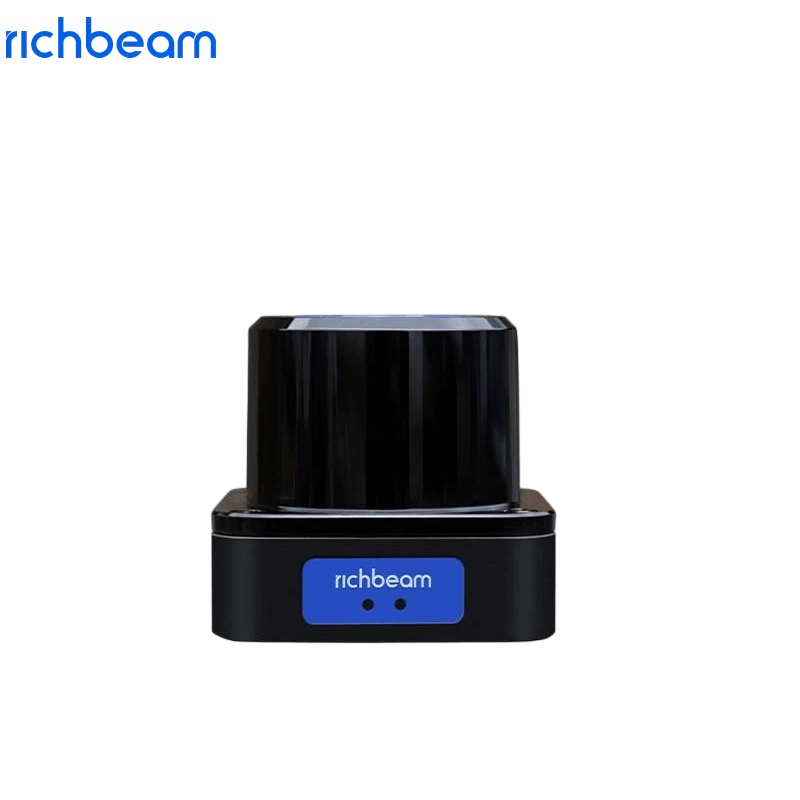

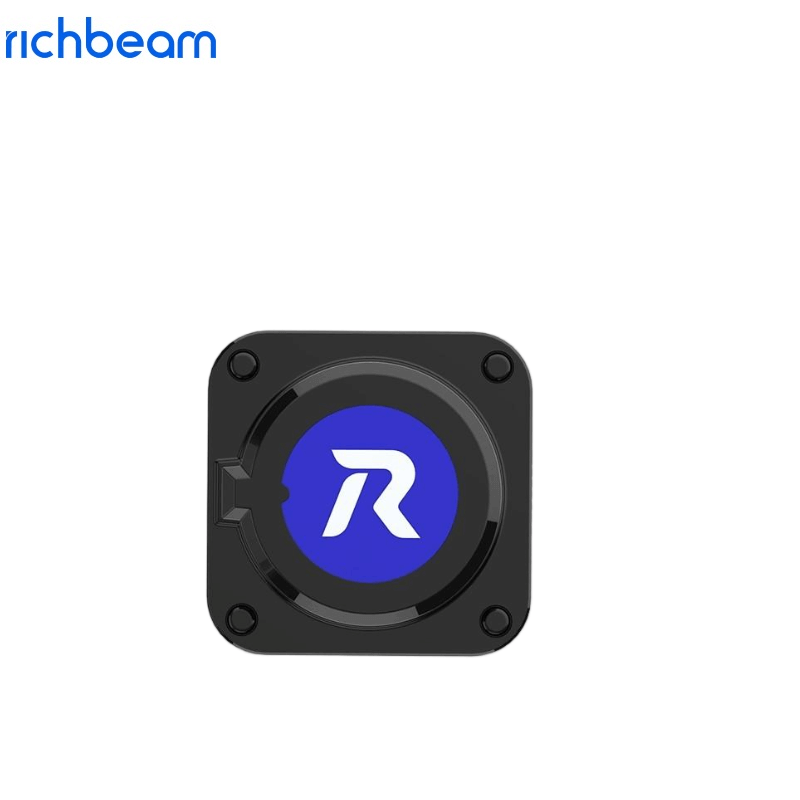

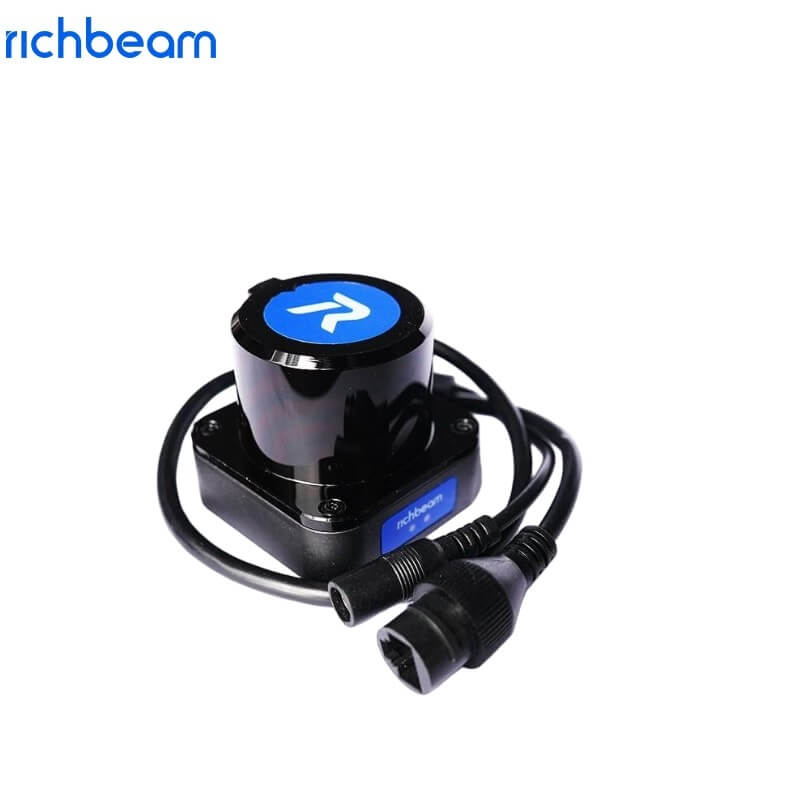

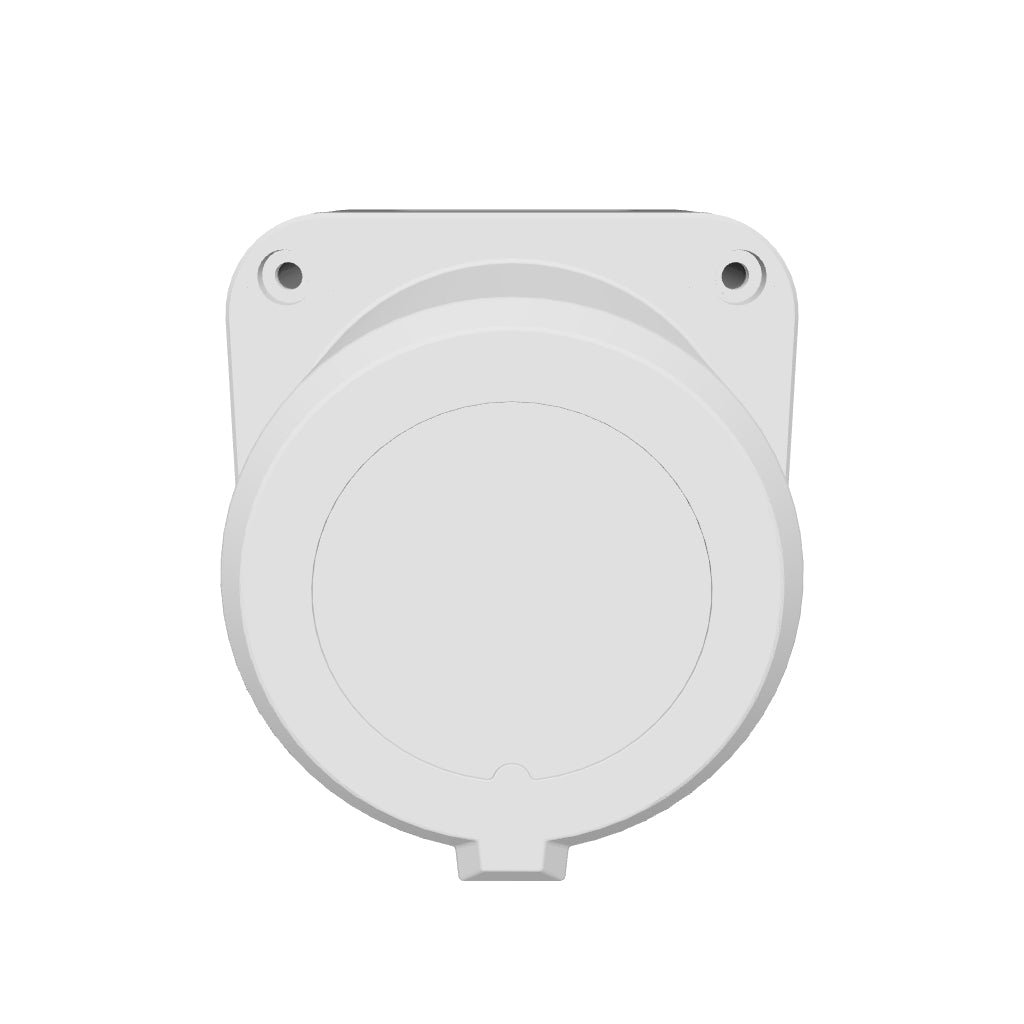

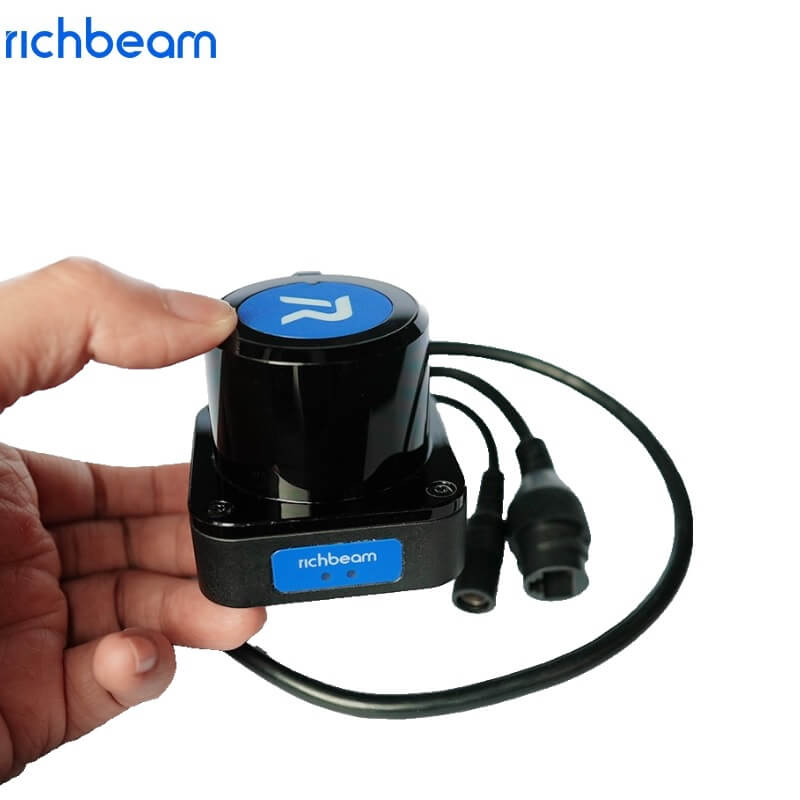

RichBeam LoraBeam LiDAR

Regular price $309.00

Version

Delivery and Shipping

  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information





Technical Specifications

Parameter Value Value
Model LoraBeam1 LoraBeam1S
Range Principle

dToF

dToF

Horizontal FOV 270°
270°
MeasurementRange ≥25m@70%reflectivity ≥15m@10%reflectivity

≥15m@70%reflectivity ≥10m@10%reflectivity
Rotating Frequency 10—30Hz 10—20Hz
Range Accuracy ±2cm ±2cm
Horizontal Resolution 0.08°(10Hz)
0.12°(15Hz)
0.16°(20Hz)
0.20°(25Hz)
0.24°(30Hz)
0.24°(10Hz)
0.36°(15Hz)
0.48°(20Hz)
Data Sample Rate 45kHz 15kHz
Wavelength 905nm 905nm
Laser Safety Class1 eye safe Class1 eye safe
Ambient Light Immunity <100000lux <100000lux
Rated Voltage Range 9∼36V 9∼36V
Power Consumption(Typical)  ≤2W ≤2W
Operating Temperature -25°C~60°C -25°C~60°C
Storage Temperature -40°C~75°C -40°C~75°C
Weight 85g 85g
Dimension 55mm×55mm×51mm(D*W*H) 55mm×55mm×51mm(D*W*H)
Ingress Protection IP66/IP67optional IP66/IP67optional
