RichBeam | SKU:

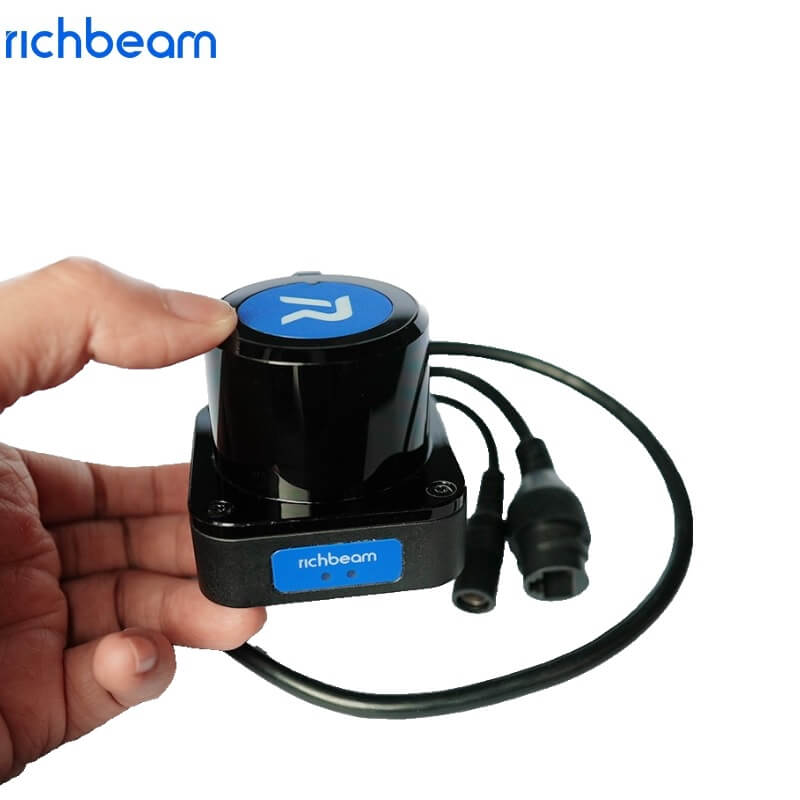

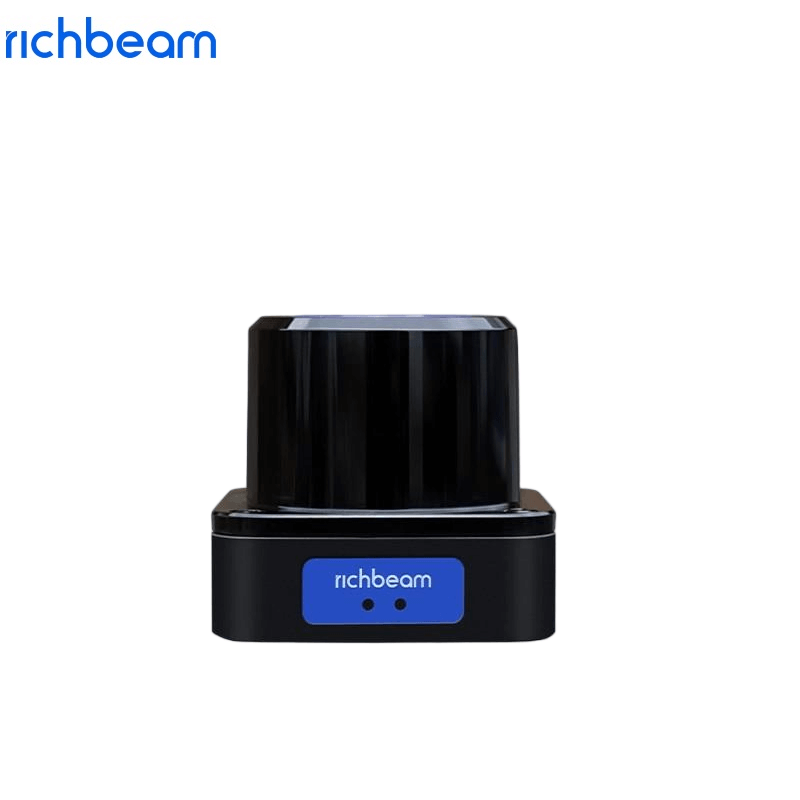

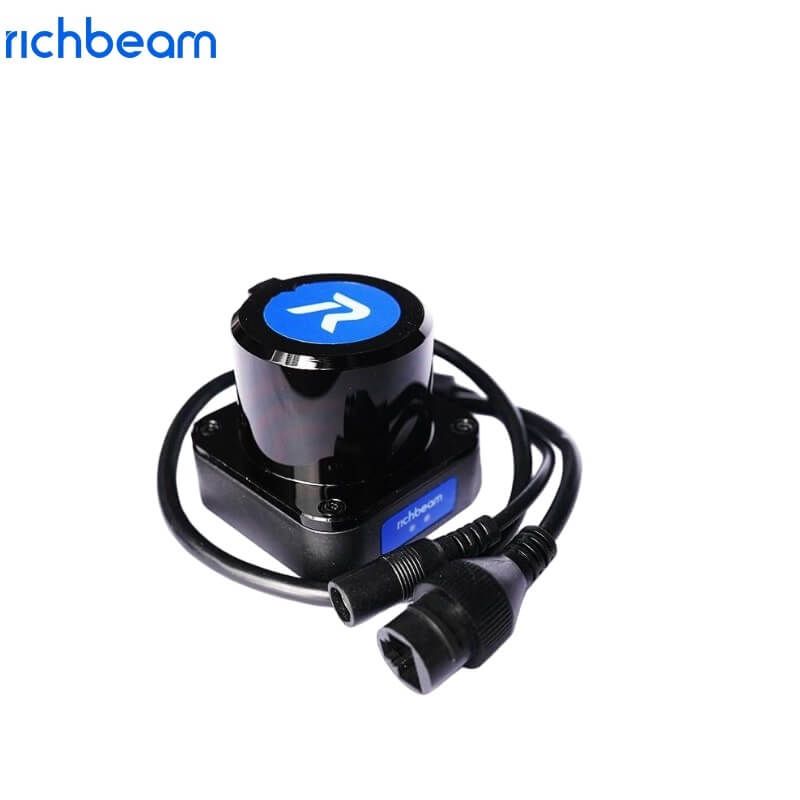

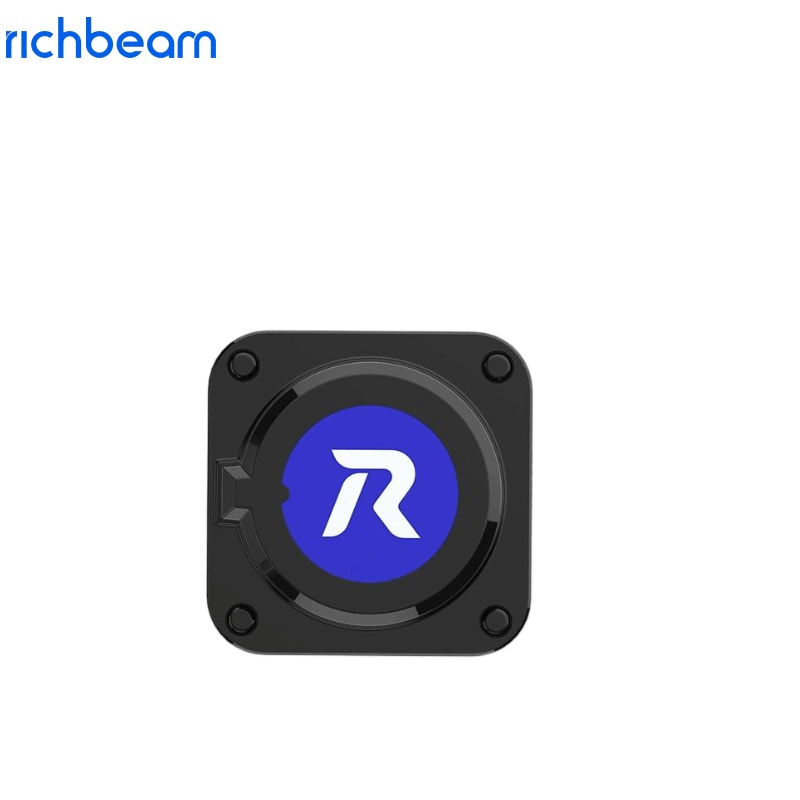

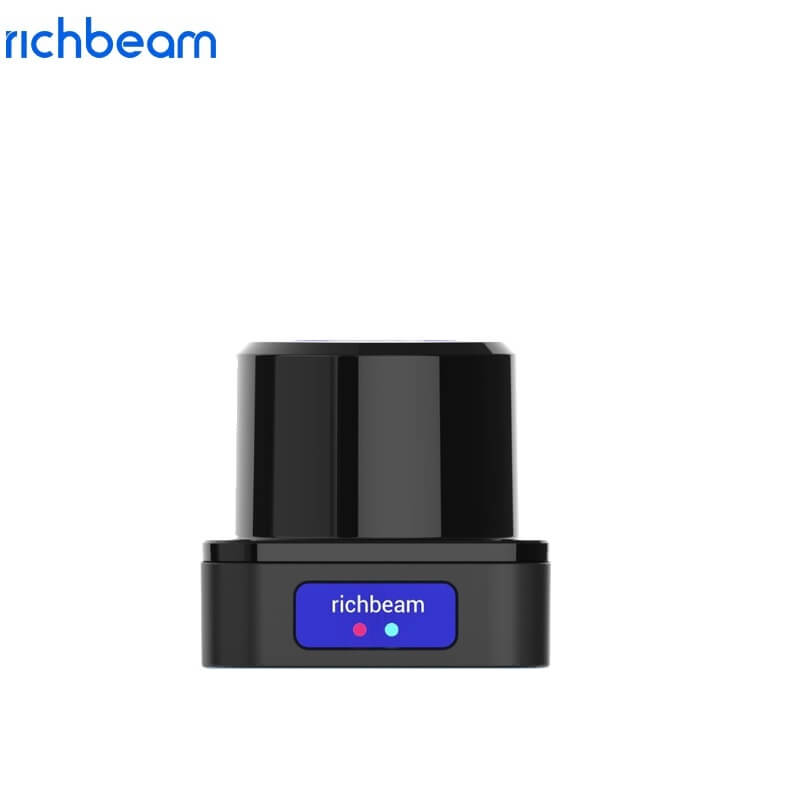

RichBeam LoraBeam LiDAR
Regular price
$309.00
Unit price
/
Unavailable
RichBeam LoraBeam LiDAR - LoraBeam 1S is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
RichBeam LoraBeam LiDAR
Regular price
From
$309.00
Unit price
/
Unavailable
Product Information
Technical Specifications
| Parameter | Value | Value |
|---|---|---|
| Model | LoraBeam1 | LoraBeam1S |
| Range Principle |
dToF |
dToF |
| Horizontal FOV | 270° |
270°
|
| MeasurementRange | ≥25m@70%reflectivity ≥15m@10%reflectivity |
≥15m@70%reflectivity ≥10m@10%reflectivity |
| Rotating Frequency | 10—30Hz | 10—20Hz |
| Range Accuracy | ±2cm | ±2cm |
| Horizontal Resolution | 0.08°(10Hz) 0.12°(15Hz) 0.16°(20Hz) 0.20°(25Hz) 0.24°(30Hz） |
0.24°(10Hz) 0.36°(15Hz) 0.48°(20Hz) |
| Data Sample Rate | 45kHz | 15kHz |
| Wavelength | 905nm | 905nm |
| Laser Safety | Class1 eye safe | Class1 eye safe |
| Ambient Light Immunity | <100000lux | <100000lux |
| Rated Voltage Range | 9∼36V | 9∼36V |
| Power Consumption(Typical) | ≤2W | ≤2W |
| Operating Temperature | -25°C~60°C | -25°C~60°C |
| Storage Temperature | -40°C~75°C | -40°C~75°C |
| Weight | 85g | 85g |
| Dimension | 55mm×55mm×51mm(D*W*H) | 55mm×55mm×51mm(D*W*H) |
| Ingress Protection | IP66/IP67optional | IP66/IP67optional |
