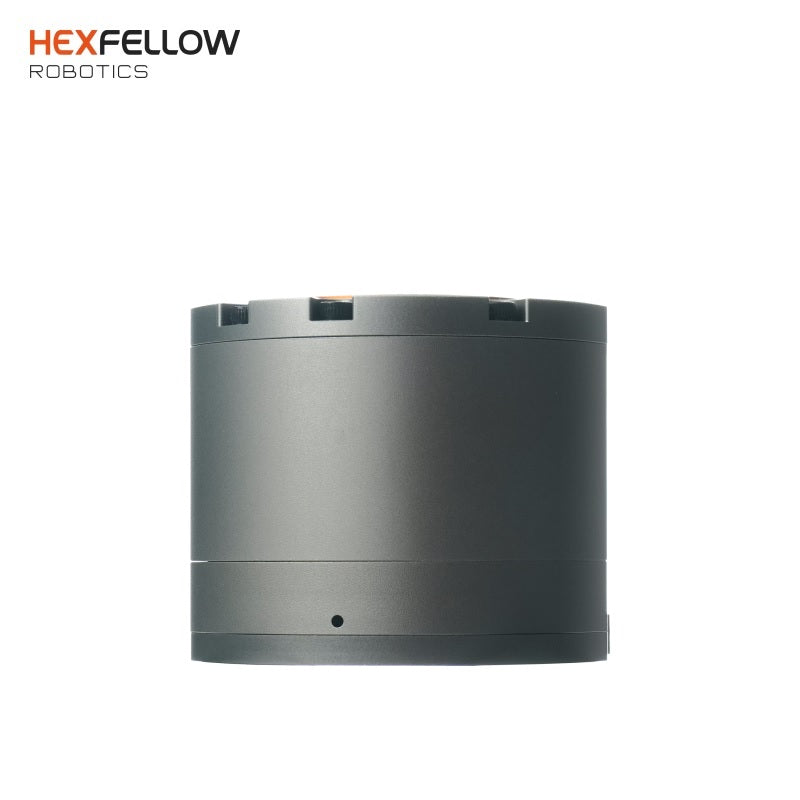

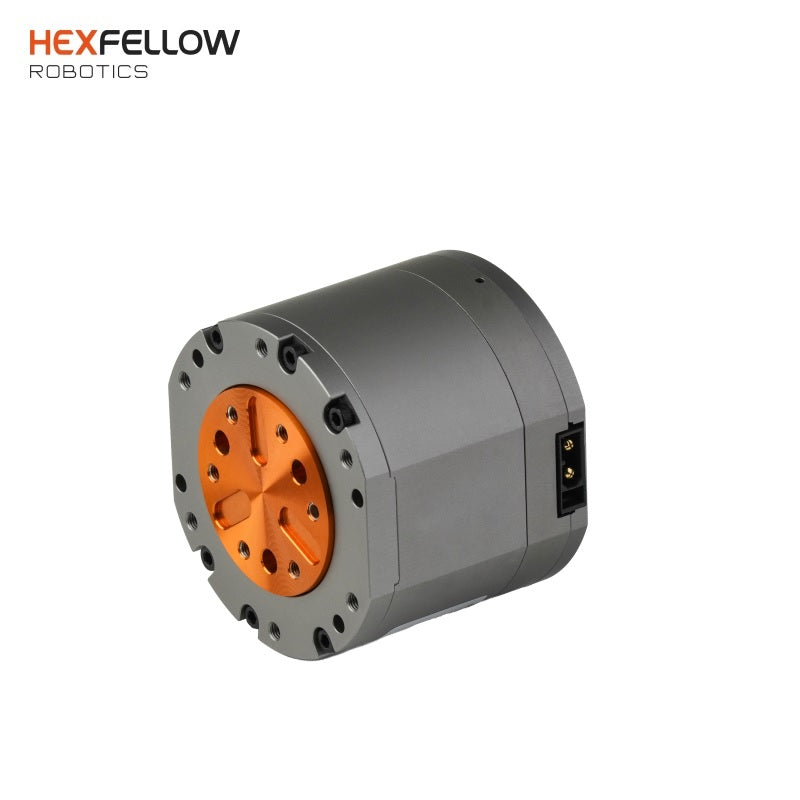

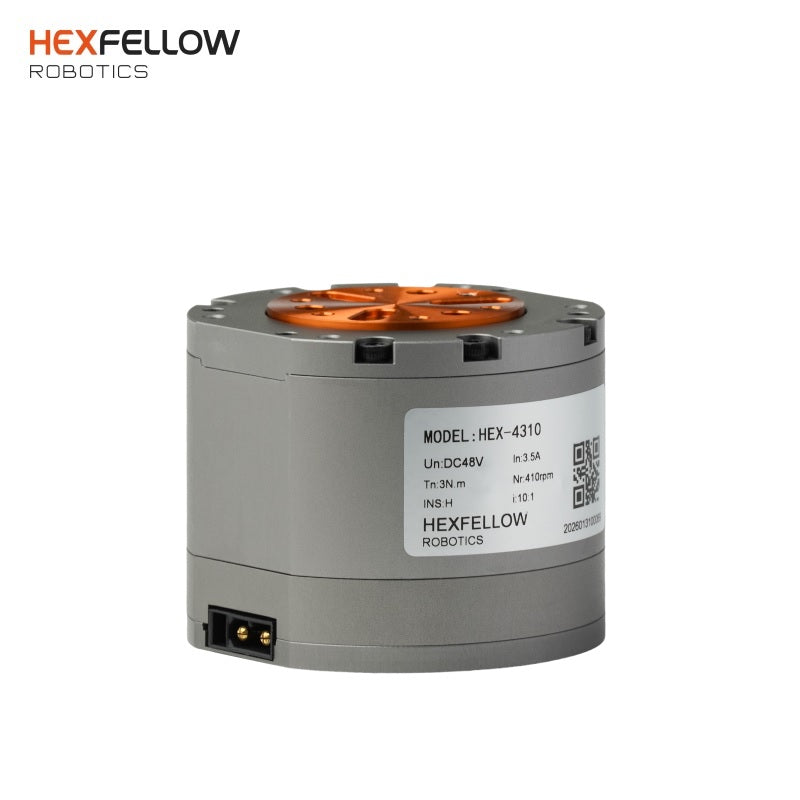

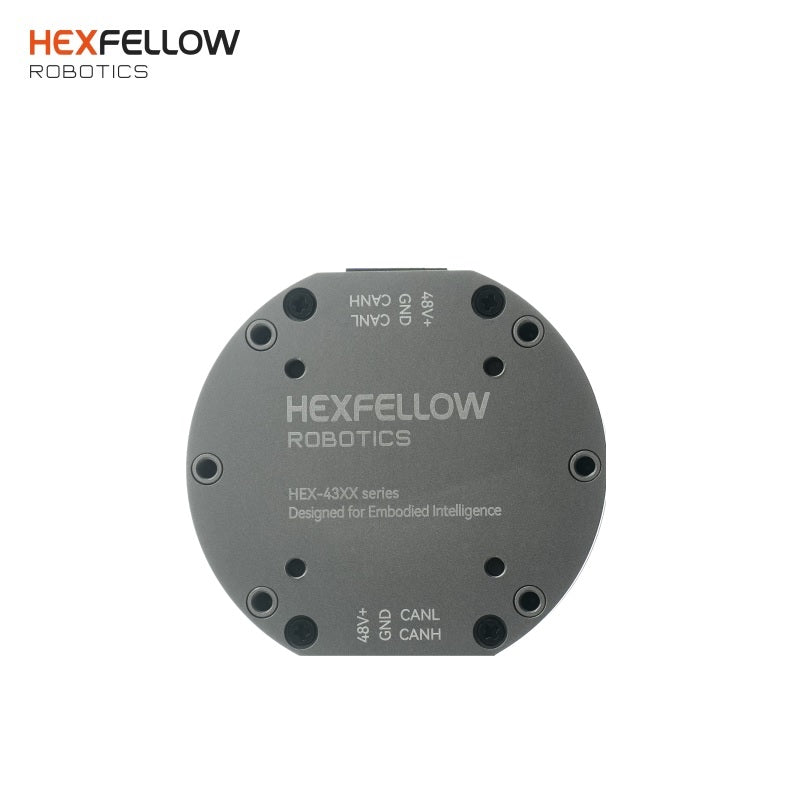

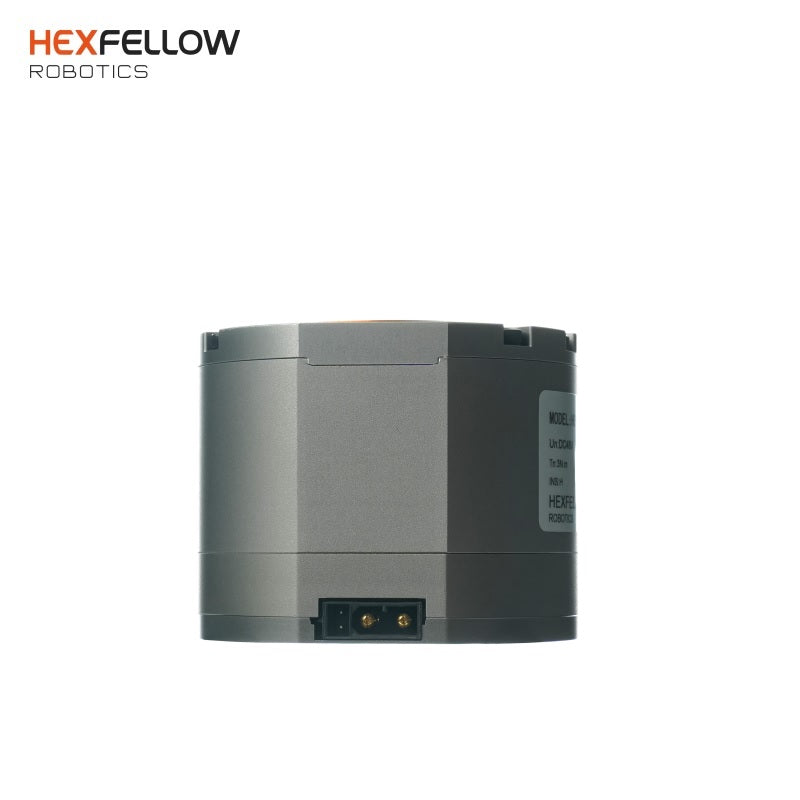

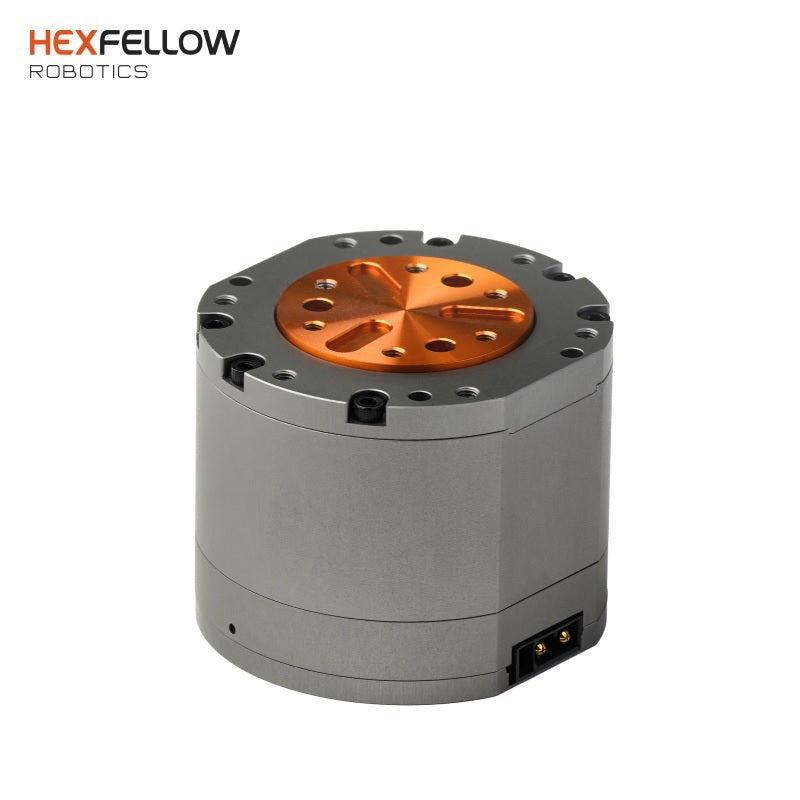

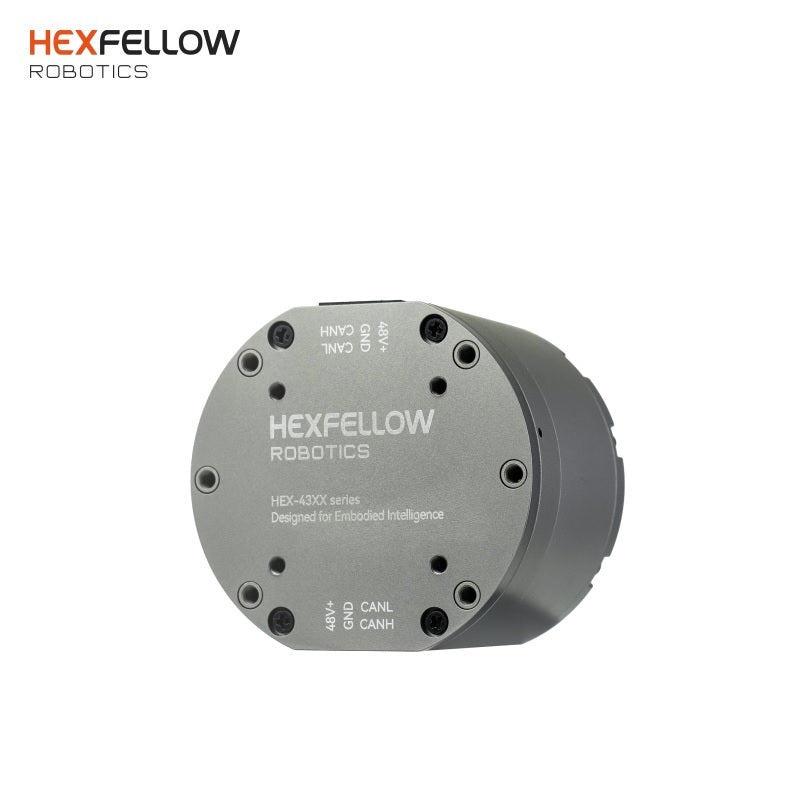

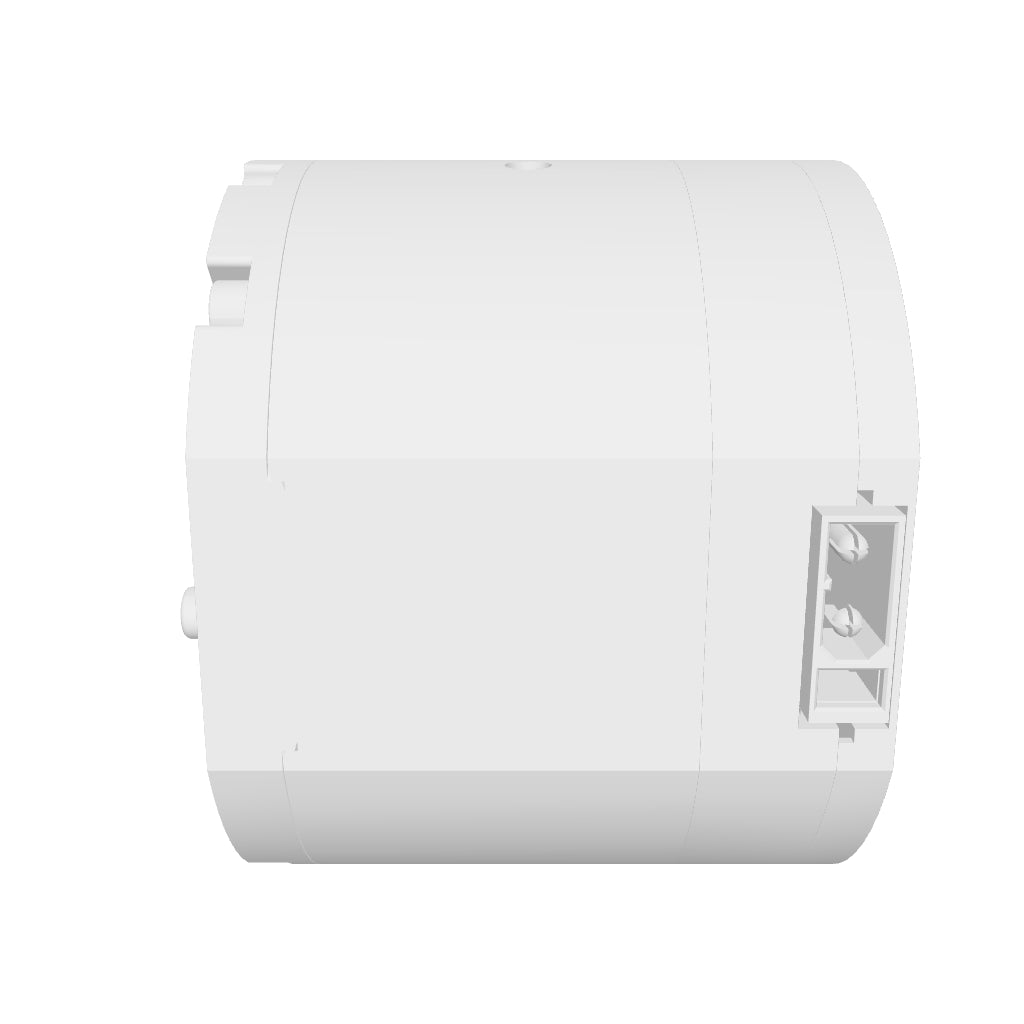

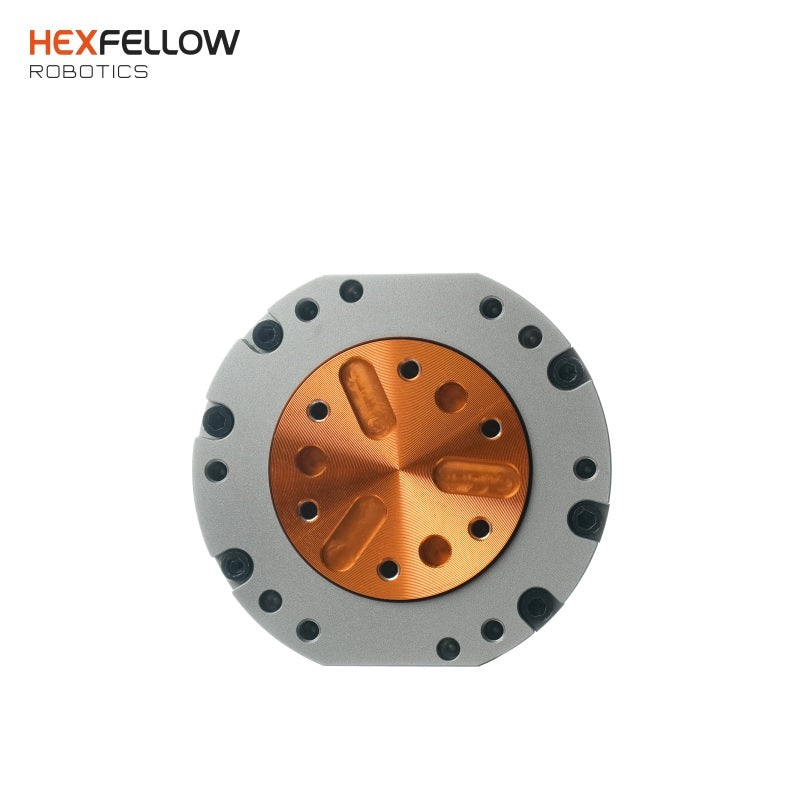

HexFellow HEXMOTOR 4310 Motor

$149.99
Version

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information

Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
Motor Performance
Rated Voltage 48 V
Rated Current 3.7 A
Rated Speed 410 rpm
Rated Torque 3 Nm
Peak Torque 7 Nm
Peak Current 7.5 A
No-load Speed 500 rpm
Key Parameters
Pole Pairs 28
Phase Inductance 0.55 mH
Phase Resistance 1.05 Ω
Reduction Ratio 10 : 1
Sensors
Encoder Type Magnetic (single-turn)
Encoder Bits 16-bit
Encoder Count 2
Communication Interface
Control Interface CAN-FD @ 5 Mbps
Dimensions & Weight
Outer Diameter 57 mm
Height 45 mm
Weight 310 g
Operating Temperature -20°C ~ 40°C
Protection Features
Driver Over-temperature > 120°C
Motor Over-temperature > 110°C
Over-voltage > 65 V
Phase Over-current > 14 A (PEAK)
Under-voltage < 14 V
Stall Protection Driver detects motor stall
