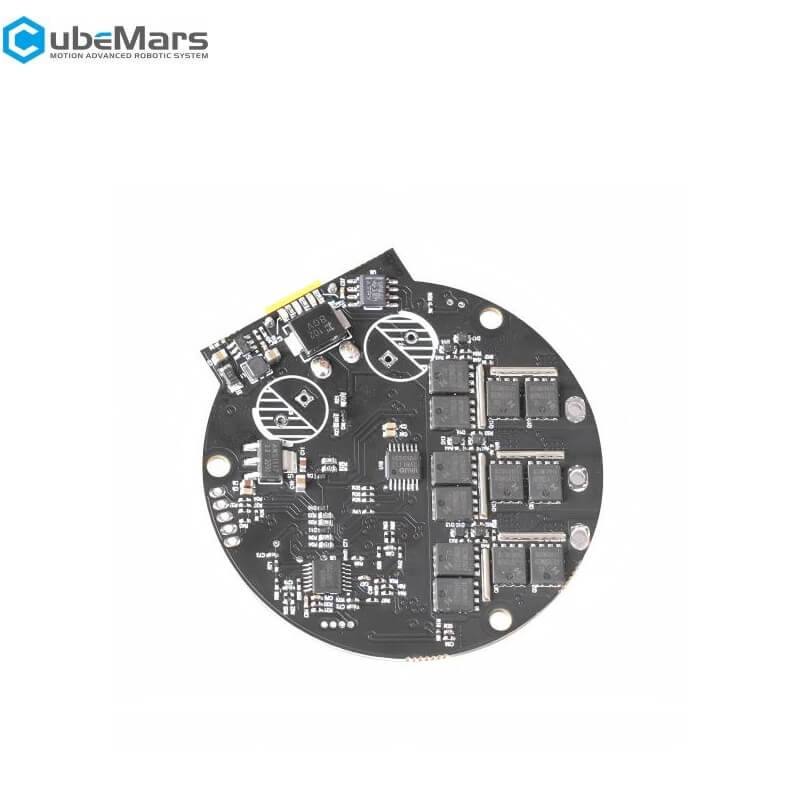

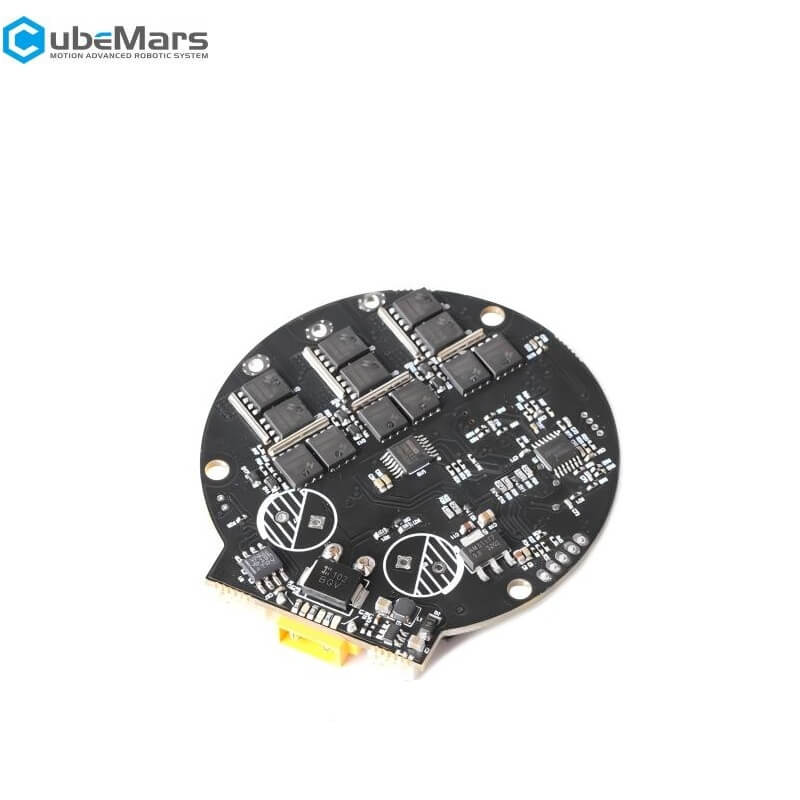

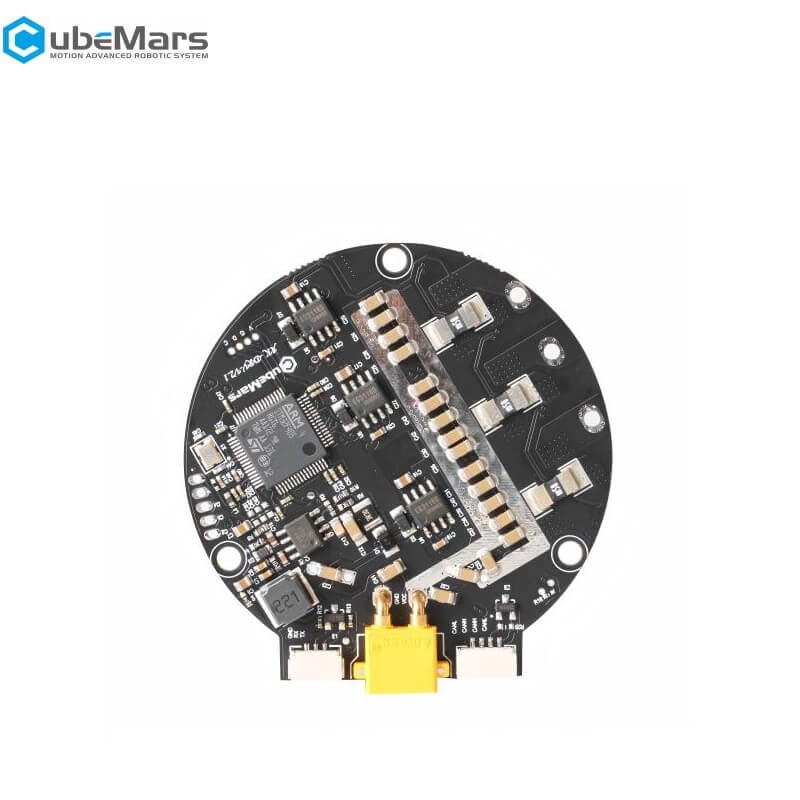

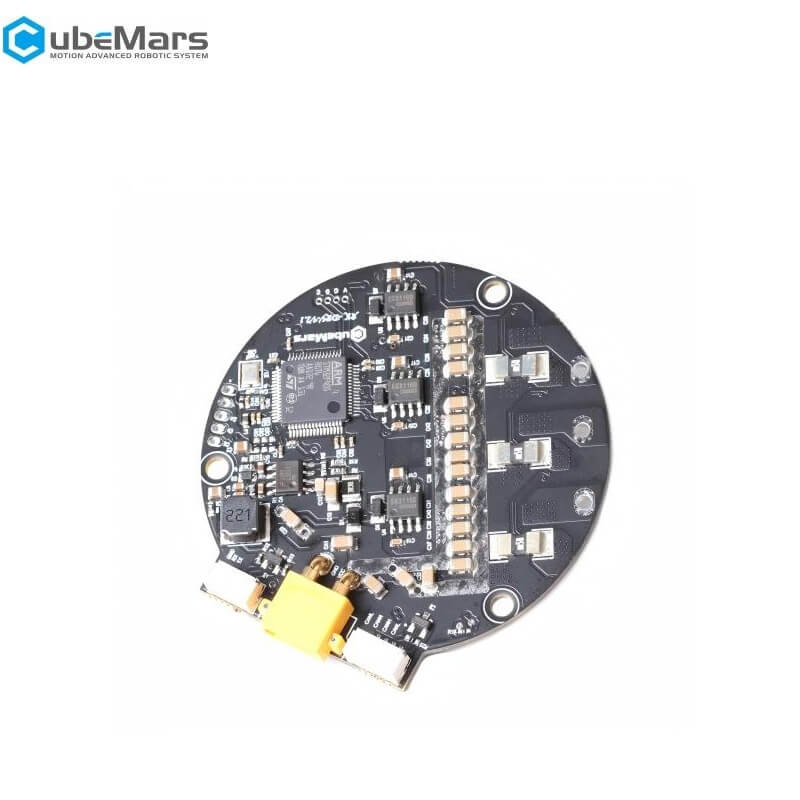

CubeMars Driver Board V2.1

$129.90

Version

AK10-9 V2.0 KV60 AK10-9 V2.0 KV100 AK70-10 KV100 AK80-6 KV100 AK80-64 KV80 AK80-8 KV60 AK80-9 KV100

Product variants

Delivery and Shipping

We automatically select the most cost-effective carrier from China for each destination country
Shipping rates are dynamically calculated based on real-time quotes
Final rates may vary due to promotional offers or carrier adjustments

Humanoid Robots

Robotic Arms

Exoskeletons

Quadruped Robots

AGV Vehicles

ARU Robots

Parameter	Value
Rated voltage	48V
Peak voltage	52V
Rated current	20ADC
Peak current	60ADC
Standby power consumption	≤50
CAN bus baud rate	1Mbps
Diameter	62mm×58mm
Operation ambient temperature	-20℃-65℃
Peak temperature of control panel	100℃
Encoder accuracy	14bit
