RichBeam | SKU:

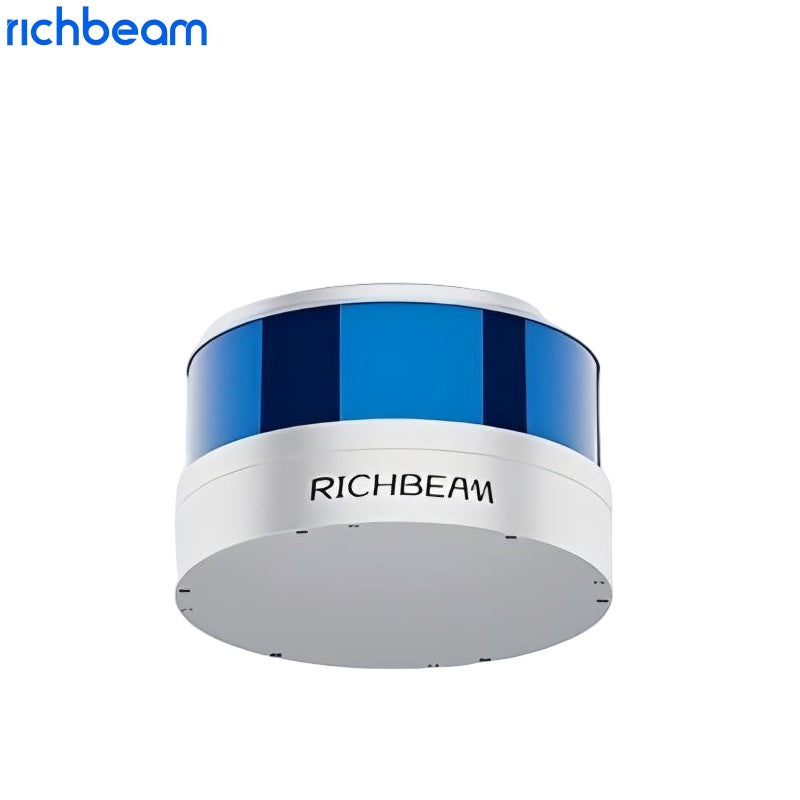

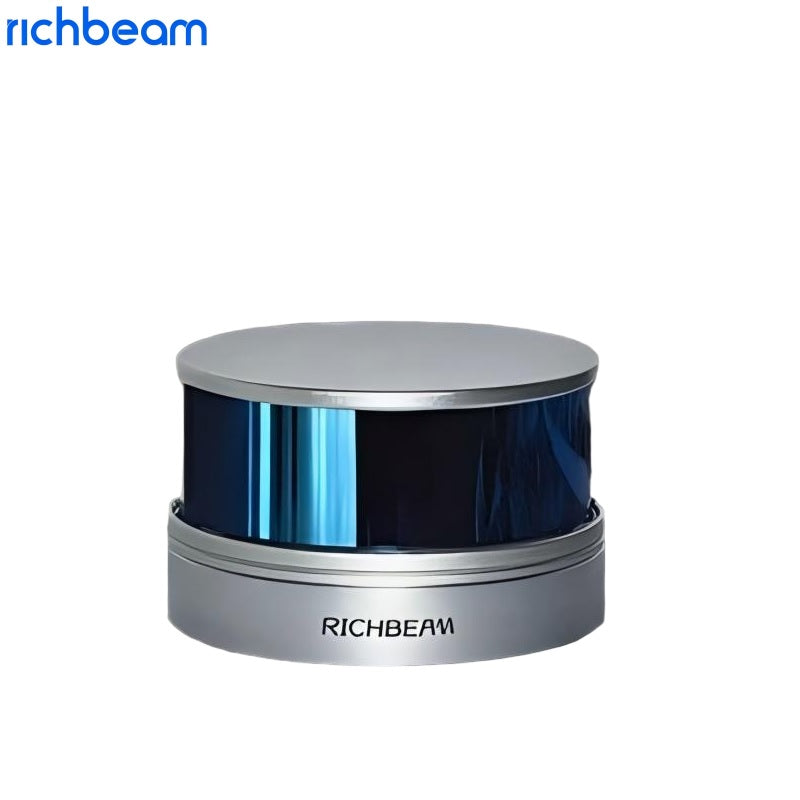

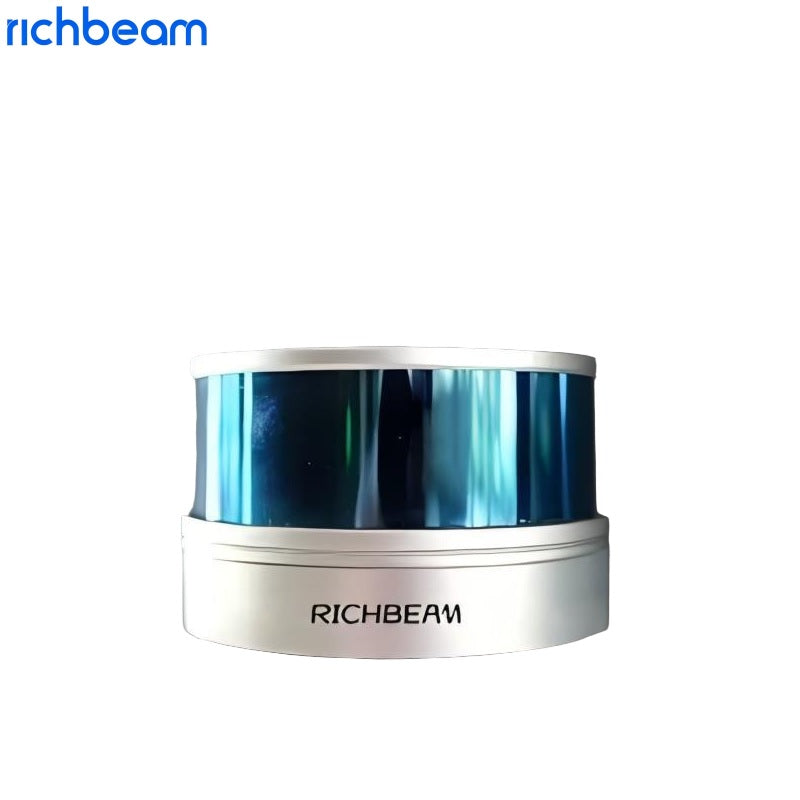

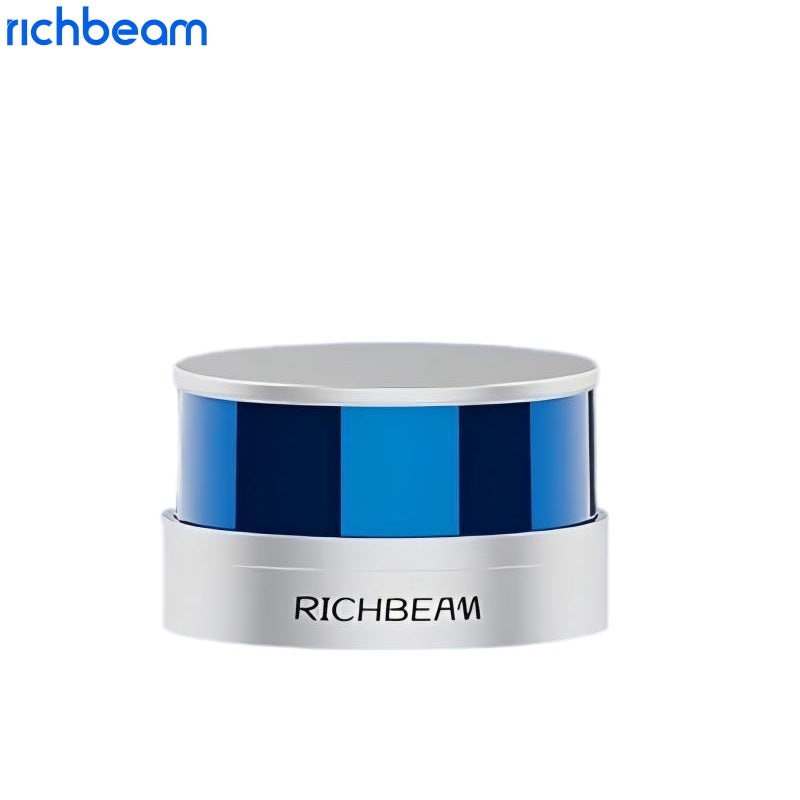

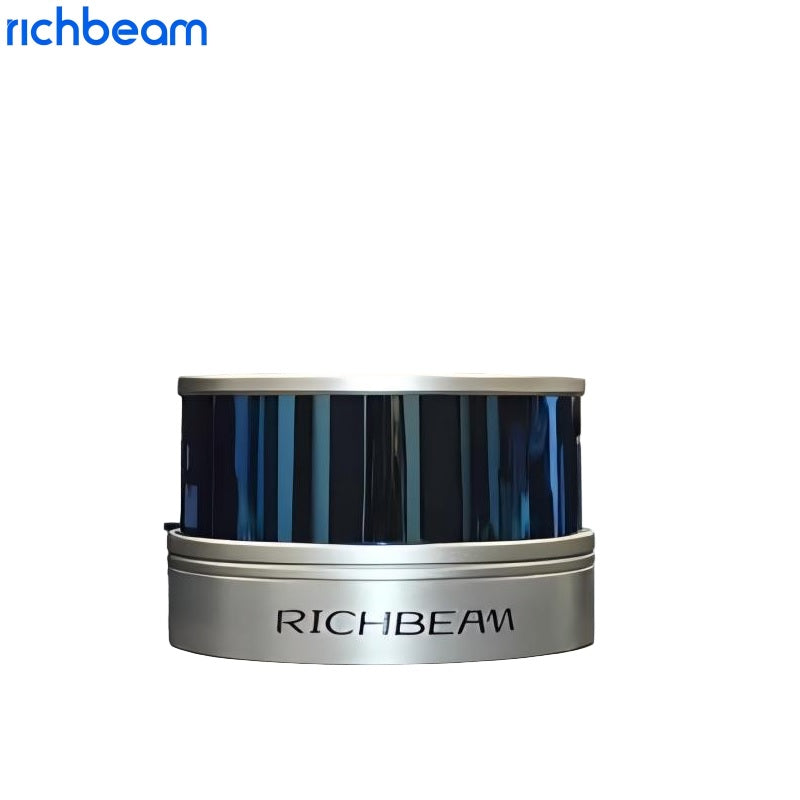

RichBeam MetaBeam LiDAR
Regular price
$1,600.00
Unit price
RichBeam MetaBeam LiDAR - MetaBeam 16 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
RichBeam MetaBeam LiDAR
Regular priceFrom
$1,600.00
Unit price
RichBeam MetaBeam LiDAR - MetaBeam 16 is backordered and will ship as soon as it is back in stock.
Product Information
Minimum Range of Zero
360° HFOV
Class 1 Eye Safe
Technical Specifications
| Parameter | Value | Value |
|---|---|---|
| Model | MetaBeam 32 | MetaBeam 16 |
| Wavelength |
905nm |
905nm |
| Laser Class | Class I (IEC-60825) |
Class I (IEC-60825)
|
| Channels | 32 | 16 |
| Detection Method | TOF | TOF |
| Detection Range | 70m / 120m / 150m | 70m / 120m / 150m |
| Range Accuracy | ±3cm | ±3cm |
| Horizonta | 360° | 360° |
| Vertical | 31°(-16°~15°) | 30°(-15°~15°) |
| Horizontal | 5Hz:0.09°/ 10Hz:0.18°/ 20Hz:0.36° | 5Hz:0.09°/ 10Hz:0.18°/ 20Hz:0.36° |
| Vertical | 1° | 2° |
| FPS | 5Hz / 10Hz / 20Hz | 5Hz / 10Hz / 20Hz |
| Single Echo (pts/sec) | 600,000 | 320,000 |
| Dual Echo (pts/sec) | 1,200,000 | 640,000 |
| Communication Interface | Industrial Ethernet | Industrial Ethernet |
| Source of Time | GPS | GPS |
| Input Voltage | 9V~36V DC | 9V~36V DC |
| IP Grade | IP67 | IP67 |
| Working Temperature | -20℃~60℃ | -20℃~60℃ |
| Vibration Test | 5Hz-2000Hz，3G rms | 5Hz-2000Hz，3G rms |
| Shock Test | 500m/sec²，lasting for 11ms | 500m/sec²，lasting for 11ms |
| Weight | 1050g | 1050g |
| Dimensions (LxWxH) | Ф102x77.9 mm | Ф102x77.9 mm |
