HESAI | SKU:

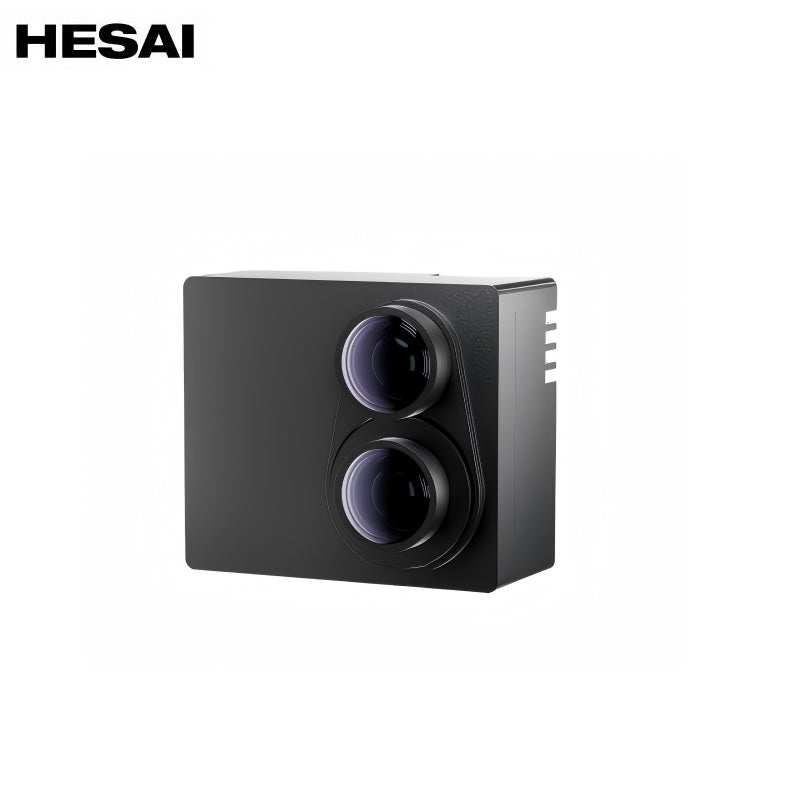

HESAI FTX LiDAR
Regular price
$5,600.00
Unit price
HESAI FTX LiDAR - FTX (HFOV 180°) is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
HESAI FTX LiDAR
Regular price
$5,600.00
Unit price
HESAI FTX LiDAR - FTX (HFOV 180°) is backordered and will ship as soon as it is back in stock.
Product Information
Technical Specifications
| Parameter | Value | Value |
|---|---|---|
| Model | FTX（HFOV 180°） | FTX（HFOV 140°） |
| Ranging Capability |
20m (@10% Reflectivity)
|
30m (@10% Reflectivity)
|
| POINT RATE | 430,000 [Single Return] | 492,000 [Single Return] |
| Field of View | 140° x 180° | 105° x 140° |
| Angular Resolution | 0.62° finest | 0.56° (H) x 0.56° (V) |
| Power Consumption | <6 W | <6 W |
| Scanning frequency | 10 Hz | 10 Hz |
| Pixel Resolution |
216 (H) x 192 (V)
|
256 (H) x 192 (V)
|
| Dimensions | 55 (H) x 60 (W) x 38.7 (D) | 55 (H) x 60 (W) x 32 (D) |
| Weight | 160 g | 160 g |
