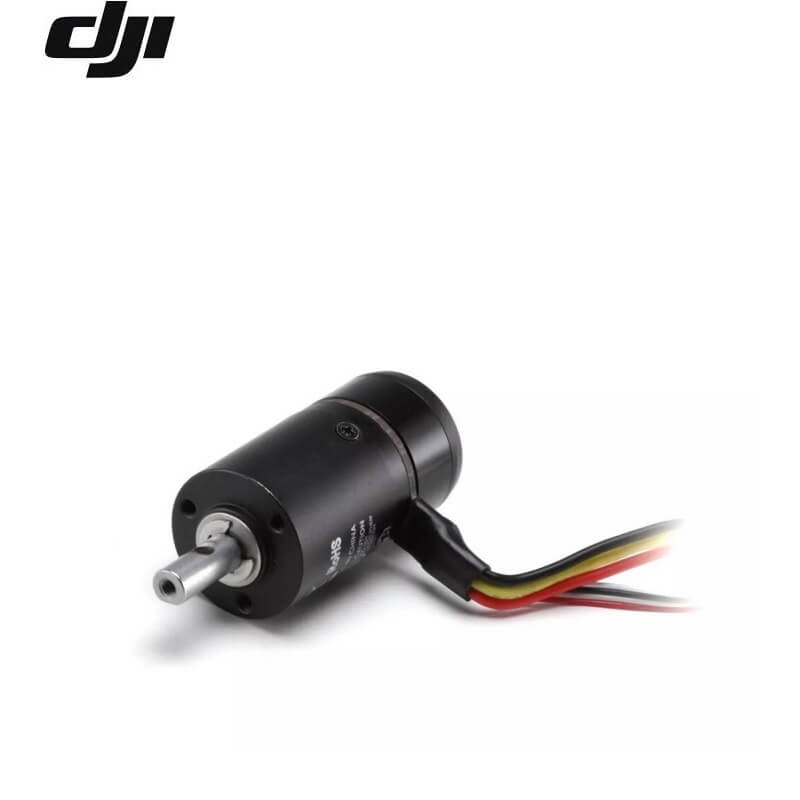

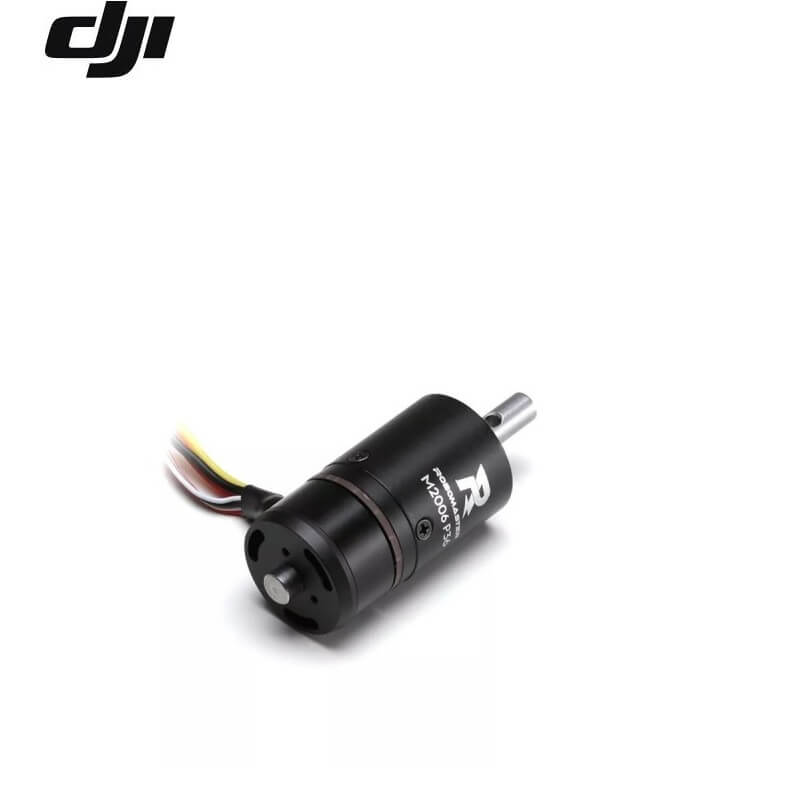

DJI RoboMaster M2006 P36 Brushless DC Gear Motor

$95.00

Version

RoboMaster M2006 P36 RM-C610 Brushless Motor Controller RM-C610 Brushless Motor Controller V2.0

Delivery and Shipping

We automatically select the most cost-effective carrier from China for each destination country
Shipping rates are dynamically calculated based on real-time quotes
Final rates may vary due to promotional offers or carrier adjustments

Humanoid Robots

Robotic Arms

Exoskeletons

Quadruped Robots

AGV Vehicles

ARU Robots

Parameter	Value
ltem Name	DJI RoboMaster M2006 P36
Using C610 Speed Controlled at rated voltage
No-Load Speed	500rpm
No-Load Current	0.6A
Rated Rotational Speed	416rpm
Rated Torque (max continuous torque)	1N·m
Rated Current	3A
Max Efficiency	66%
Using Z650 ESC at the rated voltage
Rotational Speed (without payload)	777rpm
Current (without payload)	0.8A
Rated Rotational Speed	555rpm
Rated Torque (max continuous torque)	0.8N·m
Rated Current (max continuous line current)	3.7A
Max Efficiency	66%
Stall Torque	7N·m
Stall Current	27.3A
Characteristic Parameters
Rated Voltage	24V
Torque Constant	0.18N·m/A
Speed Constant	32.96rpm/V
Speed/Torque Gradient	110rpm/N·m
Mechanical Time Constant	52.78ms
Phase Resistance	461mΩ
Phase Inductance	64.22μH
Operating Temperature Range	0-55° C
Number of Pole Pairs	7
Weight	90g
Reduction Ratio	36:1
