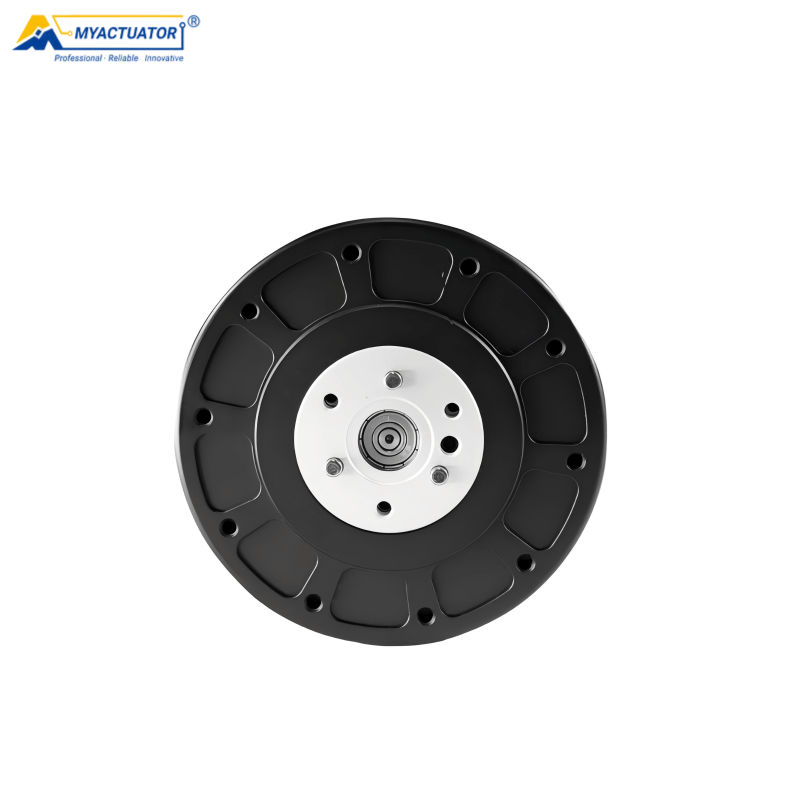

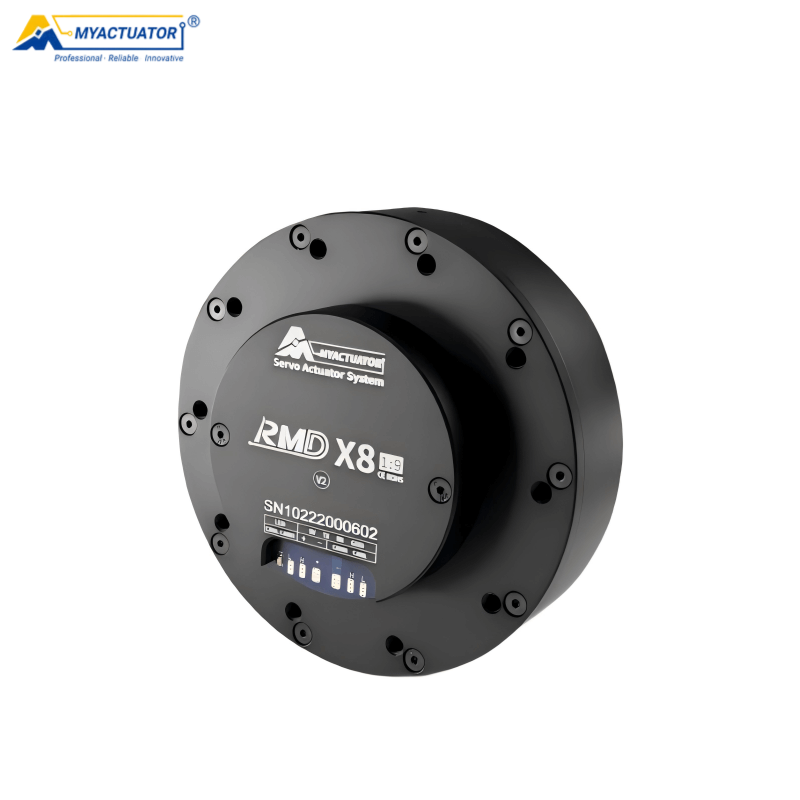

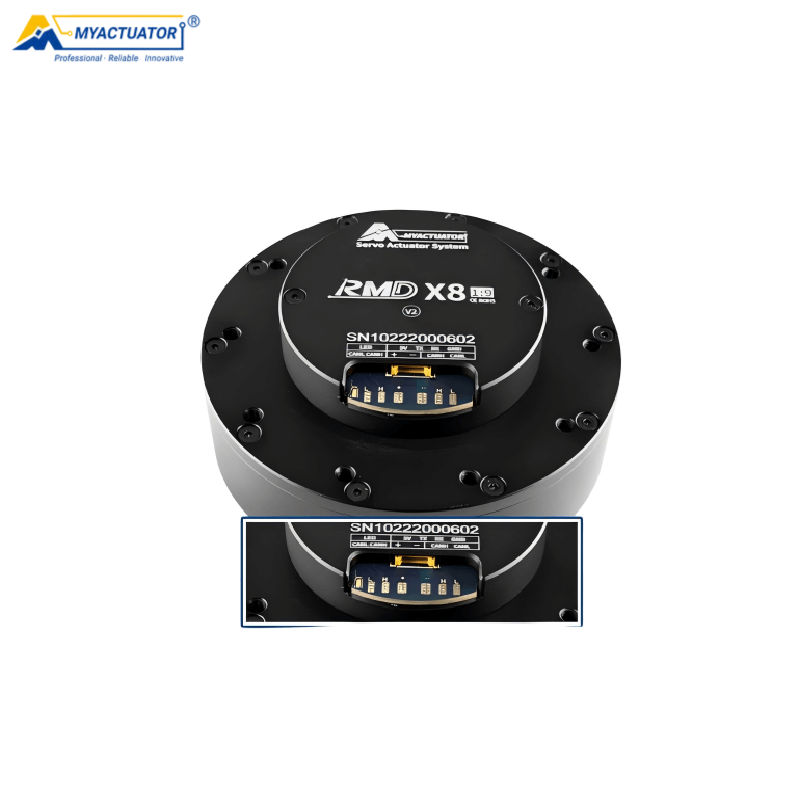

MyActuator RMD-X8 Motor
Regular price
$379.00
Unit price
MyActuator RMD-X8 Motor - RMD-X8 1:9 V2 Without Driver / NOT Include is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
MyActuator RMD-X8 Motor
Regular priceFrom
$379.00
Unit price
MyActuator RMD-X8 Motor - RMD-X8 1:9 V2 Without Driver / NOT Include is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Actuator Name | RMD-X8 |
| Item No | A00083 |
| Reducer Ratio | 9:1 |
| Input Voltage | 24-48V |
| No-load Speed | 215RPM @48V |
| Nominal Speed | 170RPM |
| Nominal Current | 4.3A |
| Nominal Power | 160W |
| Nominal Torque | 9N·m |
| Maximum Torque (instantaneous) | 20N·m |
| Pole Pairs | 21 (42) |
| Motor Efficiency | 74% |
| Resistance | 0.4Ω |
| Wire Connect | Y |
| Phase To Phase Inductance | 0.22mH |
| Speed Constant | 40rpm/v |
| Torque Constant | 2.09N·m/A |
| Axial Direction Payload | 775N |
| Radial Direction Payload | 1250N |
| Rotor Inertia | 2600g·cm² |
| Number Of Pole Pairs | 21 |
| Motor Weight | 568g |
| Environment Temperature | -20 ~ 55°C |
| Backlash | 5 Arc min |
