MagicLab

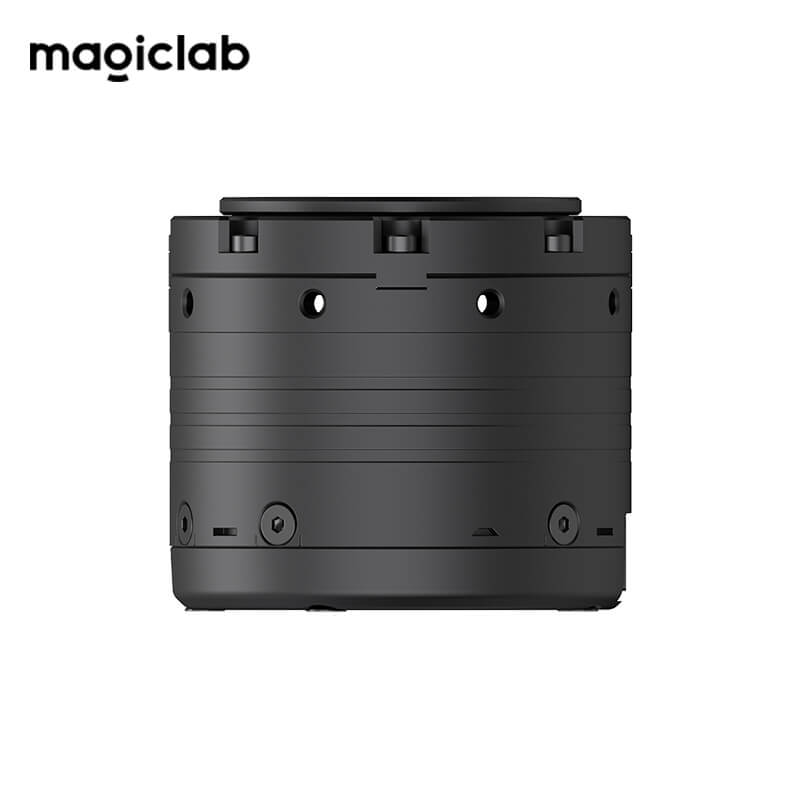

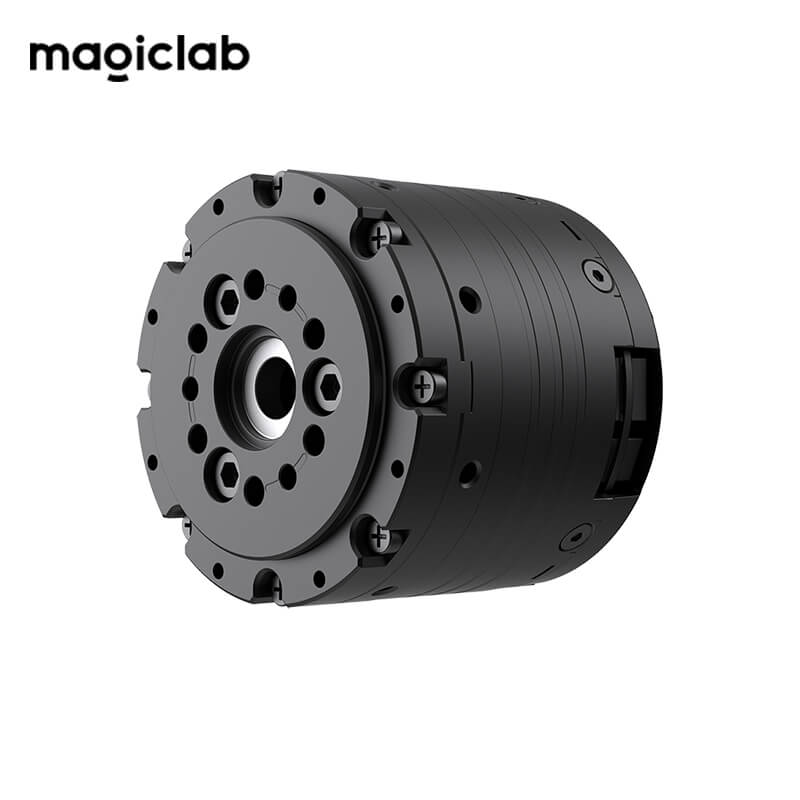

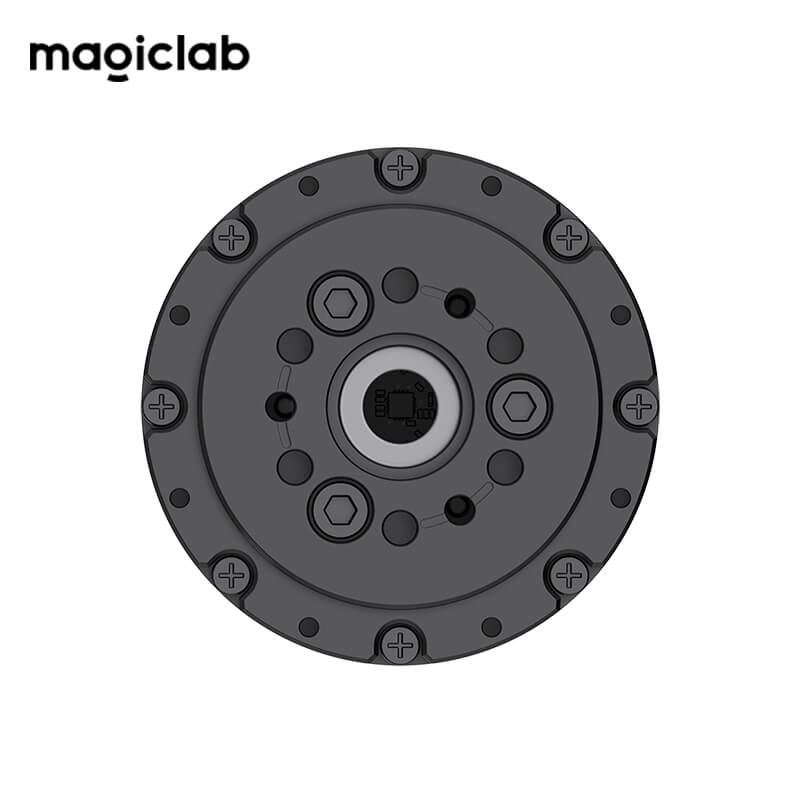

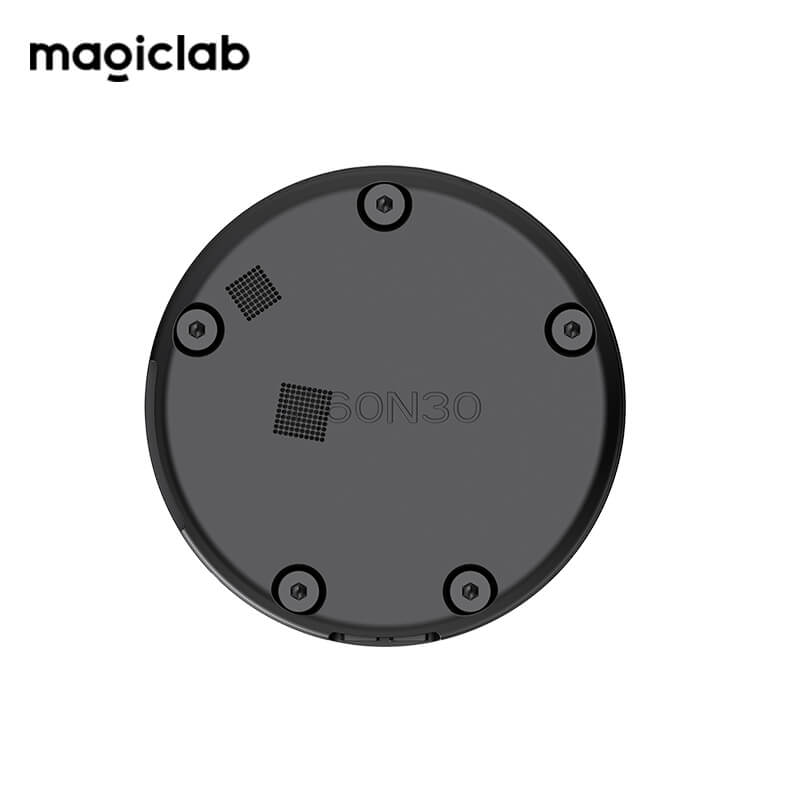

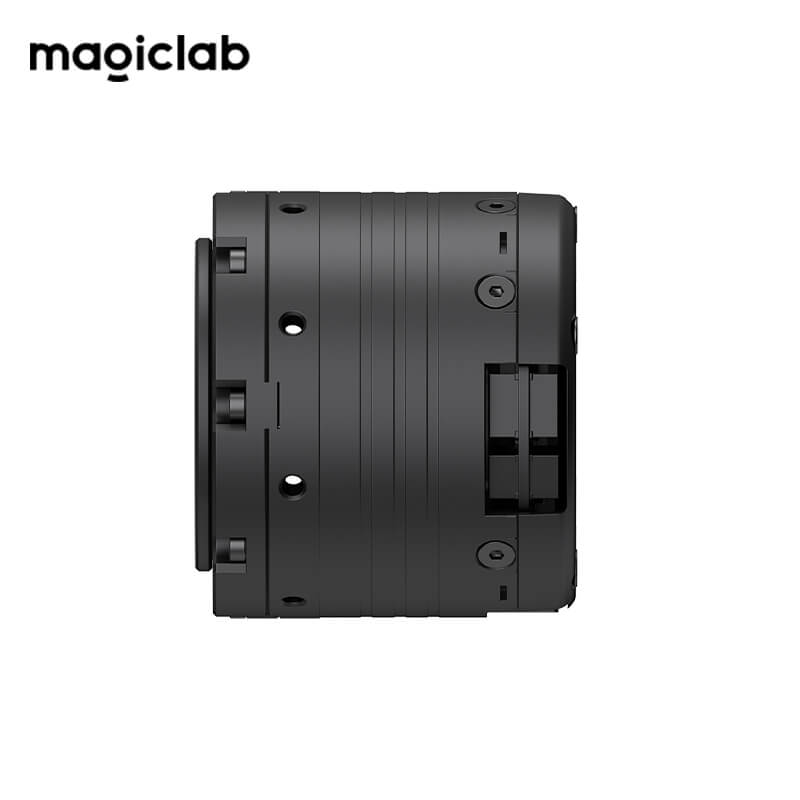

MagicLab P60N30 Motor

$1,260.00
Version

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information

Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
Maximum Speed 175 rpm (48V power supply)
Module Weight 532g
Rated Torque 20 N·m
Dimensions φ64*57.1
Peak Torque 60 N·m
Communication Interface CAN / EtherCAT
Peak Current 22 A
Recommended Operating Environment -5°C ~ 40°C
Encoder Configuration Dual Encoder
Operating Voltage 48V - 54V
Motor Encoder Resolution 15 Bit
Control Frequency 25,000 Hz
