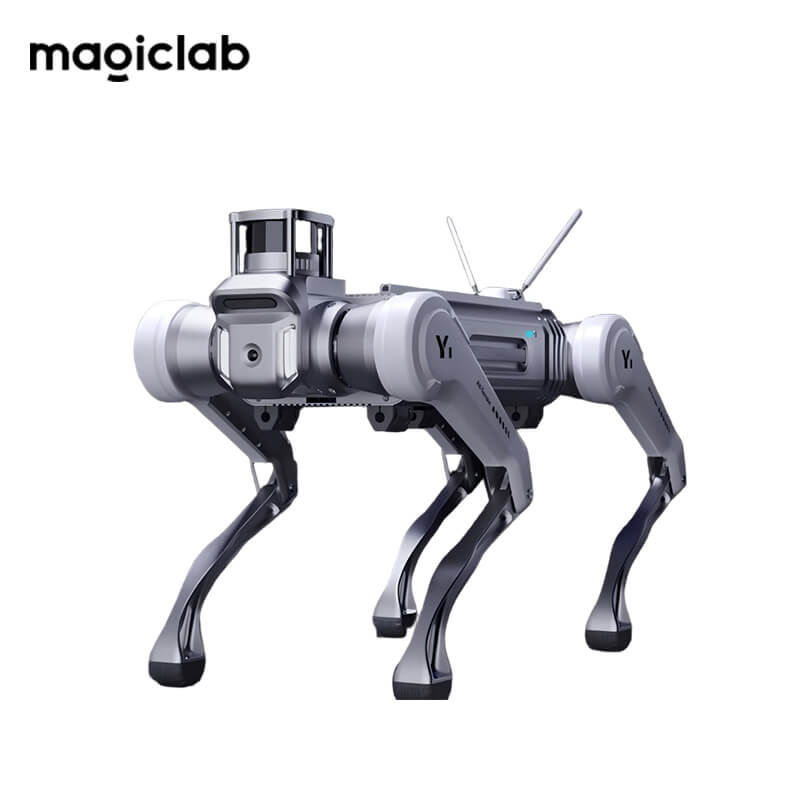

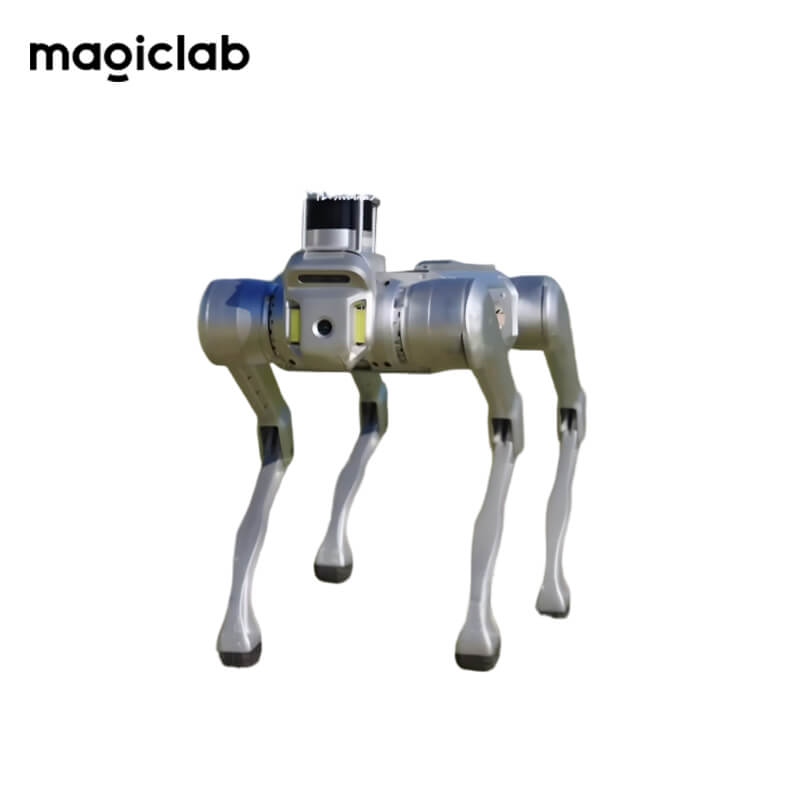

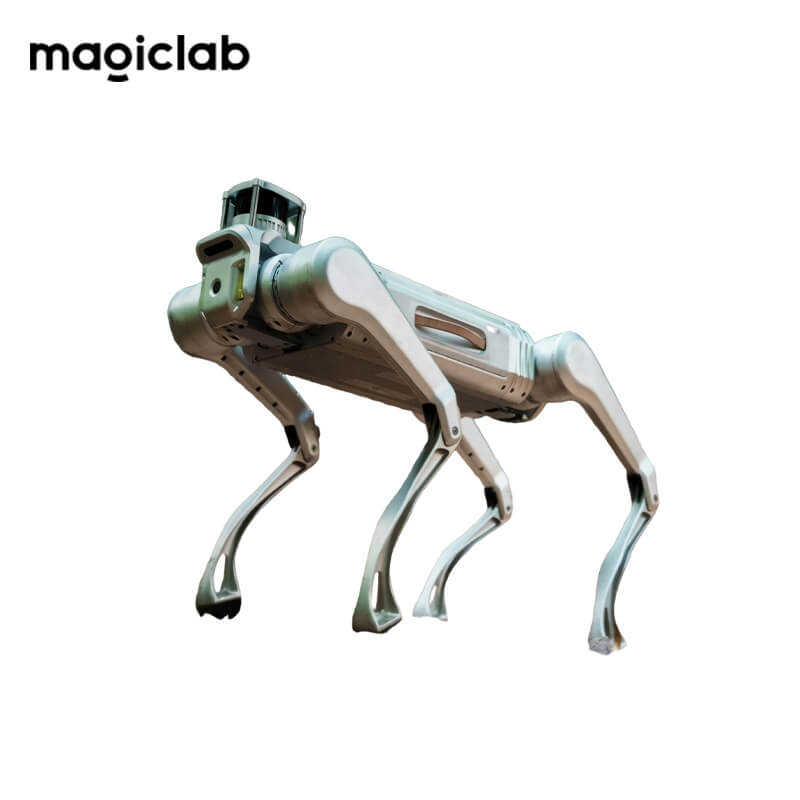

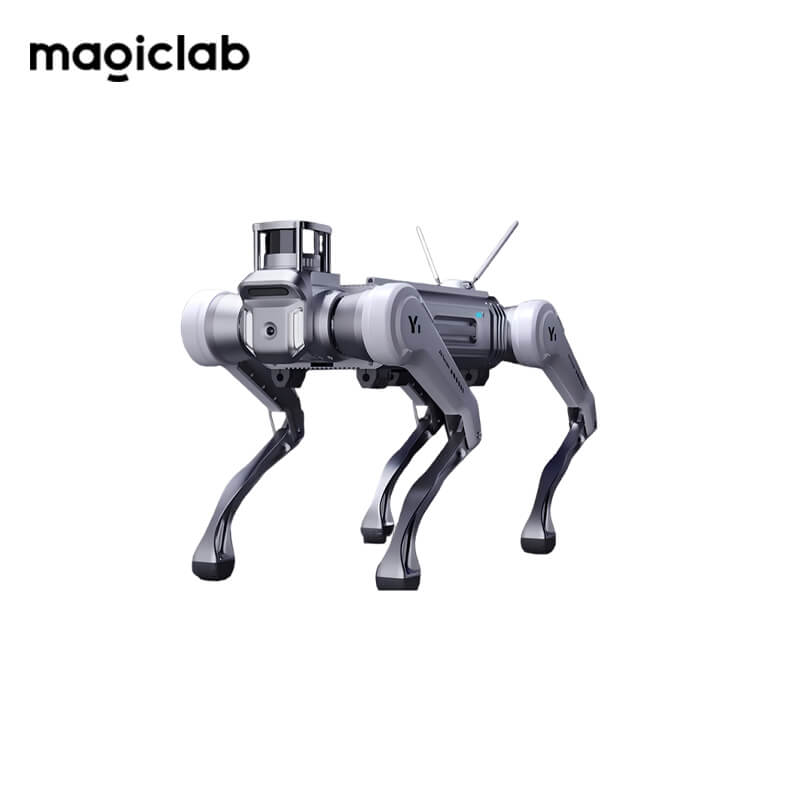

MagicLab MagicDog Y1 Robot
Regular price
$104,000.00
Unit price
MagicLab MagicDog Y1 Robot - MagicDog Y1 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
MagicLab MagicDog Y1 Robot
Regular price
$104,000.00
Unit price
MagicLab MagicDog Y1 Robot - MagicDog Y1 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions (L × W × H) | 915mm × 458mm × 800mm |
| Total Weight (with Battery) | ≤65kg (with Battery) |
| Maximum Payload | 150kg |
| Dynamic Payload | 45kg |
| Maximum Speed | 6m/s |
| Maximum Climbing Height | ≥60cm |
| Battery Capacity | 45Ah (2400Wh), Voltage 54V |
| Operating Time | 4~6h (>4h continuous walking with 20kg load) |
| Ingress Protection Rating | IP67 |
| Maximum Slope Angle | ≥45° |
| Base Computing Power | 8-Core High-Performance CPU |
| Extended Computing Power | High-Performance Computing Module (157 TOPS) |
| Communication Module | Wi-Fi 6, BT 5.2, 5G Communication Module (optional for some versions) |
| Perception Sensors | 3D LiDAR x1 + Depth Cameras x2 + Optical Cameras x2 (configurations may vary) |
| User Expansion Interfaces | (24V+485 output)×4 power supply + power bus, USB3.0×4, (12V output+EtherNet)×3 power supply + network; EtherCAT ×1 |
| Mounting Holes for Expansion Parts | Extension Boards, Sliding Rails, Screw Mounts, Payload Platform |
| Supported Expansion Devices | Infrared Thermal Imager, Dual-Light PTZ Camera, Gas Sensor, Acoustic Imager, Partial Discharge Sensor, etc. |
