DSSERVO | SKU:

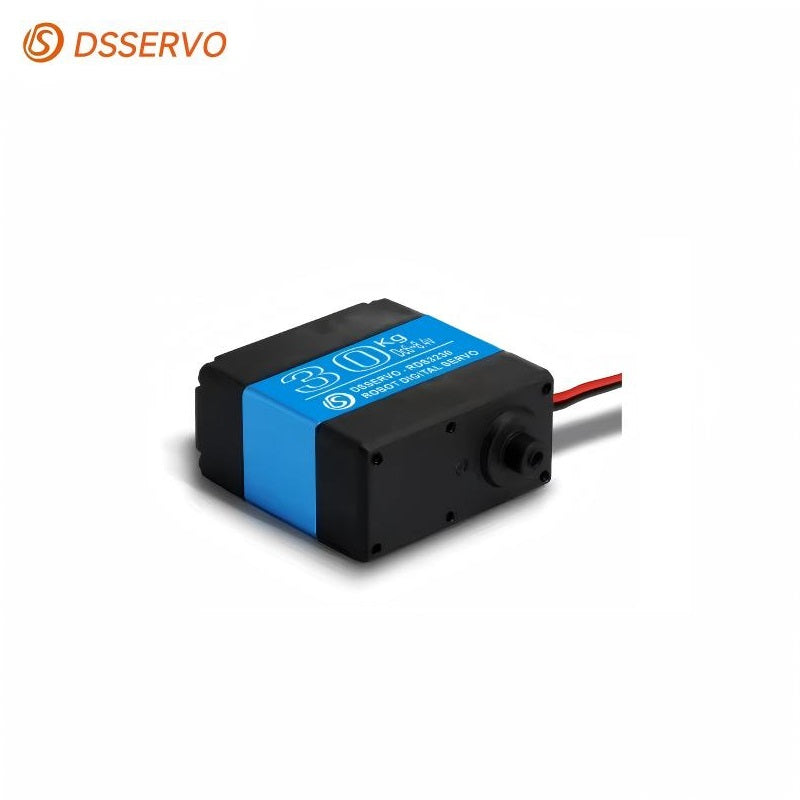

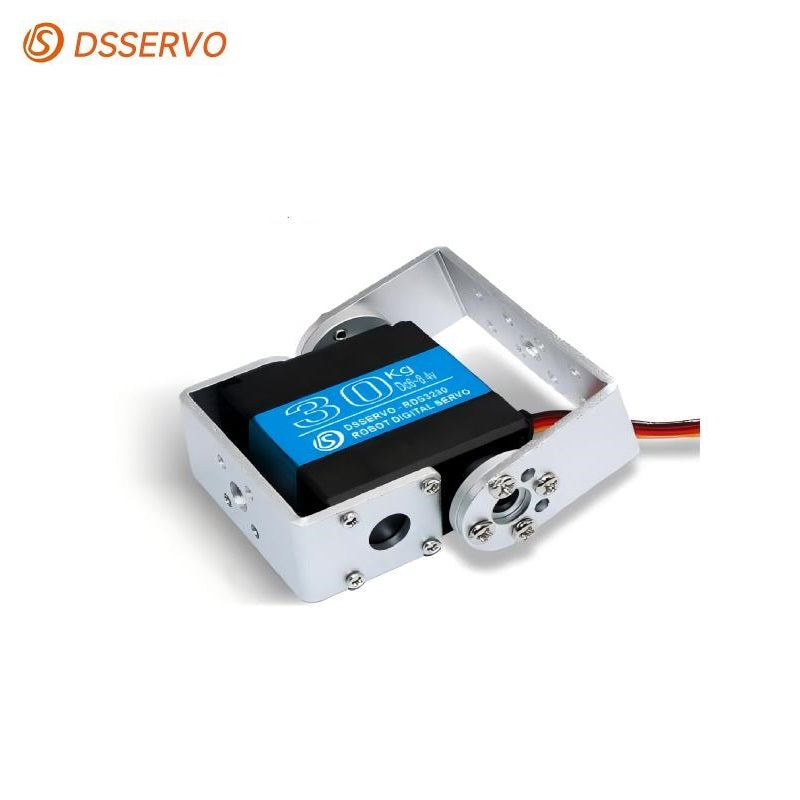

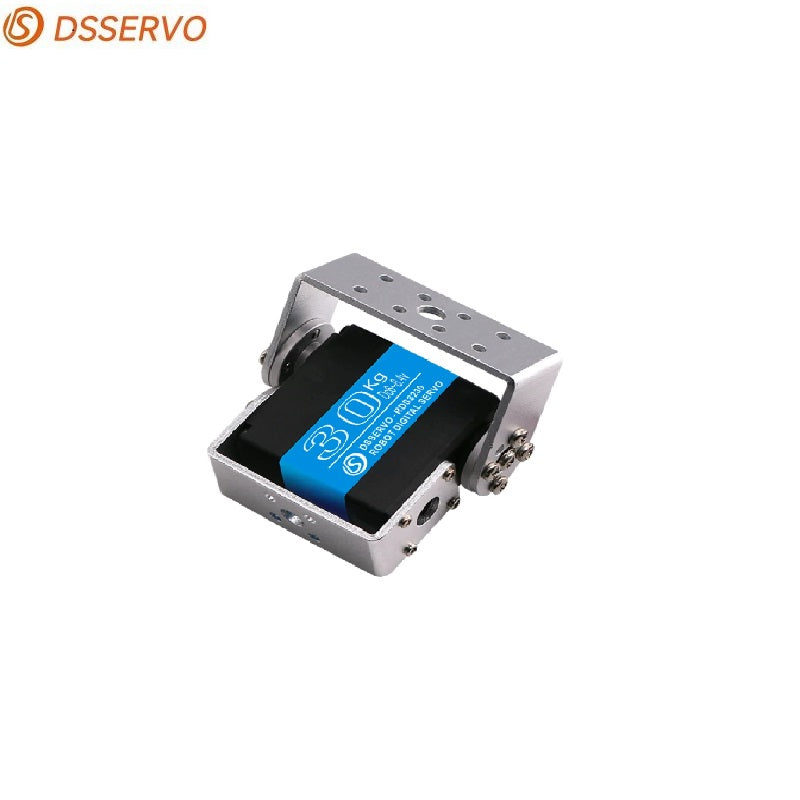

DSSERVO RDS3230 Servo Motor
Regular price
$30.00
Unit price
DSSERVO RDS3230 Servo Motor - RDS3230 / 180 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
DSSERVO RDS3230 Servo Motor
Regular price
$30.00
Unit price
DSSERVO RDS3230 Servo Motor - RDS3230 / 180 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value | Value |
|---|---|---|
| Operating Voltage | 6V | 6.8V |
| Storage Temperature Range | -30℃～80℃ | -30℃～80℃ |
| Operating Temperature Range | -15℃～70℃ | -15℃～70℃ |
| Operating Voltage Range | 4.8-6.8V | 4.8-6.8V |
| Size | 40*20*40mm | 40*20*40mm |
| Weight | 60g | 60g |
| Gear ratio | 221 | 221 |
| Bearing | Double bearing | Double bearing |
| Connector wire | 300±5mm | 300±5mm |
| Motor | 3-pole(s) | 3-pole(s) |
| Waterproof performance | No | No |
| Idle current (at stopped) | 4mA | 5mA |
| Operating speed (at no load) | 0.2 sec/60° | 0.188 sec/60° |
| Stall torque (at locked) | 26 kg-cm | 30 kg-cm |
| Stall current (at locked) | 3.5A | 3.8A |
| Control System | PWM (Pulse width modification) | PWM (Pulse width modification) |
| Pulse width range | 500~2500μsec | 500~2500μsec |
| Neutral position | 1500μsec | 1500μsec |
| Running degree | 180° or 270° (when 500~2500 μsec) | 180° or 270° (when 500~2500 μsec) |
| Dead band width | 3 μsec | 3 μsec |
| Operating frequency | 50~330Hz | 50~330Hz |
| Rotating direction | Counterclockwise (when 500~2500 μsec) | Counterclockwise (when 500~2500 μsec) |
