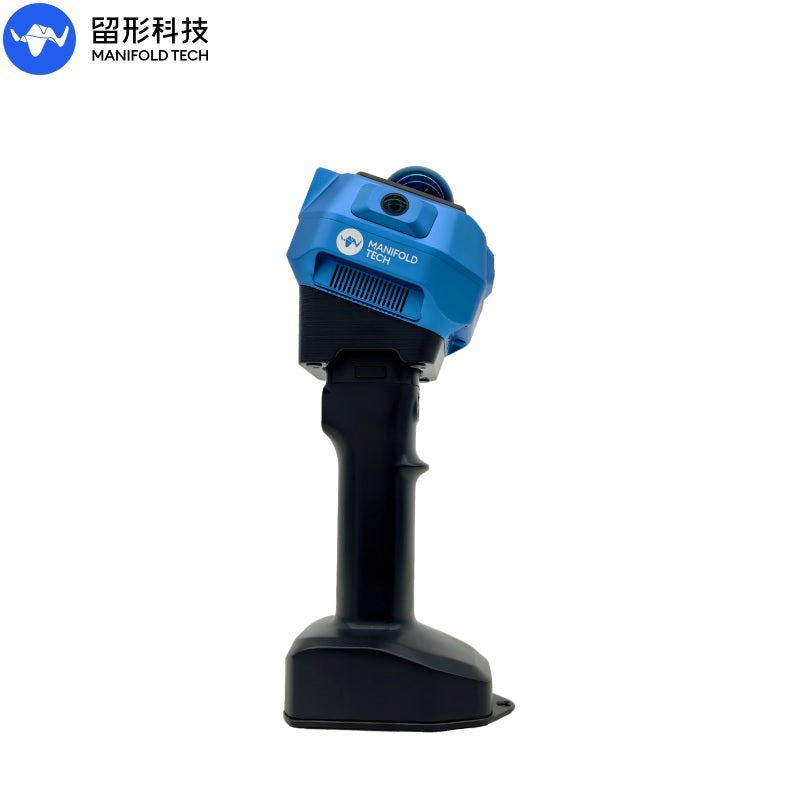

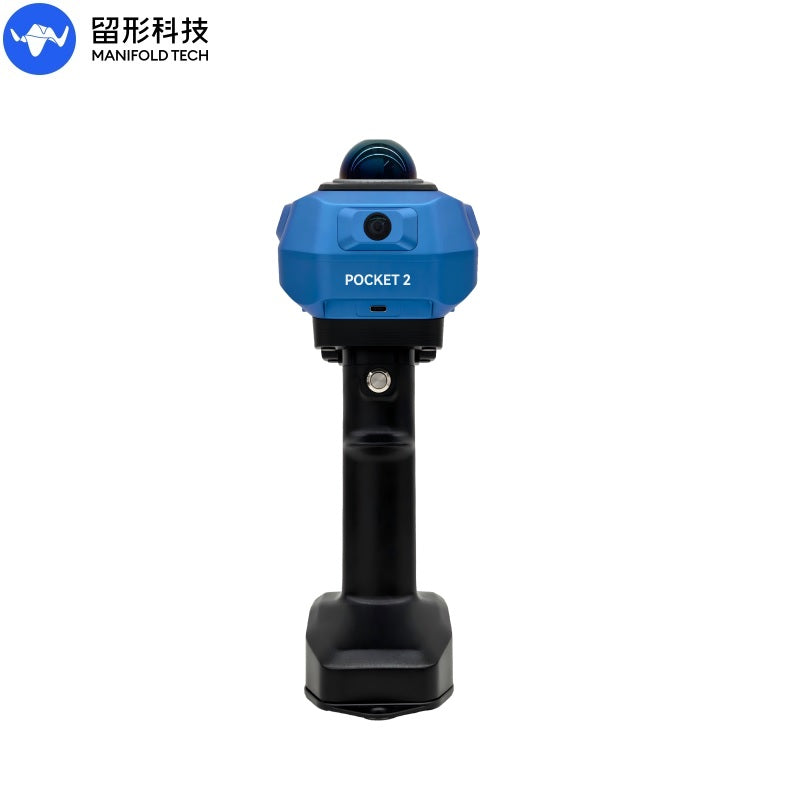

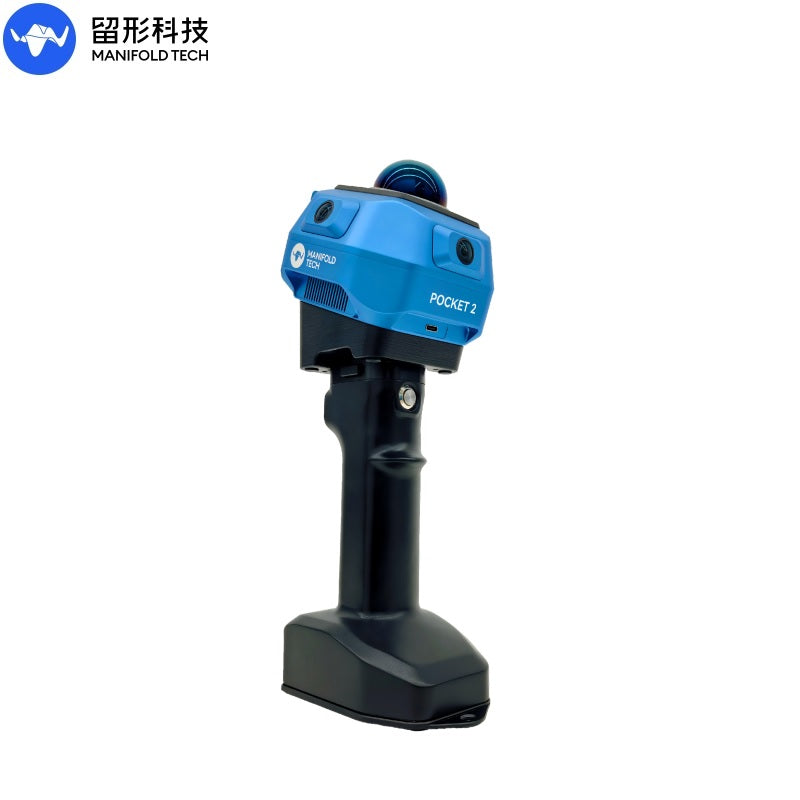

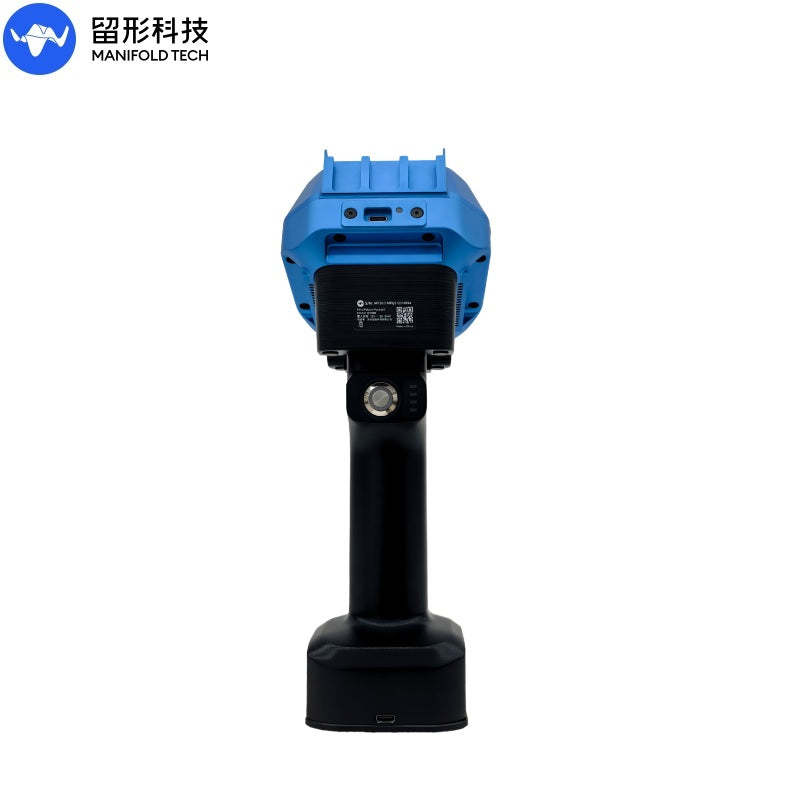

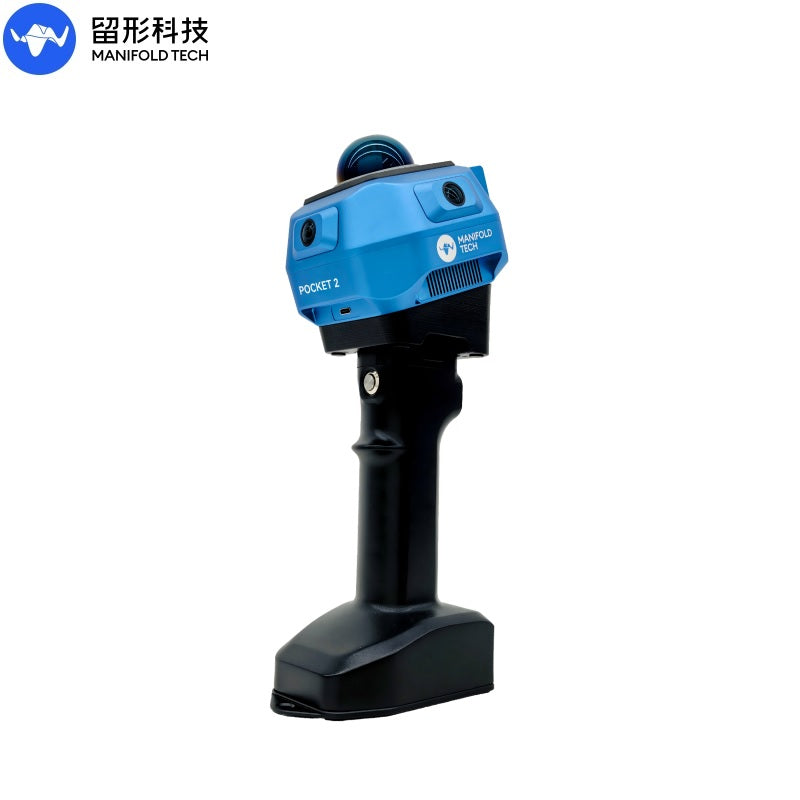

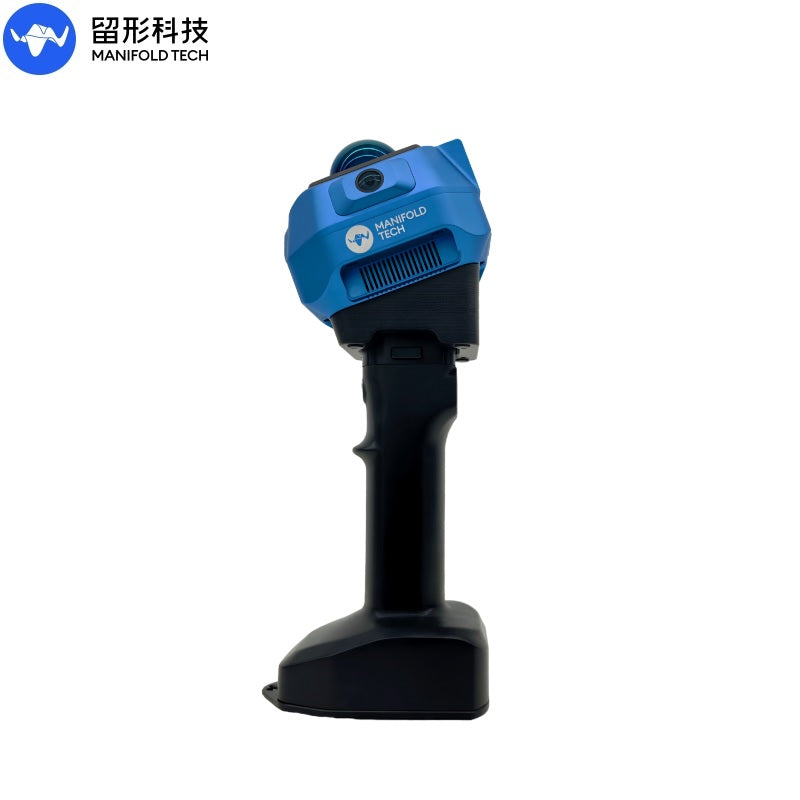

MANIFOLD TECH MindPalace Pocket 2

$3,495.00
Version

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information



Technical Specifications

Parameter Value
  Dimensions
  4.5 × 4.4 × 4.7 in (115 × 113 × 120 mm)
  Device Weight   1.74 lb (790 g)
  Handle Battery Weight   1.07 lb (485 g)
  Operating Temperature   14°F to 104°F (-10°C to 40°C)
  Data Interface
  USB 3.0
  Storage   Built-in SSD, 256 GB
  Battery Capacity   4000 mAh
  Battery Life (Single Battery)   Up to 120 minutes
  Point Cloud Accuracy   Better than 0.4 in (≤ 1 cm)
  Camera System   3 × 2 MP Global Shutter RGB Cameras
Laser Wavelength
 905 nm
  Laser Channels
40 channels
Point Density
200,000 points/sec
Measurement Range
131 ft @ 10% reflectivity / 230 ft @ 80% reflectivity (40 m / 70 m)
Global Positioning Accuracy
Better than 2 in (≤ 5 cm), typically around 1.2 in (≈ 3 cm)
MindCloud Software Suite
MindCloud Studio(PC · Local Professional Processing)
MindCloud Go(Mobile · On-site Viewing & Uploading)
MindCloud Render (PC/Cloud · Gaussian Rendering Software)
MindCloudX.ai(Cloud · Multi-core Computing & Deep Application Platform)
