FLEXIV

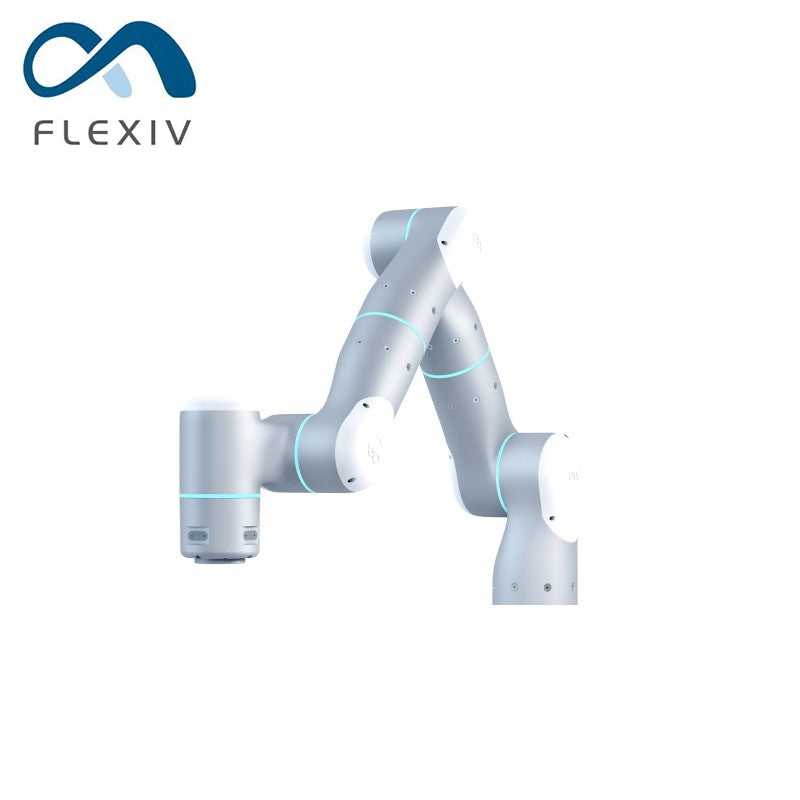

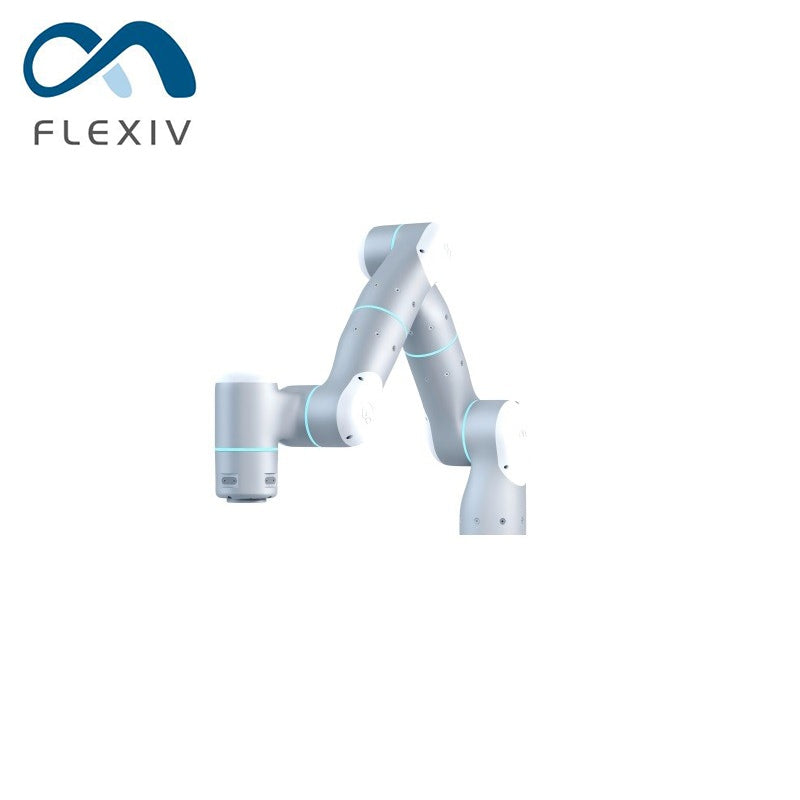

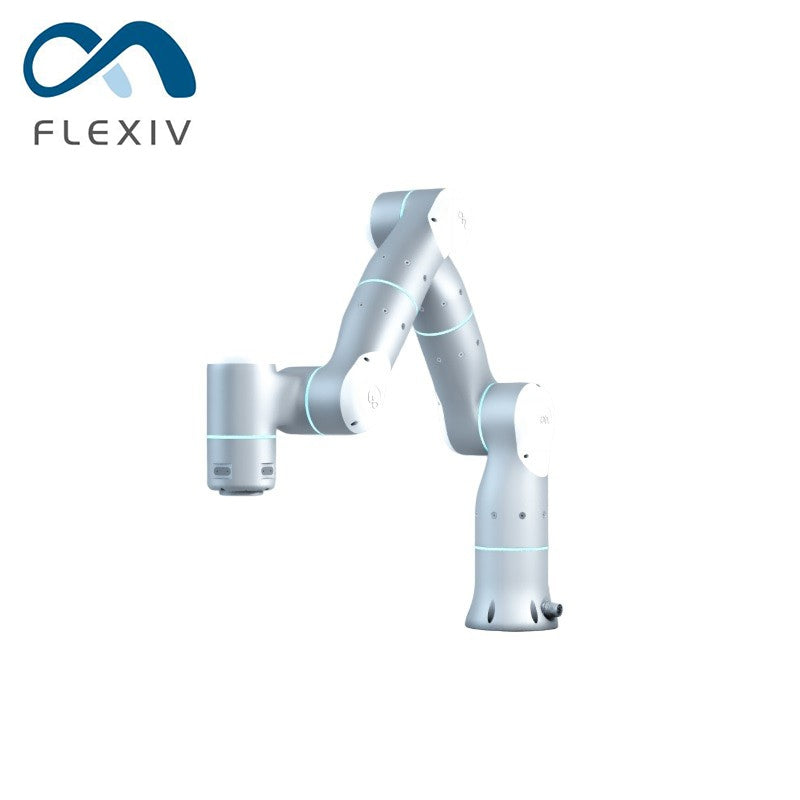

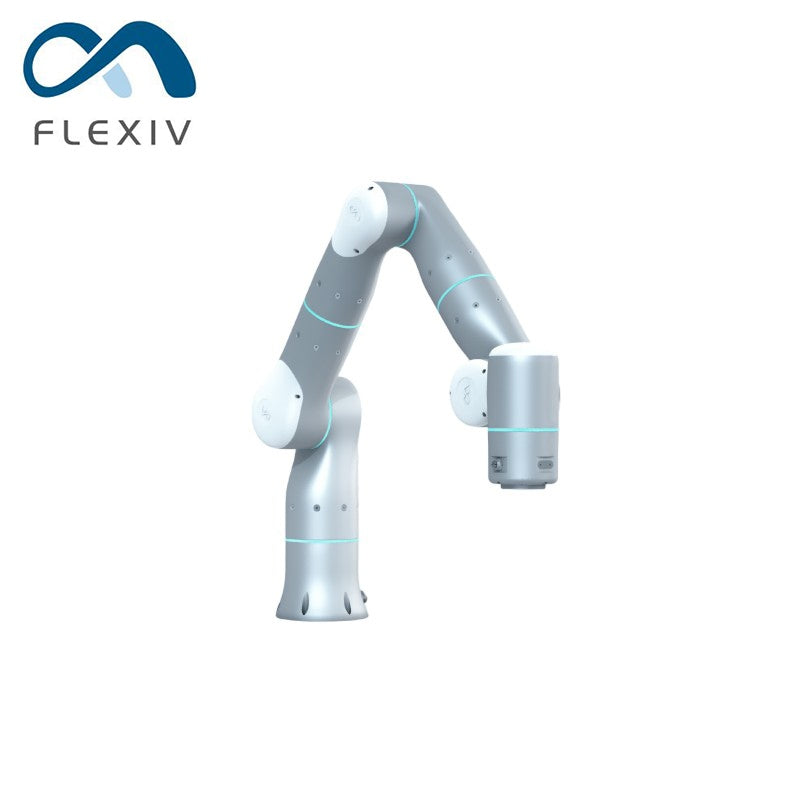

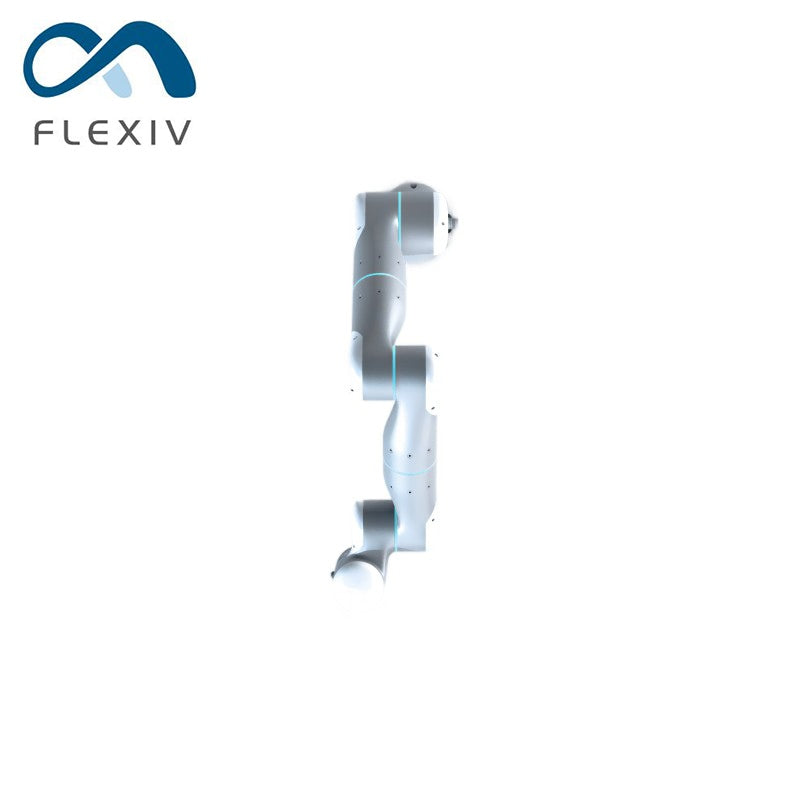

FLEXIV RIZON Robotic Arm

$65,000.00
Version

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information




Technical Specifications

Parameter Value Value Value Value

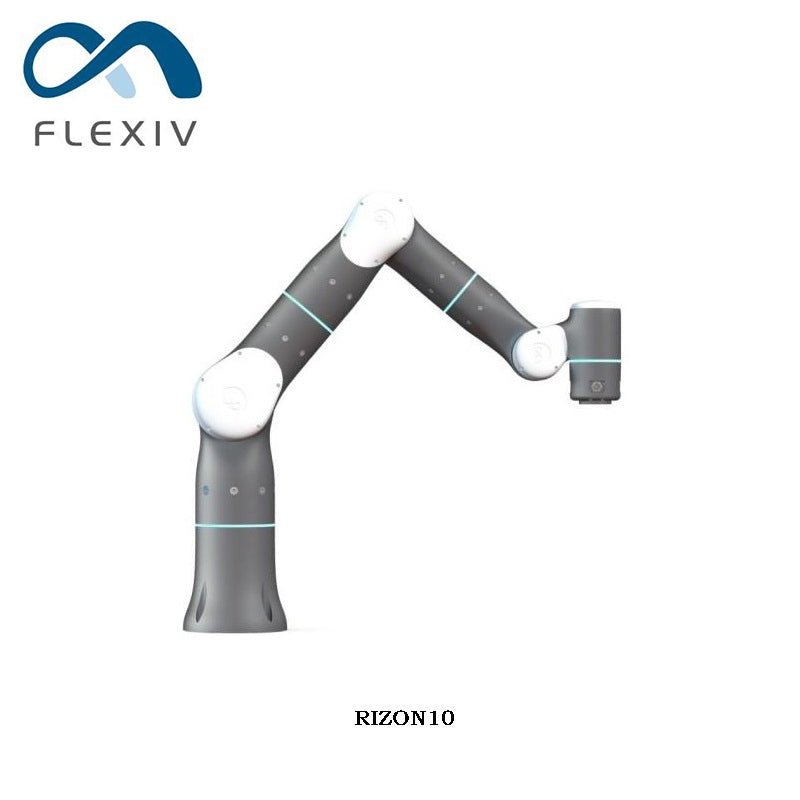

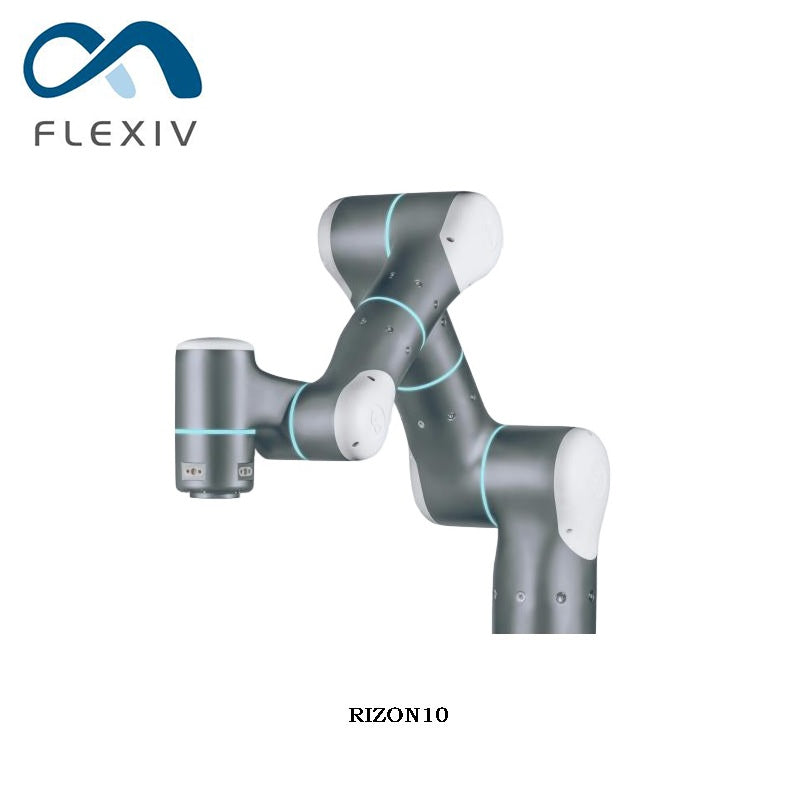

  Model   RIZON 4  RIZON 4S  RIZON 10  RIZON 10S
  Degrees of freedom
  7
  7
 7
 7
  Payload
  4Kg
  4Kg
 10Kg
 10Kg
  Weight
  20kg
  21kg
 38kg
 39kg
  Reach
  876mm
  919mm
 941mm
 984mm
  Protection rating
  IP65
  IP65
 IP65
 IP65
  Installation position   Any   Any  Any  Any
  Operating temperature   0 to 45 °C   0 to 45 °C  0 to 45 °C  0 to 45 °C
  Air humidity   20% to 80% non-condensing   20% to 80% non-condensing   20% to 80% non-condensing   20% to 80% non-condensing
Force sensing accuracy
0.1N
0.03N
0.2N
0.1N
Pose repeatability (ISO9283)
 ±0.05 mm ±0.05 mm ±0.05 mm ±0.05 mm
Maximum TCP force
200 N
150N
350N
350N
Noise
 <70 dB
 <70 dB <70 dB <70 dB
Mounting flange
 ISO 9409-1-50-4-M6
 ISO 9409-1-50-4-M6 ISO 9409-1-50-4-M6 ISO 9409-1-50-4-M6
Typical TCP linear speed
 1.0 m/s 1.0 m/s 1.0 m/s 1.0 m/s
