EYOU | SKU:

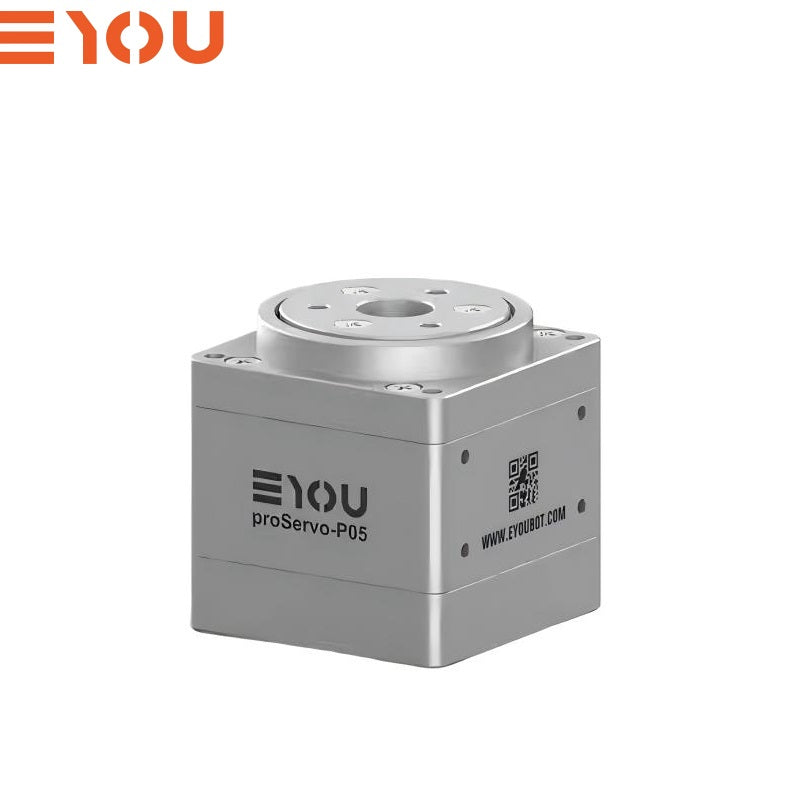

EYOU PP05 Motor
Regular price
$170.00
Unit price
EYOU PP05 Motor - PP05-Motor is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
EYOU PP05 Motor
Regular price
$170.00
Unit price
EYOU PP05 Motor - PP05-Motor is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Model | PP05 |
| Motor Type | Brushless Torque Motor |
| Encoder Type |
Absolute Encoder |
| Diameter | 32mm |
| Length | 33.4mm |
| Weight | 86g |
| Reduction Ratio | 6:1 |
| Backlash | 12arcmin |
| Noise | ＜60db |
| Temperature Range | -20~80℃ |
| Operating Voltage | 24v |
| Maximum Power | 35w |
| Rated Speed | 50rpm |
| Rated Torque | 0.2N.M |
| Peak Torque | 0.48N.M |
| Protection Grade | IP54 |
| Communication Protocol | CAN |
