LINKERBOT | SKU:

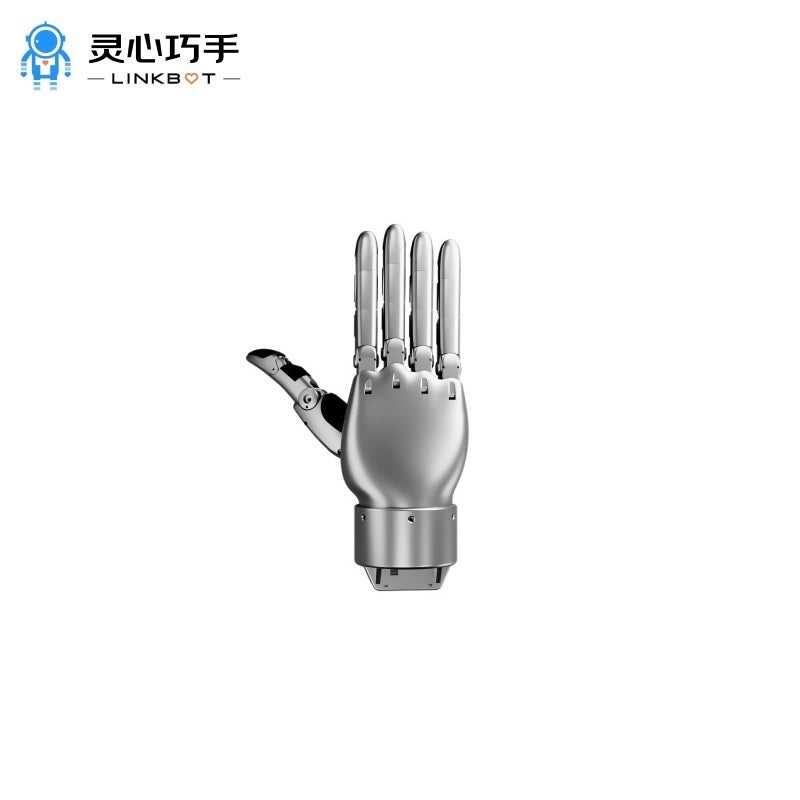

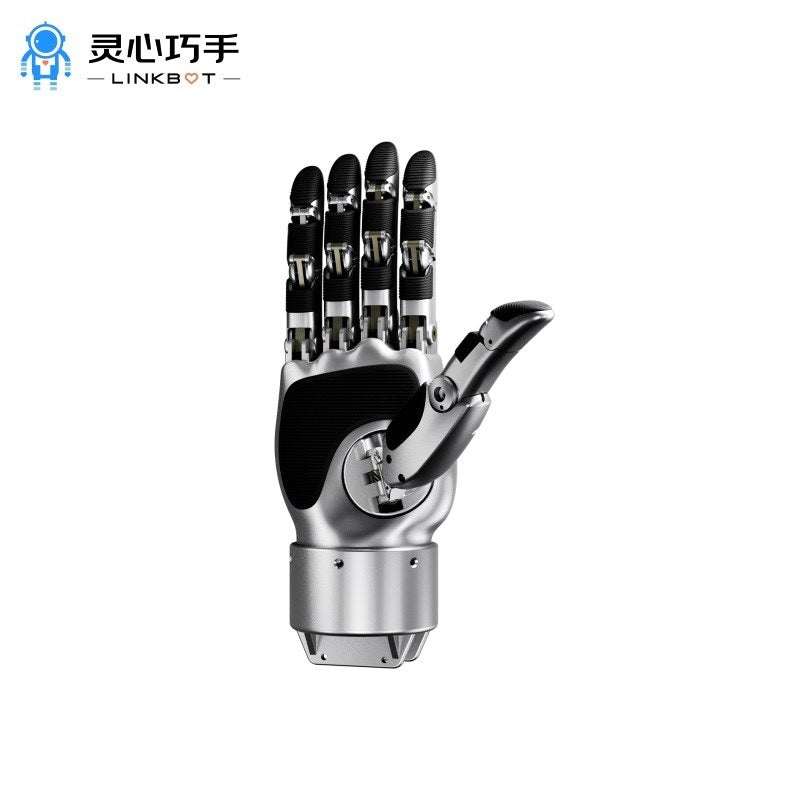

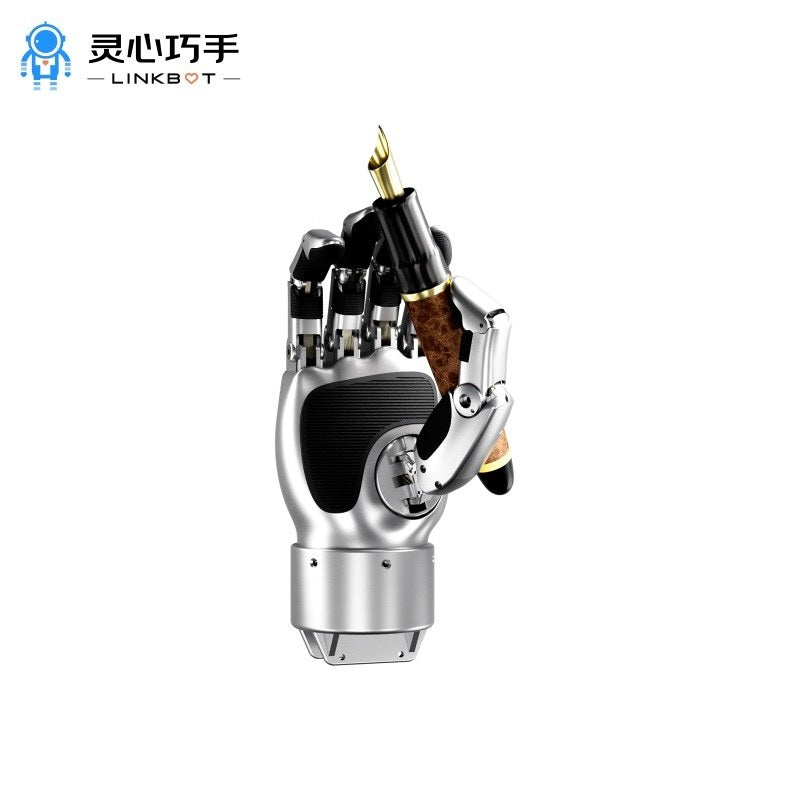

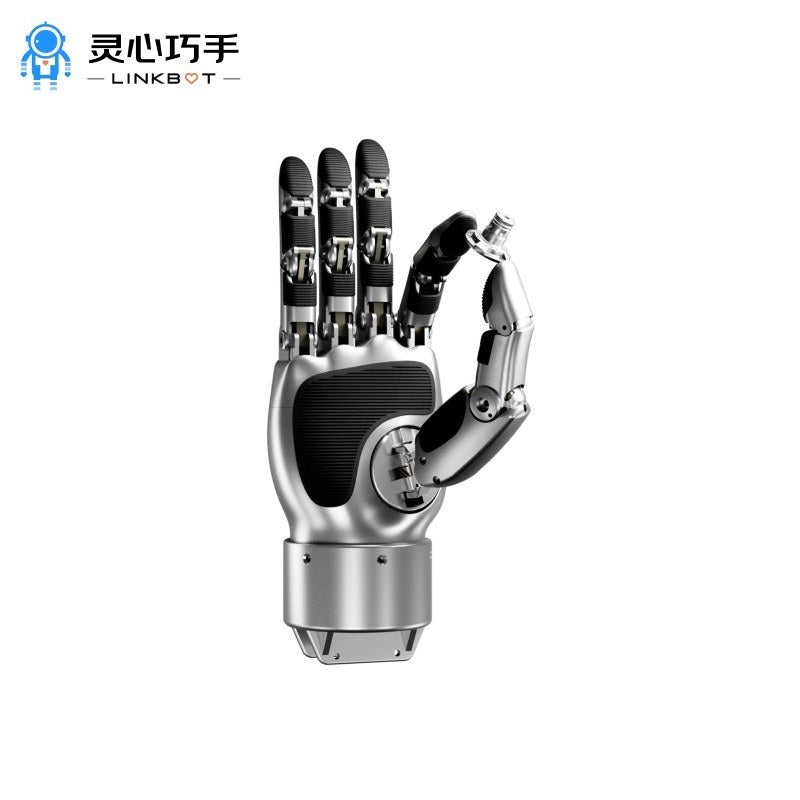

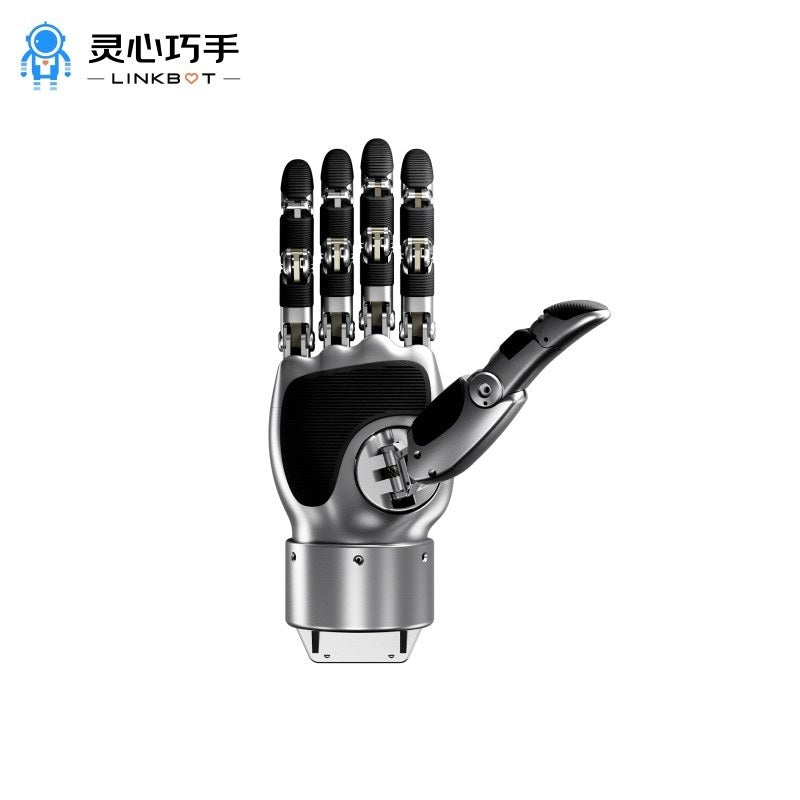

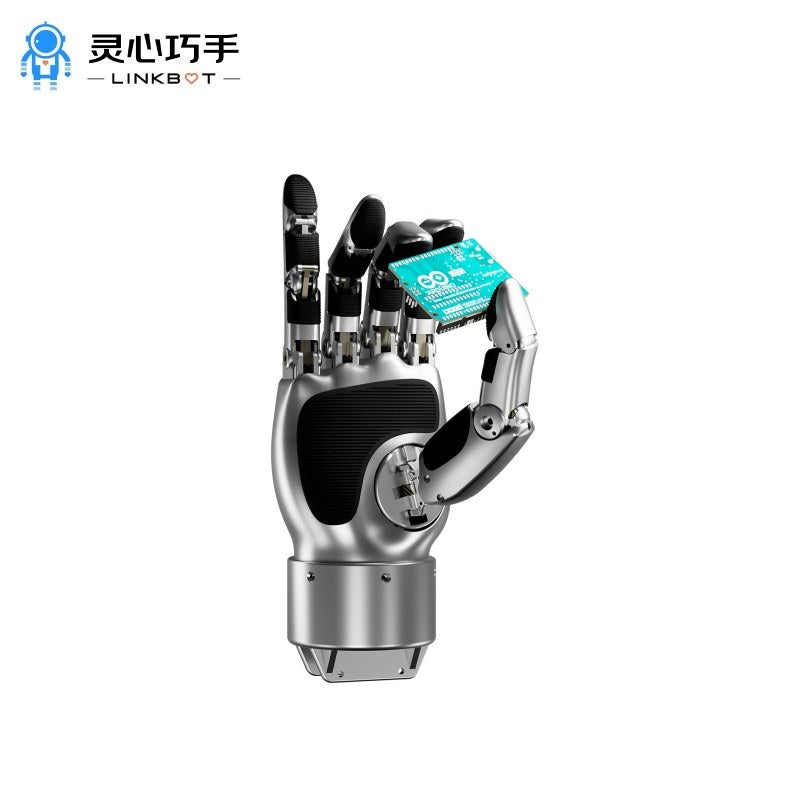

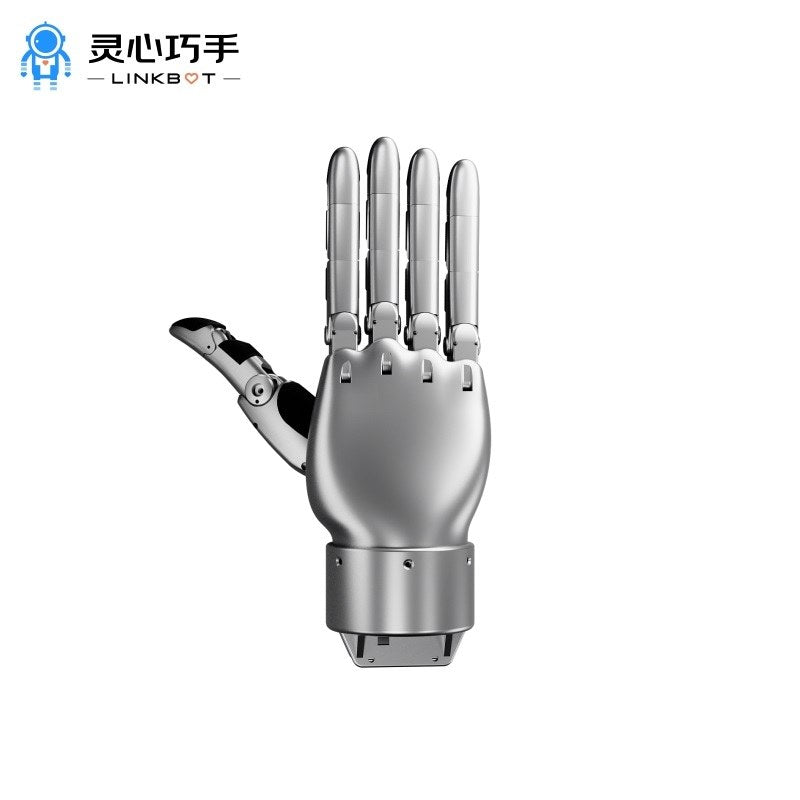

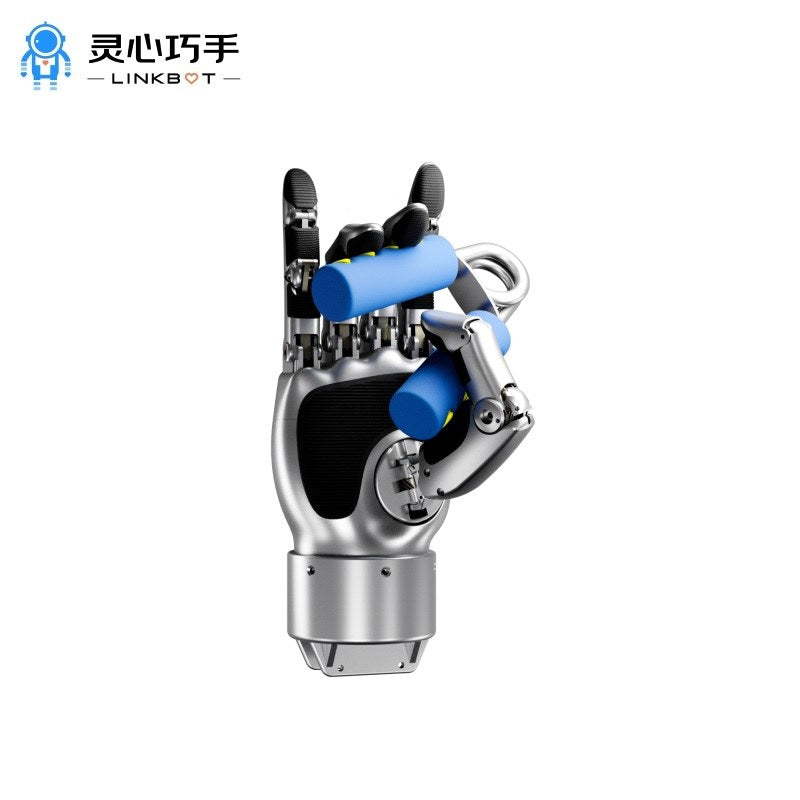

LINKERBOT Linker Hand O7
Regular price
$1,999.00
Unit price
Unavailable
LINKERBOT Linker Hand O7 - Linker Hand O7 (Left) is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
LINKERBOT Linker Hand O7
Regular price
$1,999.00
Unit price
Unavailable
LINKERBOT Linker Hand O7 - Linker Hand O7 (Left) is backordered and will ship as soon as it is back in stock.
Product Information
Technical Specifications
| Parameter | Value |
|---|---|
| Degrees of Freedom (DoF) | 7 |
|
Number of Joints
|
17 (7Active + 10 Passive)
|
| Transmission Method |
Worm Gear Transmission
|
|
Control Interface
|
CAN/RS485
|
|
Weight
|
634.5g
|
|
Maximum Load
|
25kg
|
|
Operating Voltage
|
DC24V±10% |
|
Static Current
|
0.2A |
|
Average Current during No-Load Motion
|
0.7A |
|
Maximum Current
|
2.6A |
| Repetitive Positioning Accuracy | < ±0.2mm |
| Opening and Closing Time | 1.25s |
| Maximum Fingertip Force of Thumb | 14N |
|
Maximum Fingertip Force of Four Fingers
|
14N
|
|
Maximum Grip Force of Five Fingers
|
60N
|
