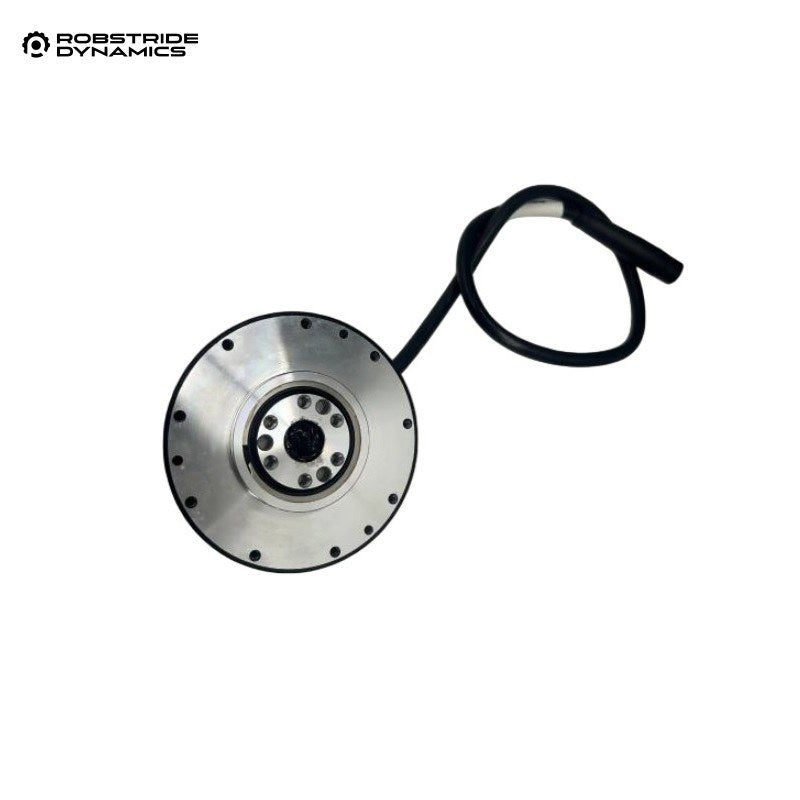

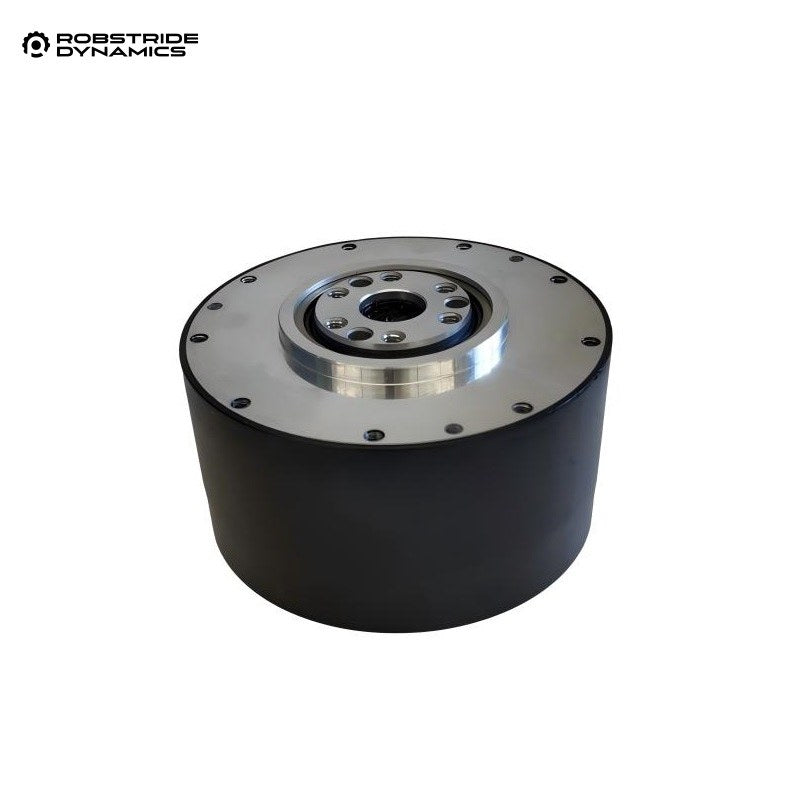

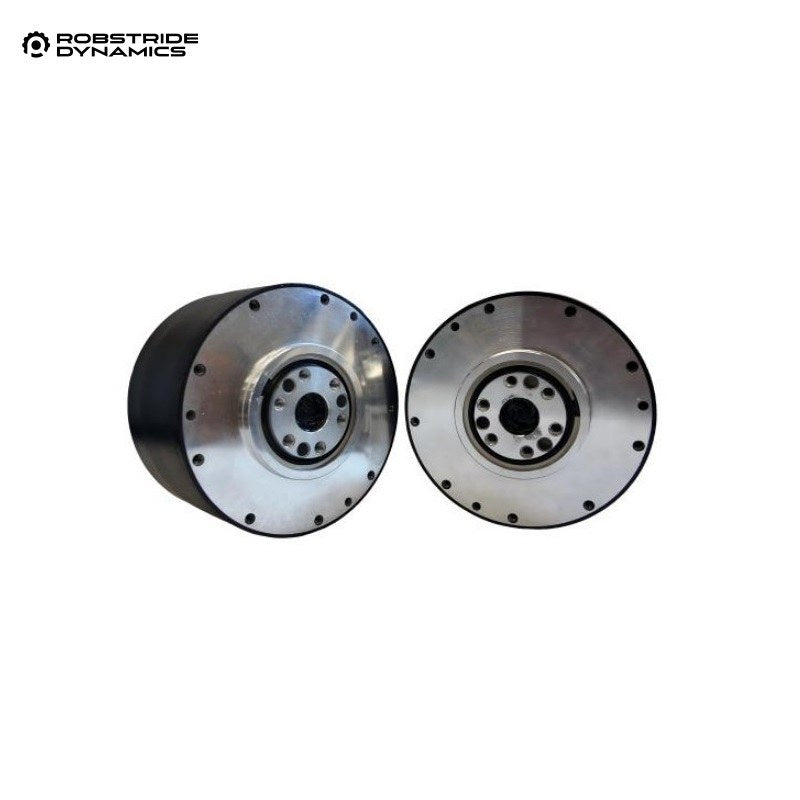

ROBSTRIDE 02 IP67 Motor

$240.00

Version

ROBSTRIDE 02 IP67 Motor Motor + USB-to-CAN Module

Delivery and Shipping

We automatically select the most cost-effective carrier from China for each destination country
Shipping rates are dynamically calculated based on real-time quotes
Final rates may vary due to promotional offers or carrier adjustments

Humanoid Robots

Robotic Arms

Exoskeletons

Quadruped Robots

AGV Vehicles

ARU Robots

Parameter	Value
Model	ROBSTRIDE 02 IP67
Size	60 x 60 x 27 mm
Flange Hole Location	24 x 6 x 9 mm (M4)
Mechanical Installation Hole Location	73 x 9 x 8 mm (M3)
Electrical Terminal Interface	XT30PB
Protection level	IP67
Encoders	Magnetic Encoder x 2
Weight	490g ± 5g
Poles	28
Phases	3
Drive Method	FOC
Reduction Ratio	7.75 : 1
Gear Material	Machined Steel
Magnetic Encoder	2pcs
Rated Voltage	48V
Voltage Range	24-60V
Rated Output Power	170w ± 10%
Rated Torque	6N.m
Peak Torque	17N.m
Running Direction	CW/CCW
Temperature Range	-20~50℃
Humidity Range	5~85%
Storage Temperature Range	-30~70℃
Insulation Level	Class B
No-load Speed	410rpm ± 10%
No-load Current	0.5Arms
Rated Load Speed	360rpm ± 10%
Rated Load Phase Current	7Apk ± 10%
Peak Phase Current	23Apk ± 10%
Insulation Resistance / Stator Winding	DC 500VAC, 100M 0hms
High Voltage Resistance / Stator and Casing	600VAC, 1s, 2mA
Back-EMF	0.096Vrms/rpm ± 10%
Line Resistance	0.58Ω
Torque Constant	1.22N.m/Arms
Inductance	187~339μH
Baud Rate	1MbpS
Encoder Type	Dual Magnetic Encoder
Encoder Resolution	14bit
