RoboSense

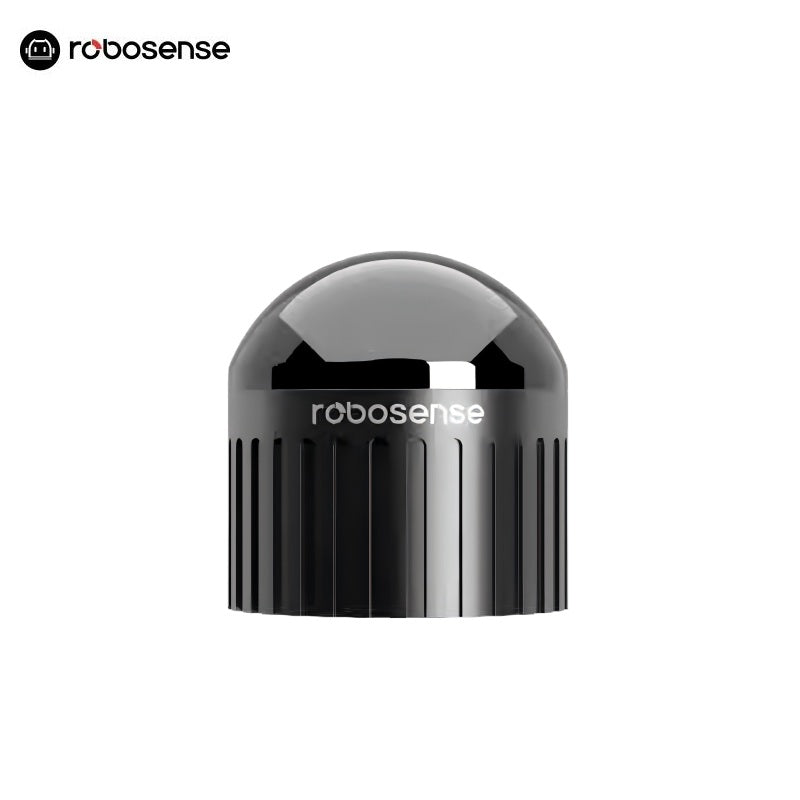

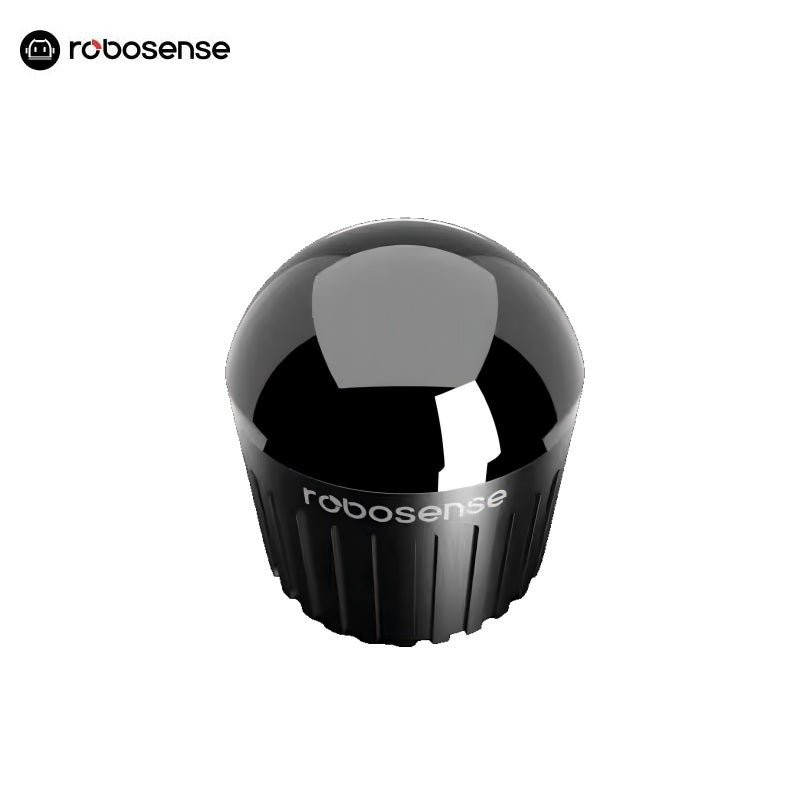

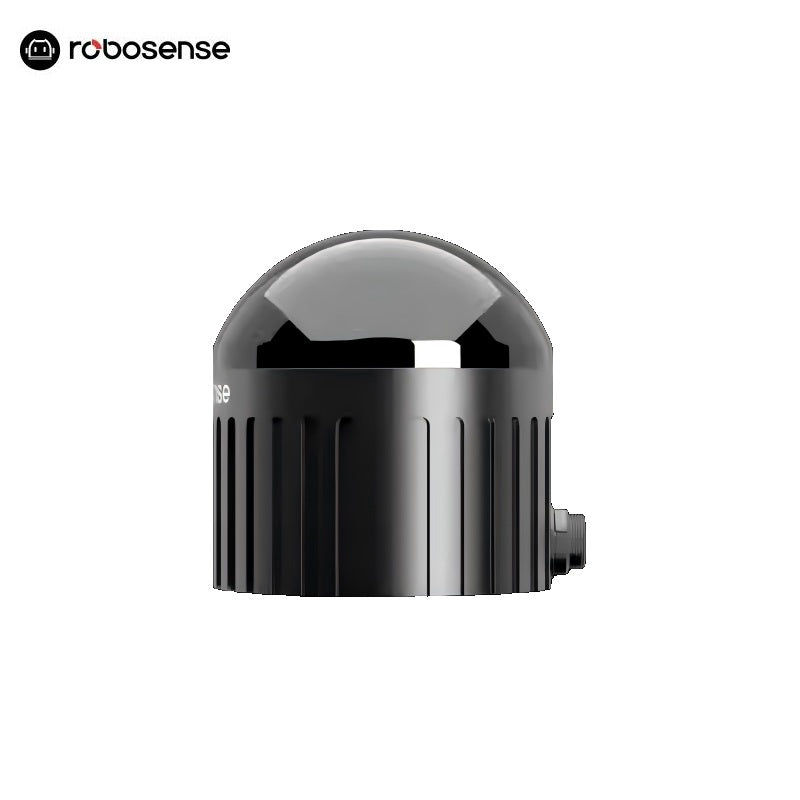

RoboSense Airy LiDAR

$1,099.00
Model

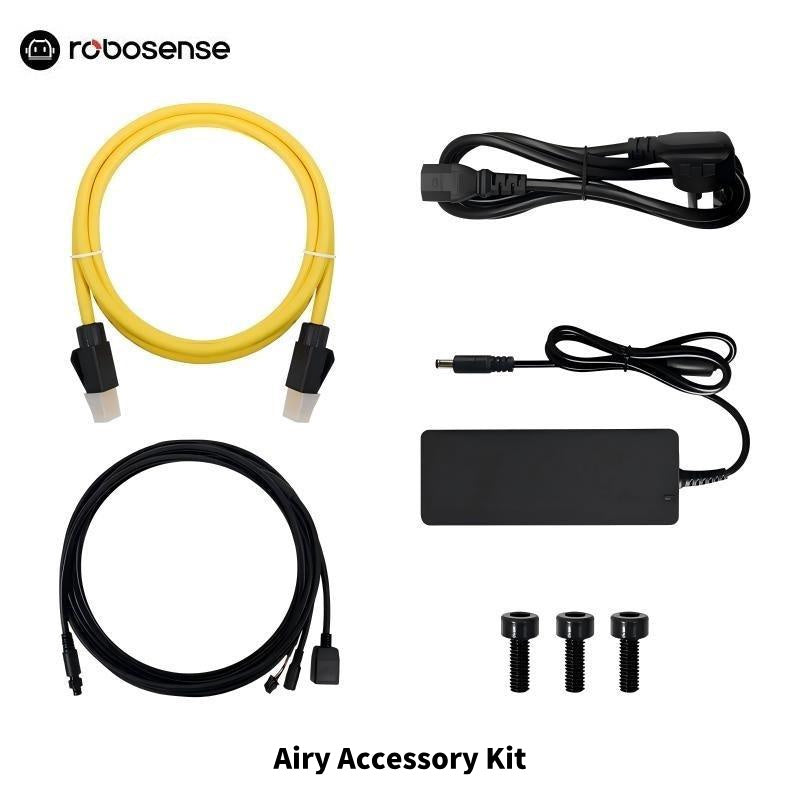

Accessories

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information

Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
Range 30m@10%
Maximum Range 60m
FOV (H×V) 360°×90°
Angular Resolution (H×V) Avg.0.4°×0.47°
Frame Rate 10Hz
Points per Second (Single Return Mode) ~1,720,000pts/s (192-Beam)
~860,000pts/s (96-Beam)
~430,000pts/s (48-Beam)
Ethernet Connection 100Base-TX
Dimension φ60mm×H63mm
Weight (Without Cabling) <240g
Operating Temperature ~40°C ~ +60°C
Time Synchronization GPRMC with 1PPS, PTP & gPTP
# of Lines 192/96/48
Accuracy ±1cm
Blind Spot <0.1m
Laser Safety Class 1 eye safety
Power Consumption <8W
Points per Second (Dual Return Mode) ~3,440,000pts/s (192-Beam)
~1,720,000pts/s (96-Beam)
~860,000pts/s (48-Beam)
Output UDP packets over Ethernet
UDP Packet Include Spatial Coordinates
Intensity
Timestamp, etc.
Operating Voltage 9V ~ 32V
Storage Temperature ~40°C ~ +85°C
Ingress Protection IP67, IP6K9K
