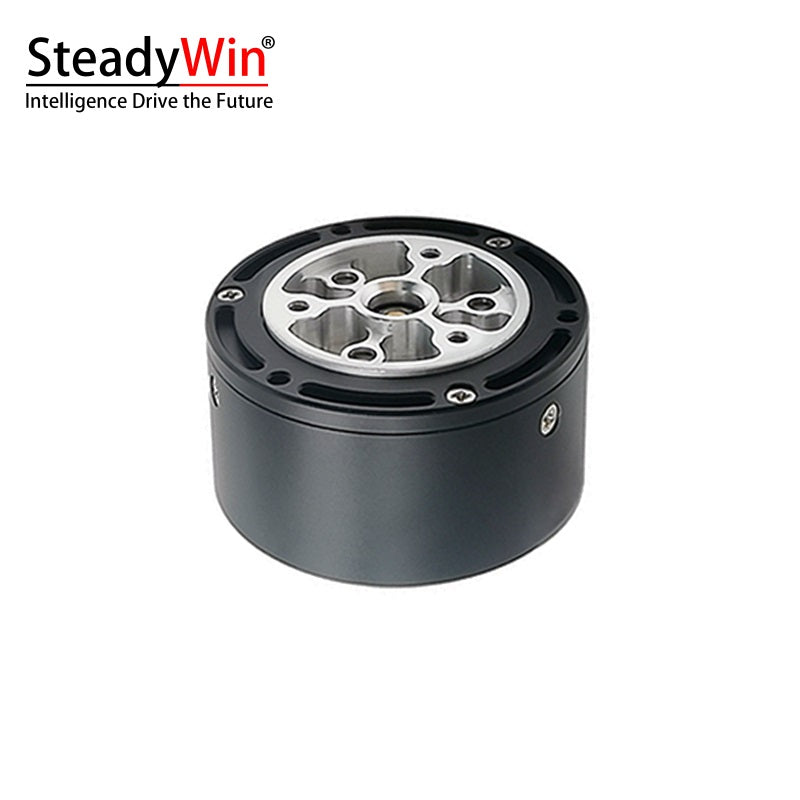

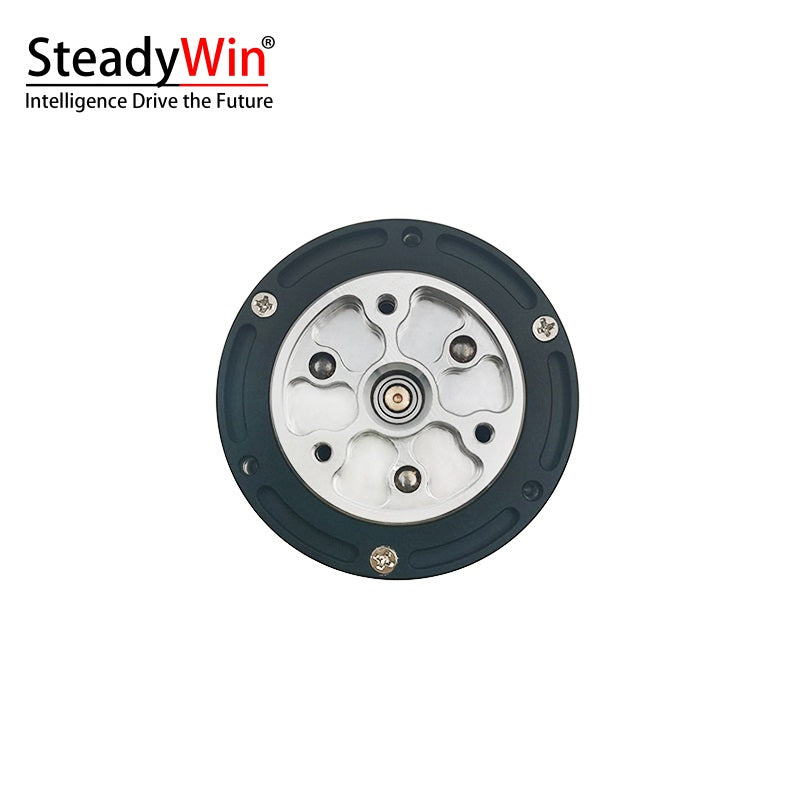

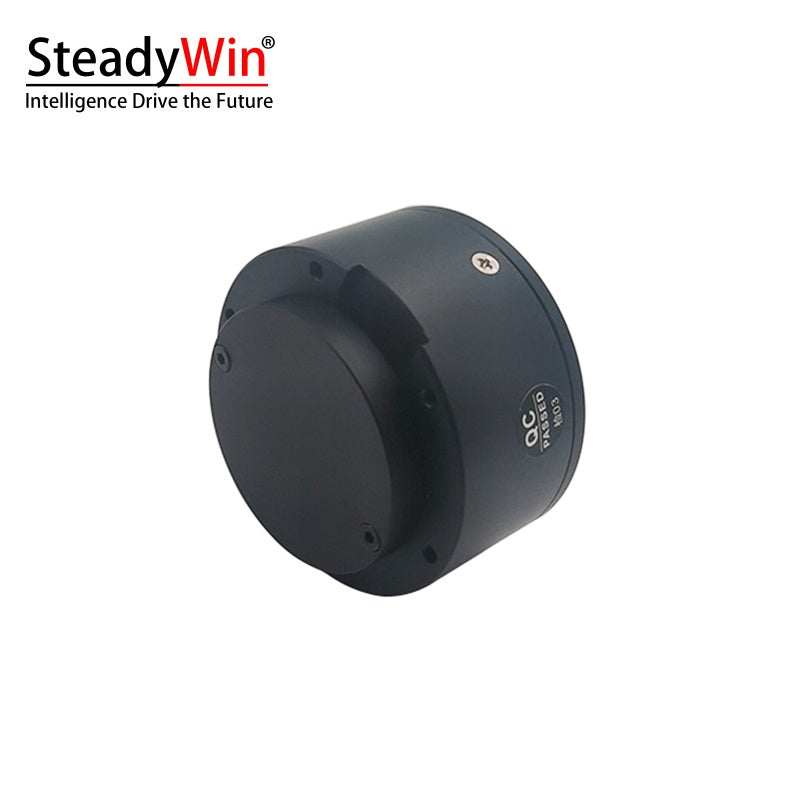

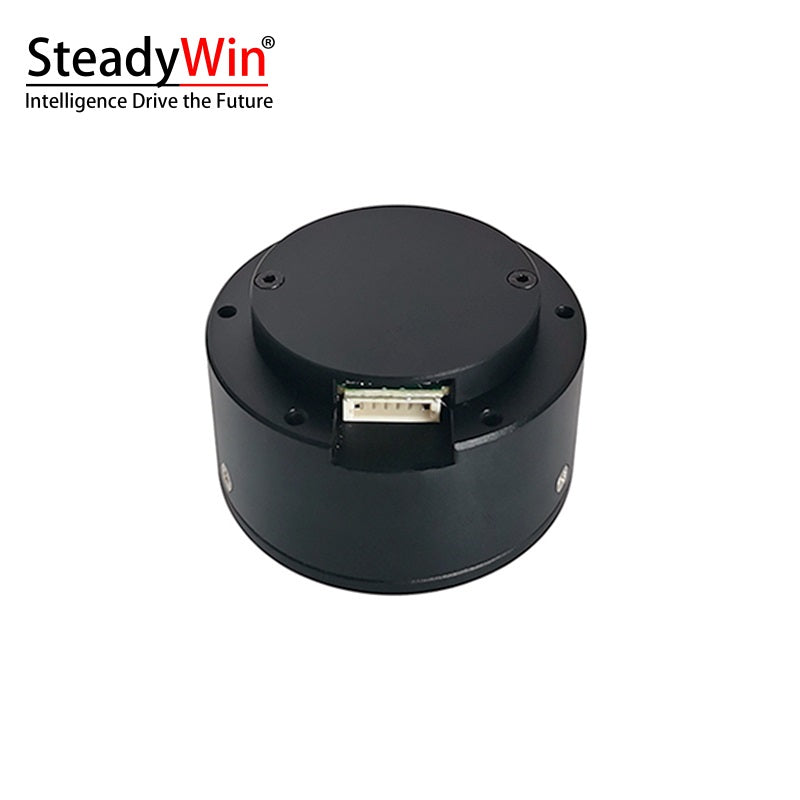

SteadyWin GIM4305-10 Planetary Reducer Motor
SteadyWin GIM4305-10 Planetary Reducer Motor - Pupper V3 Custom Version is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Open Source Integration
Proven in real-world robotic applications
About Pupper V3 Custom Version
* Pre-install the firmware and default parameters specified in the Pupper V3 BOM documentation
* Pre-configure CAN IDs. For one-time purchases of 12 units, we will configure them as CAN 1x4, CAN 2x4, CAN 3x4 according to the Pupper V3 BOM documentation guidelines.
Technical Specifications
| Parameter | Value | Value |
|---|---|---|
| Model | GIM4305-10 | GIM4305-10 |
| Driver Model | GDZ34(SDC216) | GDS34(SDC01) |
| Nominal Voltage | 24V (12-40V range) | 24V (12-36V range) |
| Power | 52W | 48W |
| Nominal Torque | 1.05 N·m | 1 N·m |
| Stall Torque | 3.82 N·m | 3.47 N·m |
| Nominal Speed after Reduction | 312 RPM | 300 RPM |
| Max Speed after Reduction | 402 RPM | 366 RPM |
| Nominal Current | 2.18A | 2A |
| Stall Current | 14.99A | 5.6A |
| Phase Resistance | 1.11 Ω | 1.15 Ω |
| Phase Inductance | 0.28 mH | 0.41 mH |
| Speed Constant | 16.75 rpm/v | 15.25 rpm/v |
| Torque Constant | 0.39 N·m/A | 0.62 N·m/A |
| Number of Pole Pairs | 14 Pairs | 14 Pairs |
| Gear Ratio | 10:1 | 10:1 |
| Gear Type | Planetary | Planetary |
| Reducer Gear Material | ALU or STEEL | ALU or STEEL |
| Reducer Gear Backlash | 15 arcmin | 15 arcmin |
| Motor Weight (without Driver) | 140g | 140g |
| Motor Weight (with Driver) | 150g | 150g |
| Size (without Driver) | Ø53×26mm | Ø53×26mm |
| Size (with Driver) | Ø53×26mm | Ø53×26mm |
| Max Axial Load | 125N | 125N |
| Max Radial Load | 500N | 500N |
| Noise | <60 dB | <60 dB |
| Communication | CAN & RS485 | CAN |
| Second Encoder | NO | NO |
| Protection Grade | IP54 | IP54 |
| Operating Temperature | -20℃ to +80℃ | -20℃ to +80℃ |
| Encoder Resolution | 14 Bit | 14 Bit |
| Separate Encoder Support | YES | YES |
| Custom Brake Support | YES | YES |
GIM4305-10SHS Installation Diagram.pdf

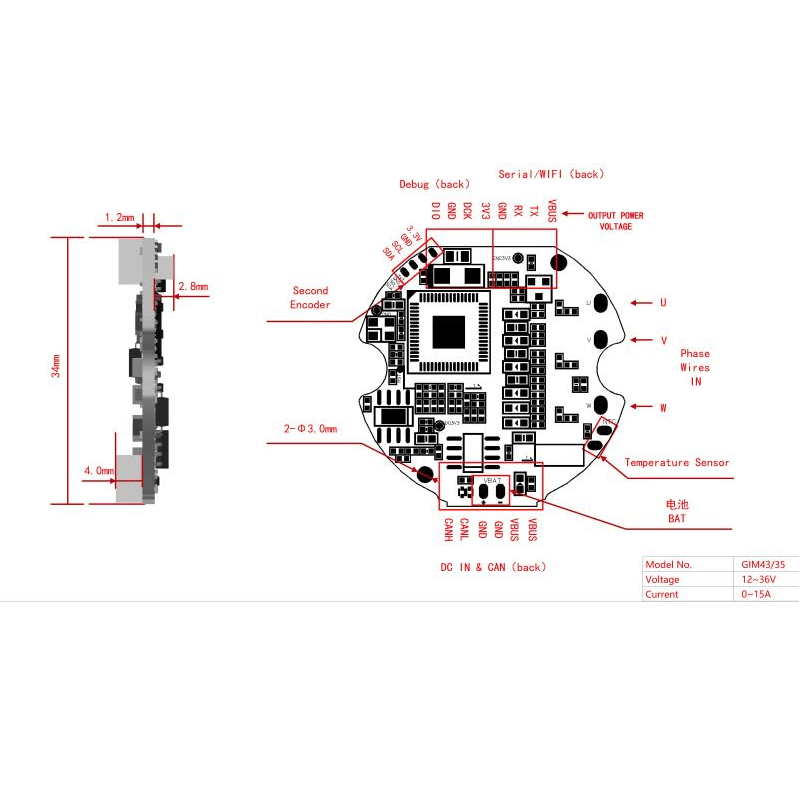

GIM4305_Motor_Interface_Schematic_Diagram.pdf
SteadyWin_GIM4305_10.stp
