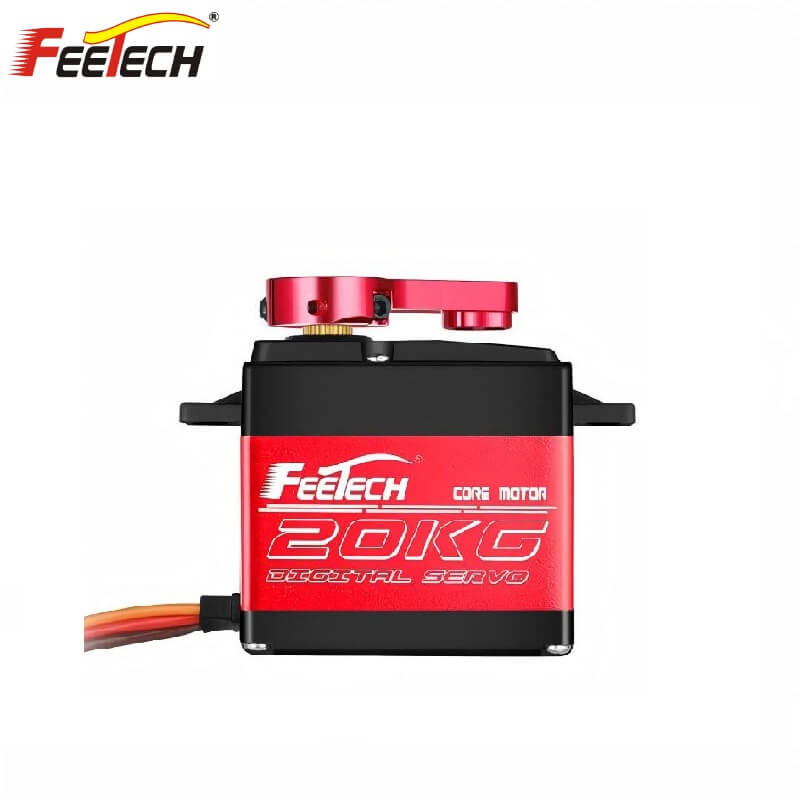

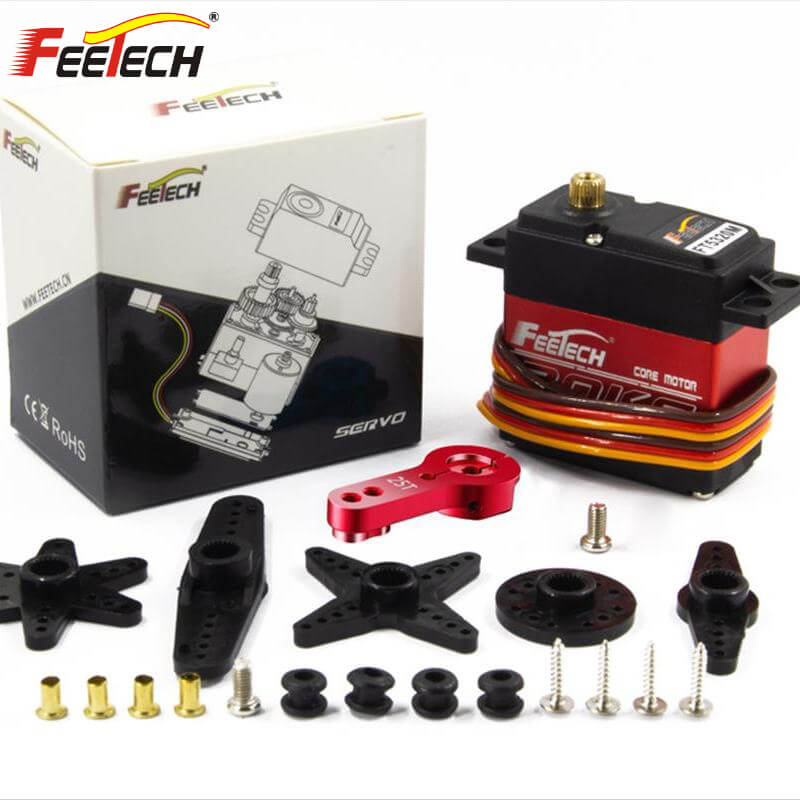

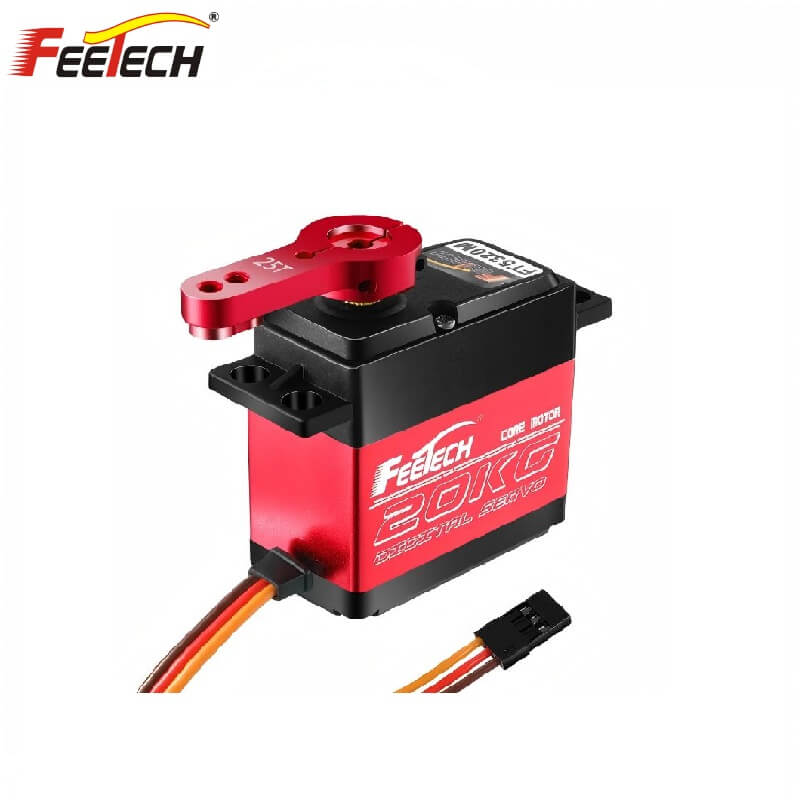

FEETECH FT5320M Servo Motor
Regular price
$19.00
Unit price
FEETECH FT5320M Servo Motor - FT-5320-C001 (7.4V20KG) is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
FEETECH FT5320M Servo Motor
Regular price
$19.00
Unit price
FEETECH FT5320M Servo Motor - FT-5320-C001 (7.4V20KG) is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | |
|---|---|
| Model | FT5320M |
| Product Name |
7.4V 20kg.cm Digital 180 Degree Aluminum Medium Shell Copper Gear Iron Core Servo |
| Storage Temperature Range |
-30℃～80℃ |
| Operating Temperature Range | -20℃～60℃ |

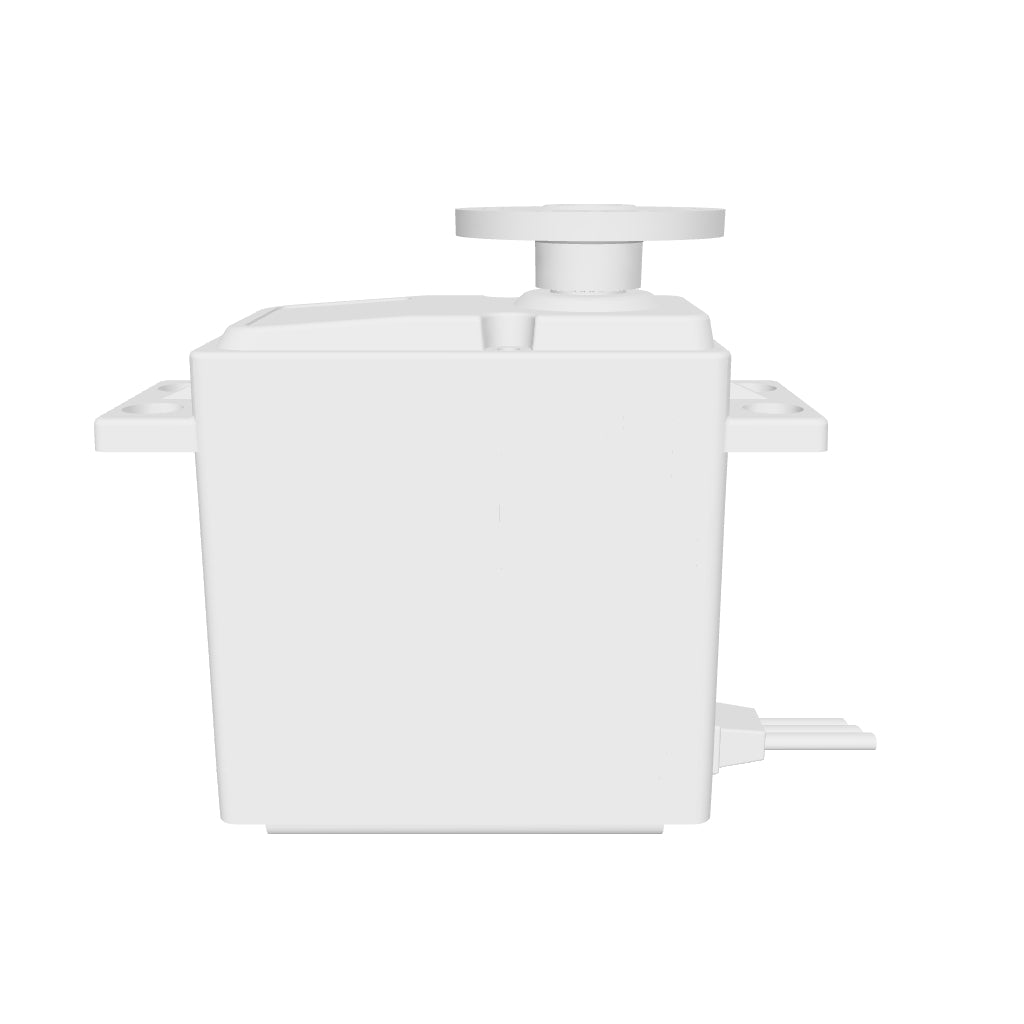

| Dimensions |
A：55mm B：20mm C:43mm |
| Weight | 67土1g |

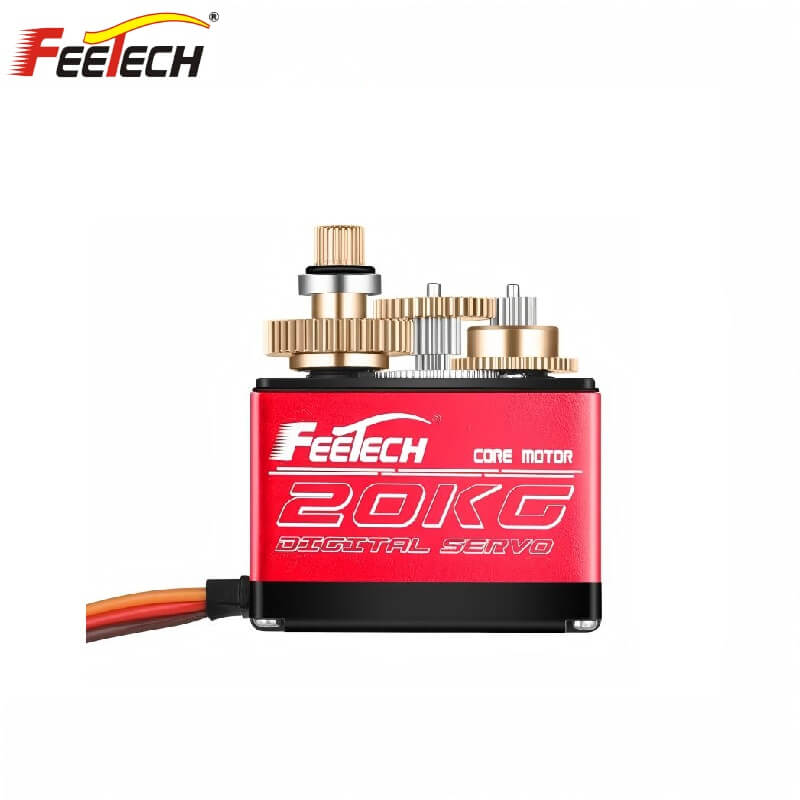

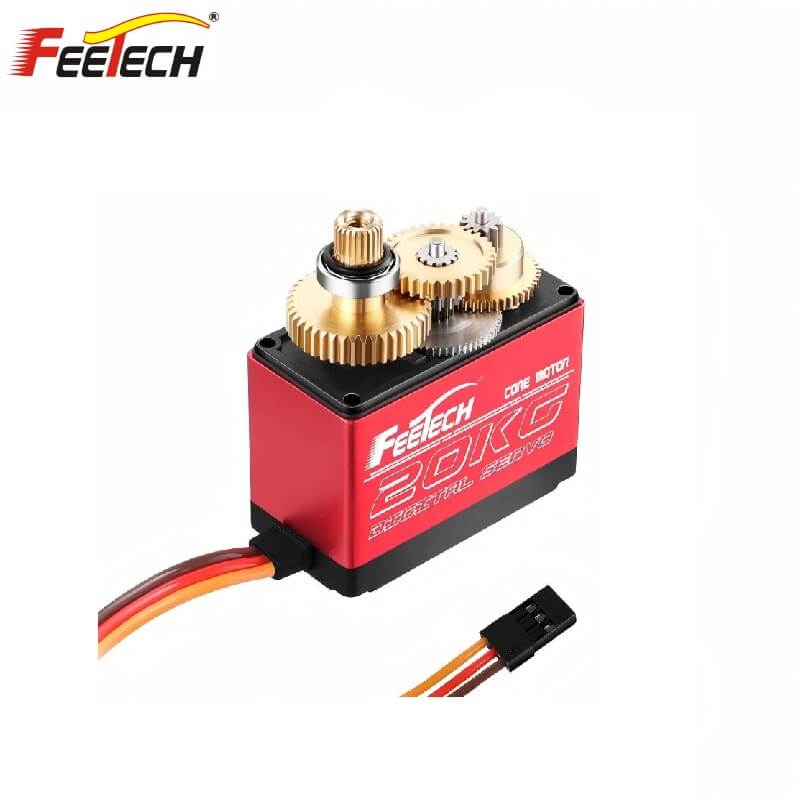

| Gear type |
Copper Gear |
| Limit angle |
NO limit |
| Bearing |
Ball bearings |
| Horn gear spline | 25T/5.9mm |
| Horn type |
Plastic |
| Case | PA+Aluminium |
| Connector wire | 30CM |
| Motor |
Core Motor |
| Operating Voltage Range | 6V-7.4V |
| Idle current (at stopped) | 6MA@7.4V |
| No load speed | 0.151sec/60°@7.4V |
| Runnig current(at no load) | 120mA@7.4V |
| Peak stall torque | 20kg.cm@7.4V |
| Rated torque | 6.5kg.cm@7.4V |
| Stall current |
3A@7.4V |
| Command signal |
Pulse width modification |
| Amplifier type | Digital compara tor |
| Pulse width range |
500~2500usec |
| Stop position |
1500 μ sec |
| Running degree |
180° （at 500- > 2500 μ sec) |
| Dead band width | ≤4 μsec |
| Rotating direction | Counterclockwise (1500→2000 μ sec) |
