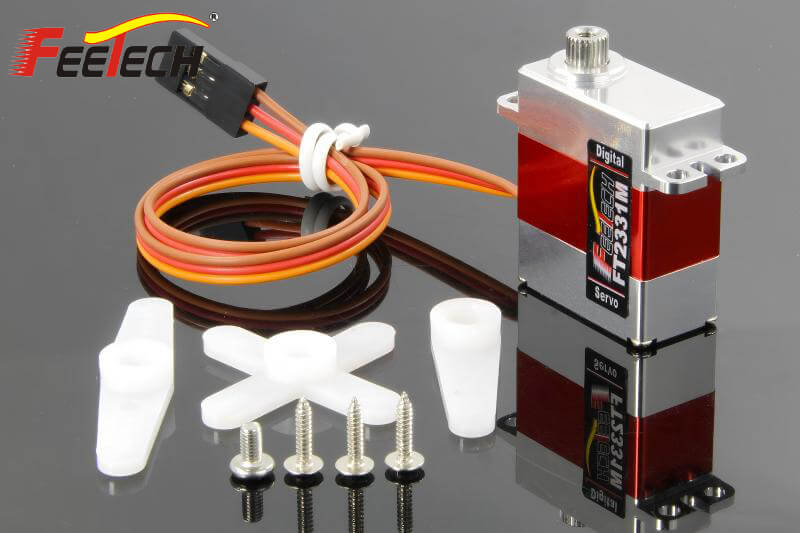

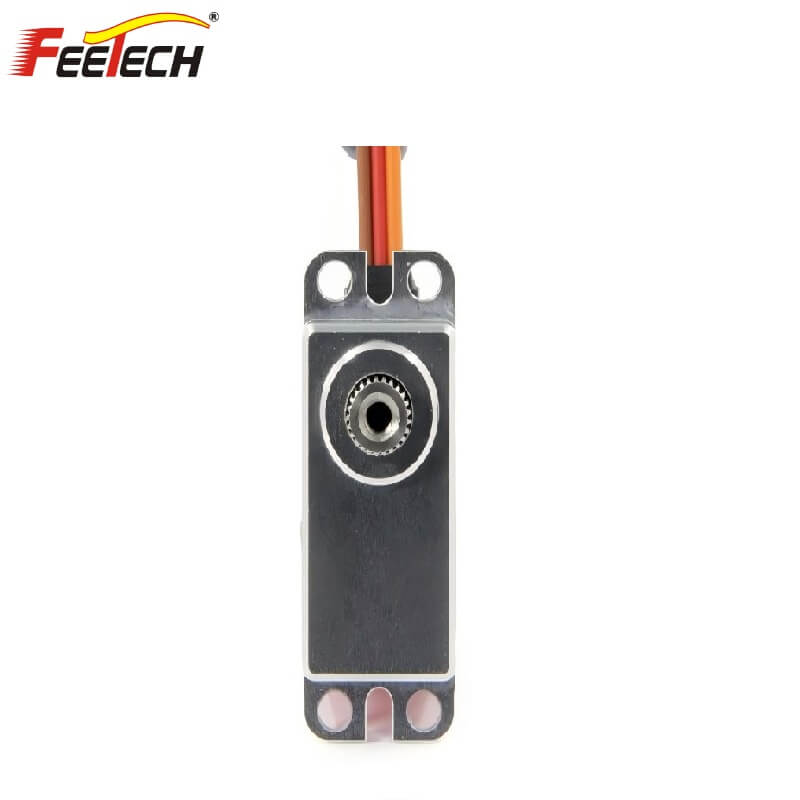

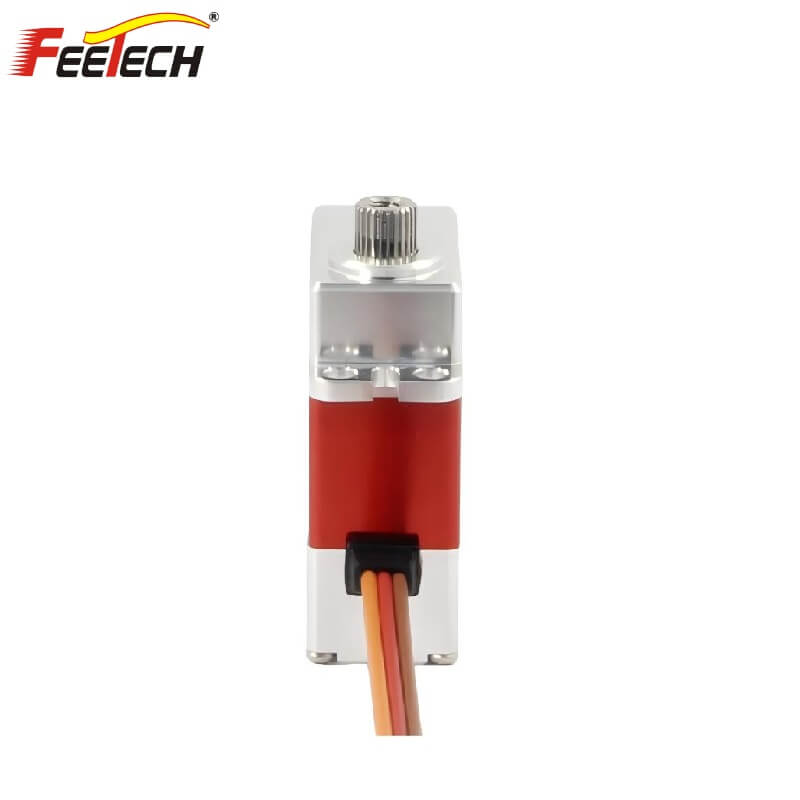

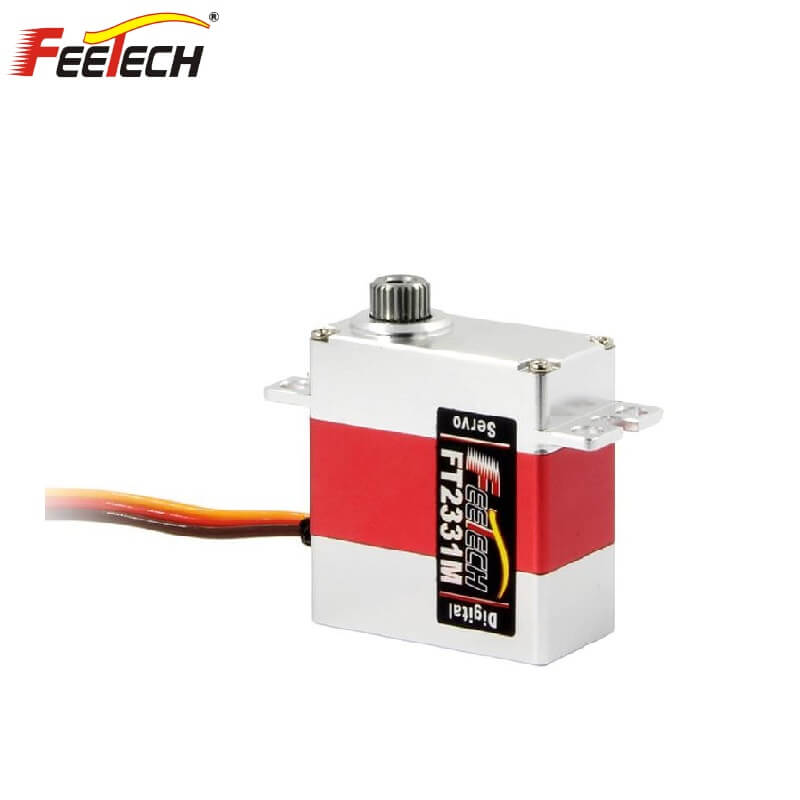

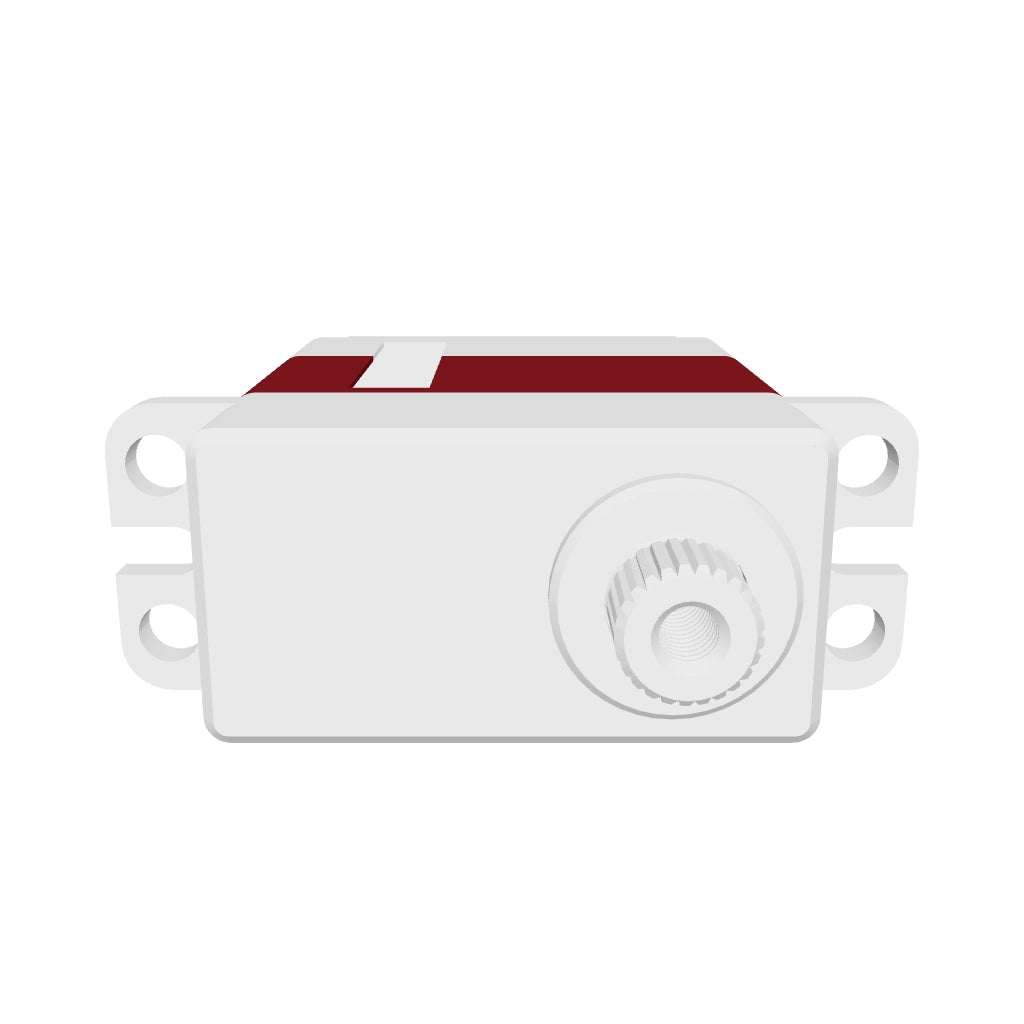

FEETECH FT2331M Servo Motor
Regular price
$30.00
Unit price
FEETECH FT2331M Servo Motor - FT-2331-C001 (6V4.5KG) is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
FEETECH FT2331M Servo Motor
Regular priceFrom
$30.00
Unit price
FEETECH FT2331M Servo Motor - FT-2331-C001 (6V4.5KG) is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | |
|---|---|
| Model | FT2331M |
| Product Name |
6V 4. 5kg- -cm Digital Servo |
| Storage Temperature Range |
-30℃～80℃ |
| Operating Temperature Range | -15℃～70℃ |
| Dimensions |
A：23mm B：12mm C：27.5mm |
| Weight | 20g 土0.2 (O. 71oz) |
| Gear type |
Metal Gear |
| Limit angle |
NO limit |
| Bearing |
2 Ball bearings |
| Horn gear spline | 25T(od 4.92mm) |
| Horn type |
Plastic,POM |
| Case | Aluminium |
| Connector wire | 150mm ±5 mm |
| Motor |
Coreless Motor |
| Operating Voltage Range | 4.8-6V |
| Idle current (at stopped) | 4.8mA-6.0mA |
| No load speed | 0. 07 sec/ 60°@6V |
| Runnig current(at no load) | 150 mA@6V |
| Peak stall torque | 3.5kg.cm@6V |
| Rated torque | 1.16kg.cm@6V |
| Stall current |
1000mA@6V |
| Command signal |
Pulse width modification |
| Protocol Type |
Digital Controller |
| Pulse width range | 900~2100usec |
| Stop position |
1500 μsec |
| Running degree |
240° (at 500→2500μsec) |
| Dead band width | 2 μsec |
| Rotating direction | Counterclockwise (when 1000~ 2000 μsec) |
