Ti5 ROBOT

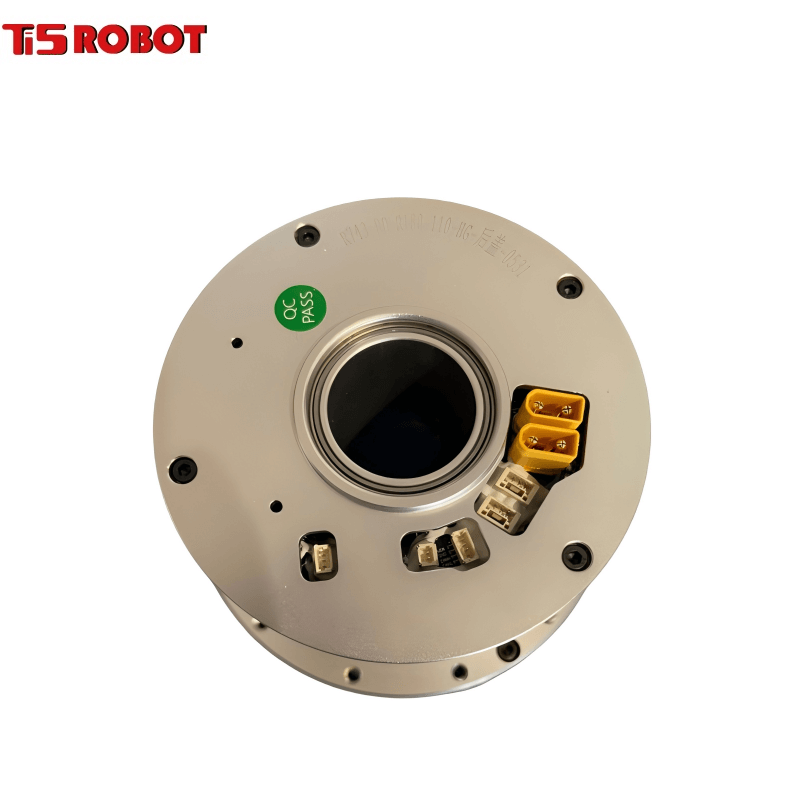

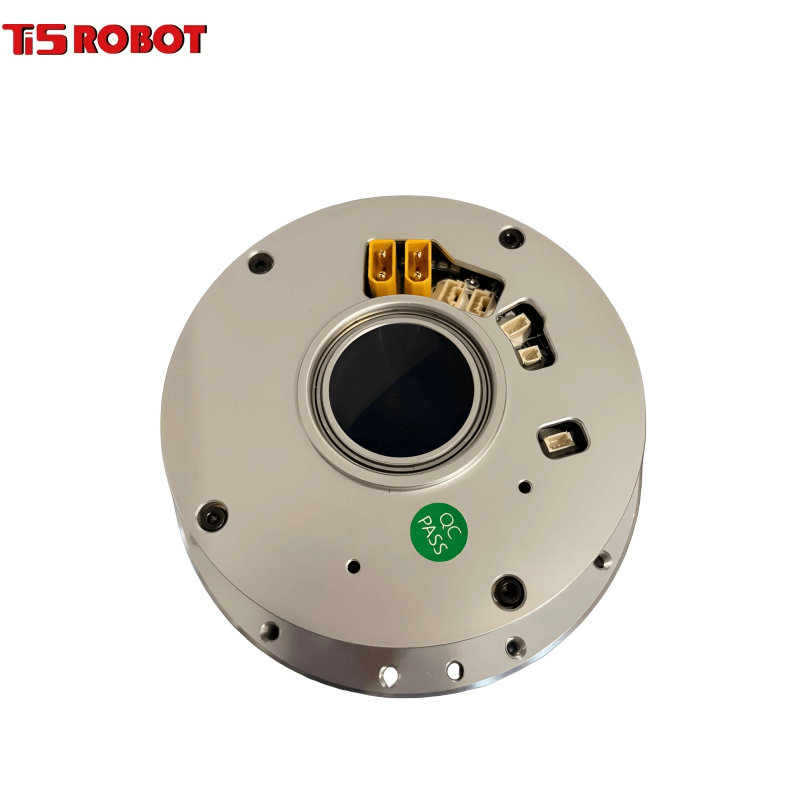

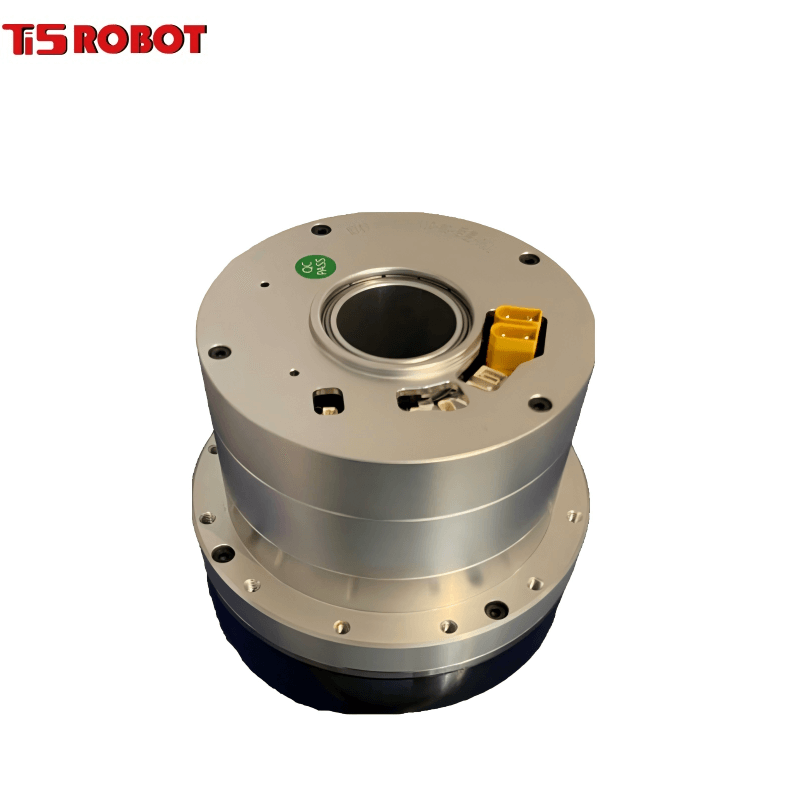

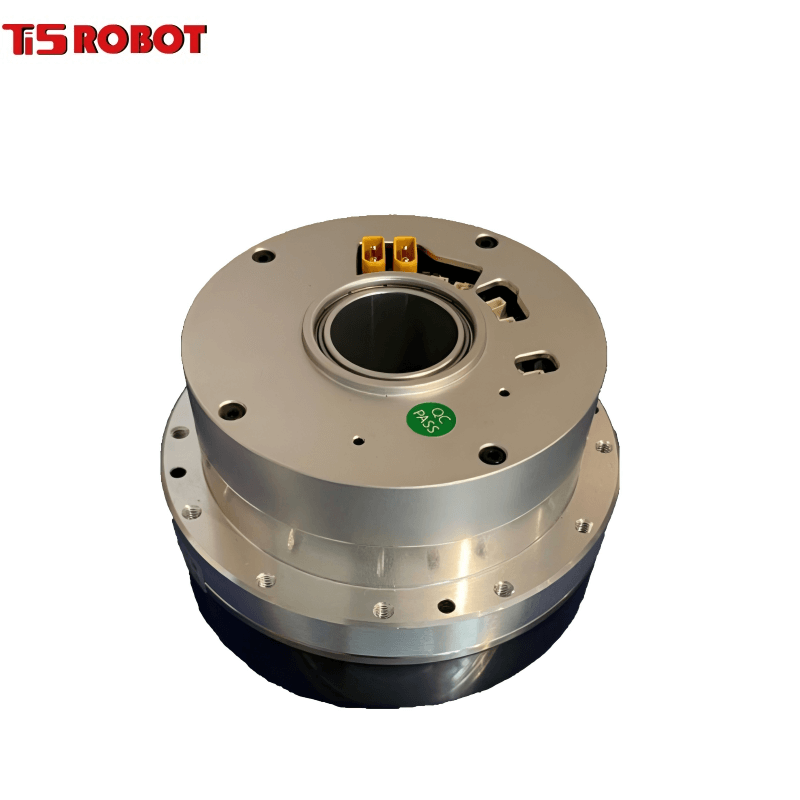

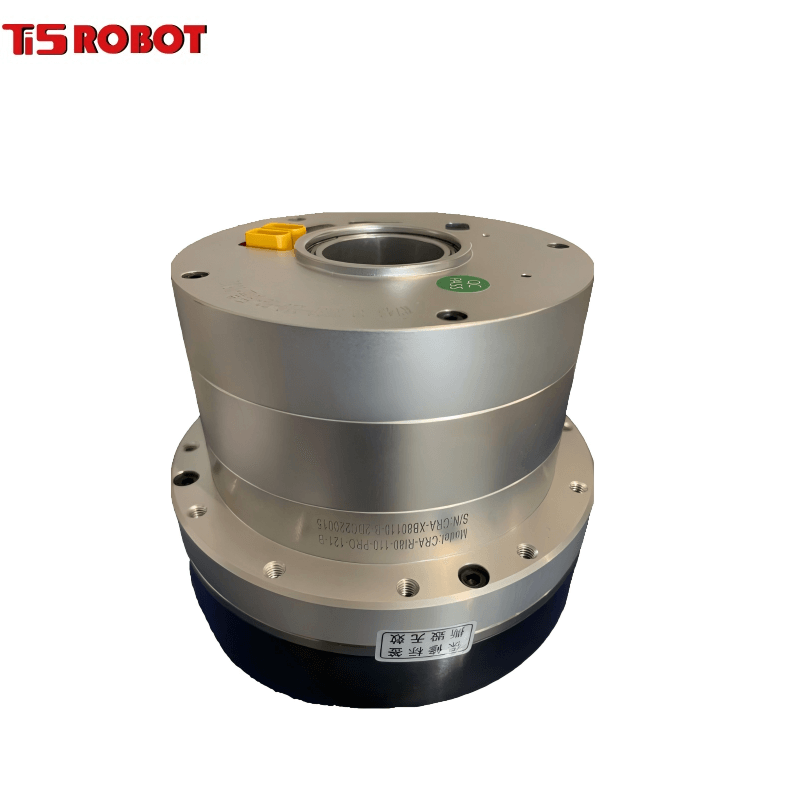

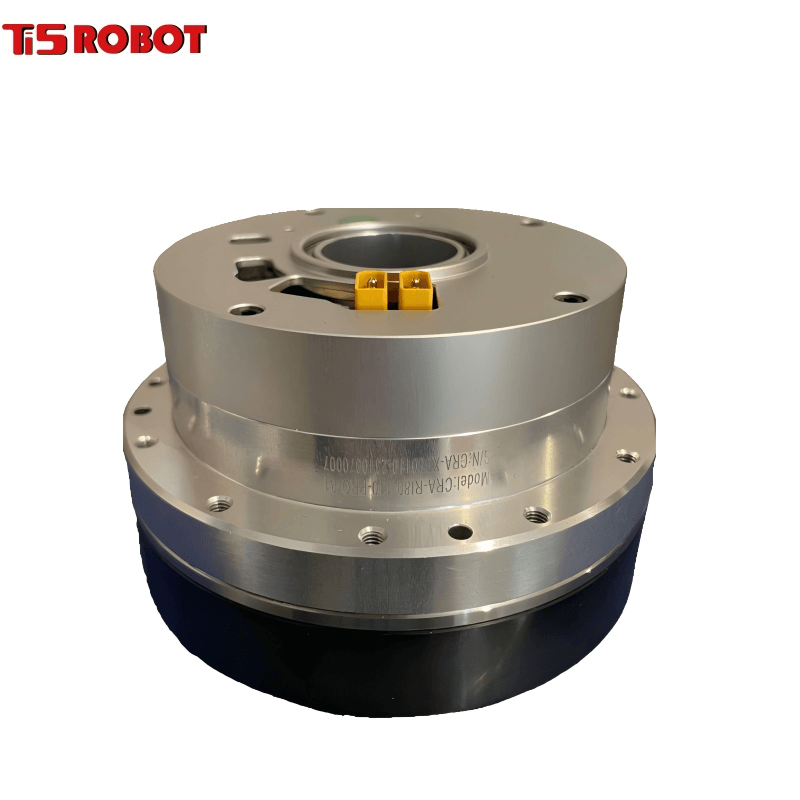

Ti5 ROBOT CRA-RI80-110-PRO Motor

$1,160.00
Version
Encoder
Brake

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information

Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
Motor Model CRA-RI80-110-PRO-XX/CRA-RI80-110-PRO-XX-B
Reduction Ratio 51/81/101/121/161
Start-stop Peak Torque 121/169/194/207/217N.m
Maximum Allowable Average Load Torque 68.5/107/133/133/133N.m
2000 Rpm/(Reduction Ratio) Rated Torque at this speed 48/78/84/84/84N·m
Output End Peak Rotational Speed 65/43/36/30/22RPM
Rated Speed 54/35/27/23/17RPM
Motor Power 750W
Supply Voltage 24-48V
Maximum Continuous Current 10.4A
Rated Current 9.16A
Encoder Resolution 16Bit
Back Clearance 20/20/10/10/10/10arcsec
Torque Constant 0.143N·m/A
Hole 27mm
Length: Without brake / With brake 85.5±0.5mm / 105.5±0.5mm
Weight: Without brake / With brake 2.06kg / 2.26kg
Inertia: Without brake / With brake 1477.6g·cm² / 1761.1g·cm²



CRA-RI80-110-PRO-Motor Installation Dimension Drawing.pdf
