Ti5 ROBOT

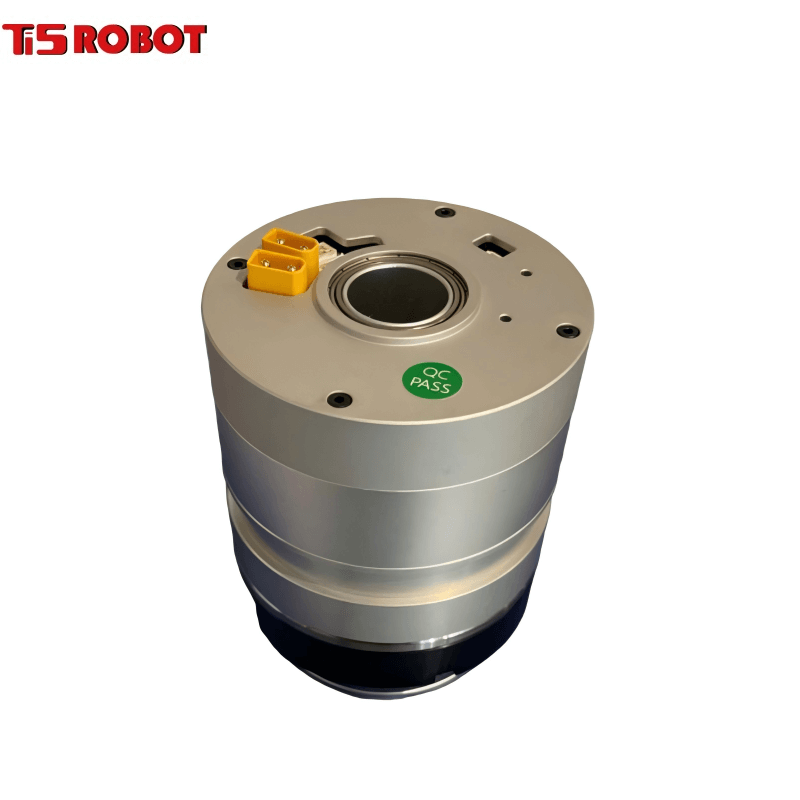

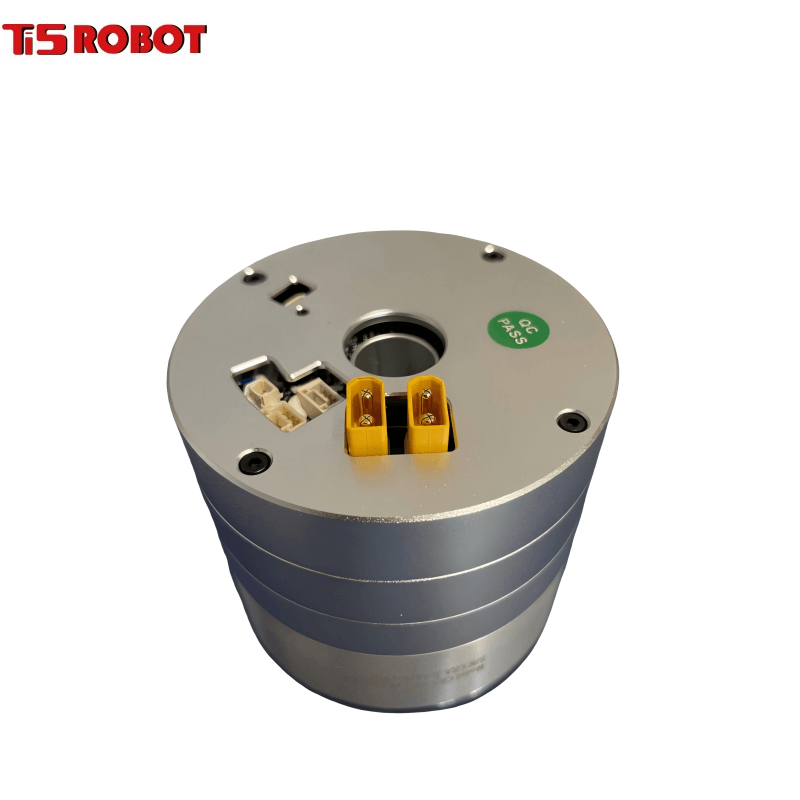

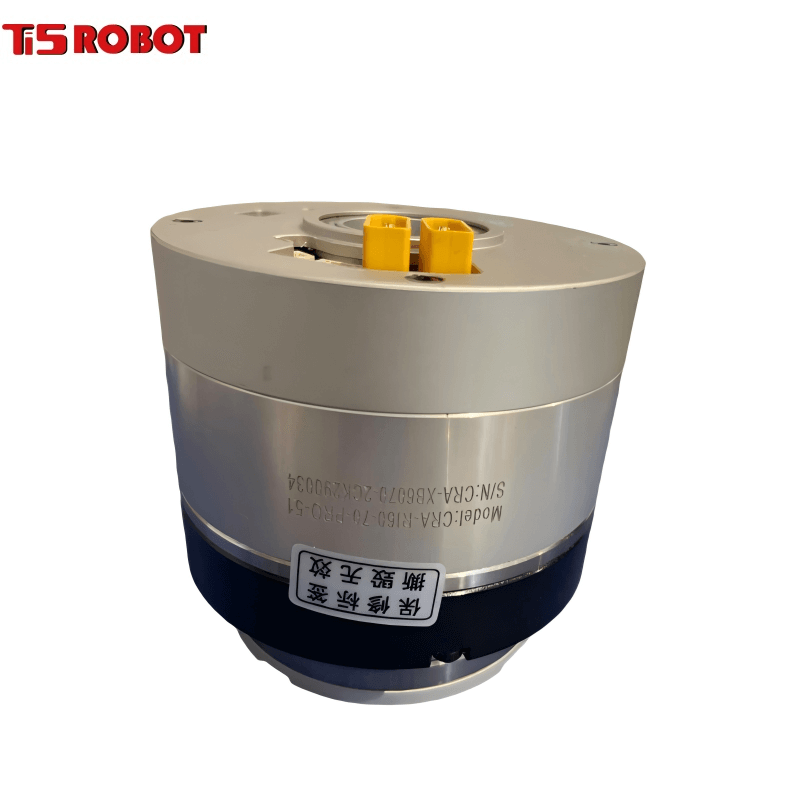

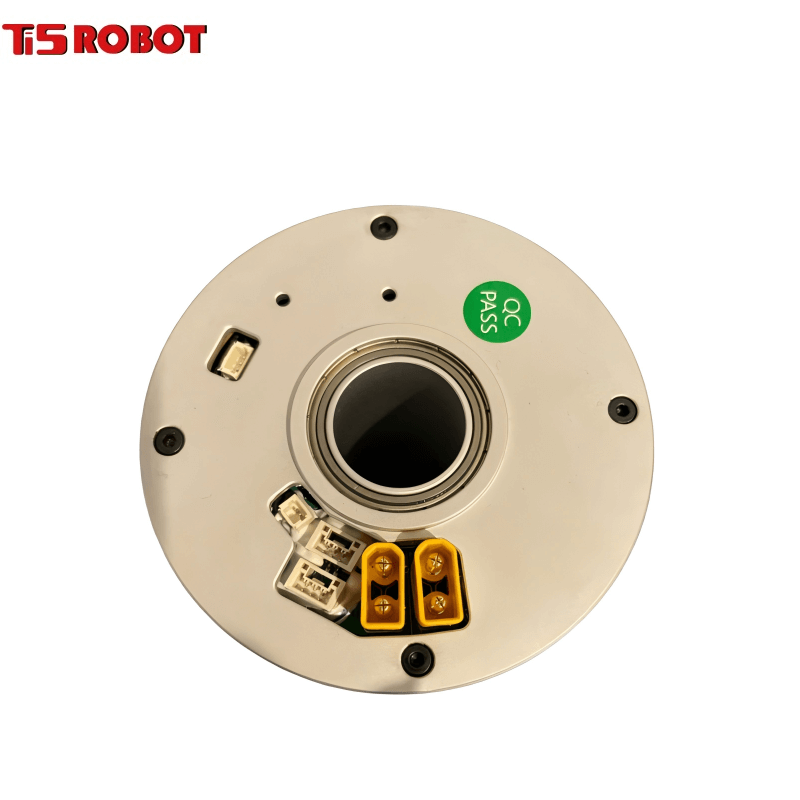

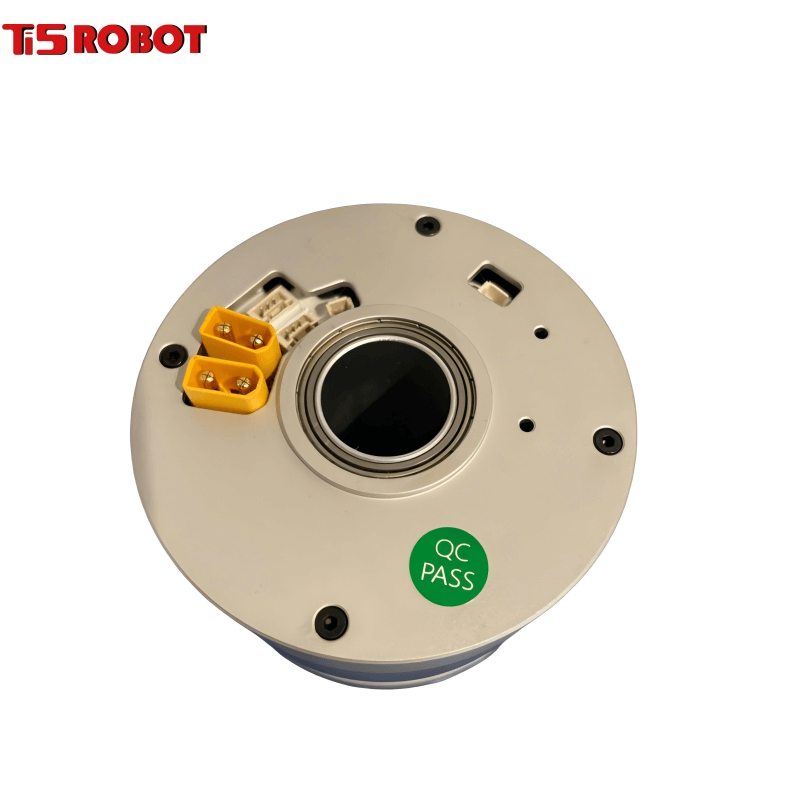

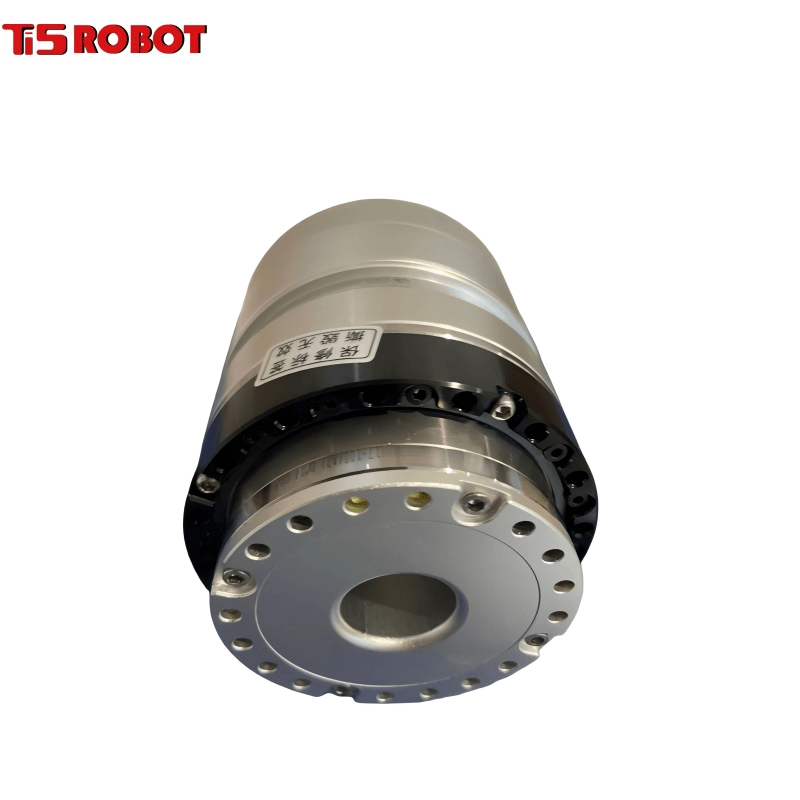

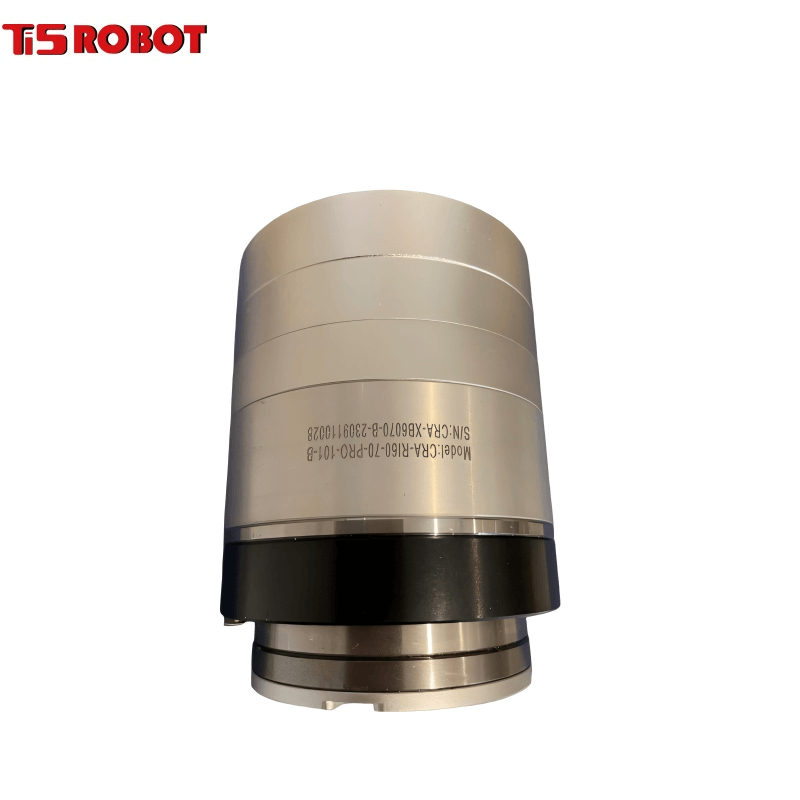

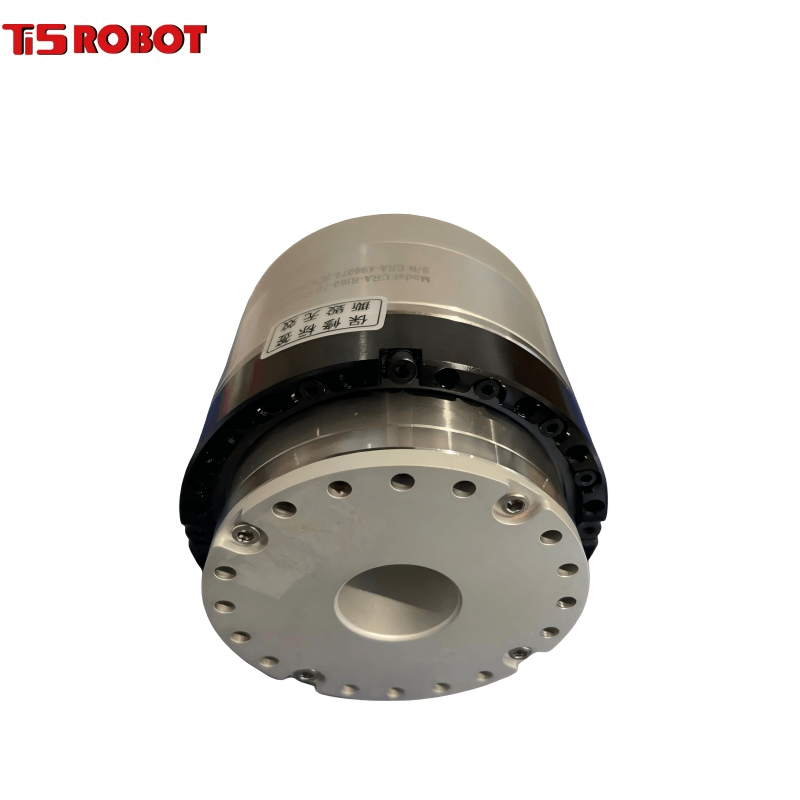

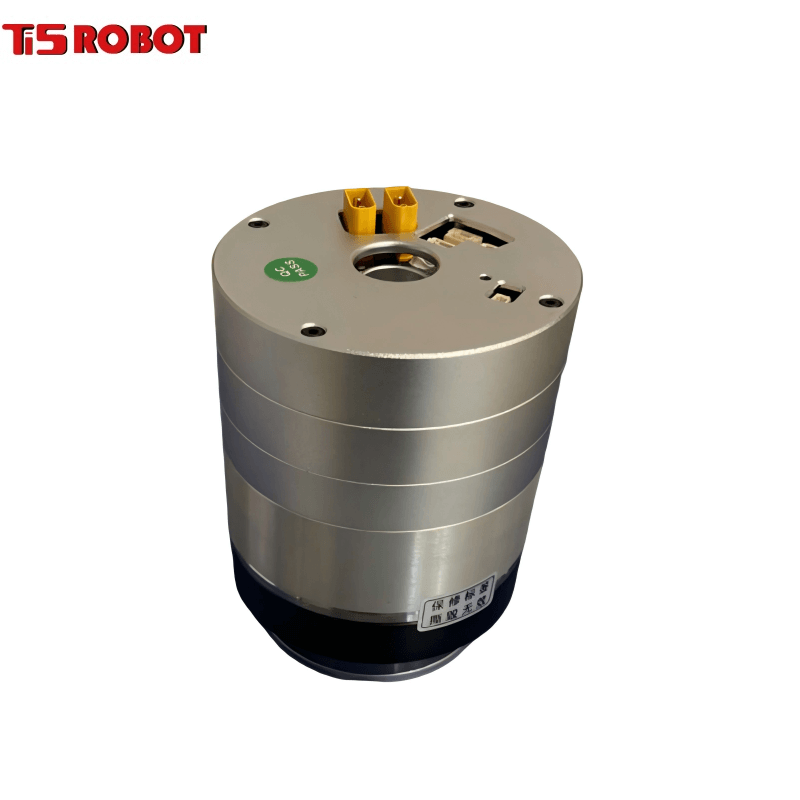

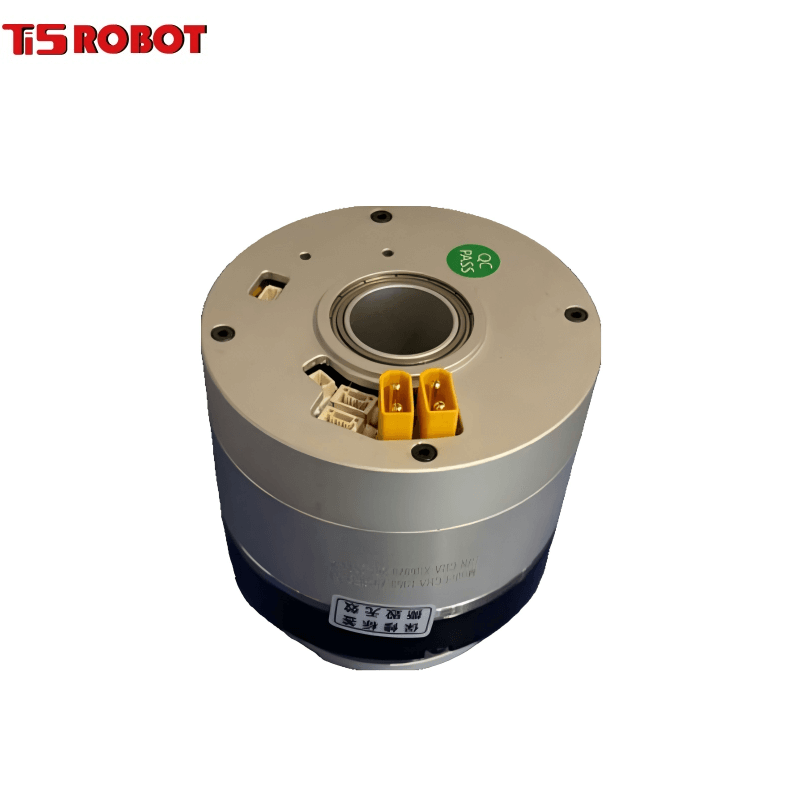

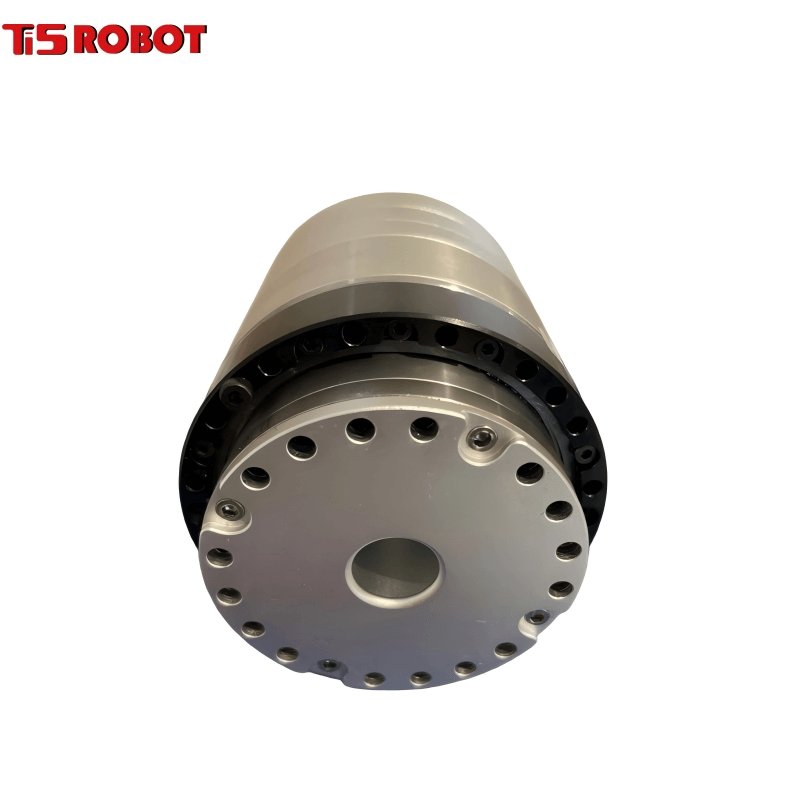

Ti5 ROBOT CRA-RI60-70-PRO Motor

$975.00
Version
Encoder
Brake

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information

Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
Motor Model CRA-RI60-70-PRO-XX/CRA-RI60-70-PRO-XX-B
Reduction Ratio 51/81/101/121
Start-stop Peak Torque 42/53/66/66N.m
Maximum Allowable Average Load Torque 32/33/49/49N.m
2000 Rpm/(Reduction Ratio) Rated Torque at this speed 19.8/27.5/30/30N·m
Output End Peak Rotational Speed 82/51/41/32RPM
Rated Speed 68/43/34/24RPM
Motor Power 300W
Supply Voltage 24-48V
Maximum Continuous Current 6.7A
Rated Current 5A
Encoder Resolution 16Bit
Back Clearance 20/20/10/10arcsec
Torque Constant 0.096N·m/A
Hole 18mm
Length: Without brake / With brake 72.5±0.5mm / 93±0.5mm
Weight: Without brake / With brake 0.73kg / 0.88kg
Inertia: Without brake / With brake 394.8g·cm² / 492g·cm²


CRA-RI60-70-PRO-Motor Installation Dimension Drawing.pdf
