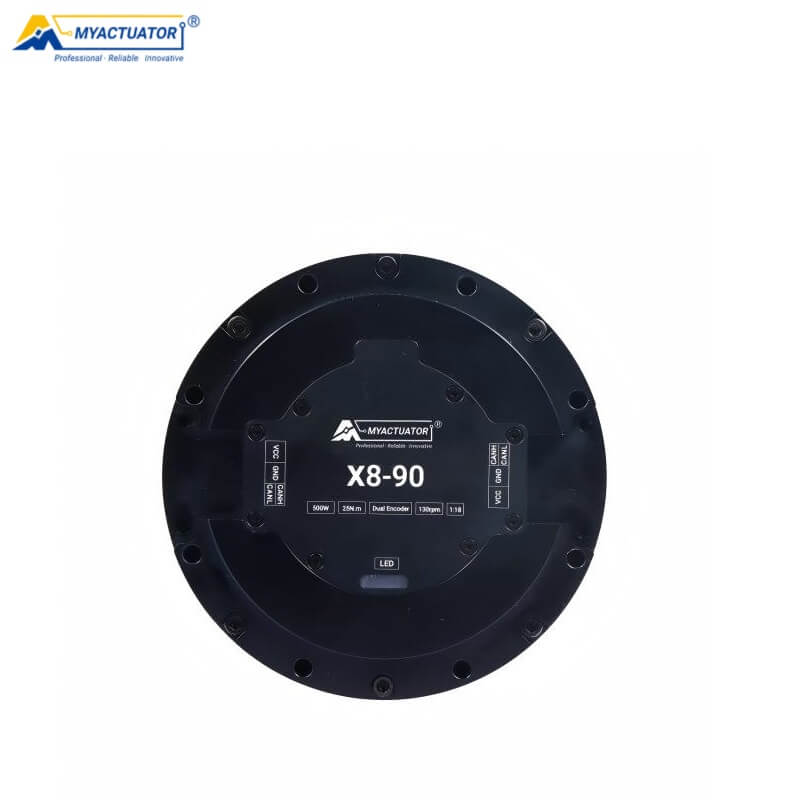

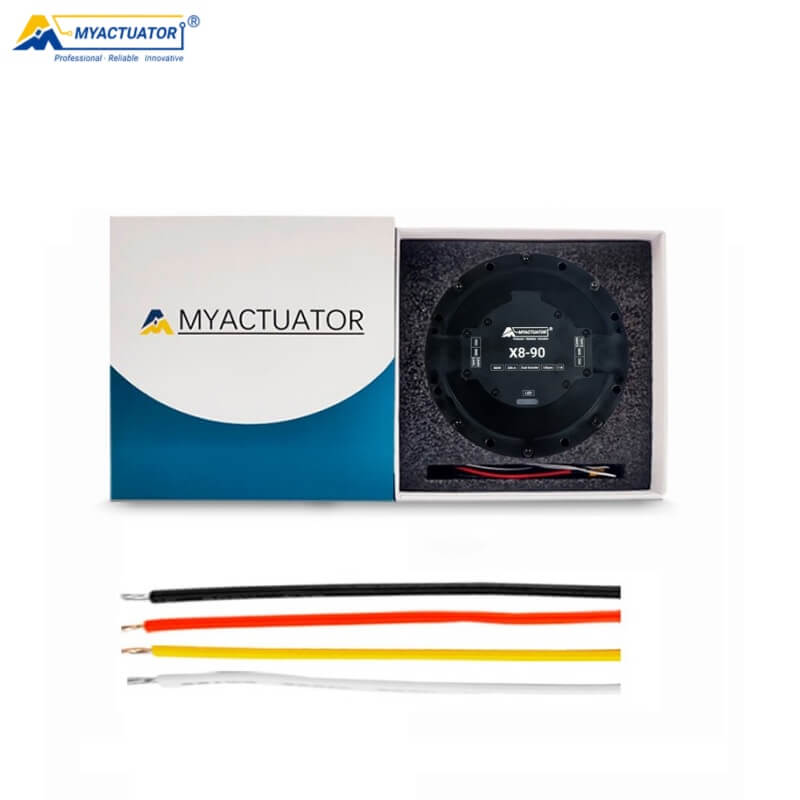

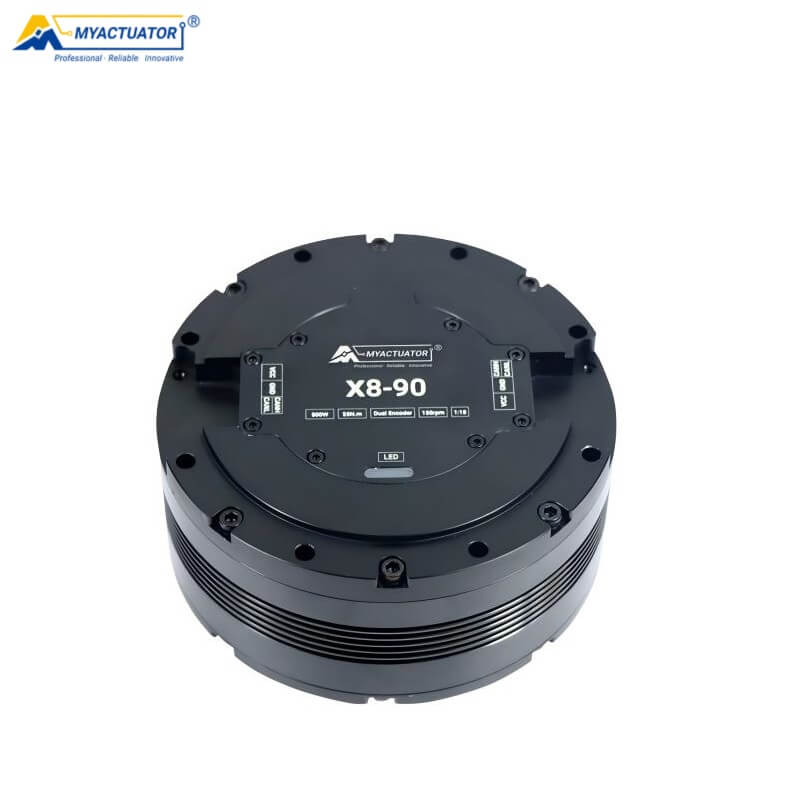

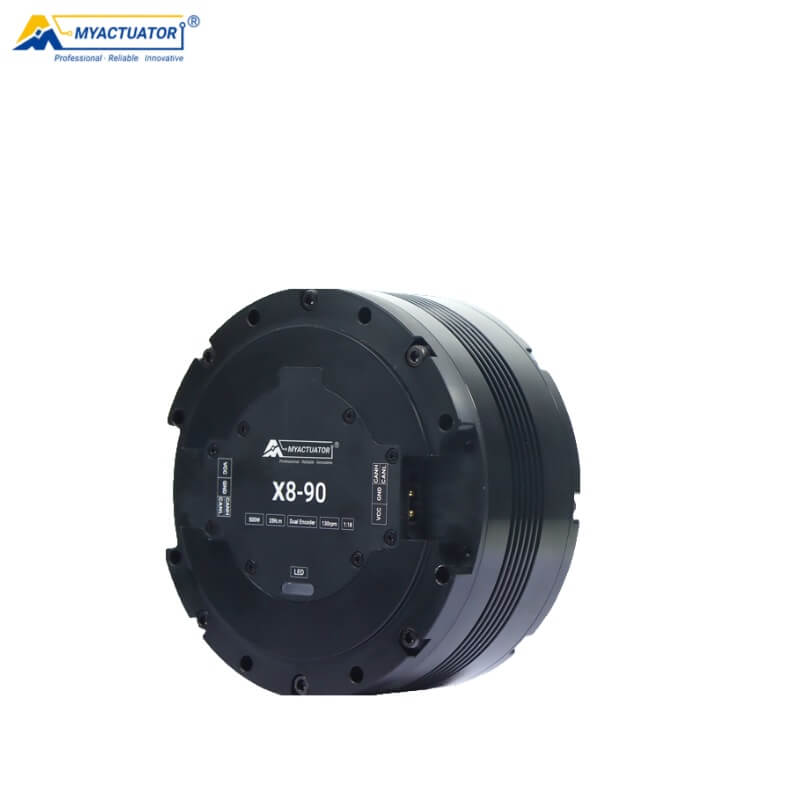

MyActuator RMD-X8-90 Motor
Regular price
$1,145.00
Unit price
MyActuator RMD-X8-90 Motor - RMD-X8-90 / NOT Include is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
MyActuator RMD-X8-90 Motor
Regular priceFrom
$1,145.00
Unit price
MyActuator RMD-X8-90 Motor - RMD-X8-90 / NOT Include is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Gear Ratio | 18:1 |
| Input Voltage | 48V |
| Rated Speed | 130RPM |
| Rated Torque | 25N.m |
| Rated Power |
500W |
| Rated Current |
10A |
| Peak Torque | 90N.m |
| Peak Phase Current | 30A |
| Efficiency | 80% |
| Input Encoder | 14bit |
| Output Encoder | 14bit |
| Communication Method & Baudrate | CAN:1M |
| Axial Payload | 2800N |
| Radial Payload |
2800N |
| Inertia |
26Kg.cm² |
| Pole Pair | 21 |
| Back Drive Torque | 0.65N.m |
| Blacklash | 10arc min |
| Weight | 0.85Kg |
