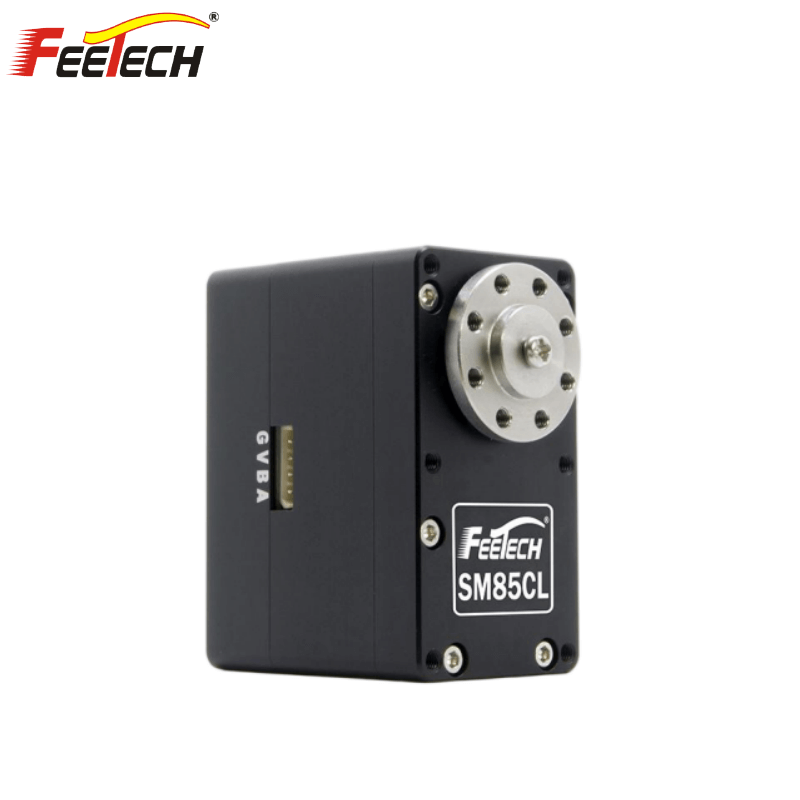

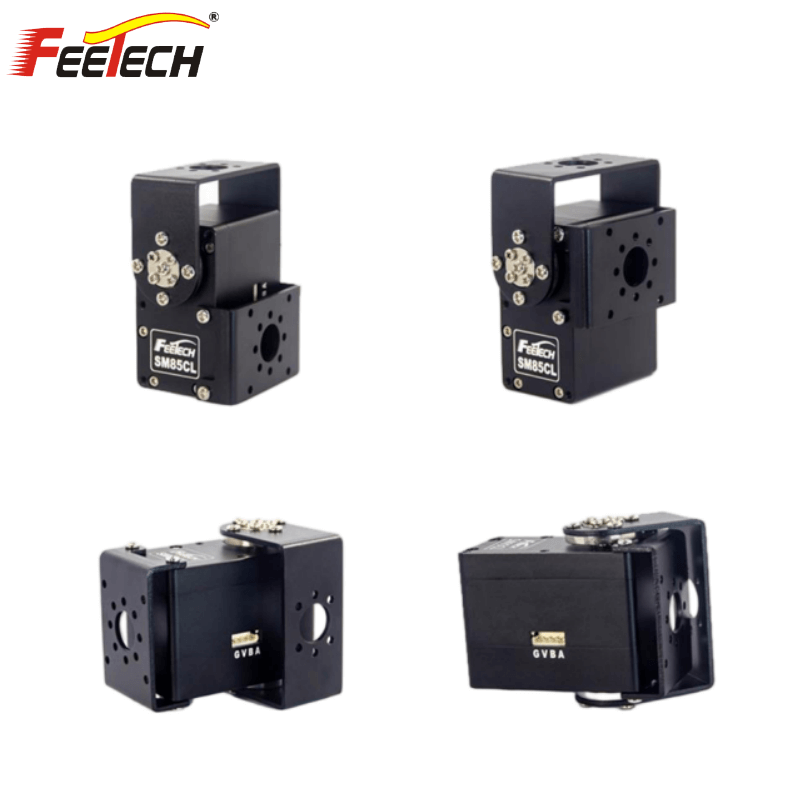

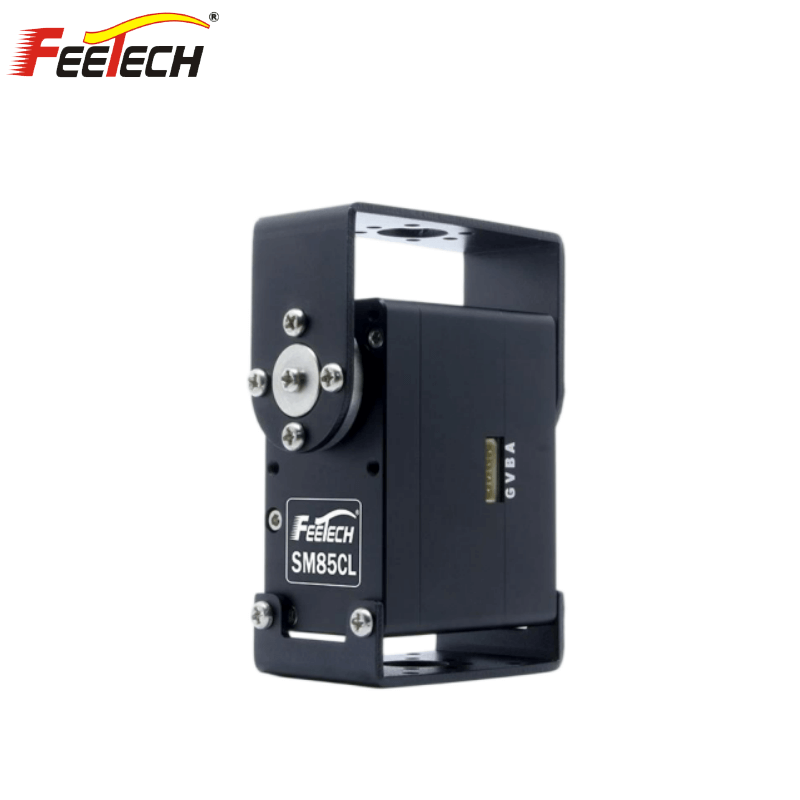

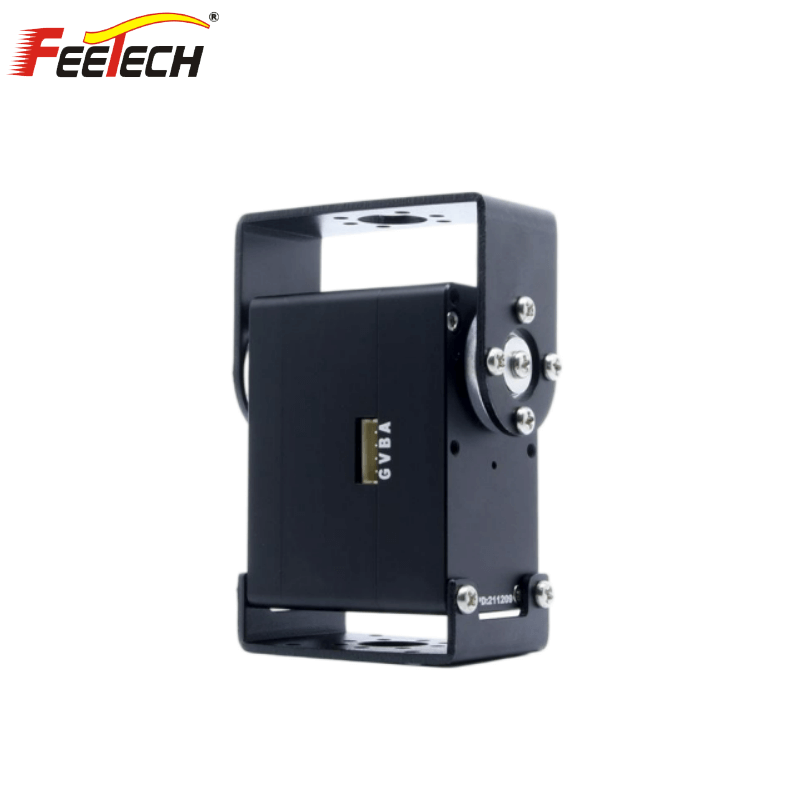

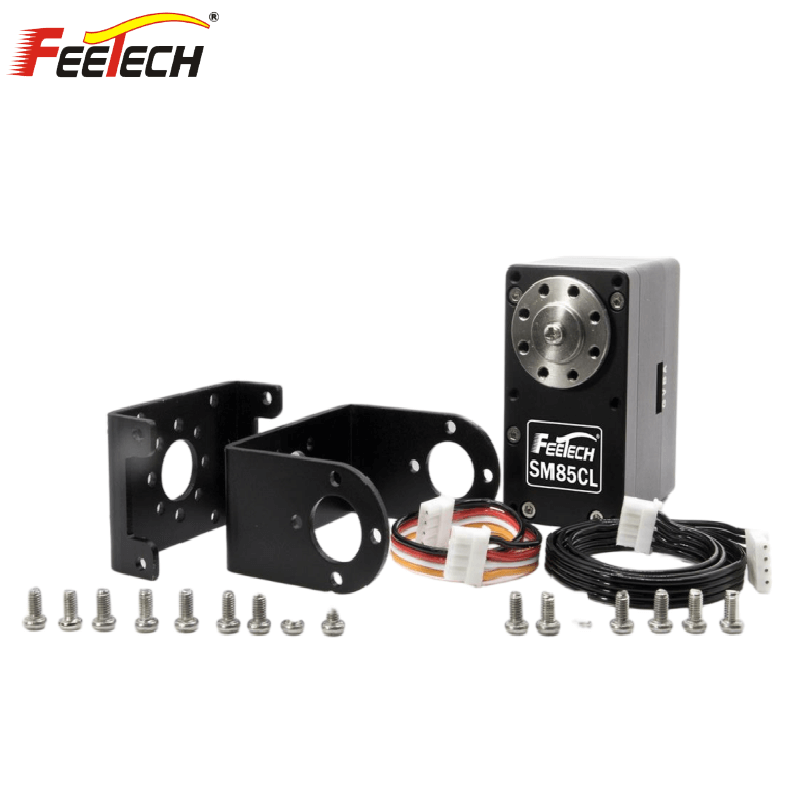

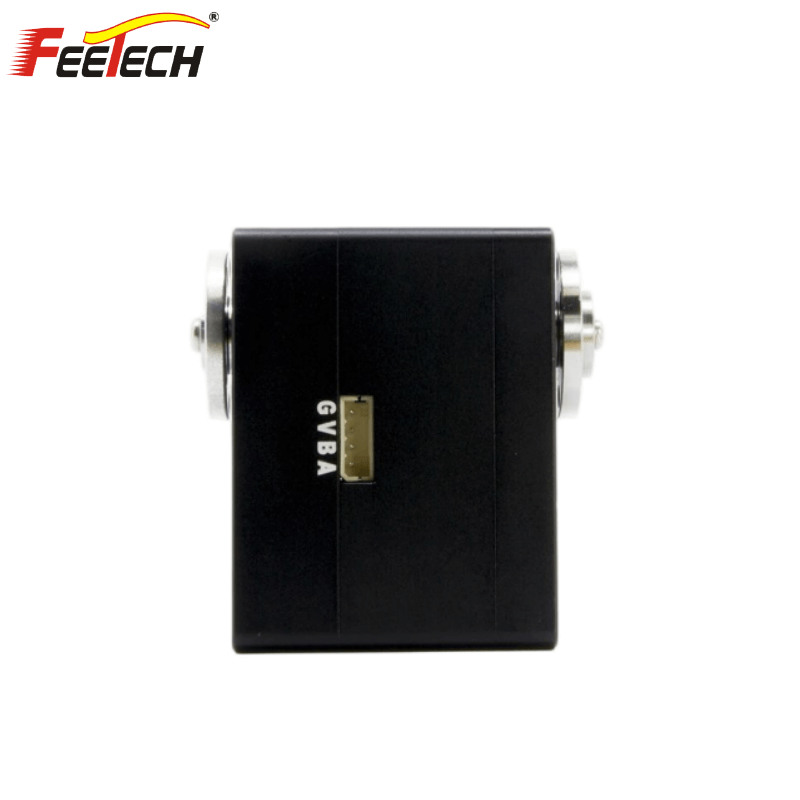

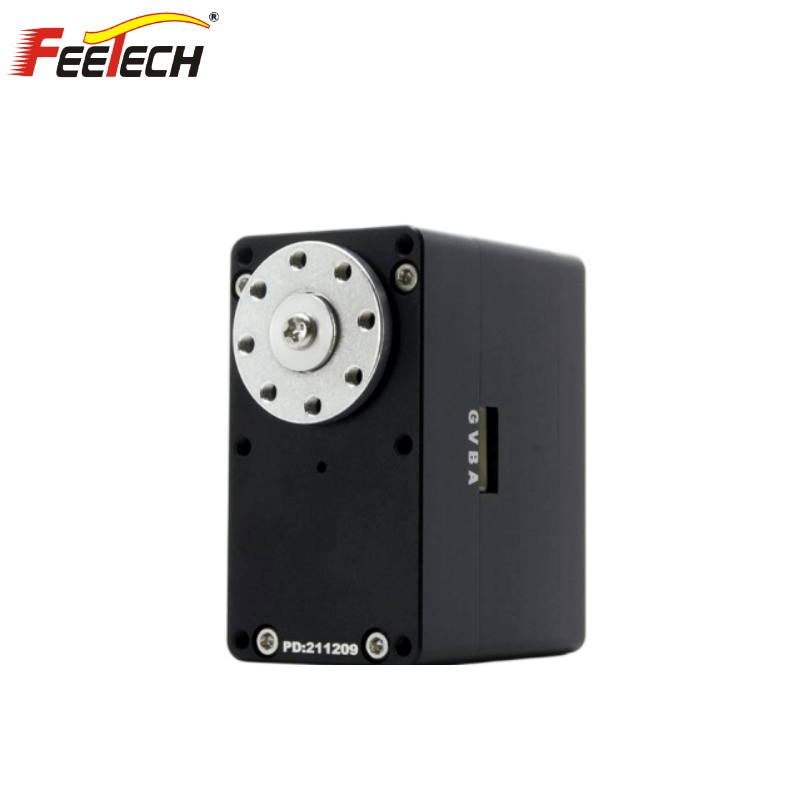

FEETECH SM85CL-C001 Servo Motor
Regular price
$212.00
Unit price
FEETECH SM85CL-C001 Servo Motor - SM85CL-C001 / MODBUS-RTU Protocol is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
FEETECH SM85CL-C001 Servo Motor
Regular priceFrom
$212.00
Unit price
FEETECH SM85CL-C001 Servo Motor - SM85CL-C001 / MODBUS-RTU Protocol is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Model | SM-85CL-C001 |
| Product Name | 12V 85kg.cm Serial Control RS485 Servo |
| Storage Temperature Range | -30℃～80℃ |
| Operating Temperature Range | -20℃～70℃ |
| Dimensions | A：62mm B：34mm C：47mm |
| Weight | 215g |
| Gear type | Steel Gear |
| Limit angle | No Limiter |
| Bearing | 2 Ball bearings |
| Horn gear spline | 15T(7.6mm) |
| Horn type | Aluminium |
| Case | Aluminium |
| Connector wire | 150mm ±5 mm |
| Motor | Coreless motor |
| Operating Voltage Range | 12V |
| No load speed | 0.27sec/60degree@12V 37RPM |
| Runnig current(at no load) | 200 mA@12V |
| Peak stall torque | 85kg.cm@12V |
| Rated torque | 28kg.cm@12V |
| Stall current | 3200 mA@12V |
| Command signal | Bus Packet Communication RS485 |
| Protocol Type | Half duplex Asynchronous Serial Communication |
| ID range | 0-253 |
| Communication Speed | 38400bps ~ 1 Mbps |
| Running degree | 360° (when 0~4095) |
| Feedback | Position, Speed, Voltage, Load, Temperature |
| Operating mode | Servo mode / motor mode |
