Feetech | SKU:
FEETECH SM2912-C001 Servo Motor
Regular price
$108.00
Unit price
FEETECH SM2912-C001 Servo Motor - SM2912-C001 / MODBUS-RTU Protocol is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments

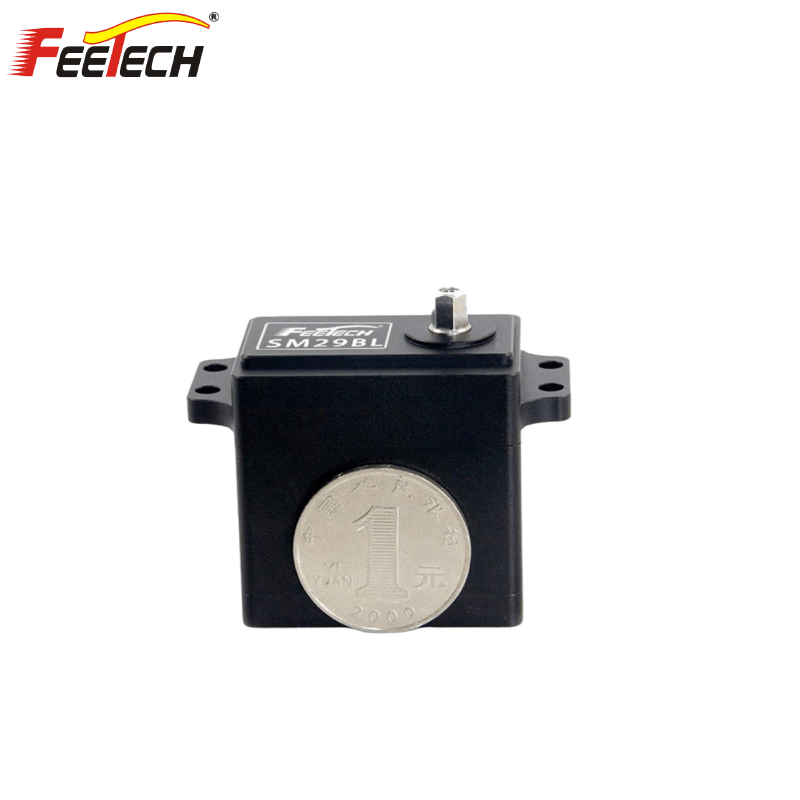

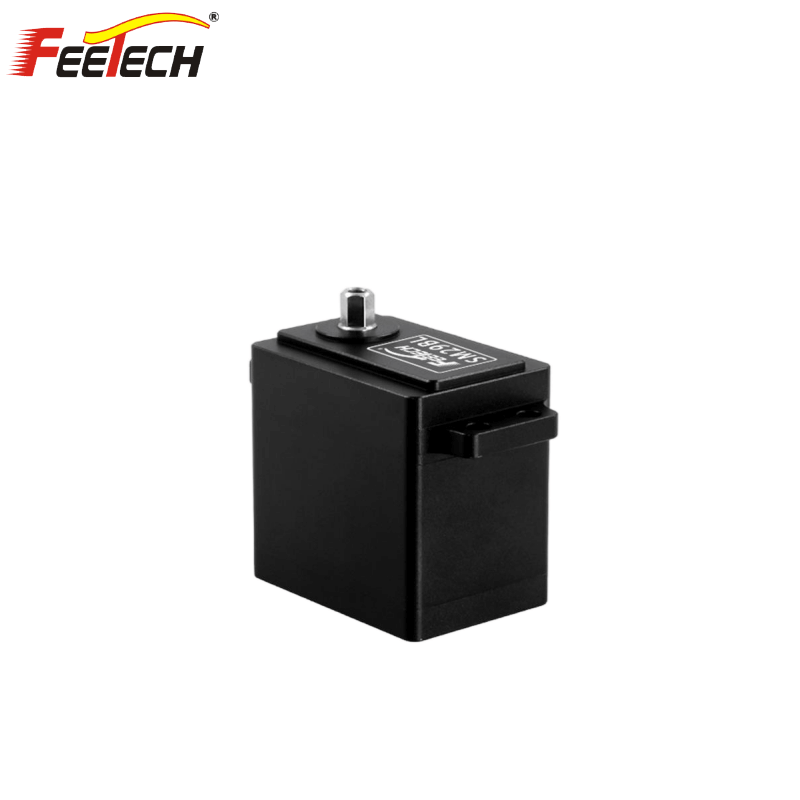

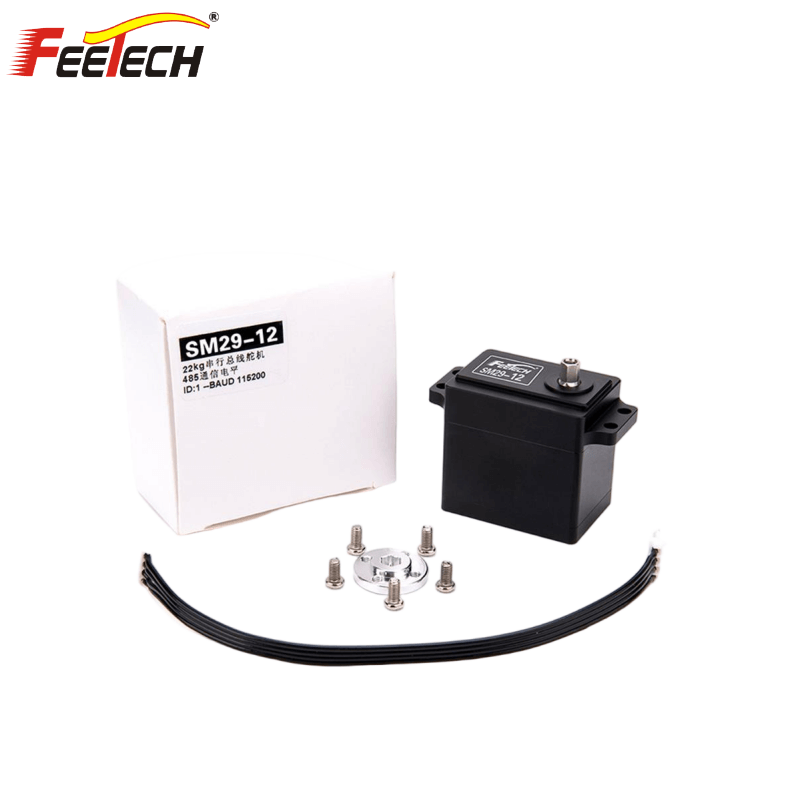

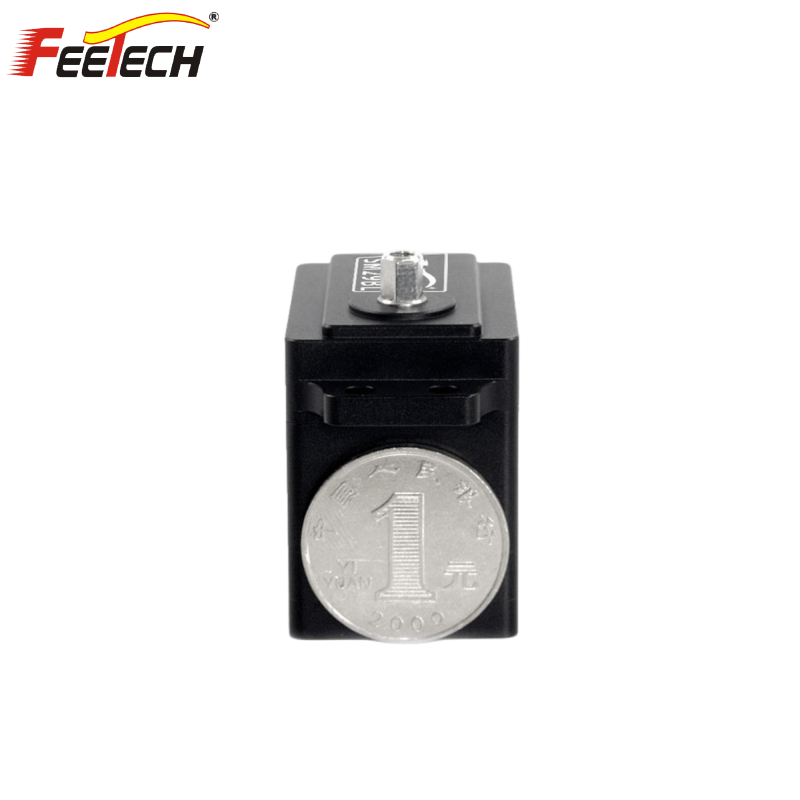

FEETECH SM2912-C001 Servo Motor
Regular priceFrom
$108.00
Unit price
FEETECH SM2912-C001 Servo Motor - SM2912-C001 / MODBUS-RTU Protocol is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Model | SM-2912-C001 |
| Product Name | 12V 12kg RS485 Serial Bus Servo |
| Storage Temperature Range | -30℃～80℃ |
| Operating Temperature Range | -15℃～70℃ |
| Size | A：40mm B：28mm C：42.3mm |
| Weight | 102g |
| Gear Type | High-precision all-metal gear |
| Limit Angle | No Limiter |
| High Torque | 12Kg.cm |
| Wide Operating Voltage | 9V~24V |
| High Resolution | 12-bit encoder (0.088° at 360 degrees) |
| Servo Control Mode | Rotation range 0-360° and multi-turn arbitrary angle |
| Command Signal | Bus Packet Communication RS485 |
| Serial Bus Connection | 254 ID addresses available |
| Baud Rate | 34800 ~1000000 |
| Voltage | 24VDC |
| Continuous Current | 0.8A |
| Maximum Axial Load | 3N |
| Maximum Radial Load | 10N |
| Operating Temperature | 35℃ |
| Quiescent Current | 35mA |
| No-load Current | 200mA |
| Stall Current | 2500mA |
| PWM Frequency | 16KHZ |
| Position Resolution | 0.088º |
| Stall Torque | 12kg.cm@12V |
| Maximum Speed | 110RPM |
