Feetech | SKU:

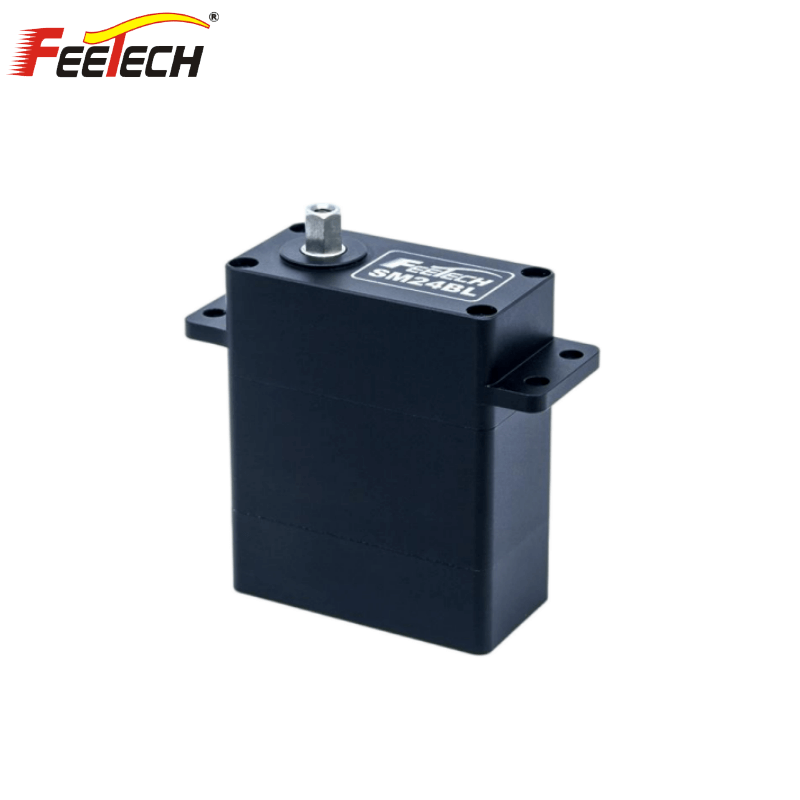

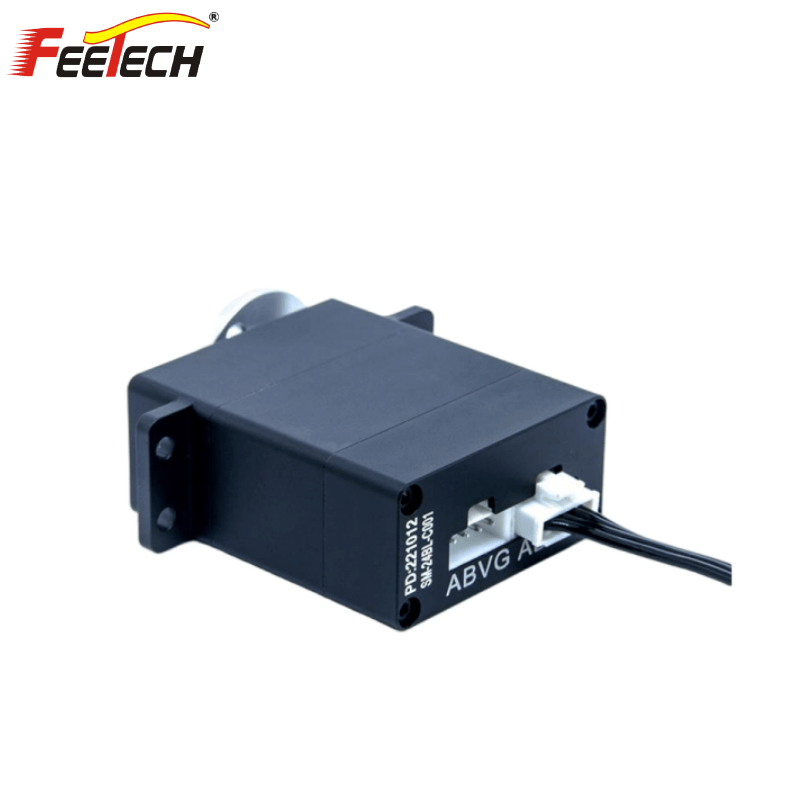

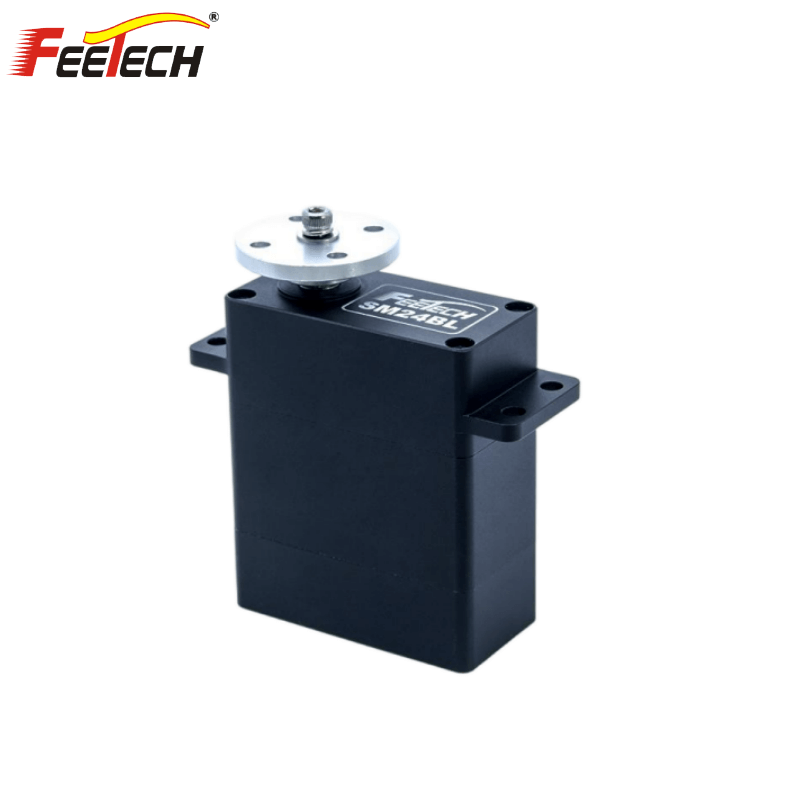

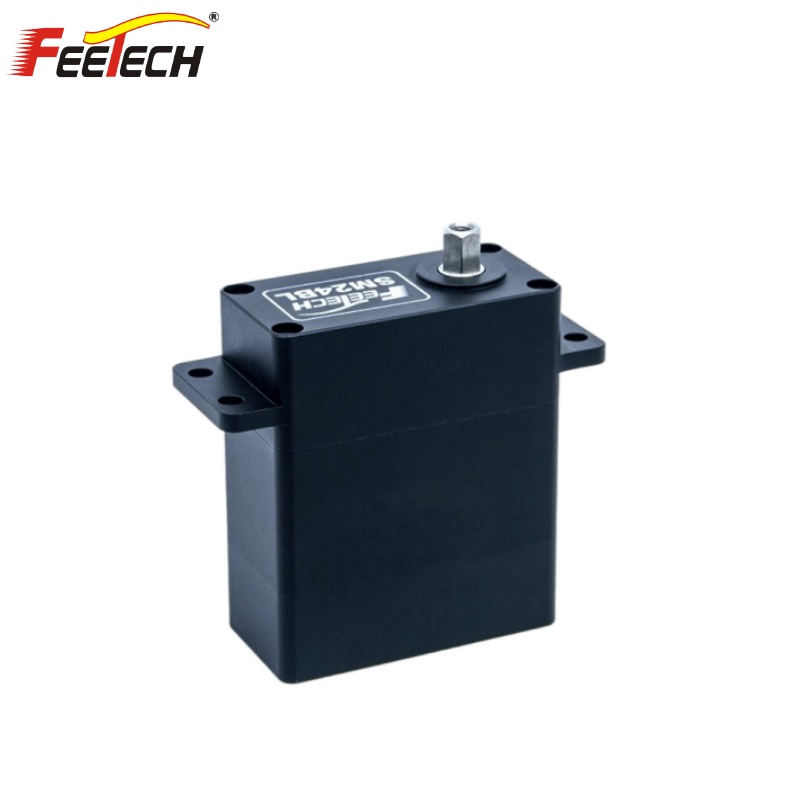

FEETECH SM24BL-C001 Servo Motor
Regular price
$96.00
Unit price
FEETECH SM24BL-C001 Servo Motor - SM24BL-C001 / MODBUS-RTU Protocol is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
FEETECH SM24BL-C001 Servo Motor
Regular priceFrom
$96.00
Unit price
FEETECH SM24BL-C001 Servo Motor - SM24BL-C001 / MODBUS-RTU Protocol is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Model | SM-24BL-C001 |
| Product Name | 24V 24kg RS485 Serial Bus Servo |
| Storage Temperature Range | -40℃～70℃ |
| Operating Temperature Range | -40℃～70℃ |
| Size | A:40mm B: 20mm C:47.8mm |
| Weight | 89.6± 1g |
| Gear Type | Steel |
| Limit Angle | No Limit |
| Stall Torque (at locked) | 24Kg.cm |
| Input Voltage | 8V~26V |
| No Load Speed ±10% | 0.08sec/60°(120RPM)@24V |
| Running Current ±10% | 90mA@24V |
| Stall Current (at locked) | 1.3A@24V |
| Rated Torque | 6kg.cm@24V |
| Rated Current | 350mA@24V |
| Terminal Resistance | 10.2Ω |
| Command Signal | Digital Packet |
| Protocol Type | Half Duplex Asynchronous Serial Communication |
| Communication Baud | 38400bps ~ 1 Mbps |
| Running Degree | 360°(when 0～4095) |
| Rotating Direction | Clockwise(0→4095) |
| Feedback | Load, Position, Speed, Input Voltage, Current, Temperature |
