MRDVS | SKU:

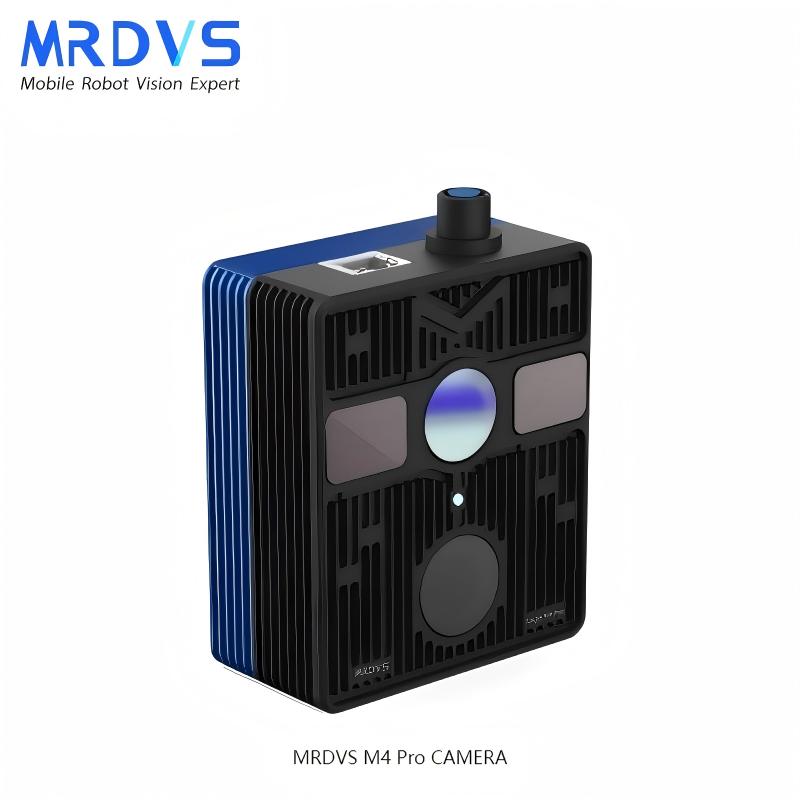

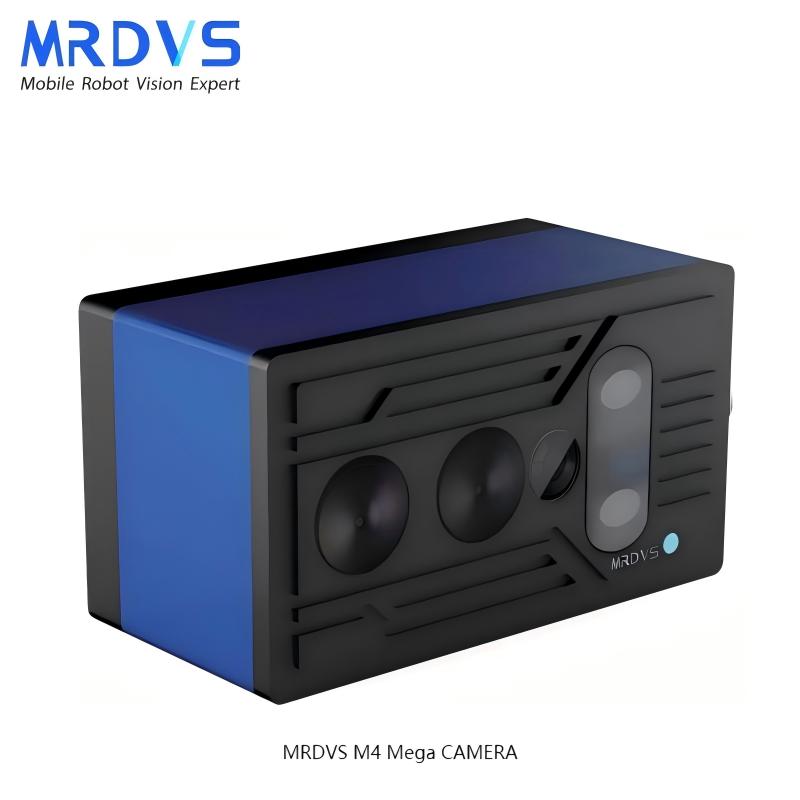

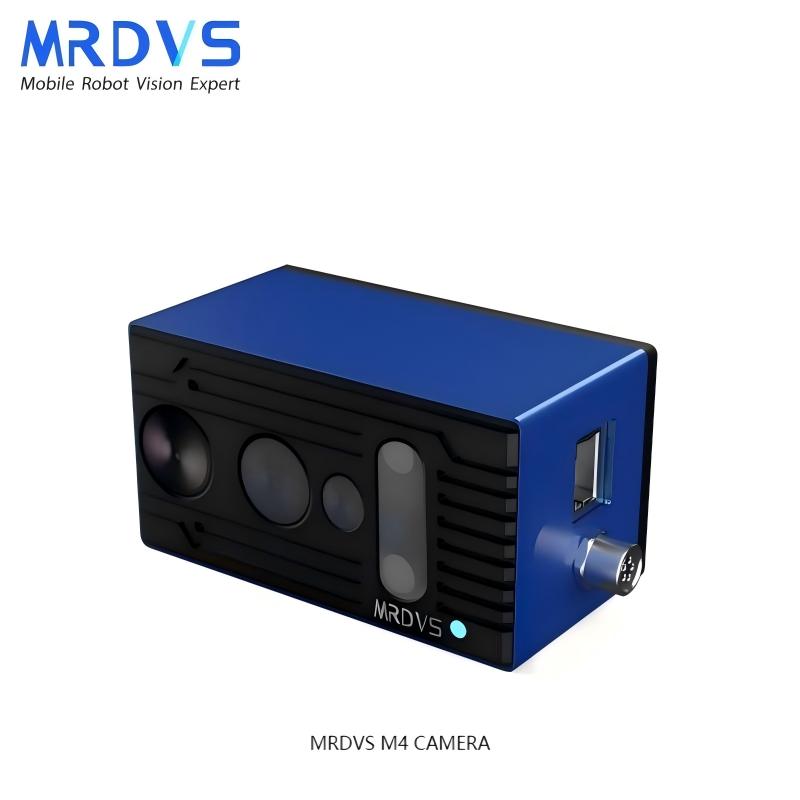

MRDVS M4 Camera
Regular price
$800.00
Unit price
Unavailable
MRDVS M4 Camera - MRDVS M4 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
MRDVS M4 Camera
Regular priceFrom
$800.00
Unit price
Unavailable
MRDVS M4 Camera - MRDVS M4 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value | Value | Value |
|---|---|---|---|
|
Model
|
M4 Mega | M4 | M4 Pro |
|
Chipset
|
Sony Chipset | Sony Chipset | Sony Chipset |
|
Ranging Method
|
Time of Flight (ToF)
|
Time of Flight (ToF) |
Time of Flight (ToF)
|
|
Operating Wavelength
|
940nm
|
940nm
|
940nm
|
|
TOF Resolution & Frame Rate
|
640×480 (Typical 15fps, Max 25fps)
|
640×480 (Typical 12fps)
|
640×480 (Typical 12fps)
|
|

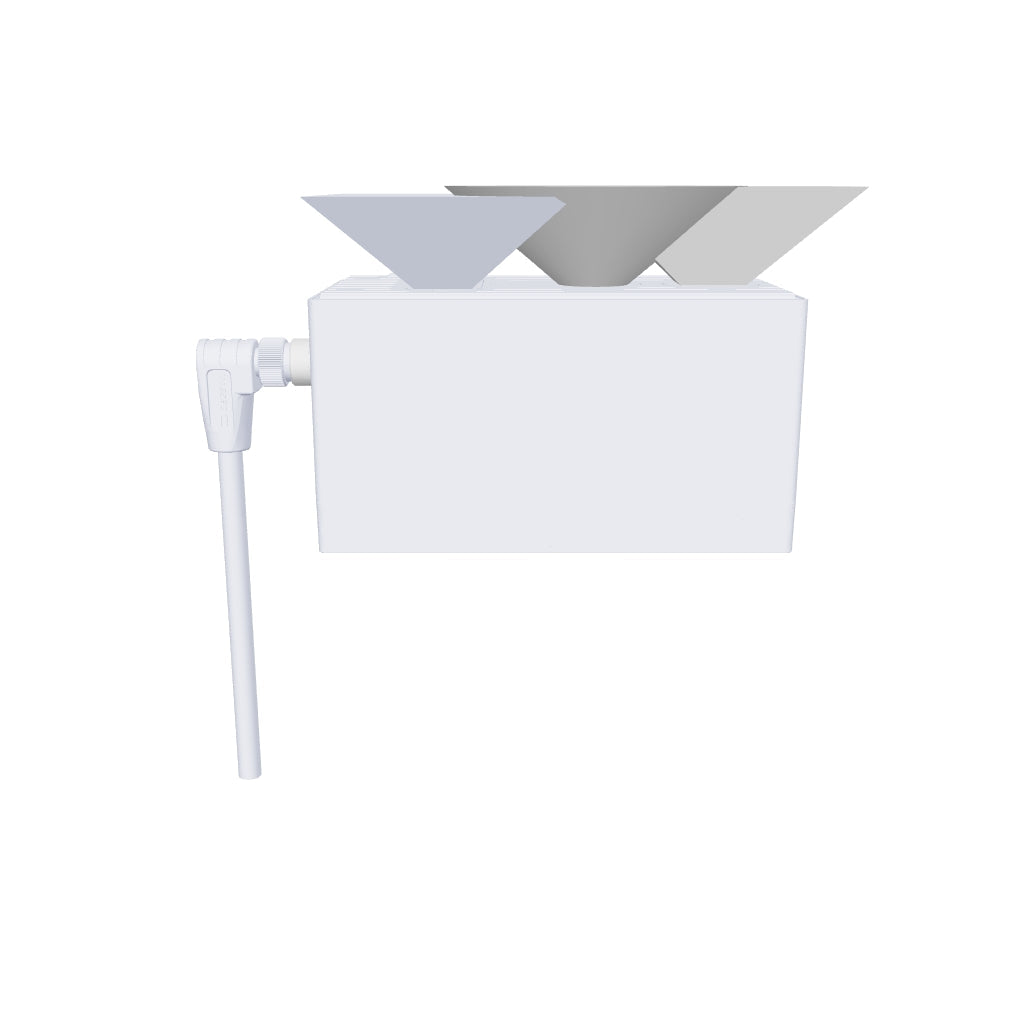

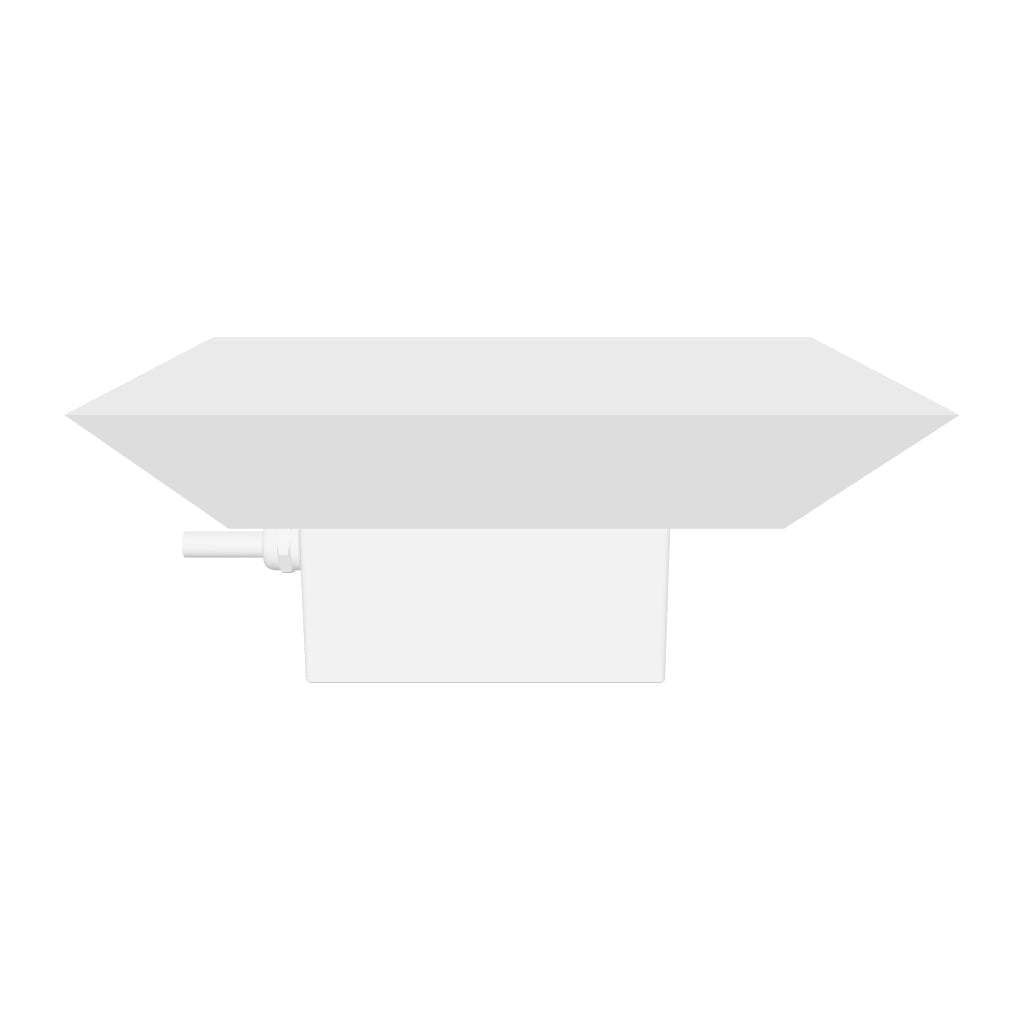

TOF Field of View
|
81°×61°
|
81°×61°
|
81°×61° |
|
RGB Resolution & Frame Rate
|
1280×960 (Typical 15fps, Max 25fps)
|
1920×1080 (Typical 12fps)
|
1920×1080 (Typical 12fps)
|
|
RGB Field of View
|
86°×55°
|
88°×56°
|
88°×56°
|
|
Measurement Distance
|
0.2~5m (at 90% reflectivity); 0.2~2.5m (at 10% reflectivity)
|
0.3~5m (at 90% reflectivity); 0.3~2.5m (at 10% reflectivity) | 0.3~5m (at 90% reflectivity)
|
|
Measurement Accuracy
|
±3mm + 0.25%×depth
|
±4mm + 0.25%×depth
|
±4mm + 0.25%×depth
|
|
Communication Interface
|
Ethernet / CAN / IO
|
Ethernet / CAN
|
Ethernet / RS485
|
|
Power Interface
|
Industrial Connector, 5Pin
|
Industrial Connector, 5Pin
|
Industrial Connector, 5PIN
|
|
Power Supply
|
24V DC / 2A
|
24V DC / 2A
|
24V DC / 2A |
|
Average Power Consumption
|
6.8W
|
6.2W
|
8.7W
|
|
Dimensions
|
92mm×47mm×51mm
|
88mm×47mm×47mm
|
95mm×80mm×41mm
|
|
Weight
|
449g
|
333g
|
428g |
|
Power IP Rating
|
IP67
|
IP42
|
IP50
|
|
Operating Temperature
|
-20℃~60℃
|
-20℃~60℃
|
-20℃~60℃
|
|
Storage Temperature
|
-40℃~85℃
|
-40℃~85℃
|
-40℃~85℃
|
|
Humidity
|
10%~90%RH, non-condensing
|
10%~90%RH, non-condensing
|
10%~90%RH, non-condensing |
|
Light Interference Resistance
|
Up to 100Klux sunlight adaptation
|
Up to 100Klux sunlight adaptation
|
Up to 100Klux sunlight adaptation
|
|
Shadow-Light Resistance
|
Variation < 1cm at 100Klux shadow-light interface
|
Variation < 1cm at 100Klux shadow-light interface
|
Variation < 1cm at 100Klux shadow-light interface |
|
Software Environment
|
C / C++ / ROS SDK
|
C / C++ / ROS SDK
|
C / C++ / ROS SDK
|
|
Supported Operating Systems
|
Windows 7/8/10/11, Linux, Arm Linux/ROS
|
Windows 7/8/10/11, Linux, Arm Linux/ROS
|
Windows 7/8/10/11, Linux, Arm Linux/ROS
|
|
Heat Dissipation
|
Passive Cooling
|
Passive Cooling
|
Passive Cooling
|
M4 Product User Manual.pdf
