1 4
RoboSense

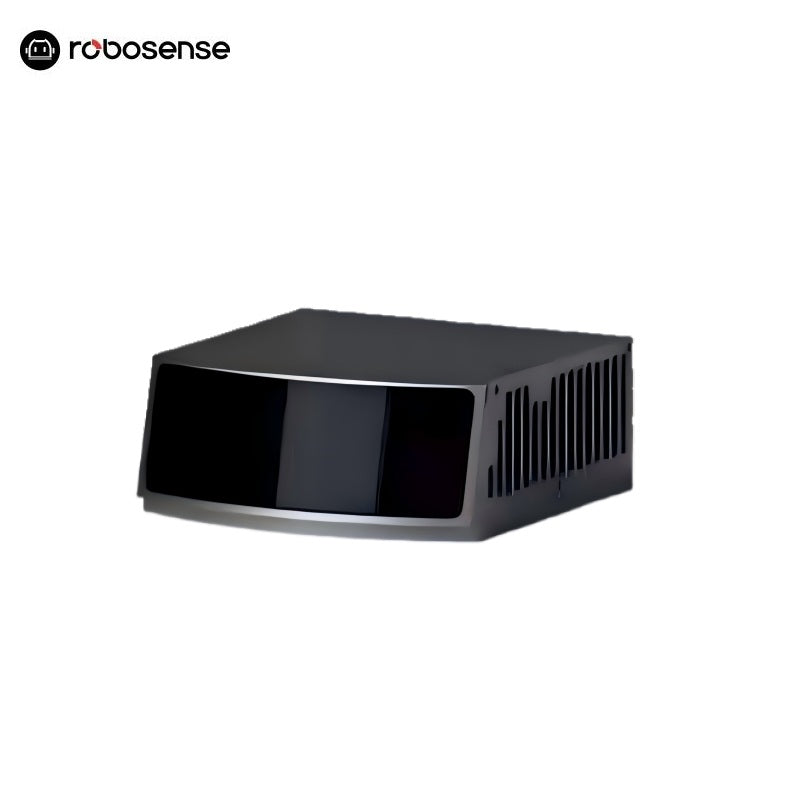

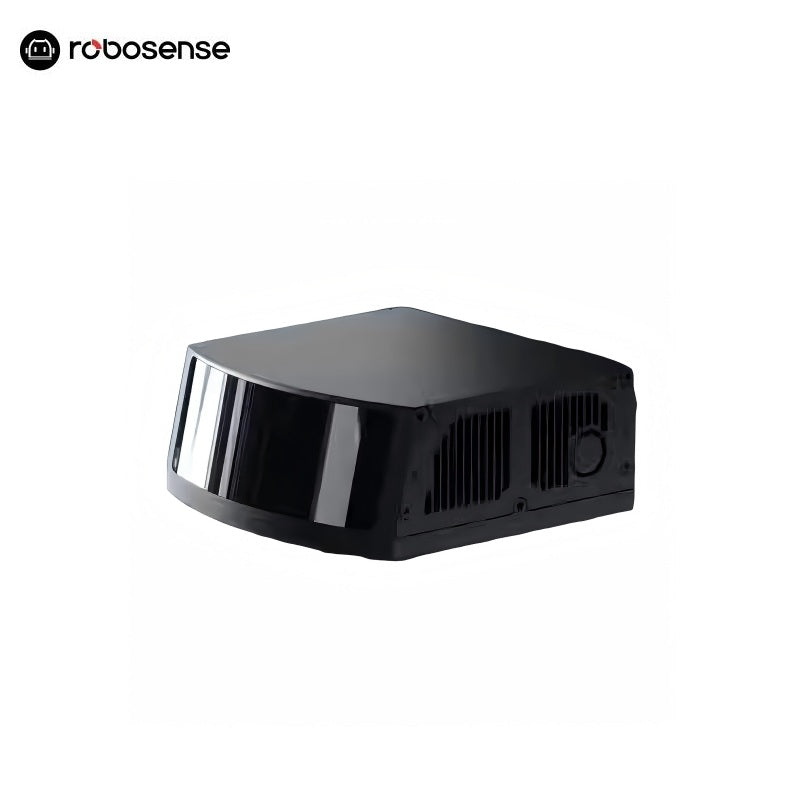

RoboSense M1 Plus LiDAR

$2,650.00
Model

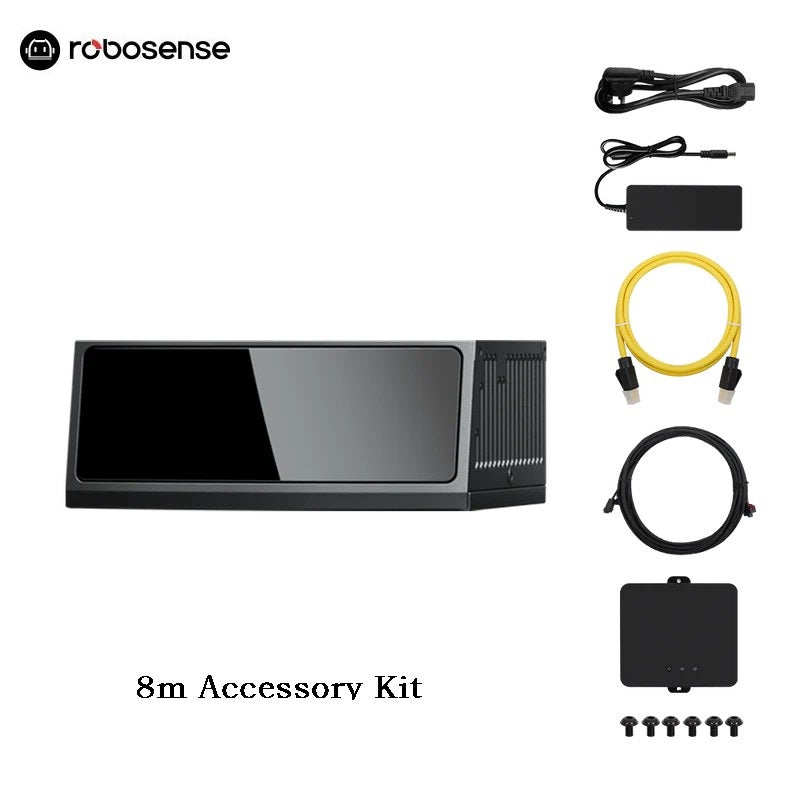

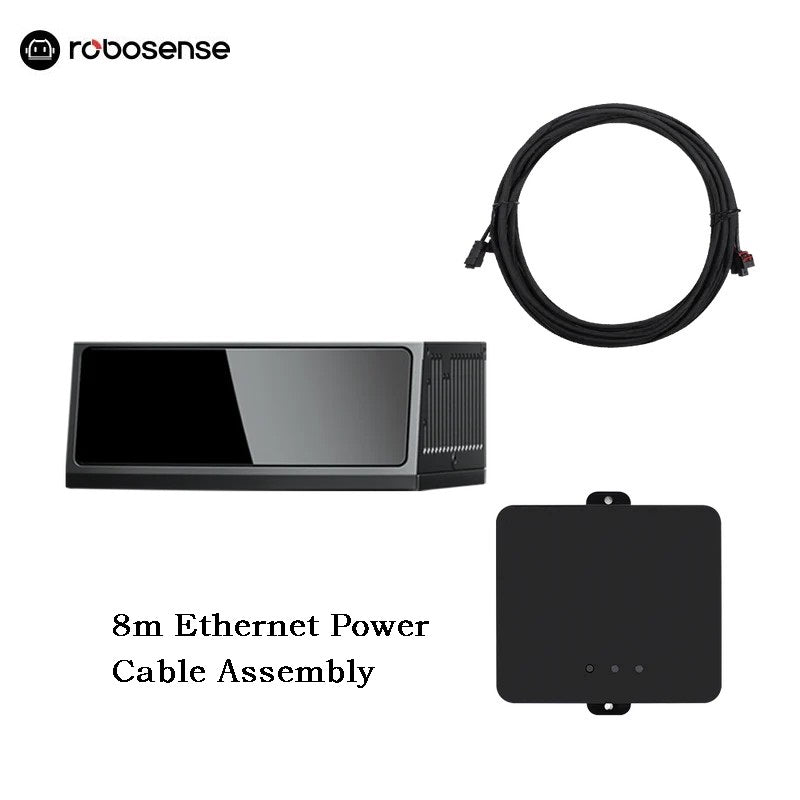

Accessories

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information

Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
Laser Wavelength 905nm
Laser Safety Class 1 eye safety
Range⁵ 200m (180m@10% NIST)
Blind Spot ≤0.5m
Range Accuracy (Typical)* 5cm
Horizontal FOV 120°
Vertical FOV 25°
Horizontal Resolution Average 0.2°
Vertical Resolution Average 0.2° (ROI: Average 0.1°)
Frame Rate 10Hz
Points Per Second 787,500pts/s (Single Return Mode)
1,575,000pts/s (Dual Return Mode)
Ethernet Connection 1000Base-T1
Output UDP packets over Ethernet
UDP Packet include Spatial Coordinates, Intensity, Timestamp, etc.
Operating Voltage 9–16V
Power Consumption³ 15W
Weight (without cabling) 690g±50g
Dimension 111mm(D) x 110mm(W) x 45mm(H)
Operating Temperature⁴ –40°C ~ +85°C
Storage Temperature –40°C ~ +105°C
Time Synchronization gPTP
Ingress Protection IP87, IP6K8K
