RoboSense | SKU:

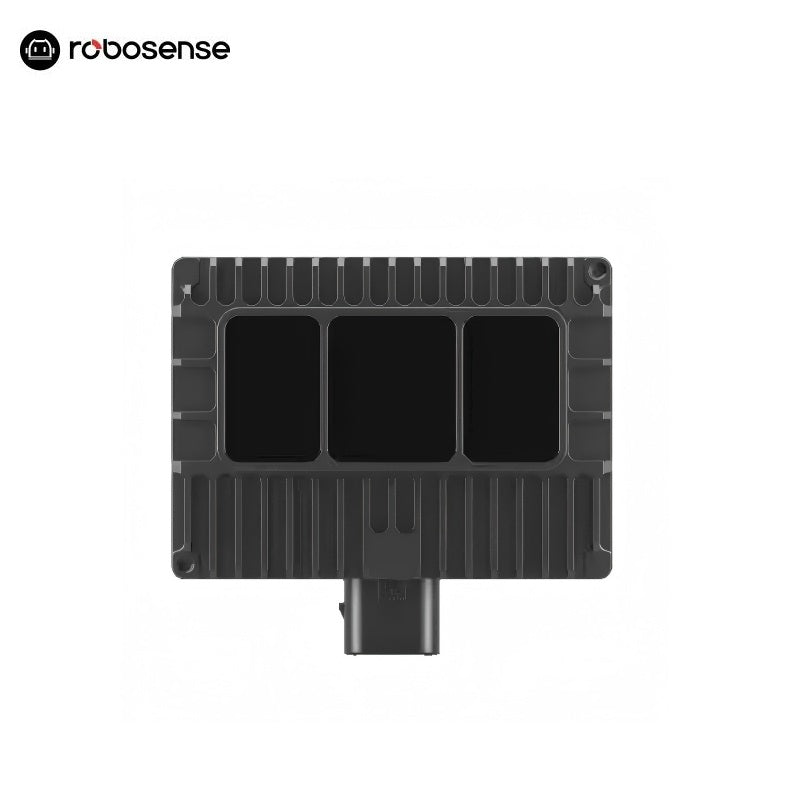

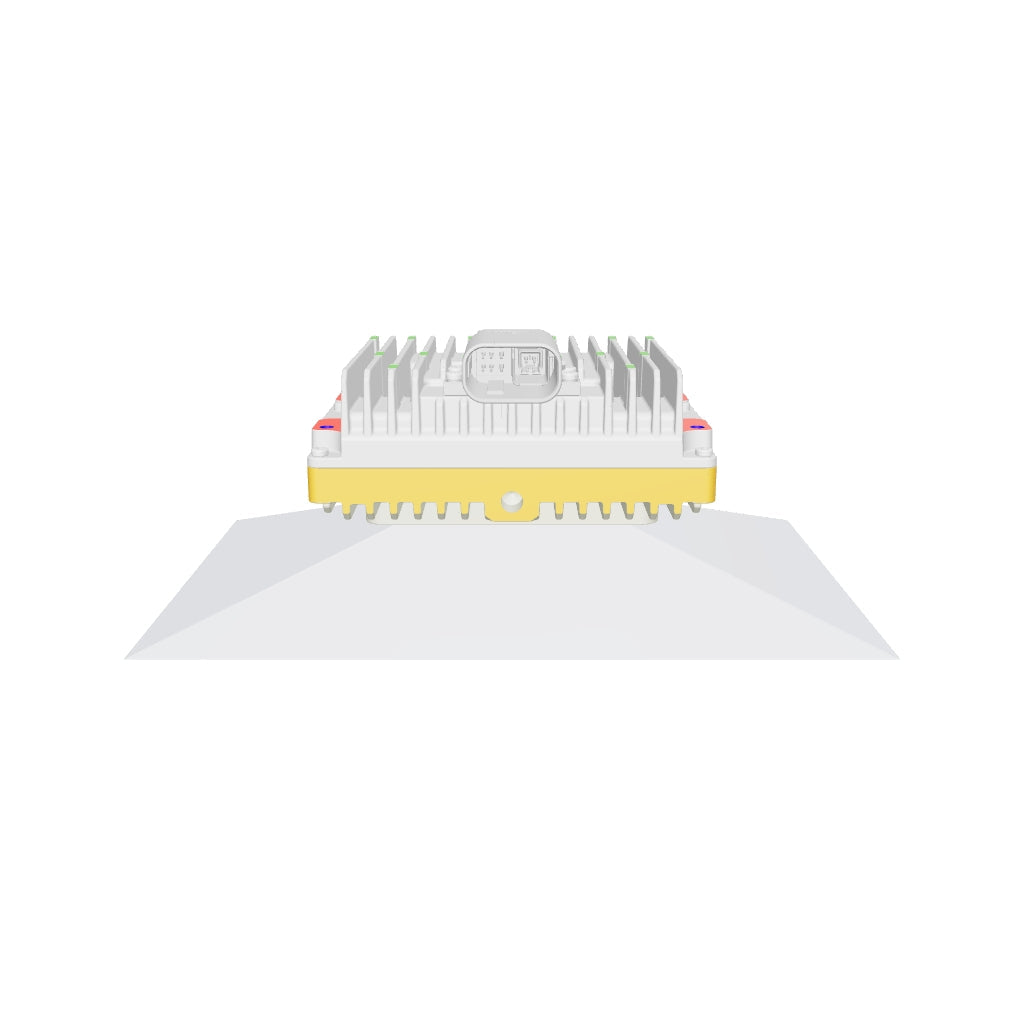

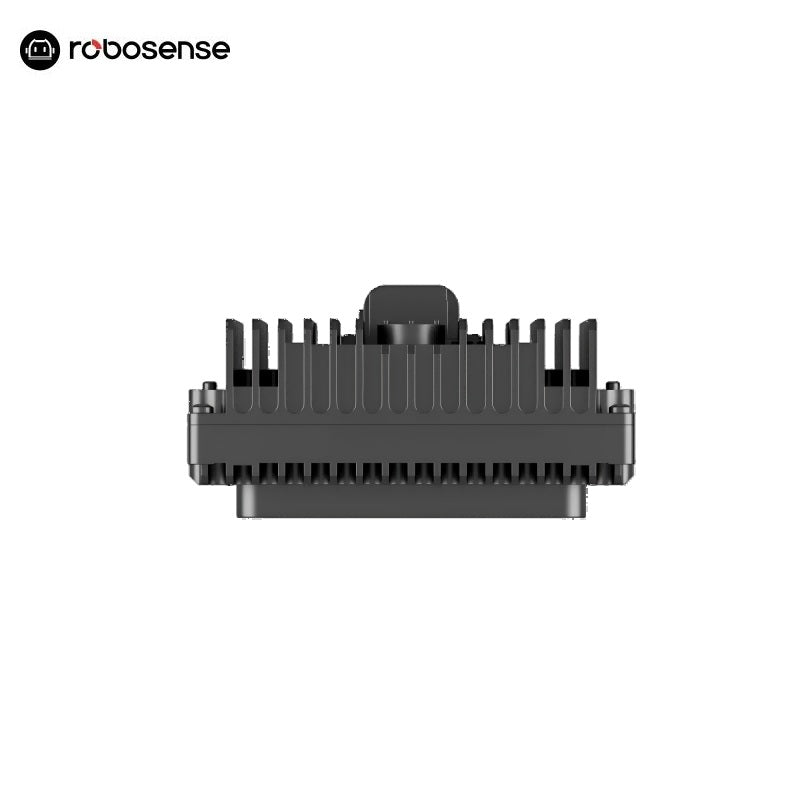

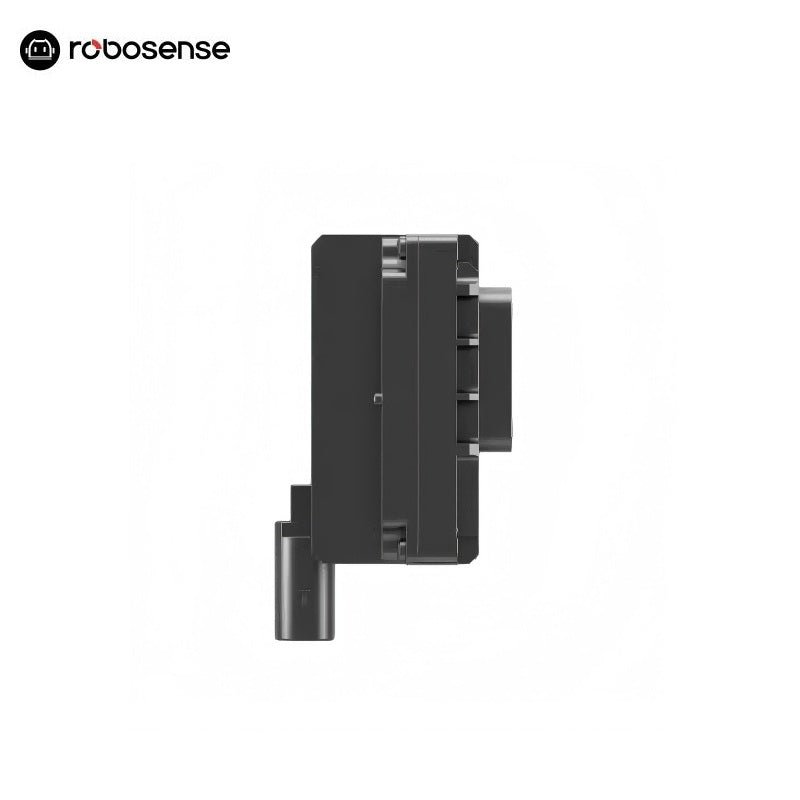

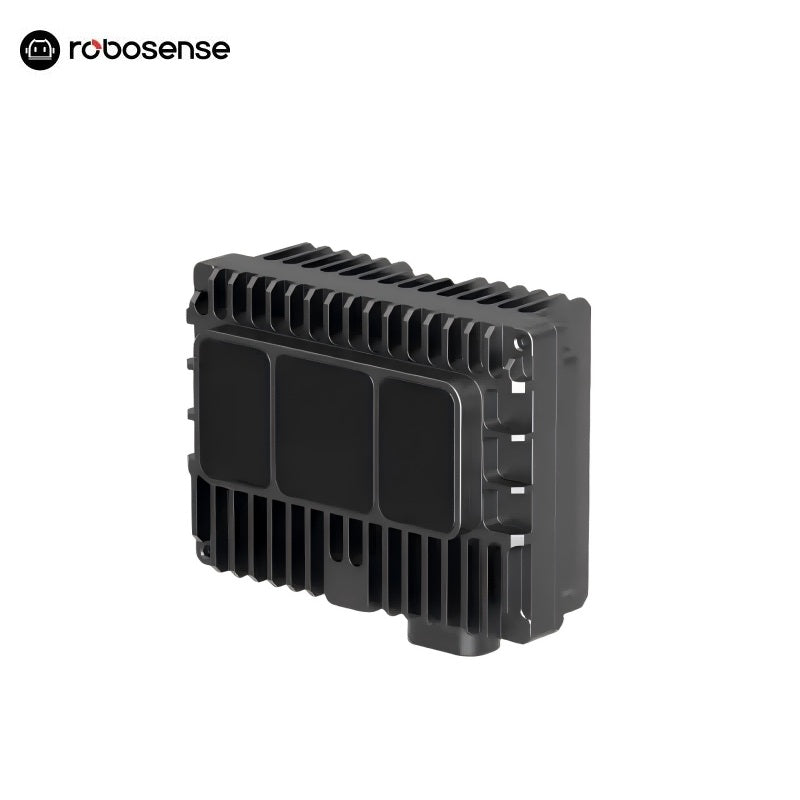

RoboSense E1R LiDAR
Regular price
$999.00
Unit price
Unavailable
RoboSense E1R LiDAR - E1R / Device Only is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
RoboSense E1R LiDAR
Regular priceFrom
$999.00
Unit price
Unavailable
RoboSense E1R LiDAR - E1R / Device Only is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Range | 30m@10% |
| Maximum Range | 75m |
| FOV (H×V) | 120°×90° |
| Angular Resolution (H×V) | Avg. 0.625°×0.625° |
| Frame Rate (Adjustable) | 10Hz |
| Points per Second (Single Return Mode) | 260,000 pts/s |
| Dimensions (H×W×D) | 69.5×95×43mm |
| Weight (Without Cabling) | 330±20g |
| Working Temperature | ~40°C ~ +85°C |
| Time Synchronization | gPTP |
| # of Lines | 144 |
| Accuracy | ±3cm |
| Blind Spot | <0.1m |
| Laser Safety | Class 1 Eye Safety |
| Power Consumption | <10W |
| Points per Second (Dual Return Mode) | 520,000 pts/s |
| Window Dimensions (H×W×D) | 35×75×7mm |
| Operating Voltage | 9 - 16V |
| Storage Temperature | ~40°C ~ +105°C |
| Ingress Protection | IP67、IP6K9K |
