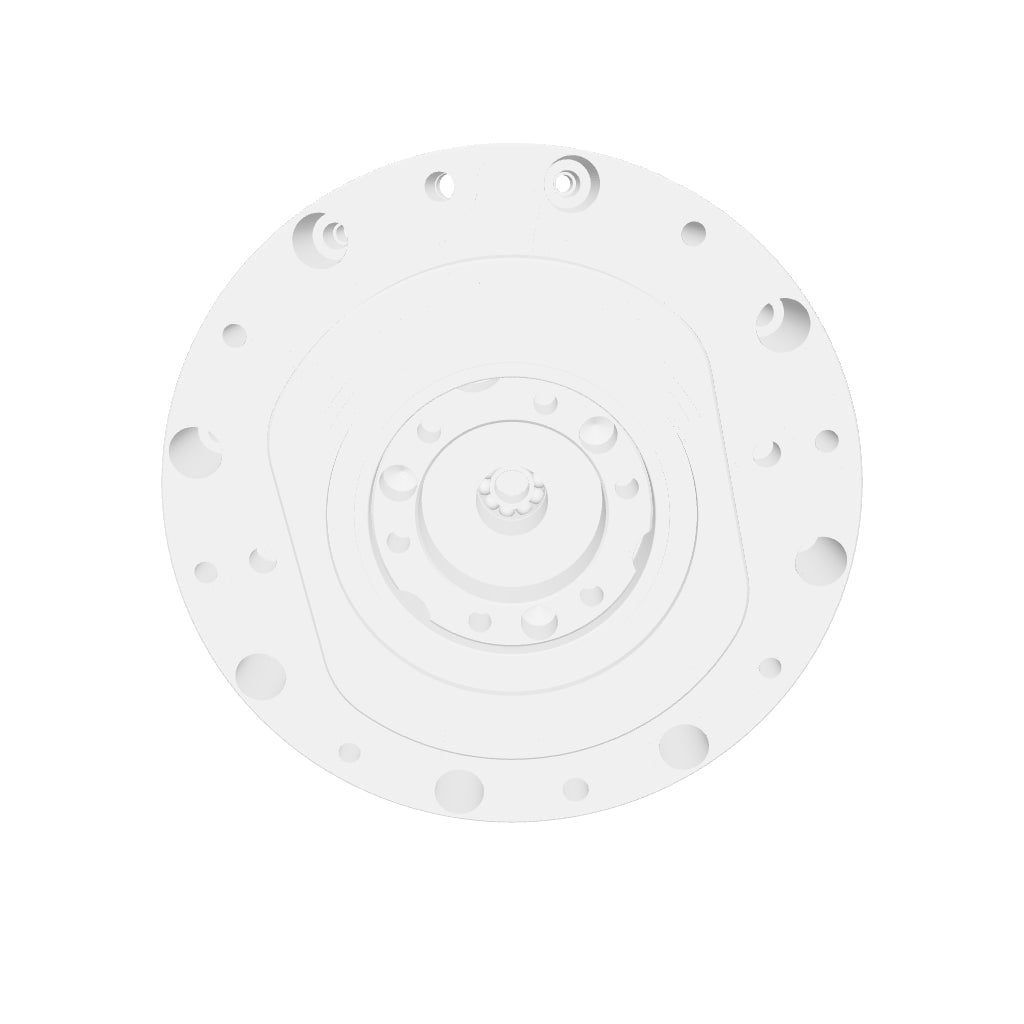

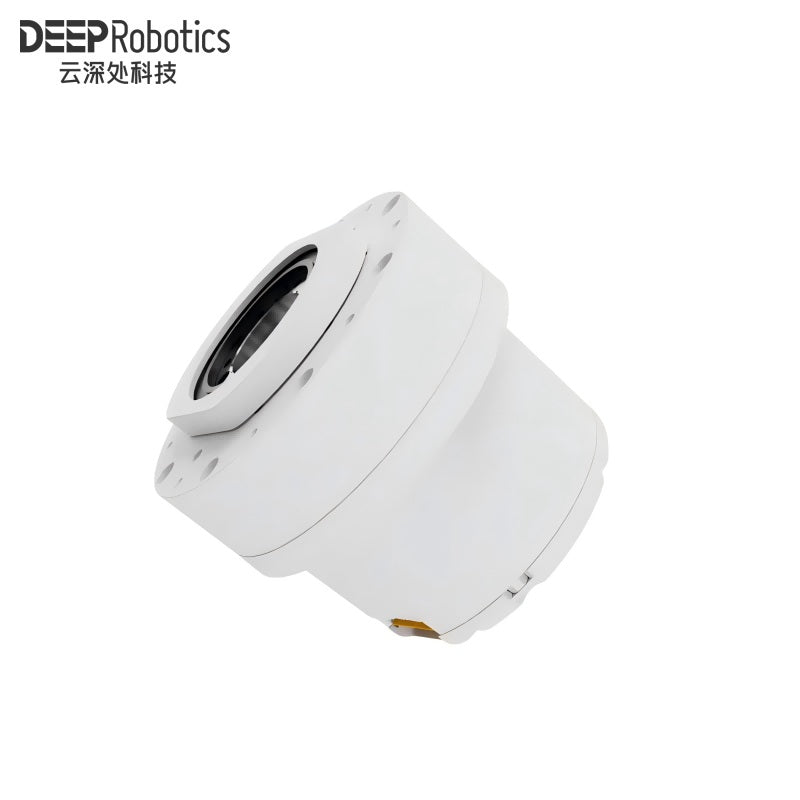

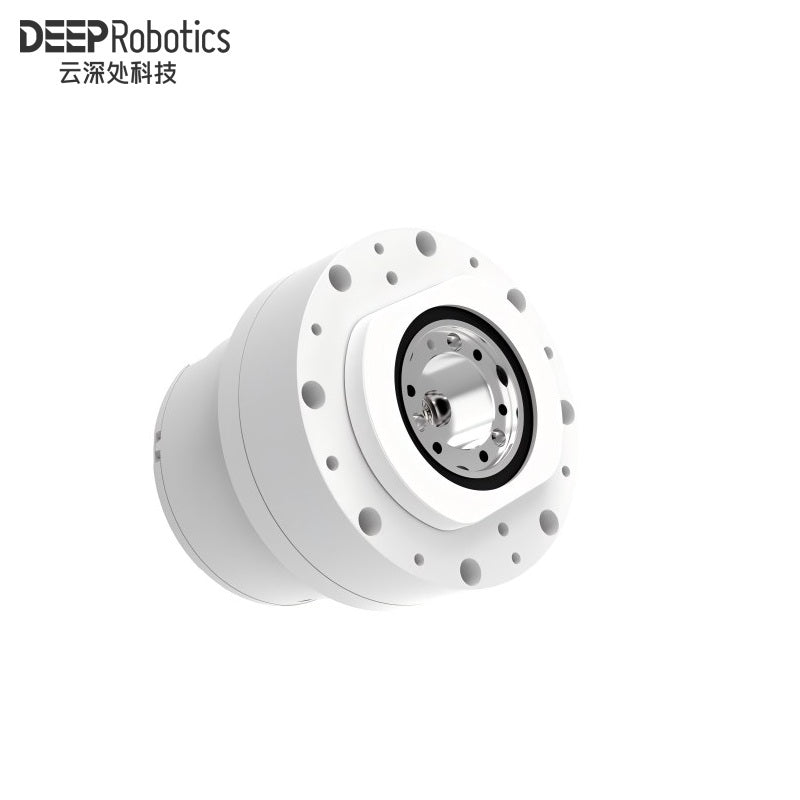

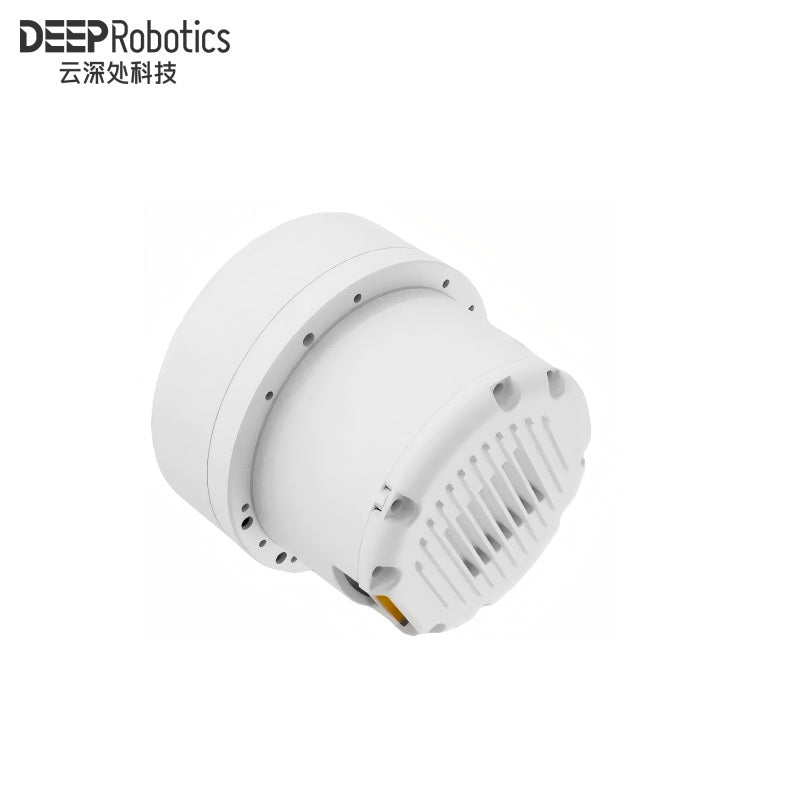

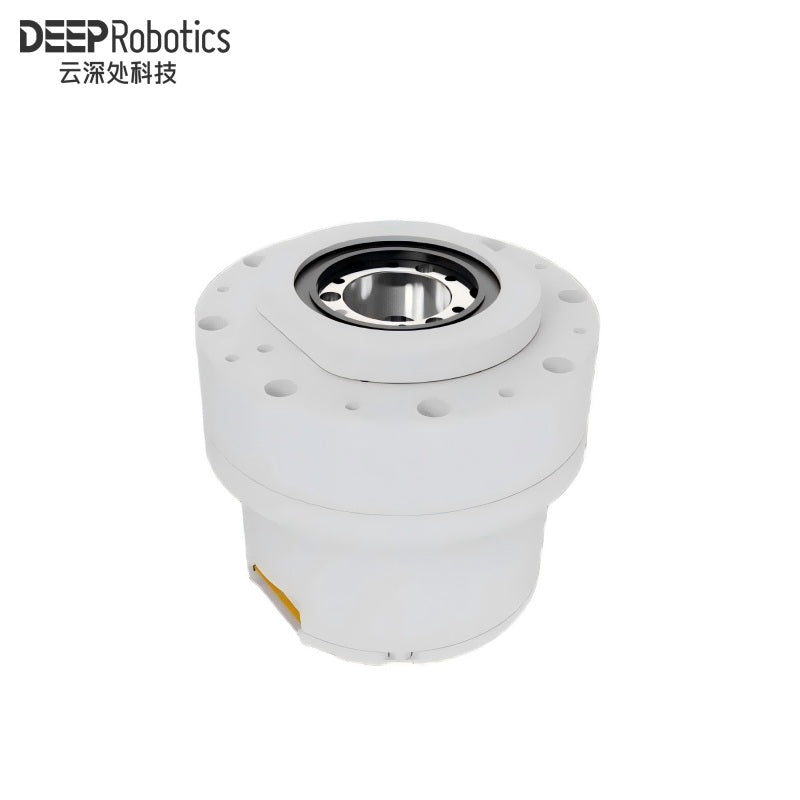

DEEP Robotics J60-10 Motor

$370.00

Version

J60-10

Delivery and Shipping

We automatically select the most cost-effective carrier from China for each destination country
Shipping rates are dynamically calculated based on real-time quotes
Final rates may vary due to promotional offers or carrier adjustments

Humanoid Robots

Robotic Arms

Exoskeletons

Quadruped Robots

AGV Vehicles

ARU Robots

Parameter	Value
Weight	540g
Dimensions (Diameter × Length)	76.5mm×72.5mm
Rated Torque	9.58N·m@24V
Peak Torque	30.50N·m
Rated Speed	10rad/s
Maximum Speed	15.49rad/s@24V
Standard Operating Voltage	DC 24V
Operating Voltage Range	DC 18V~36V
Motor Rated Current (rms)	5.6A
Motor Maximum Current (rms)	18A
Motor Maximum Phase Current (peak)	30A
Driver Current Sampling Range	±40A
Joint Torque Constant	1.3473N·m/A
Motor Back EMF Constant	6.41Vrms/krpm
Motor Line Resistance	0.54(1±5%)Ω
Motor Line Inductance	0.34(1±10%)mH
Communication Interface	CAN
Communication Baud Rate	1Mbps
Communication Frequency	1kHz
Overtemperature Protection Threshold	(motor)125°C /(driver)120°C
Overcurrent Protection Threshold	28A (Iq feedback value)
Overvoltage Protection Threshold	36V
Undervoltage Protection Threshold	18V
Absolute Encoder	14-bit resolution
Joint Control Command	Angle P, Angular Velocity V, Torque T, Stiffness Kp, Damping Kd
Joint Feedback Command	Angle P, Angular Velocity V, Torque T, Driver Temperature, Motor Temperature
Reducer Type	Planetary Gear
