Ti5 ROBOT

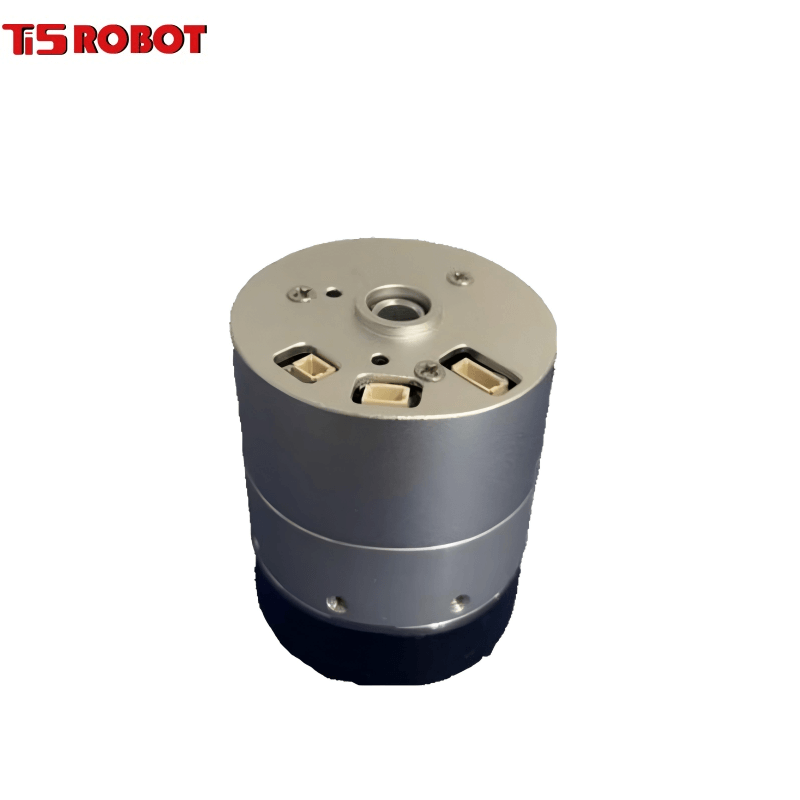

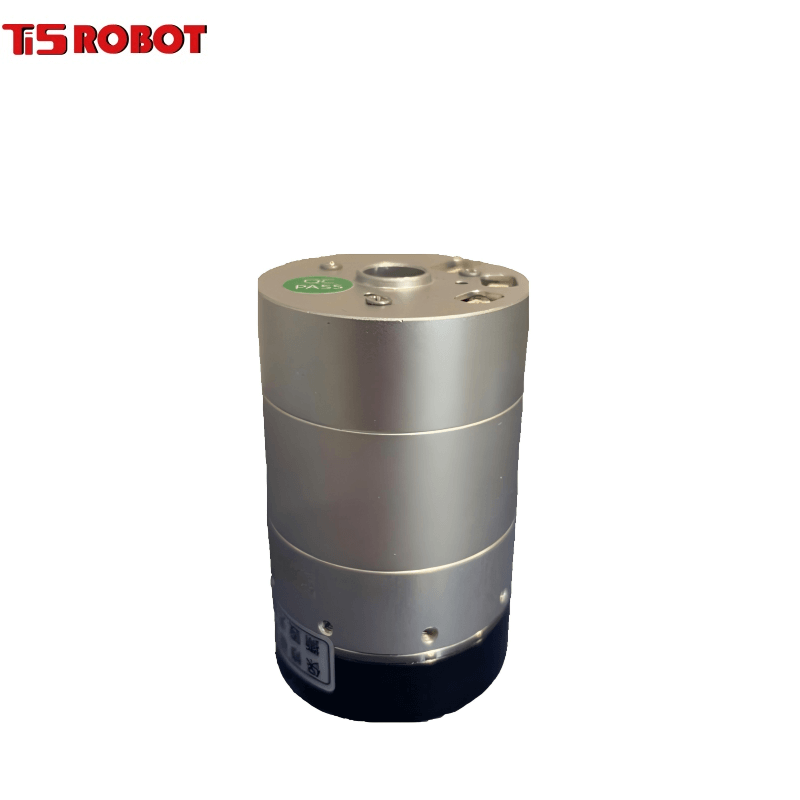

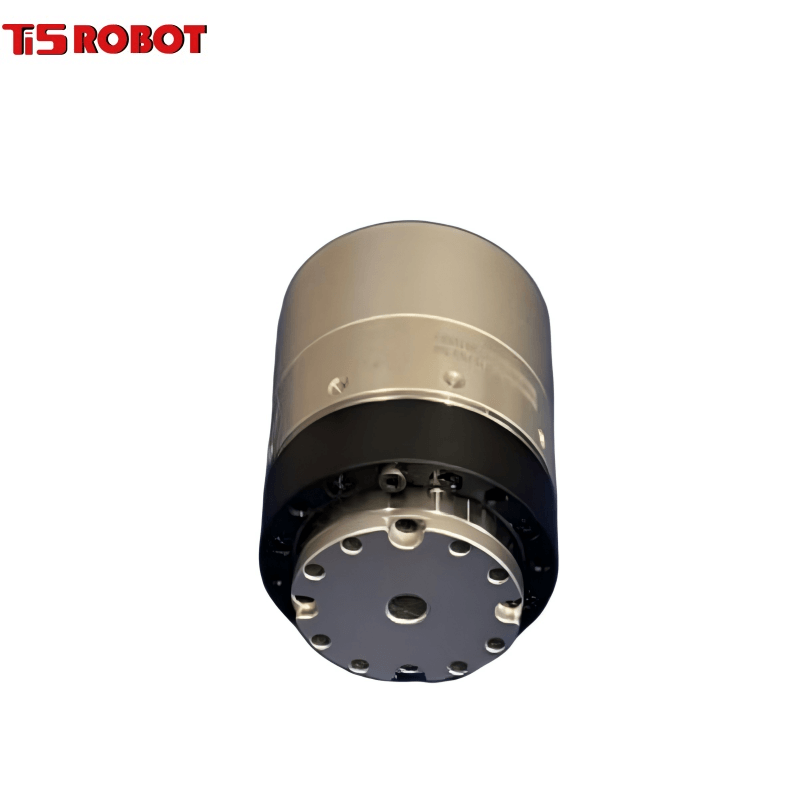

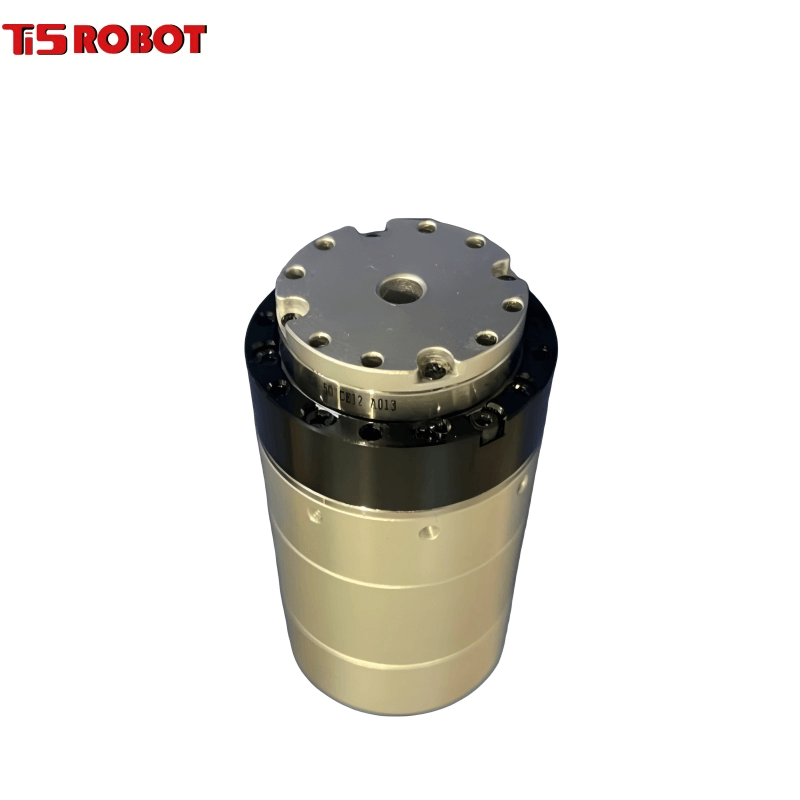

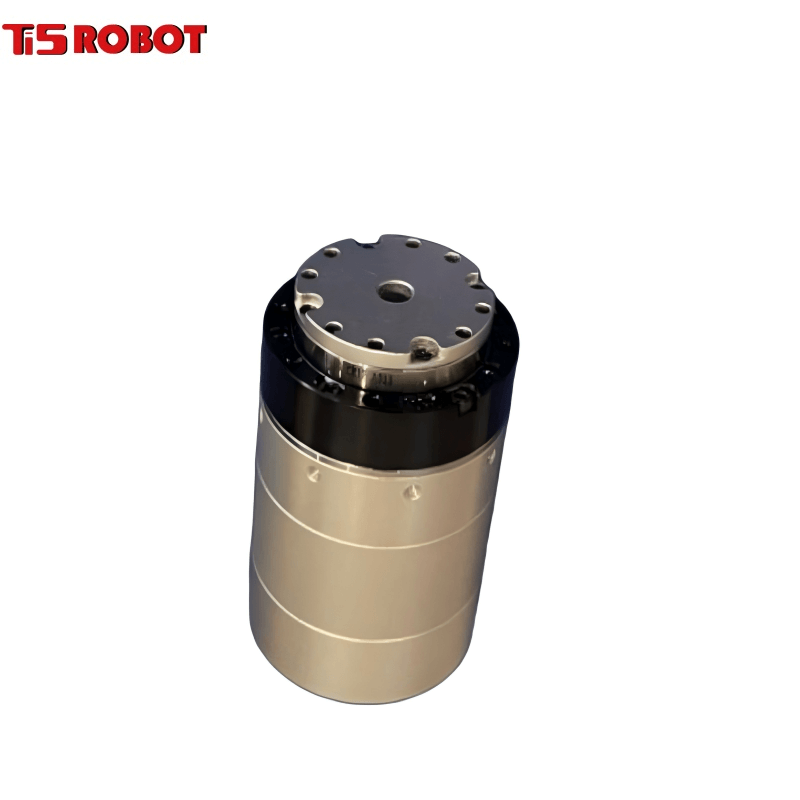

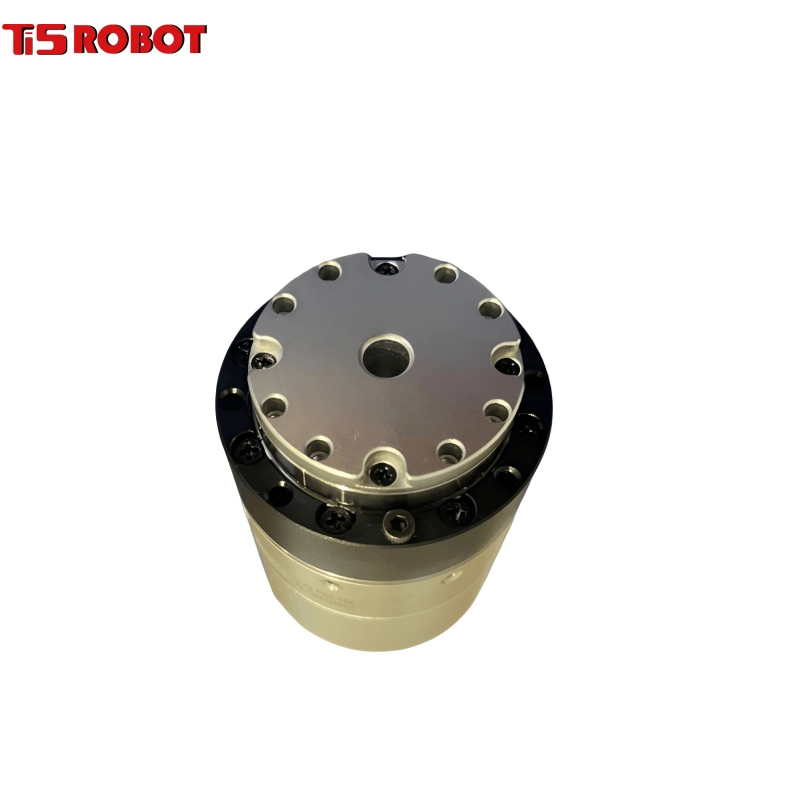

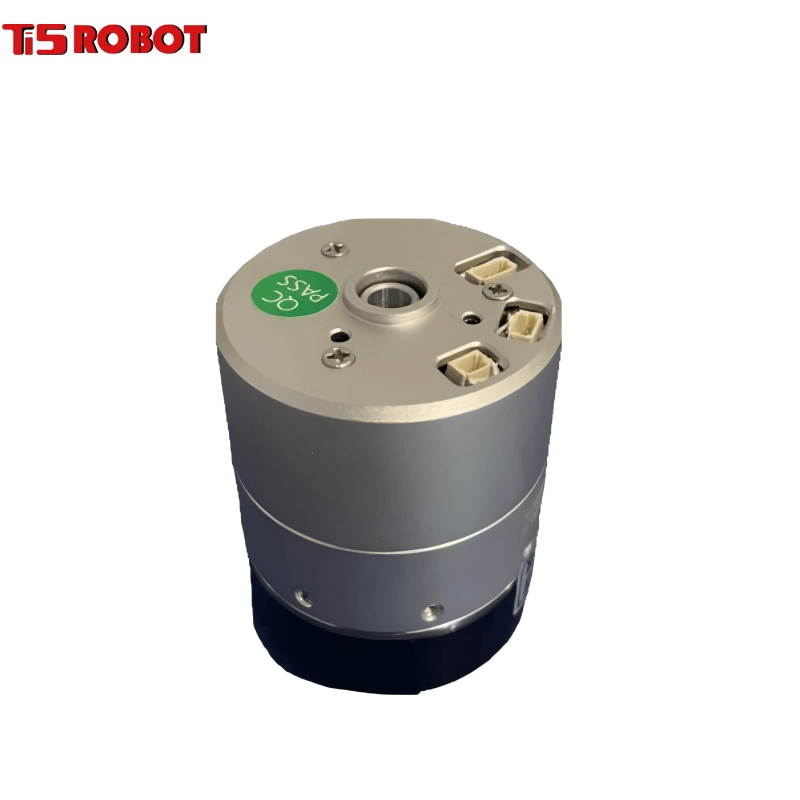

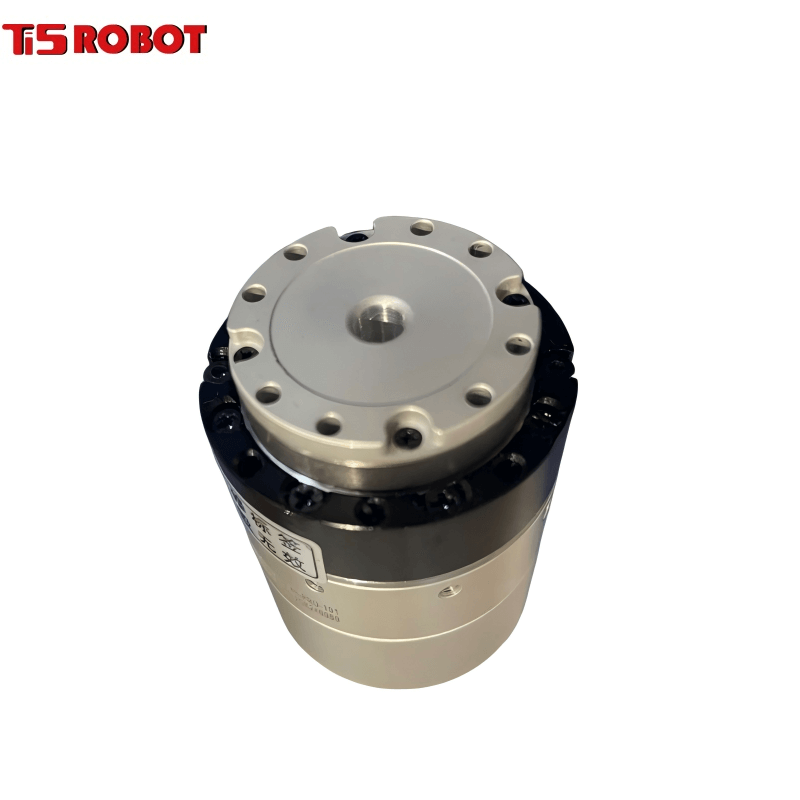

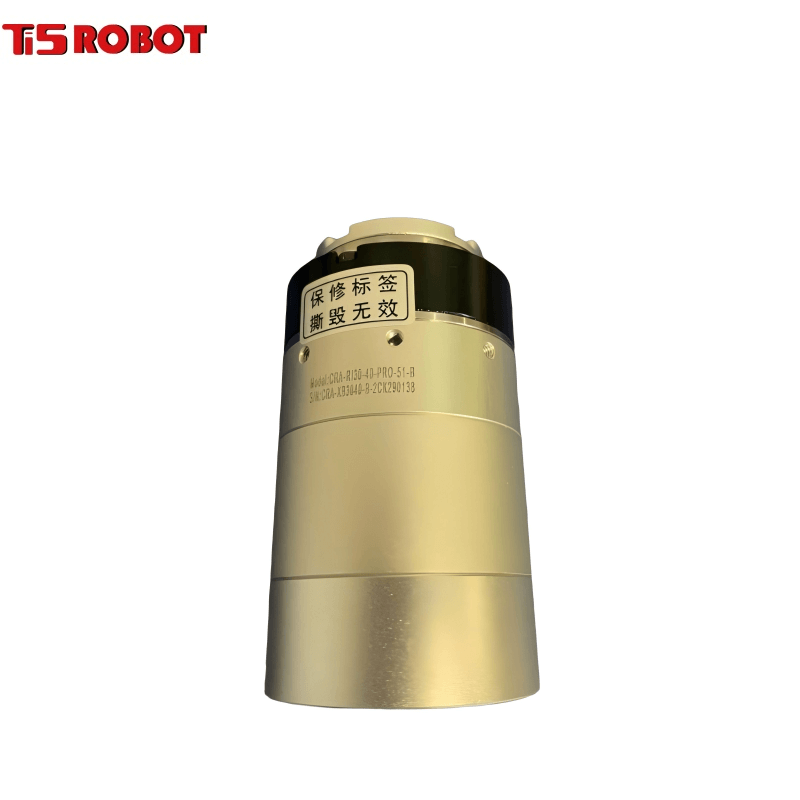

Ti5 ROBOT CRA-RI30-40-PRO Motor

$760.00
Version
Encoder
Brake

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information

Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
Motor Model CRA-RI30-40-PRO-XX/CRA-RI30-40-PRO-XX-B
Reduction Ratio 51/101
Start-stop Peak Torque 3.3/4.8N.m
Maximum Allowable Average Load Torque 2.3/3.3N.m
2000 Rpm/(Reduction Ratio) Rated Torque at this speed 1.8/2.4N·m
Output End Peak Rotational Speed 118/59RPM
Rated Speed 90/45RPM
Motor Power 36W
Supply Voltage 24-48V
Maximum Continuous Current 2A
Rated Current 1A
Encoder Resolution 16Bit
Back Clearance 40/40arcsec
Torque Constant 0.024N·m/A
Hole 6mm
Length: Without brake / With brake 60±0.5mm / 78.6±0.5mm

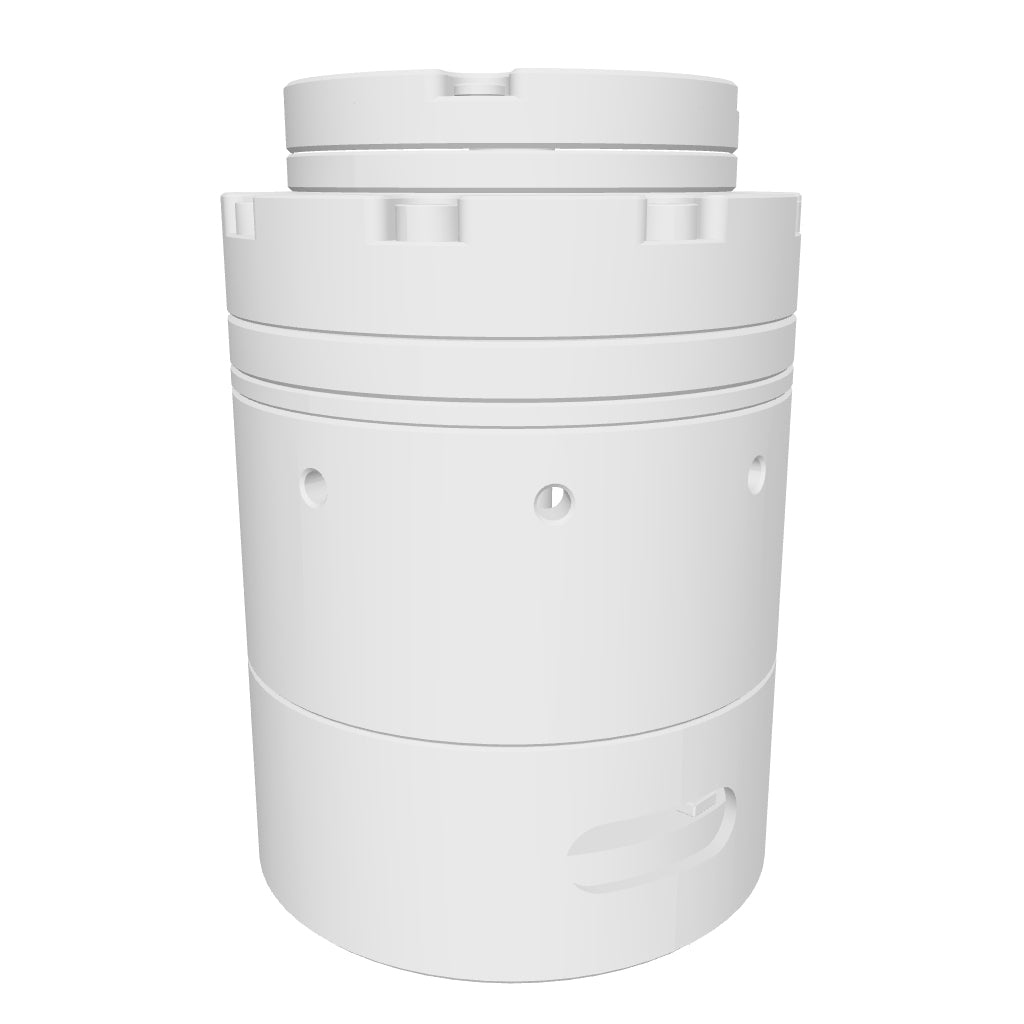

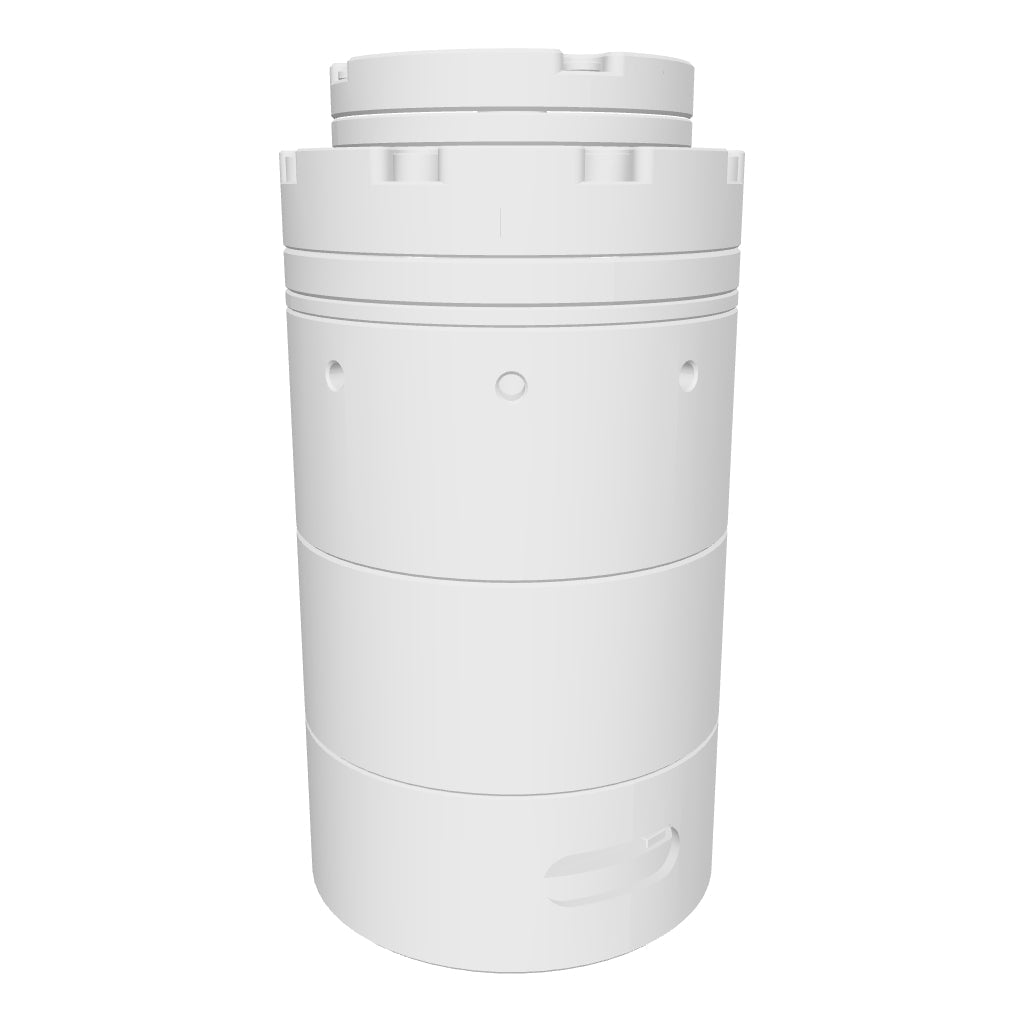

Weight: Without brake / With brake 0.19kg / 0.27kg
Inertia: Without brake / With brake 27.4g·cm² / 45.1g·cm²


CRA-RI30-40-PRO-Motor Installation Dimension Drawing.pdf
