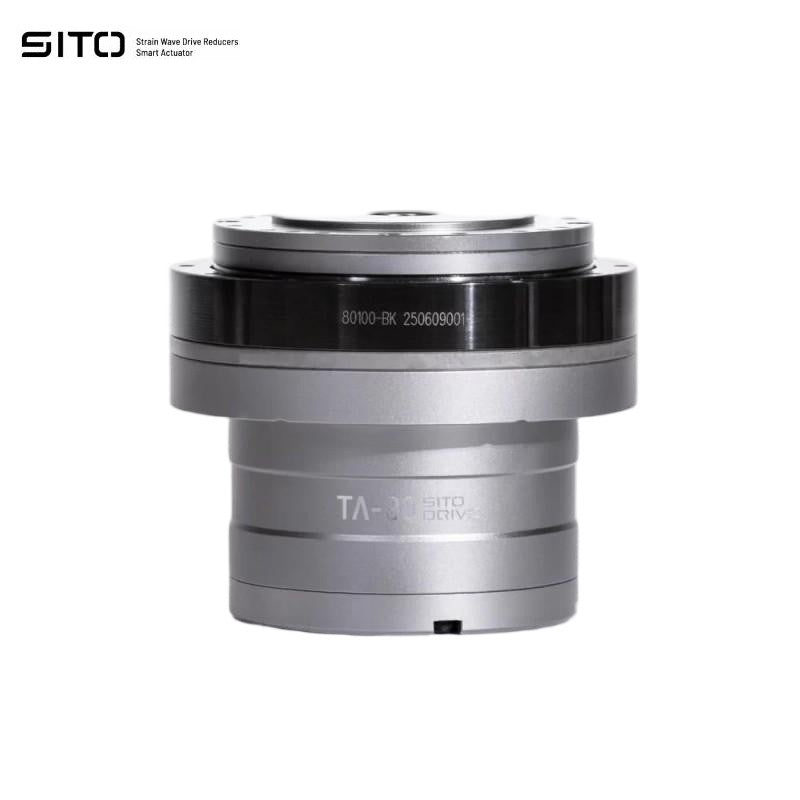

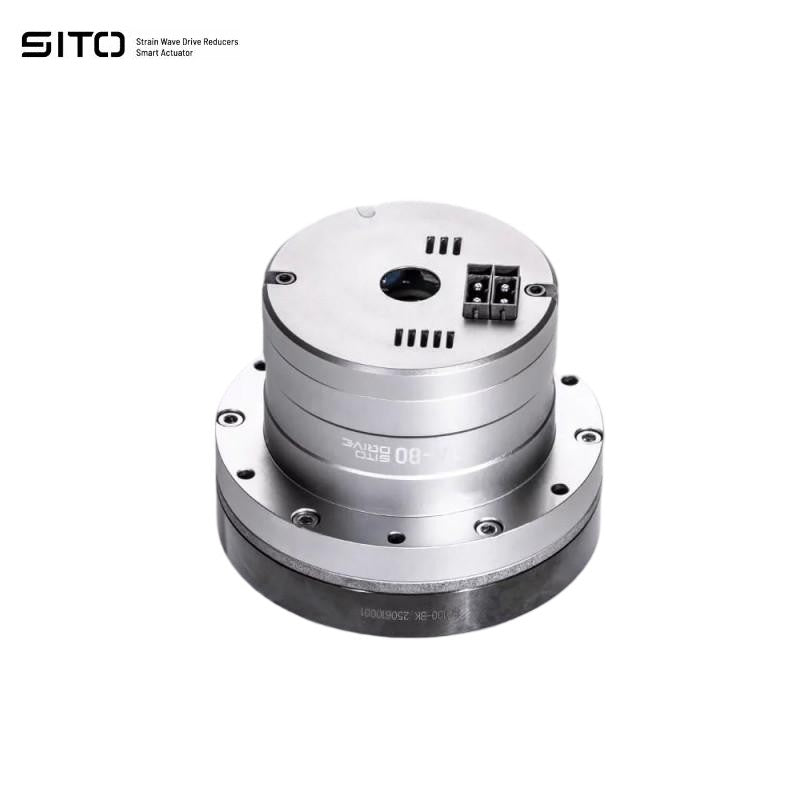

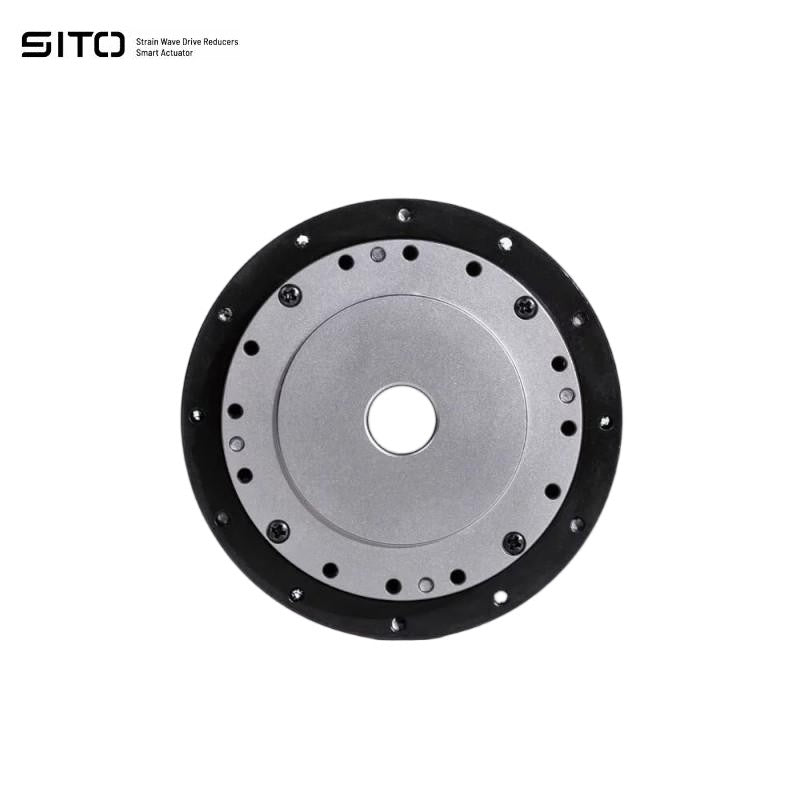

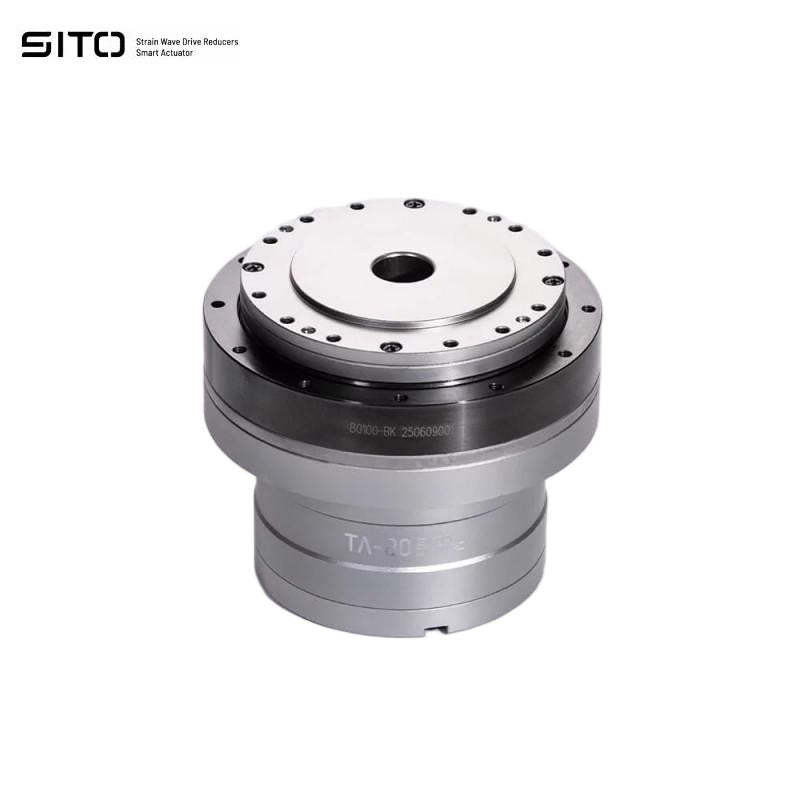

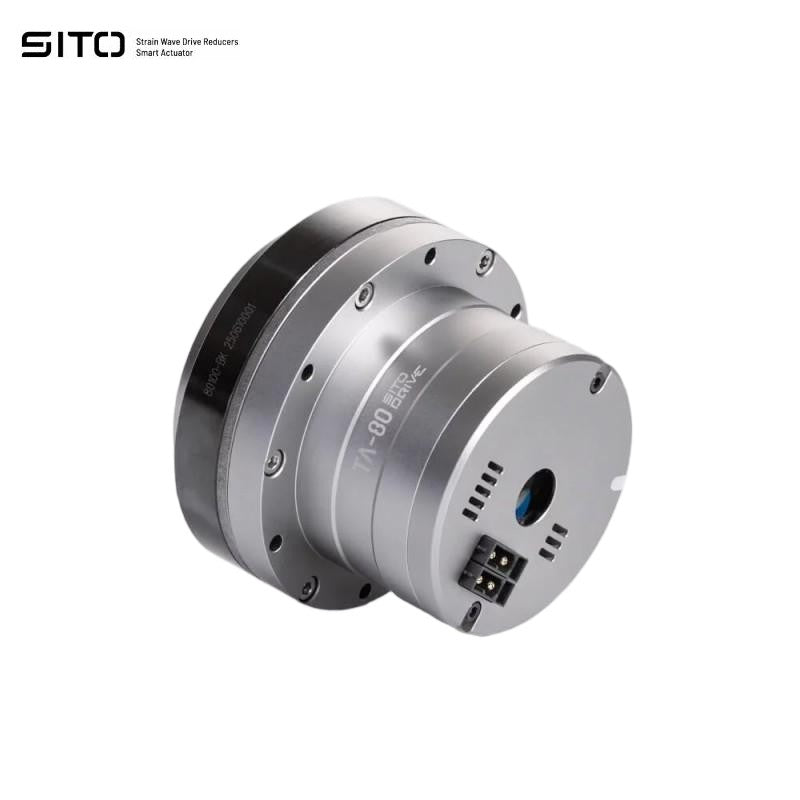

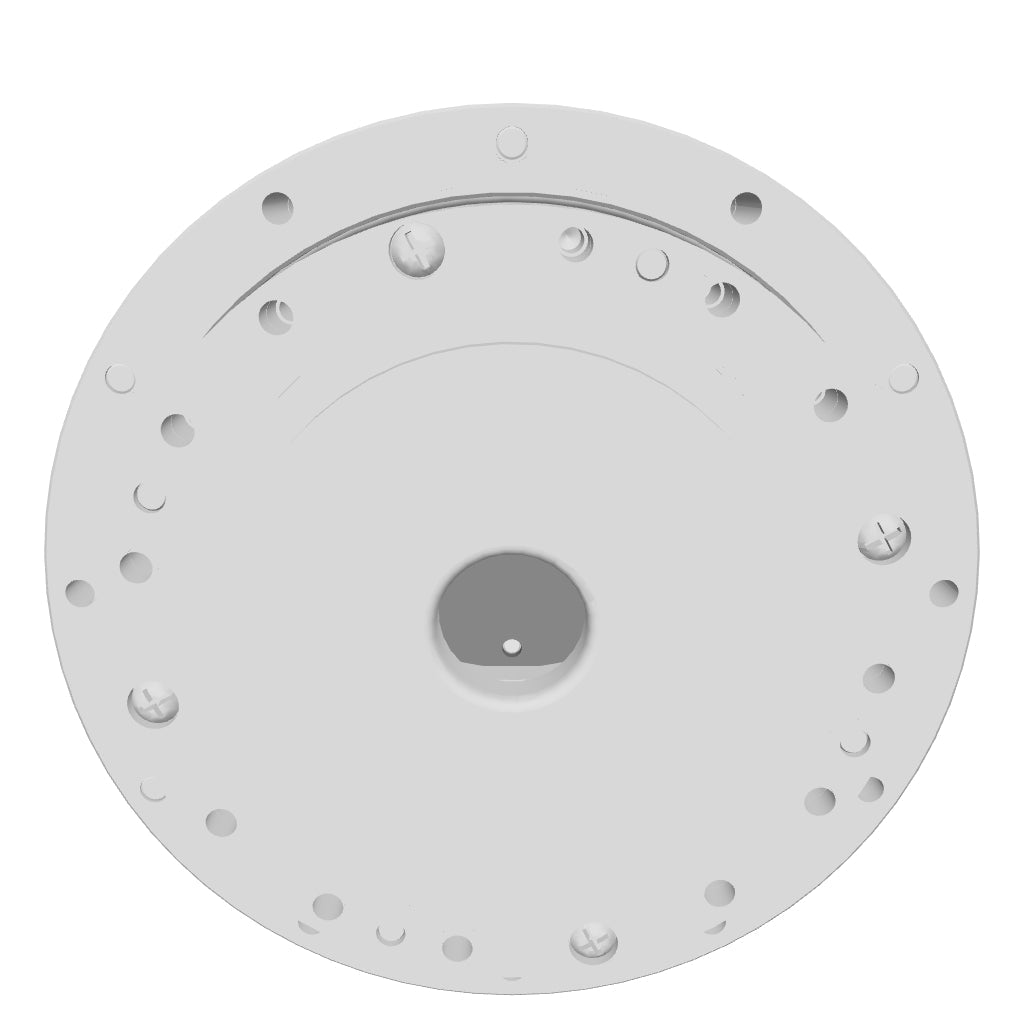

SITO DRIVE TA-80 Rotary Actuator
Regular price
$608.00
Unit price
Unavailable
SITO DRIVE TA-80 Rotary Actuator - 50 / Without Brake is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
SITO DRIVE TA-80 Rotary Actuator
Regular priceFrom
$608.00
Unit price
Unavailable
SITO DRIVE TA-80 Rotary Actuator - 50 / Without Brake is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value | Value |
|---|---|---|
| Model | TA-80 | TA-80 |
| Transmission Ratio | 50 | 100 |
| Rated Torque | 17 Nm | 28 Nm |
| Peak Torque allowed during start/stop | 39 Nm | 57 Nm |
| Maximum allowable average load torque | 24 Nm | 34 Nm |
| Instantaneous Maximum Torque | 69 Nm | 95 Nm |
| Diameter | 80 mm | 80 mm |
| Length | 72.03 mm | 72.03 mm |
| Hollow Bore Diameter | 12 mm | 12 mm |
| Weight without brake | 1.05 kg | 1.05 kg |
| Weight with brake | 1.1 kg | 1.1 kg |
| Maximum Operating Temperature | 80 °C | 80 °C |
| Minimum Operating Temperature | -40 °C | -40 °C |
| Life | 7000 h | 7000 h |
| Installation Methods | Face Mounting | Face Mounting |
| Repeat Positioning Accuracy | 25 arcsec | 15 arcsec |
| Absolute Positioning Accuracy | 100 arcsec | 90 arcsec |
| Communication Mode |
CAN 2.0B | CAN 2.0B |
| Baud rate | 1M bps | 1M bps |
| Maximum Output Speed | 80 rpm | 40 rpm |
| Supply Voltage | 10-60 V(Recommended 48V) | 10-60 V(Recommended 48V) |
| Rated Power | 90 W | 100 W |
| Peak Power | 280 W | 270 W |
| Version model | V1 | V1 |
| IP grade | IP54 | IP54 |
