Livox

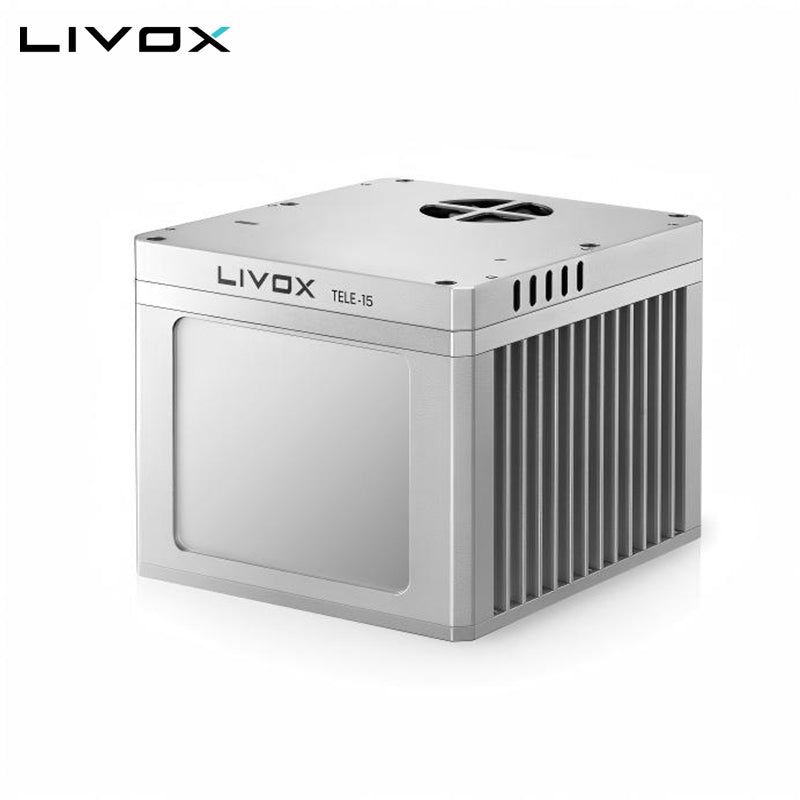

Livox TELE-15 LiDAR

$1,899.00
Version

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information




Technical Specifications

Parameter Value
  Model  TELE-15
  Laser Wavelength
  905 nm
  Laser Safety
  Class 1 (IEC60825-1:2014)
  Detection Range (@ 100 klx)
  320 m @ 10% reflectivity
  500 m @ 50% reflectivity
  FOV
  14.5° x 16.2°
  Range Precision (1σ @ 20m)
  2 cm¹
  Angular Precision (1σ )   < 0.03º
  Beam Divergence   0.12° (Vertical) × 0.02° (Horizontal)
   Point Rate   240,000 points/s （480,000 points/s Dual Return)
   FOV Coverage   99.8% @ 0.1 s²
Data Latency
≤ 2 ms
Data Port
 100 Mbps Ethernet
False Alarm Rate (@ 100 klx) ³
 < 0.01%
IMU
 Built-in IMU model: BMI088
Operating Temperature
 -40˚F to 185˚F (-40˚C to 85˚C)
IP Rating
 IP67
Power
12 W typical⁴
Voltage
10 ~ 15 V DC（Converter 2.0: 9 ~ 30V DC）
Interface
Ethernet
Data synchronization
IEEE 1588-2008 (PTPv2), PPS (Pulse Per Second)
Dimensions
112 × 94.2 x122 mm (with self-dissipation module)
112 × 82.4 x122 mm (without self-dissipation module)
Weight
1600 g (with self-dissipation module)
1500 g (without self-dissipation module)
Notes 1. Measured in an environment of 25℃ with a target (80% reflectivity) 20 meters away. The result may vary under different test conditions.
2. For more information, refer to user manual.
3. The proportion of false alarms generated by ambient stray light in daylight conditions of 100 kilolux.
4. Starting power, especially at low temperature, might be significantly larger than the typical power. Please refer to user manuals for detailed information.
