Livox | SKU:

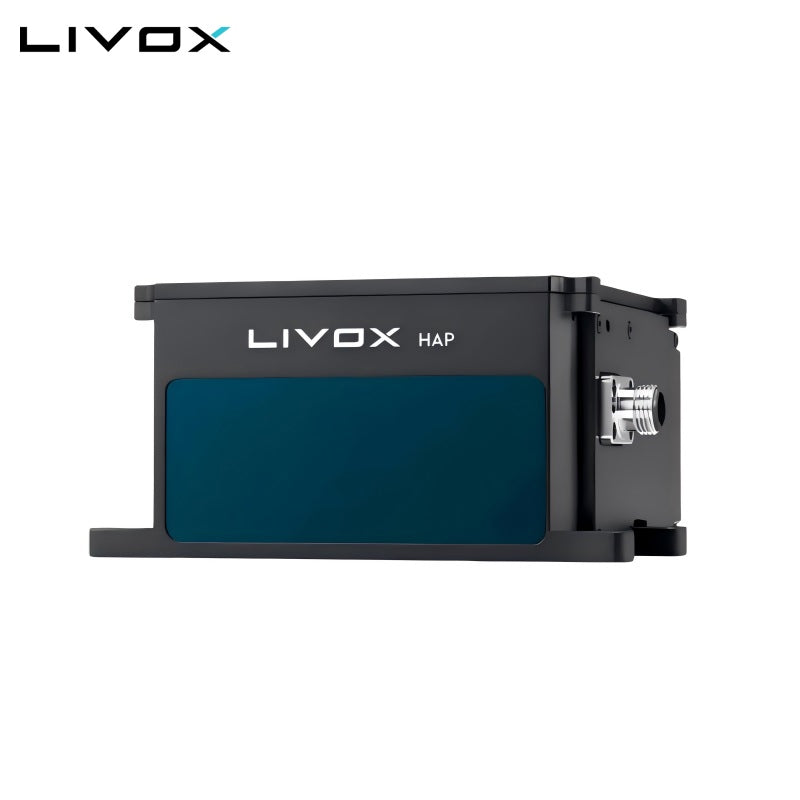

Livox HAP (TX)
Regular price
$1,899.00
Unit price
/
Unavailable
Livox HAP (TX) - Livox HAP (TX) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
Livox HAP (TX)
Regular price
From
$1,899.00
Unit price
/
Unavailable
Product Information
Technical Specifications
| Parameter | Value |
|---|---|
| Model | AVIA |
|
Laser Wavelength
|
905 nm
|
| Laser Safety |
Class 1 (IEC60825-1:2014)(Eye Safety)
|
|
Detection Range (@ 100 klx)
|
190 m @ 10% reflectivity
230 m @ 20% reflectivity 320 m @ 80% reflectivity |
|
Detection Range (@ 0 klx)
|
190 m @ 10% reflectivity
260 m @ 20% reflectivity 450 m @ 80% reflectivity |
|
FOV
|
Non-repetitve scanning pattern:
70.4° (Horizontal) ×77.2° (Vertical) Repetitve line scanning: 70.4° (Horizontal) ×4.5° (Vertical) |
|
Range Precision (1σ @ 20m)
|
2 cm¹
|
| Angular Precision (1σ ) | < 0.05º |
| Beam Divergence | 0.28° (Vertical) × 0.03° (Horizontal) |
| Point Rate | 240,000 points/s (first or strongest return) 480,000 points/s (dual return) 720,000 points/s (triple return) |
| Data Latency | ≤ 2 ms |
| Data Port | 100 Mbps Ethernet |
| Data synchronization | IEEE 1588-2008 (PTPv2), PPS (Pulse Per Second), GPS (PPS+UTC) |
|
False Alarm Rate (@ 100 klx) ²
|
< 0.0003% |
|
IMU
|
Built-in model: BMI088 |
|
Operating Temperature
|
-4°F to 149°F (-20℃ to 65℃) |
|
IP Rating ³
|
IP67 |
|
Power ⁴
|
Repetitive scanning pattern: 9 W (Startup: 16W)
Non-repetitive: 8 W (Startup: 16W) |
|
Power Supply Voltage Range ⁵
|
10 ~ 15 V DC (with Converter 2.0: 9~30V DC )
|
|
Noise
|
40cm omnidirectional <45 dBA
|
|
Dimensions
|
91×61.2×64.8 mm
|
|
Weight
|
498 g (without cables)
|
| Notes | 1. Measured in an environment of 25℃ with a target (80% reflectivity) 20 meters away. The result may vary under different test conditions. 2. The false alarms ratio of the noise created by the stray light in a test environment of 0 to 100 klx at a temperature of 25℃. 3. The Livox Avia has an overall IP rating of IP67 (not including Livox Converter 2.0 and cables) 4. Starting power, especially at low temperature, might be significantly larger than the typical power. Please refer to user manuals for detailed information. 5. Make sure the output voltage of the power supply is within this range at all times. |
