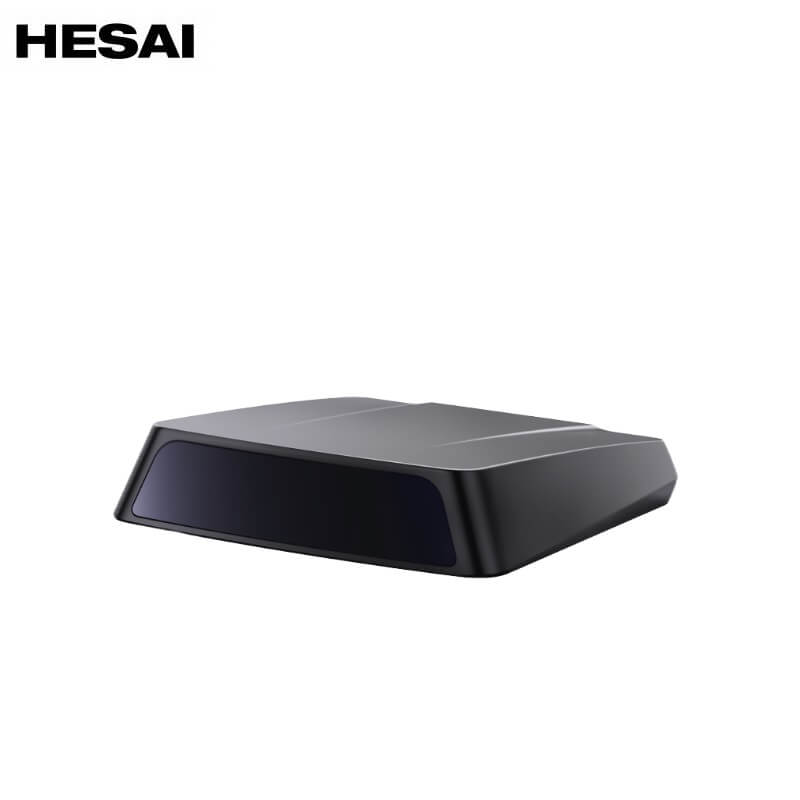

HESAI AT1440/360 LiDAR

Get Your Personalized Quote!

Pricing for this specialized component is tailored to your specific project requirements and configuration needs. To receive a detailed quotation, please provide your contact information in the section below. Our dedicated sales specialists will reach out promptly to discuss your application and provide accurate pricing.

Version

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information


Technical Specifications

Parameter Value
Model AT360
Scanning method
1-D rotating mirror (hybrid solid-state)
Number of channels
360 (300 enabled)
Ranging capability 250 m (at 10% reflectivity)
Ranging accuracy
±5 cm (typical)
Ranging precision
3 cm (typical, 1σ)
FOV (H × V) 120° × 18° (-9° to +9°)
ROI (H × V)
35° × 12° (-6° to +6°)
Resolution (H × V) ROI: 0.06° × 0.05°
Non-ROI: 0.12° × 0.10°
Frame rate 10 Hz
Return mode
Dual Return: First and Strongest
Wavelength 905nm
Laser class Class 1 Eye Safe
Ingress protection
IP6K7 & IP6K9K
Dimensions
158 × 119 × 52 (WDH, mm)
Rated voltage range
DC 9 to 16 V
Power consumption
16 W
Operating temperature
-40℃ to 85℃
Storage temperature
-40℃ to 105℃
Weight
1080 g
Data transmission
Automotive Ethernet, 1000BASE-T1, slave mode
Measurements
Distance, azimuth angle, and reflectivity
Valid point rate
 5700000 points/sec
Point cloud data rate
233/672 Mbps (avg/peak)
Clock source
PTP (802.1AS AUTOSAR)
PTP clock accuracy
≤1 μs
PTP clock drift
≤5 μs/s
