CubeMars | SKU:

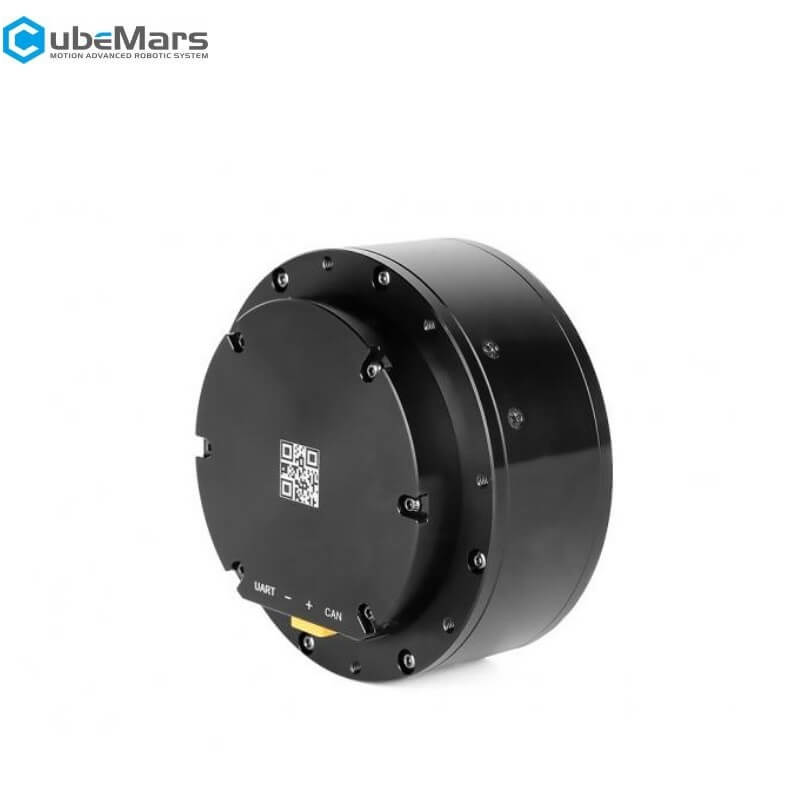

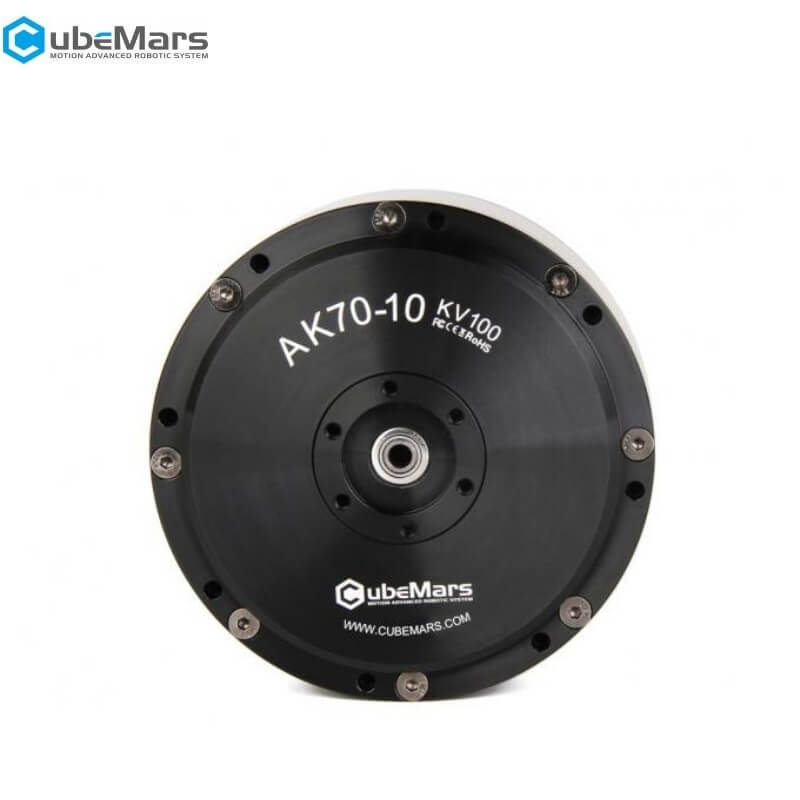

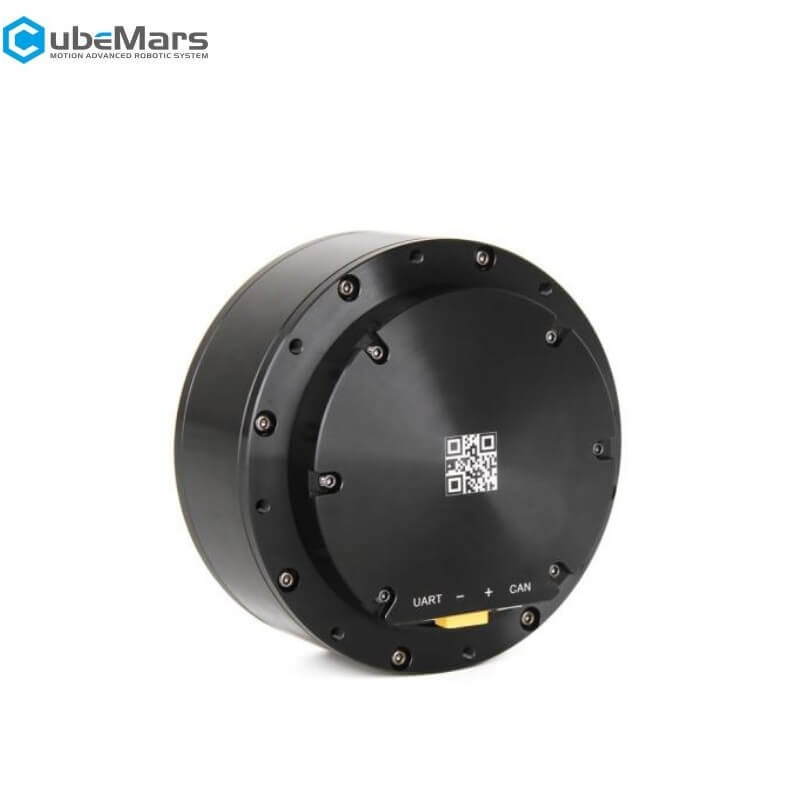

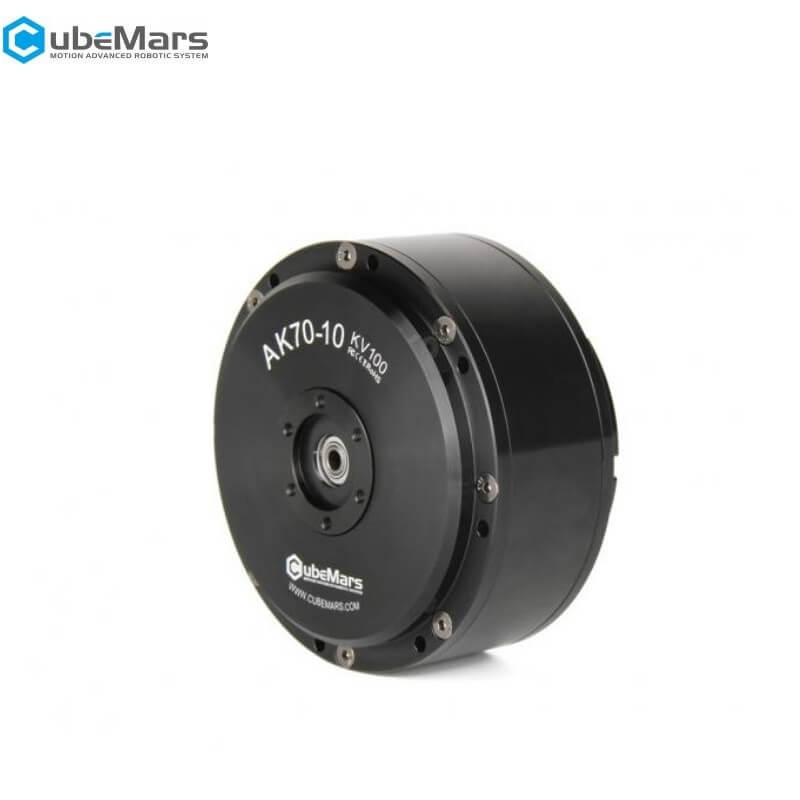

CubeMars AK70-10 Motor
Regular price
$398.90
Unit price
/
Unavailable
CubeMars AK70-10 Motor - AK70-10 KV100 Motor is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
CubeMars AK70-10 Motor
Regular price
From
$398.90
Unit price
/
Unavailable
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Peak torque | 24.8N.m |
| Peak current | 23.2ADC |
| Kv | 100rpm/V |
| Kt | 0.123N.m/A |
| Ke | 11.2V/krpm |
| Phase to Phase resistance | 272mΩ |
| Phase to Phase inductance |
133μH |
| Inertia |
414g.cm² |
| Km | 0.24Nm/√W |
| Mechanical time constant |
0.74ms |
| Electrical time constant |
0.42ms |
| Weight |
521g |
| Maximum torque weight ratio | 47.6N.m/kg |
| CAN connector |
A1257WR-S-4P |
| UART connector | A1257WR-S-3P |
| Power connector | XT30PW-M |
| Inner loop encoder type | Magnetic encoder |
| Inner ring encoder resolution | 14bit |
| Outer ring encoder type | - |
| Outer ring encoder resolution | - |
| Driving way | FOC |
| Operation ambient temperature |
-20℃~50℃ |
| Winding type |
Delta |
| Insulation class |
H |
| Insulation High-voltage | 1000V 5mA/2s |
| Insulation resistance | 1000V10MΩ |
| Phase | Three Phase |
| Pole pairs | 21 |
| Reduction ratio | 10:1 |
| Back drive | 0.48N.m |
| Backlash | 0.12° |
| Temperature sensor | NTC MF51B 103F3950 |
| Noise dB 65CM away the motor | 58 |
| Basic load ratings (dyn. C ) | 2000N |
| Basic load ratings (stat.C0) | 2520N |
| Rated voltage | 24/48V |
| Rated torque | 8.3N.m |
| Rated speed | 158/310rpm |
| Rated current | 7.2ADC |
| Number of encoder | 1 |
