BWSENSING | SKU:

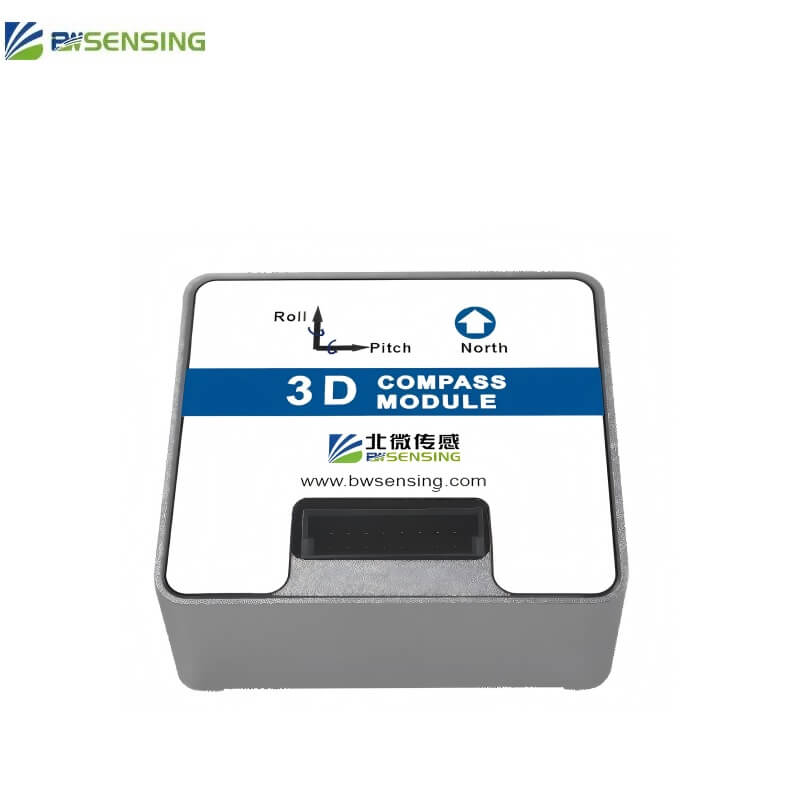

BWSENSING DMC630 Sensor
Regular price
$290.00
Unit price
Unavailable
BWSENSING DMC630 Sensor - DMC630 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
BWSENSING DMC630 Sensor
Regular price
$290.00
Unit price
Unavailable
BWSENSING DMC630 Sensor - DMC630 is backordered and will ship as soon as it is back in stock.
Product Information
Technical Specifications
| Parameter | Value |
|---|---|
| Model | DMC630 |
| Power supply | 5-24V DC |
| Operating current |
40mA (for 9V) |
| Operating temperature | -40°C~+85°C |
| Storage Temperature |
-55°C~+100℃ |
| Output interface |
TTL(RS232/CAN is under upgrade) |
| Measuring range (Azimuth Angle) | 0~360° |
| Accuracy (Azimuth Angle) | ≤1°(RMS) after spatial calibration |
| Resolution (Azimuth Angle) | 0.1° |
| Repeatability (Azimuth Angle) | 0.5°(RMS) |
| Measuring range (Pitch angle) | ±90° |
| Accuracy (Pitch angle) | ≤0.2°(RMS) |
| Resolution (Pitch angle) |
0.05°(RMS)
|
| Repeatability (Pitch angle) | 0.05°(RMS) |
| Measuring range (Roll angle) | ±180° |
| Accuracy (Roll angle) | ≤0.2°(RMS) |
| Resolution (Roll angle) |
0.05°(RMS) |
| Repeatability (Roll angle) |
0.05°(RMS) |
| Accelerometer range |
±4g |
| Gyroscope range |
±500°/s |
| Baud rate |
9600~460800(default 9600) |
|
Calibration
|
16-point calibration |
|
Connector
|
Phoenix Contact (FP 1,27/16-MV 1,75-1714936) |
|
Protection level
|
Not available (does not represent the final product protection level) |
|
Housing Material
|
Magnesium aluminium alloy anodised |
|
Product weight
|
<20g (not filled with glue) |
|
Mounting
|
3pcs M2 copper bolts |
|
Product size
|
L33*W31*H12(mm) |
