Abham | SKU:

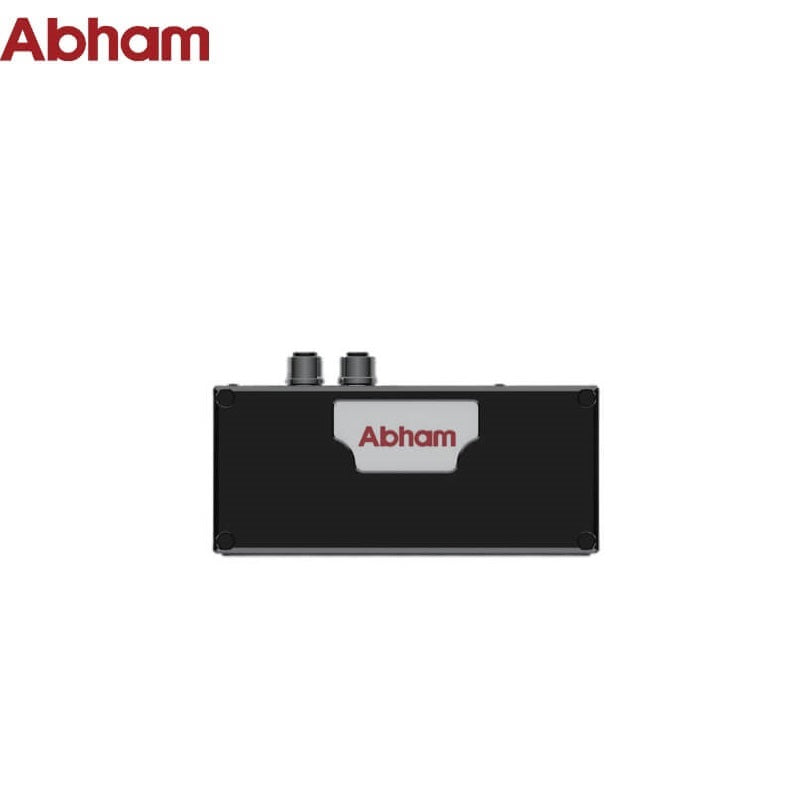

Abham Nano130J Camera
Regular price
$1,700.00
Unit price
/
Unavailable
Abham Nano130J Camera - Nano130J is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
Abham Nano130J Camera
Regular price
$1,700.00
Unit price
/
Unavailable
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Field of View | FOV: 42°×40° (H×V) |
| Near Field | 278mm × 264mm@350mm |
| Far Field | 854mm × 809mm@1100mm |
| XY Resolution | 0.08mm—0.22mm |
| Z-axis Absolute Accuracy | 0.15mm@350mm / 0.26mm@1100mm |
| Working Range | 350mm~1100mm (varies by environment) |
| Point Cloud Resolution | 1280 × 1024 |
| Accuracy | <0.05%@1100mm |
| Point Cloud Frequency | <3 Hz |
| Power Supply Mode | External power supply: 12V—24V/POE Line scan mode/Area scan mode |
| Working Current | 1A |
| Data Interface | GigE |
| Trigger Mode | Soft trigger/Hardware trigger |
| Data Type | Raw image (black & white), Depth, Point cloud |
| Supported OS | Windows / Ubuntu |
| Operating Temperature | Operating: -10℃~70℃, Recommended: 0℃~50℃ |
| Weight | 482g |
| Safety | Laser Class3R |
| Product Dimensions | 139 × 61.5 × 46 mm |
