Description
xApplication Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|

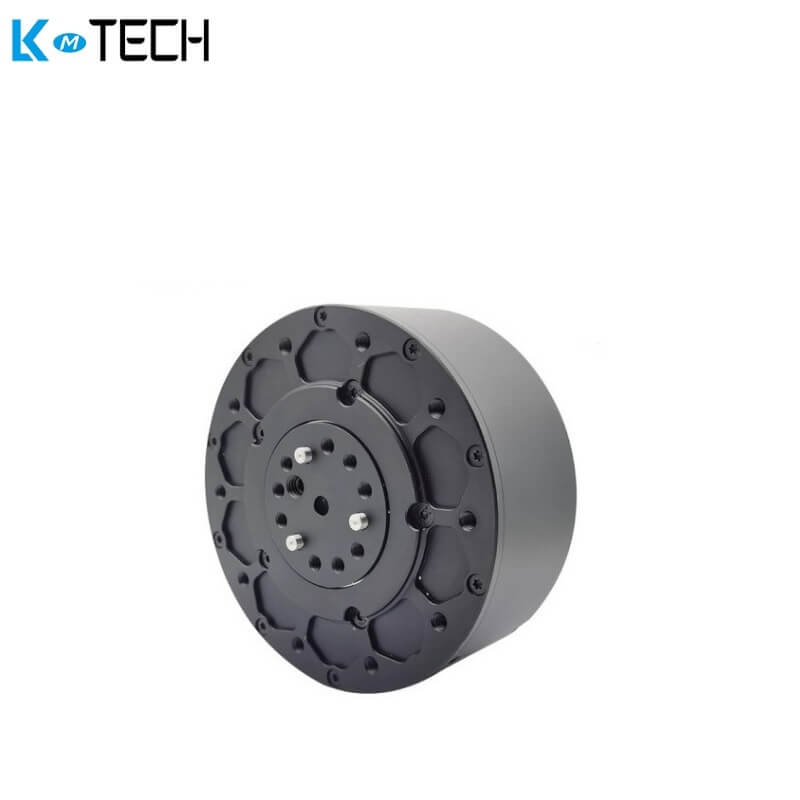

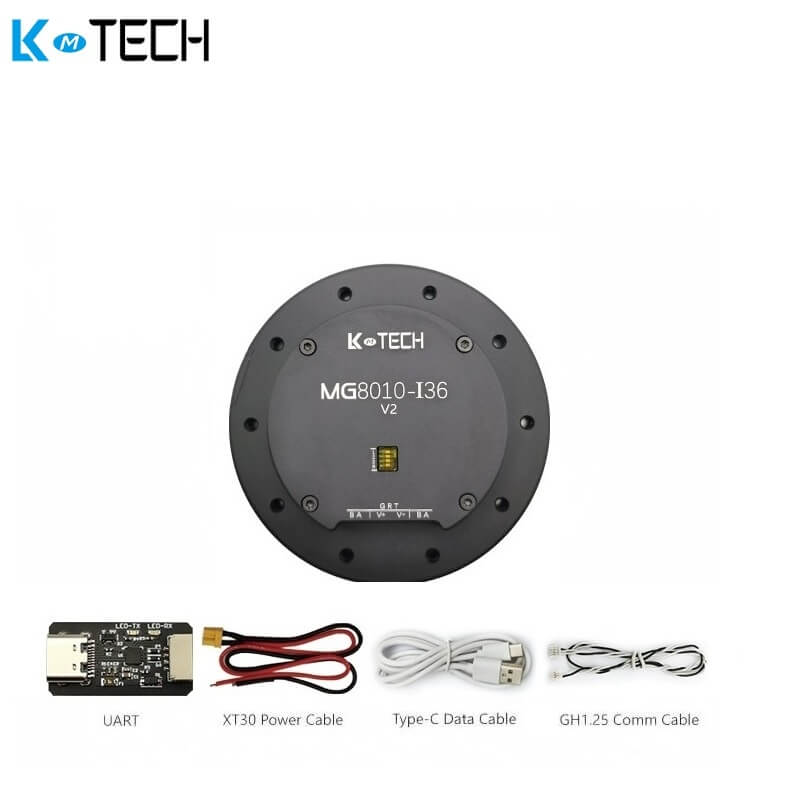

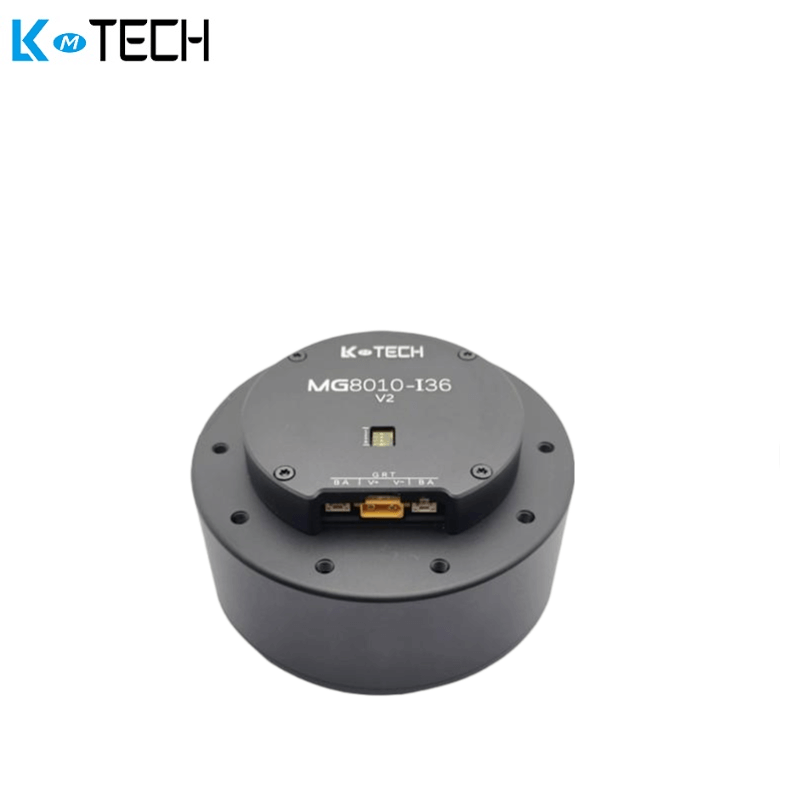

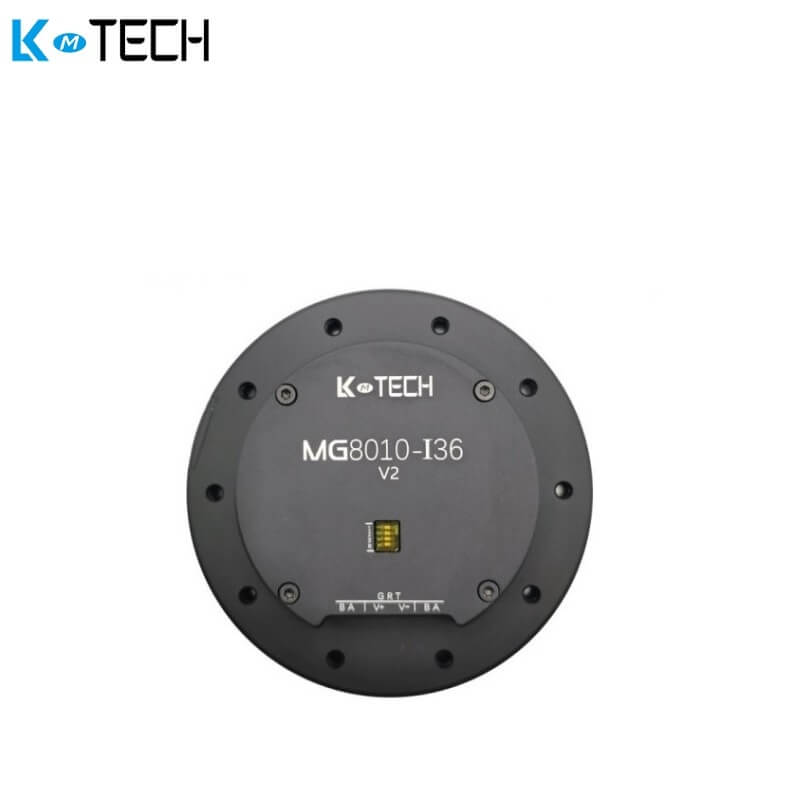

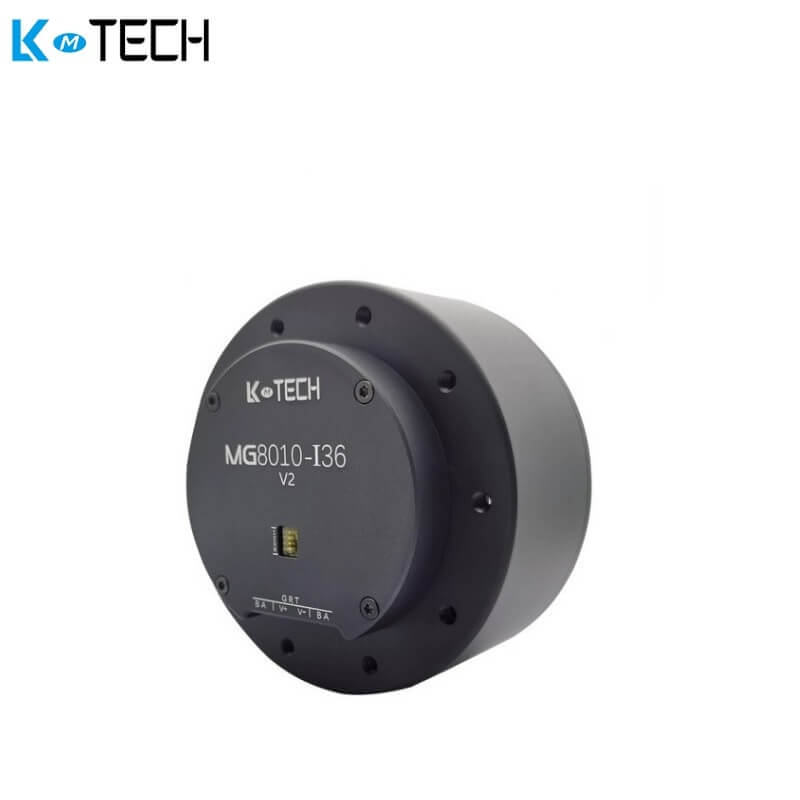

| ltem Name | MG8010-i36v2 |
| Rated Voltage | 48V |
| Max Speed | 80RPM |
| Rated Torque | 35N.m |
| Rated Speed | 68RPM |
| Rated Current |
6.9A |
| Max Power |
800W |
| Max Torque | 45N.m |
| Speed constant | 51rpm/V |
| Torque Constant |
0.15N.m/A |
| Turns | 17 |
| Winding Type | Δ |
| Phase Resistance | 0.27Ω |
| Phase Inductance | 0.23mH |
| Motor Poles | 40 |
| Rotor inertia | 2670gcm² |
| Motor Temperature |
YES |
| Reducer Type | PG5536 |
| Reduction Ratio | 1:36 |
| Backlash | ≤8 arcmin |
| Bearing Rated Load |
1770N |
| Motor Weight | 860g |
| Recommend Drive | DG80v2 |
| Drive input Voltage | 12-60V |
| Communication | RS485 OR CAN |
| Communication Frequency | RS485:500Hz(115200bps)/CAN:2KHz(1Mbps) |
| Encoder | 18bit Magnetic Encoder |
| Encoder Baudrate(RS485) | 9600、19200、57600、115200、230400、406800、、1M、2Mbps |
| Baudrate(CAN) | 1M |
| Control Mode | Torque Loop(32KHz)/Speed Loop(8KHz)/Position Loop(4KHz) |
| Acceleration curve | Trapeziod acceleration |
MG8010-i36v2_INSTALLATION_DRAWING.pdf
