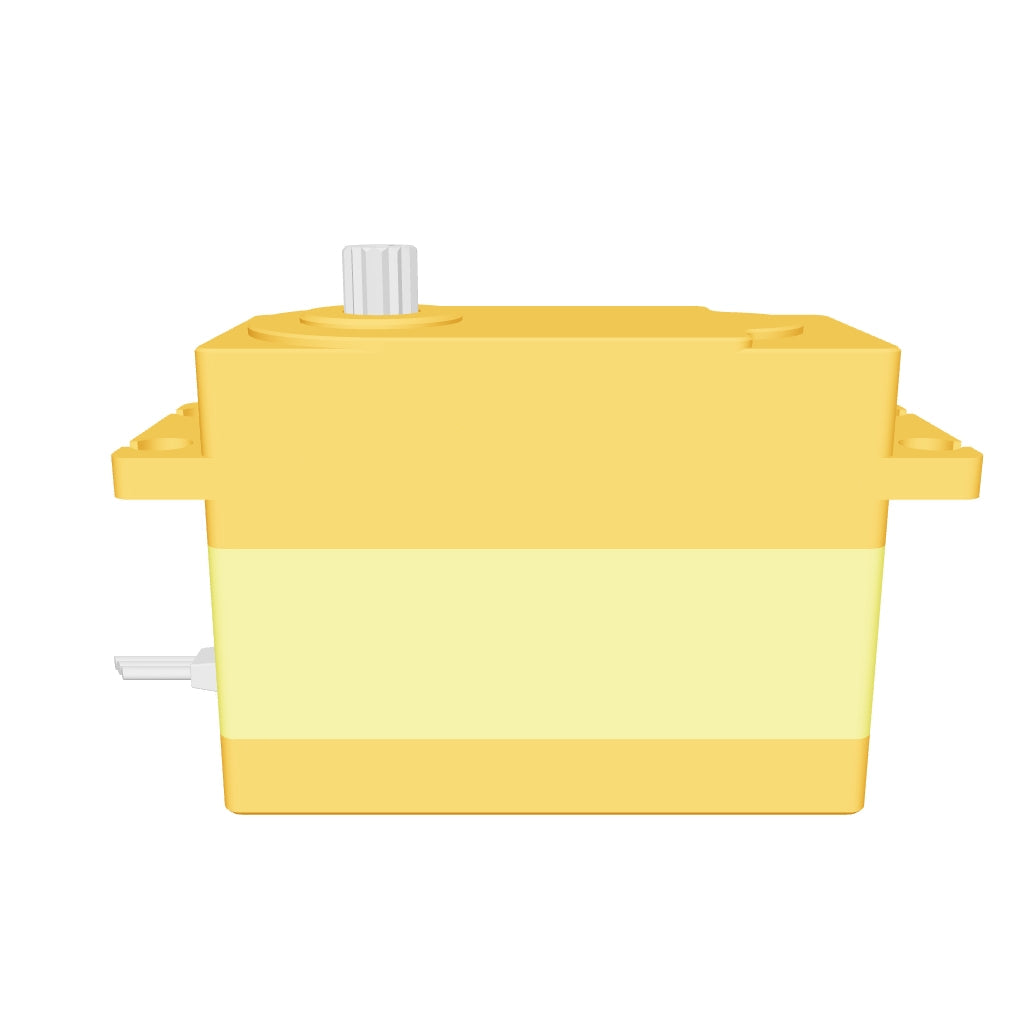

FEETECH FT995M Servo Motor
Regular price
$75.00
Unit price
/
Unavailable
FEETECH FT995M Servo Motor - FT-995M-C001 (7.4V95KG) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
FEETECH FT995M Servo Motor
Regular price
From
$75.00
Unit price
/
Unavailable
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter |
Value |
|---|---|
| Model | FT-995M-C001 |
| Product Name | 7.4V 95KG 180 Degree Servo |
| Storage Temperature Range |
-30℃～80℃ |
| Operating Temperature Range | -20℃～60℃ |
| Size | A：65mm B：30mm C: 48mm |
| Weight | 187.5g± 1g |
| Gear type | Steel |
| Limit angle |
NO limit |
| Bearing |
Ball bearings |
| Horn gear spline | 15T/7.6mm |
| Gear Ratio | 1/399 |
| Case | Aluminum |
| Connector wire | 30±0.5CM |
| Motor |
Core Motor |
| Operating Voltage Range | 6-9V |
| Idle current(at stopped) | 30MA@8.4V |
| No load speed | 0.268sec/60°(40RPM)@7.4V |
| Runnig current(at no load) | 600mA@7.4V |
| Peak stall torque | 95kg.cm@7.4V / 105kg.cm@8.4V |
| Rated torque | 22.5kg.cm@7.4V |
| Stall current | 9.5A@7.4V |
| Command si gnal | Pulse width modulation |
| Control System Type | Digital comparator |
| Pulse width range | 500~2500 μ sec |
| Stop position | 1500 μ sec |
| Running degree | 180±5°(at 500→2500μsec) |
| Dead band width | ≤4 μ sec |
| Rotating direction | Counterclockwise (1500→2500 μ sec) |
