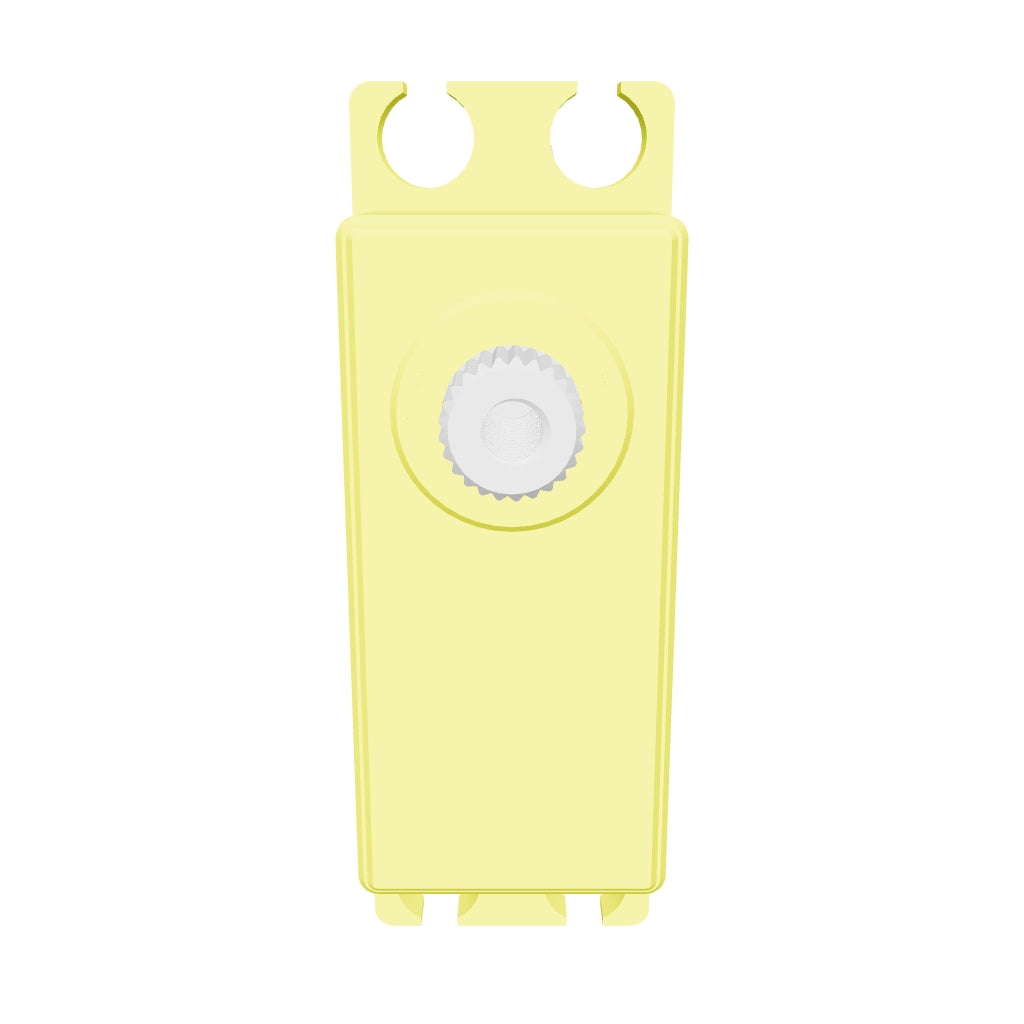

FEETECH FT9015M Servo Motor
Regular price
$45.00
Unit price
FEETECH FT9015M Servo Motor - FT-9015-C001 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
FEETECH FT9015M Servo Motor
Regular price
$45.00
Unit price
FEETECH FT9015M Servo Motor - FT-9015-C001 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Model | FT-9015-C001 |
| Product Name | 7.4V 15kg- -cm Digital Servo |
| Storage Temperature Range |
-30℃～80℃ |
| Operating Temperature Range | -20℃～60℃ |
| Size | A：32mm B：15mm C：29.2mm . |
| Weight | 33.1± 1g |
| Gear type | Metal Gear |
| Limit angle |
NO limit |
| Bearing |
Ball bearings |
| Horn gear spline | 25T/5.95mm |
| The rocker phantom | 0° |
| Case | Alumi num |
| Connector wire | 25CM |
| Motor |
Coreless Motor |
| Operating Voltage Range | 5-8V |
| Idle current(at stopped) | 6mA@7.4V |
| No load speed | 0. 117 sec/ 60°@7.4V |
| Runnig current(at no load) | 180 mA@7.4V |
| Peak stall torque | 15kg.cm@7.4V |
| Rated torque | 3.75kg.cm@7.4V |
| Stall current | 2.1A@7.4V |
| Command si gnal | Pulse width modulation |
| Control System Type | Digital comparator |
| Pulse width range | 500~2500usec |
| Stop position | 500→2500 μsec |
| Running degree | 180° (at 500→2500μsec) |
| Dead band width | ≤4 μsec |
| Rotating direction | Counterclockwise(1500→2000 μsec) |
